ACM26W-ARSDK (2001)
Toyota Ipsum
(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58416C - BRACKET, DECK BOARD, NO.1 RH | ||||
| 58416-44020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 58416-44020C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 58417C - BRACKET, DECK BOARD, NO.1 LH | ||||
| 58417-44010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 58417-44010C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 58703B - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH | ||||
| 64439-44020C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 64439-44020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 58704B - COVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH | ||||
| 64449-44020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64449-44020C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 61653C - BRACKET, DECK SIDE TRIM, RH | ||||
| 61653-44020 |
ACM2# |
1 | ||
| 61654D - BRACKET, DECK SIDE TRIM, NO.2 | ||||
| 61653-44020 |
ACM2# |
1 | ||
| 64427 - LID, LUGGAGE ROOM BOX | ||||
| 64420-44040B0 |
ACM2# MEDIUM GRAY,TRIM1# |
1 | ||
| 64420-44040A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64420-44040B1 |
ACM2# MEDIUM GRAY,TRIM1# |
1 | ||
| 64427C - CLIP(FOR LUGGAGE ROOM BOX LID) | ||||
| 90467-0605222 |
ACM2#..240E,240I,240U BLACK,TRIM0#,1# |
4 | ||
| 64429B - BOX, LUGGAGE ROOM | ||||
| 64429-44070A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64429-44070C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 64711D - CARPET, LUGGAGE COMPARTMENT FLOOR | ||||
| 64711-44020 |
ACM26 |
1 | ||
| 64714C - COVER, DECK SIDE TRIM, RH | ||||
| 64714-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64714-44030B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64715-44030B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-44900A0 |
ACM2#..240E,240I IVORY,TRIM0# |
1 | ||
| 64730-44900B0 |
ACM2#..240E,240I MD.GRAY,TRIM1# |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-44020B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 64735-44020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-44900B0 |
ACM2#..240E,240I MD.GRAY,TRIM1# |
1 | ||
| 64740-44900A0 |
ACM2#..240E,240I IVORY,TRIM0# |
1 | ||
| 64745H - HOLDER, DECK SIDE TRIM CUP, RH | ||||
| 64745-44030B0 |
ACM2#..240E,240I,240U MD.GRAY,TRIM1# |
1 | ||
| 64745-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64746F - HOLDER, DECK SIDE TRIM CUP, LH | ||||
| 64746-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64746-44030B0 |
ACM2#..240E,240I,240U MD.GRAY,TRIM1# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-06017A1 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 90467-06017B6 |
ACM2# MD.GRAY,TRIM1# |
4 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-06017A1 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 90467-06017B6 |
ACM2# MD.GRAY,TRIM1# |
4 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-06017A1 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 90467-06017B6 |
ACM2# MD.GRAY,TRIM1# |
4 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-06017A1 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 90467-06017B6 |
ACM2# MD.GRAY,TRIM1# |
4 | ||
| 64766 - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64766-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64766-44030B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 64768E - STOPPER, QUARTER TRIM LID | ||||
| 64768-44020 |
ACM2# |
1 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-44040B0 |
ACM2#..07S MD.GRAY,TRIM1# |
1 | ||
| 64910-44040A0 |
ACM2#..07S..(240E,240I,240U) IVORY,TRIM0# |
1 | ||
| 64931B - HANGER, TONNEAU COVER, RH | ||||
| 64931-44020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64931-44020B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 64932B - HANGER, TONNEAU COVER, LH | ||||
| 64932-44020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64932-44020B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 64935 - HOLDER, TONNEAU COVER, RH | ||||
| 64935-44050A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64935-44050B0 |
ACM2#..240E,240I,240U MD.GRAY,TRIM1# |
1 | ||
| 64936 - HOLDER, TONNEAU COVER, LH | ||||
| 64936-44020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 64936-44020B0 |
ACM2#..240E,240I,240U MD.GRAY,TRIM1# |
1 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-44010B2 |
ACM2#..240E,240I,240U MD.GRAY,TRIM1# |
2 | ||
| 64937-44010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 64937A - CAP, TONNEAU COVER HOLDER, NO.1 | ||||
| 64937-44010B2 |
ACM2#..240E,240I,240U MD.GRAY,TRIM1# |
2 | ||
| 64937-44010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 64938 - HOOK, TONNEAU COVER, A | ||||
| 64938-44020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 64938-44020B0 |
ACM2# MD.GRAY,TRIM1# |
2 | ||
| 66311 - HOOK, ROPE | ||||
| 66310-31010B2 |
ACM2# MD.GRAY,TRIM1# |
2 | ||
| 66310-31010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 66311 - HOOK, ROPE | ||||
| 66310-31010B2 |
ACM2# MD.GRAY,TRIM1# |
2 | ||
| 66310-31010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 90159-60559 | ||||
| 90467-06073 | ||||
| 90467-10161 | ||||
| 91511-G0622 | ||||
| 91553-80620 | ||||
| 93210-56020 | ||||
| 93568-54512 | ||||

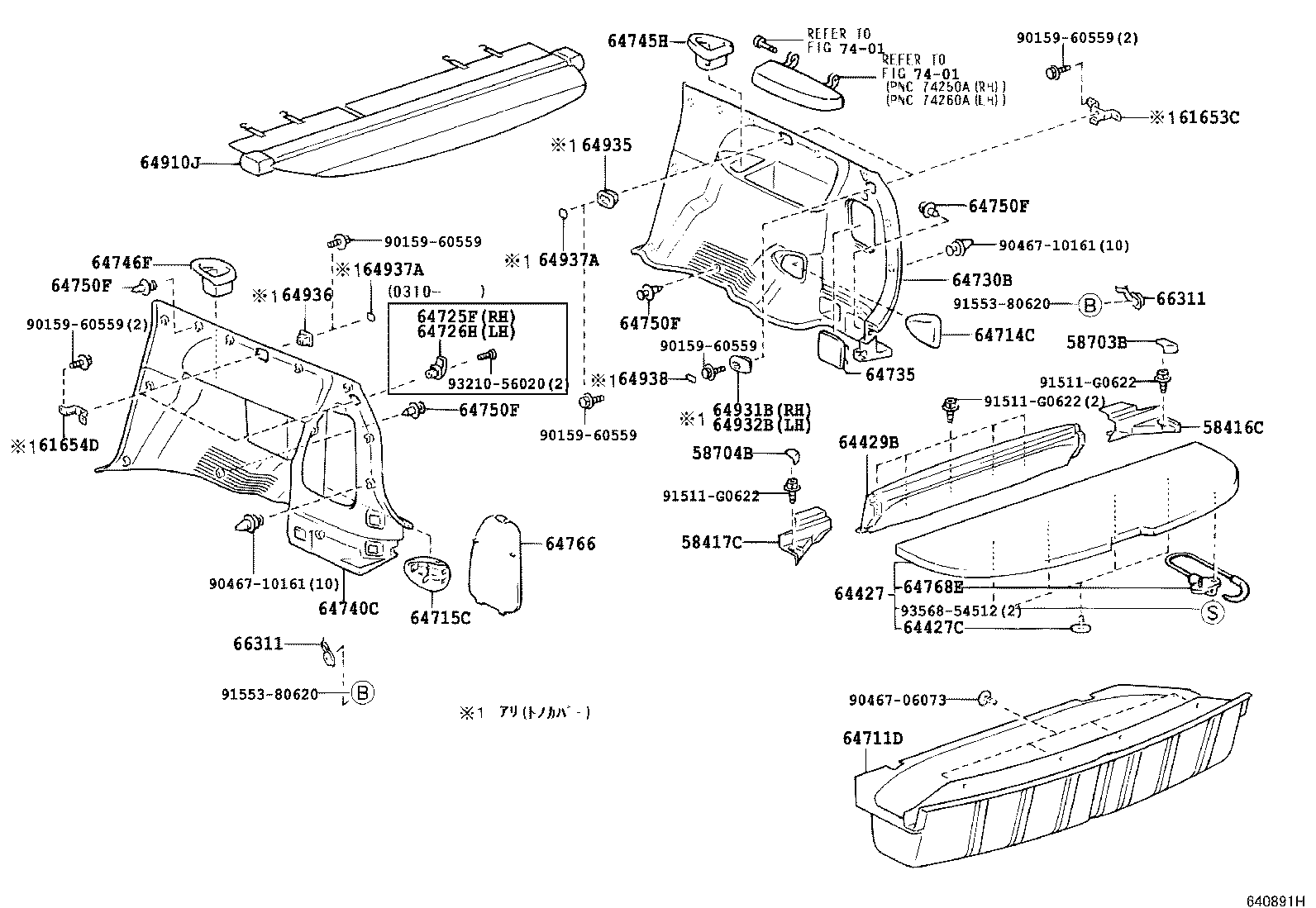

| Linked diagrams | ||||
| 7401 | ||||
