ACM26W-ARSDK (2001)
Toyota Ipsum
Production
May 2001
-
Oct 2003
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

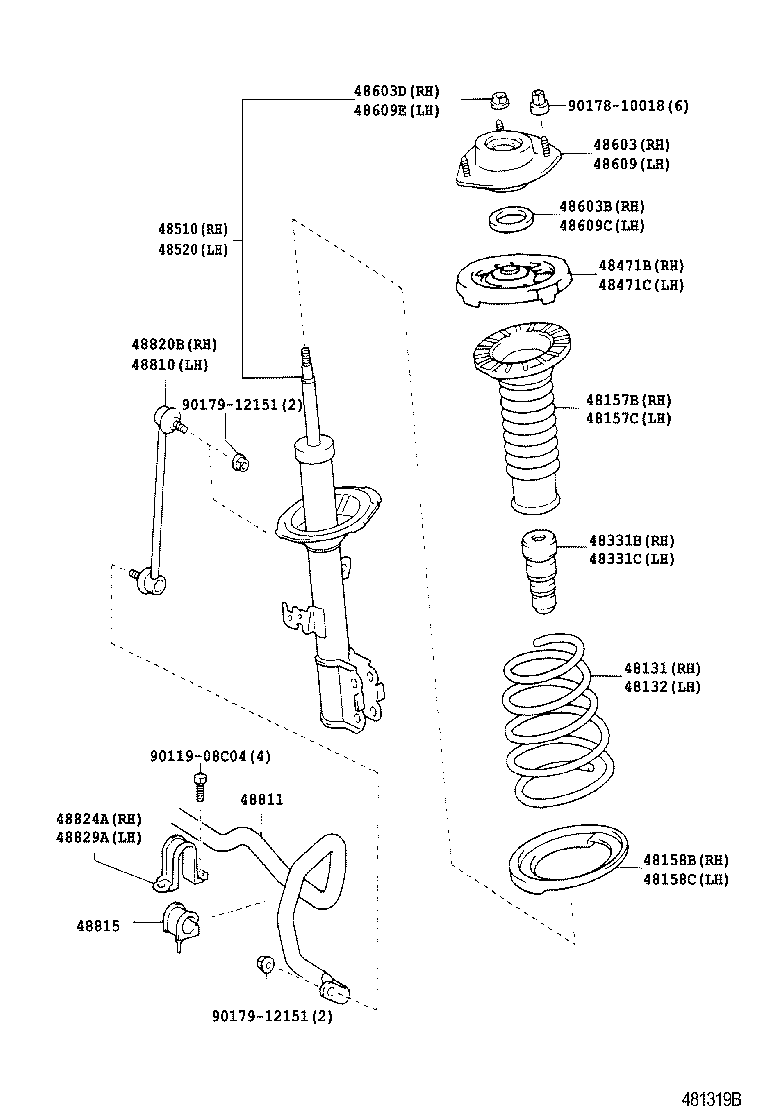

(0105-0310)240E,240I ; (0310- )240I,240S
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-44110 |
ACM26 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-44110 |
ACM26 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-32050 |
ACM2# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-32050 |
ACM2# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-47010 |
ACM2# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-47010 |
ACM2# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-44030 |
ACM2# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-44030 |
ACM2# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-32050 |
ACM2# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-32050 |
ACM2# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-49335 |
ACM26..240E,240I |
1 | ||
| 48510-49295 |
ACM2#..240E,240I ｱﾘ(TEMS) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-49405 |
ACM2#..240E,240I ｱﾘ(TEMS) |
1 | ||
| 48520-49445 |
ACM26..240E,240I |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-44040 |
ACM2# |
1 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63014 |
ACM2# |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
ACM2# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-44040 |
ACM2# |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63014 |
ACM2# |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
ACM2# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-47010 |
ACM26 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-44060 |
ACM26 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-44030 |
ACM26 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-47010 |
ACM26 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-44040 |
ACM2# |
1 | ||
| 48824-44041 |
ACM2# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-44040 |
ACM2# |
1 | ||
| 48824-44041 |
ACM2# |
1 | ||
| Common parts | ||||
| 90119-08C04 | ||||
| 90178-10018 | ||||
| 90179-12151 | ||||

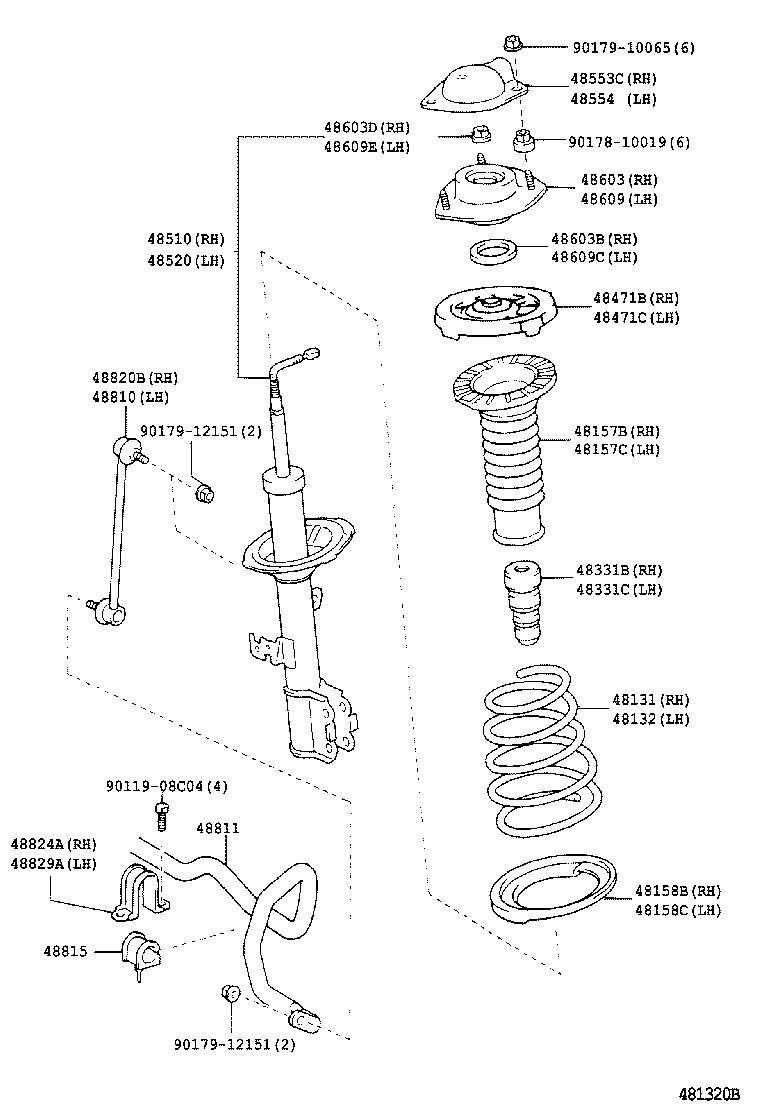

(0105-0112) ; (0112-0310)240S,240U ; (0310- )240U
Click highlighted areas on diagram
ｱﾘ(TEMS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-44110 |
ACM26 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-44110 |
ACM26 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-32050 |
ACM2# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-32050 |
ACM2# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-47010 |
ACM2# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-47010 |
ACM2# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-44030 |
ACM2# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-44030 |
ACM2# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-32050 |
ACM2# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-32050 |
ACM2# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-49335 |
ACM26..240E,240I |
1 | ||
| 48510-49295 |
ACM2#..240E,240I ｱﾘ(TEMS) |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-49405 |
ACM2#..240E,240I ｱﾘ(TEMS) |
1 | ||
| 48520-49445 |
ACM26..240E,240I |
1 | ||
| 48553C - CAP, FRONT SHOCK ABSORBER, RH | ||||
| 48553-44020 |
ACM2# |
1 | ||
| 48554 - CAP, FRONT SHOCK ABSORBER, LH | ||||
| 48554-44010 |
ACM2# |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-44040 |
ACM2# |
1 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63014 |
ACM2# |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-14015 |
ACM2# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-44040 |
ACM2# |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63014 |
ACM2# |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-14015 |
ACM2# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-47010 |
ACM26 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-44060 |
ACM26 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-44030 |
ACM26 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-47010 |
ACM26 |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-44040 |
ACM2# |
1 | ||
| 48824-44041 |
ACM2# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-44040 |
ACM2# |
1 | ||
| 48824-44041 |
ACM2# |
1 | ||
| Common parts | ||||
| 90119-08C04 | ||||
| 90178-10019 | ||||
| 90179-10065 | ||||
| 90179-12151 | ||||
