ACM26W-ARSDK (2001)

Toyota Ipsum

Production May 2001 - Oct 2003
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

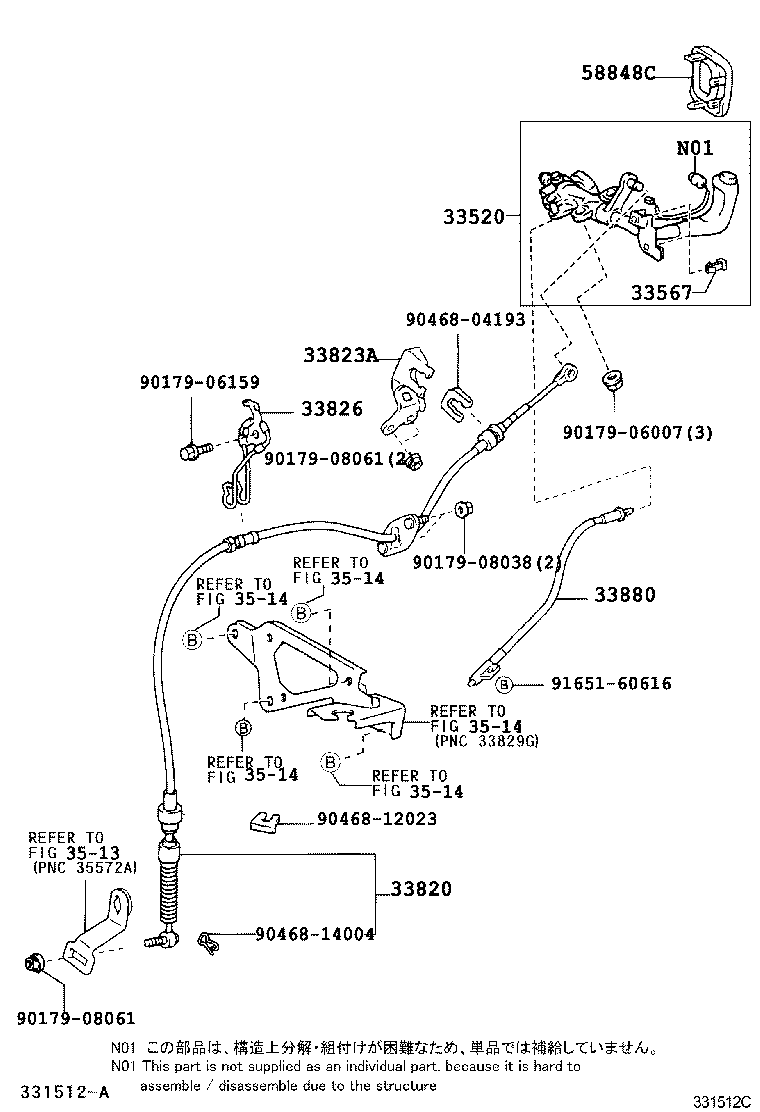

Click highlighted areas on diagram

diagram 33520 33567 33820 33823A 33826 33880 3513 3514 3514 3514 3514 3514 58848C 9017906007 9017906159 9017908038 9017908061 9017908061 9046804193 9046812023 9046814004 9165160616
Part # Description Qty Price
33520 - SHAFT ASSY, CONTROL
33520-44070C0

ACM2#

BLACK,TRIM1#

 1
33520-44070E0

ACM2#..240E,240I,240U

ORCHID BROWN,TRIM0#

 1
33820 - CABLE ASSY, TRANSMISSION CONTROL (FOR COLUMN SHIFT)
33820-44160

ACM2#

 1
33823A - BRACKET, TRANSMISSION CONTROL CABLE
33823-44070

ACM2#

 1
33826 - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-44080

ACM2#

 1
33880 - CABLE ASSY, PARKING LOCK (FOR COLUMN SHIFT)
33880-28051

ACM2#

 1
58848C - COVER, SHIFT LEVER HOLE
58848-44010A0

ACM2#..240E,240I,240U

IVORY,TRIM0#

 1
58848-44010B0

ACM2#

MD.GRAY,TRIM1#

 1
Common parts
90179-06007
90179-06159
90179-08038
90179-08061
90468-04193
90468-12023
90468-14004
91651-60616
Linked diagrams
3513
3514
