ACM26W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

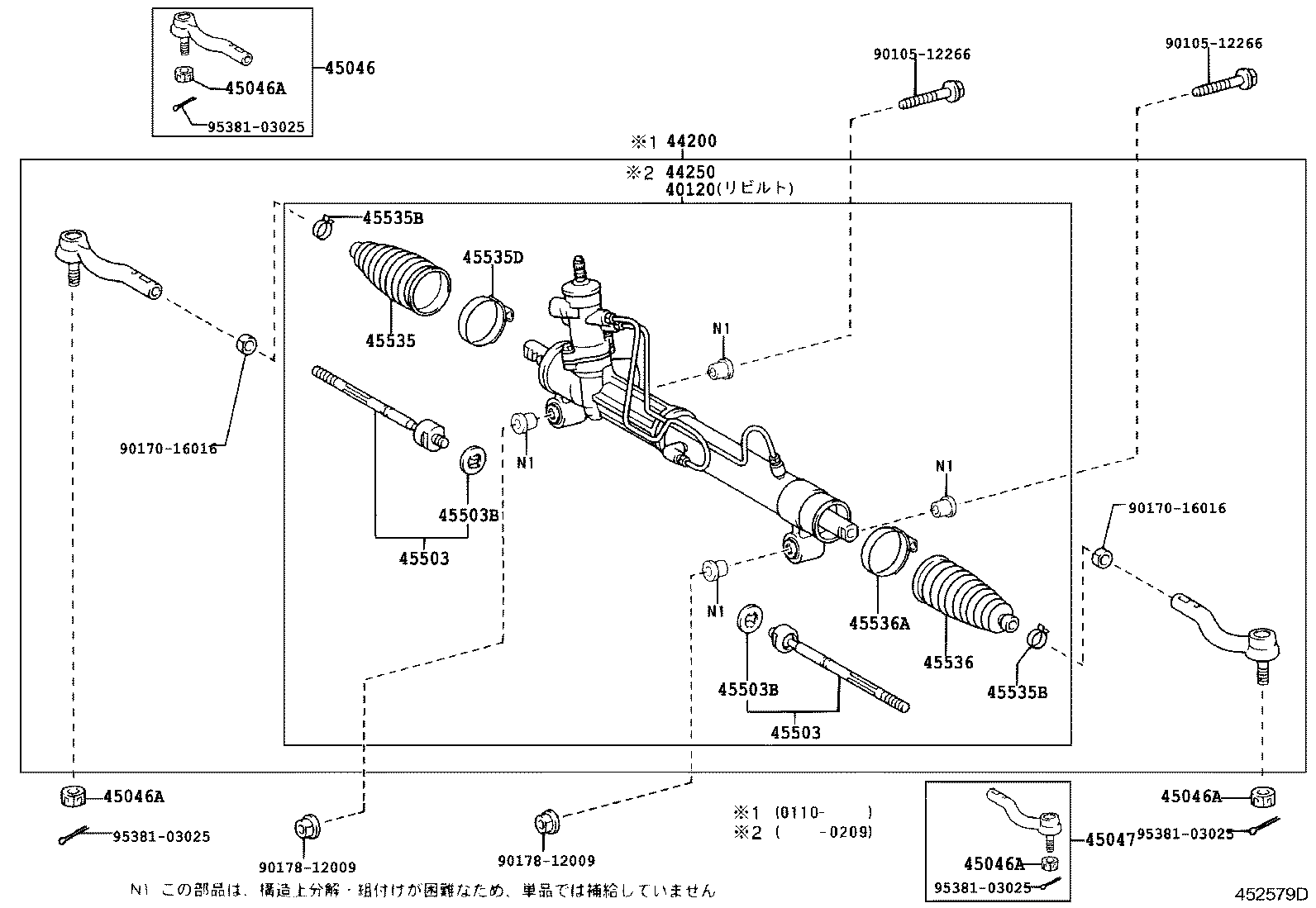

ILLUST NO. 1 OF 2(0105- )ACM26

Click highlighted areas on diagram

diagram 40120 44200 44250 45046 45046A 45046A 45046A 45046A 45047 45503 45503 45503B 45503B 45535 45535B 45535B 45535D 45536 45536A 9010512266 9010512266 9017016016 9017016016 9017812009 9017812009 9538103025 9538103025 9538103025 9538103025
Part # Description Qty Price
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-44161

ACM26

TOYODA KOKI

 1
40120-44160

ACM26

ｱﾘ(VSC),TOYODA KOKI

 1
40120-44180

ACM26..240I,240U

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ) & ｱﾘ(VSC),TOYODA KOKI

 1
40120-44230

ACM26..240I,240U

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ),TOYODA KOKI

 1
40120-44181

ACM26..240I,240U

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ),TOYODA KOKI

 1
40120-44210

ACM26

TOYODA KOKI

 1
44200 - LINK ASSY, POWER STEERING
44200-44260

ACM26..06S

 1
44200-44181

ACM26..240I,240U

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)

 1
44200-44280

ACM26..240I,240U

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)

 1
44200-44161

ACM26

 1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-44161

ACM26

 1
44250-44160

ACM26

ｱﾘ(VSC)

 1
44250-44180

ACM26..240I,240U

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ) & ｱﾘ(VSC)

 1
44250-44181

ACM26..240I,240U

ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ)

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-49125

ACM26

 1
45046-49125

ACM26

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ACM2#..06S

 2
90171-12028

ACM2#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ACM2#..06S

 2
90171-12028

ACM2#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ACM2#..06S

 2
90171-12028

ACM2#

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ACM2#..06S

 2
90171-12028

ACM2#

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-49055

ACM26

 1
45047-49055

ACM26

 1
45503 - END SUB-ASSY, STEERING RACK
45503-49115

ACM26

 2
45503-49115

ACM26

 2
45503 - END SUB-ASSY, STEERING RACK
45503-49115

ACM26

 2
45503-49115

ACM26

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

ACM2#

外径=38

 2
90214-14007

ACM2#..06S

外径=38

 2
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007

ACM2#

外径=38

 2
90214-14007

ACM2#..06S

外径=38

 2
45535 - BOOT, STEERING RACK, NO.1
45535-44010

ACM2#..06S

 1
45535-44010

ACM2#

 1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ACM2#..06S

 2
90467-19021

ACM2#

 2
90467-19018

ACM2#

 2
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19021

ACM2#..06S

 2
90467-19021

ACM2#

 2
90467-19018

ACM2#

 2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-55016

ACM2#..06S

 1
90460-55016

ACM2#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-44010

ACM2#

 1
45535-44010

ACM2#..06S

 1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-55016

ACM2#..06S

 1
90460-55016

ACM2#

 1
Common parts
90105-12266
90170-16016
90178-12009
95381-03025

ILLUST NO. 2 OF 2(0105- )

Click highlighted areas on diagram

diagram 04445A 04455
Part # Description Qty Price
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-44010

ACM2#

 1
04445-44010

ACM2#

 1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-44010

ACM2#

 1
04455-44010

ACM2#

 1
