ACM26W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )ACM26

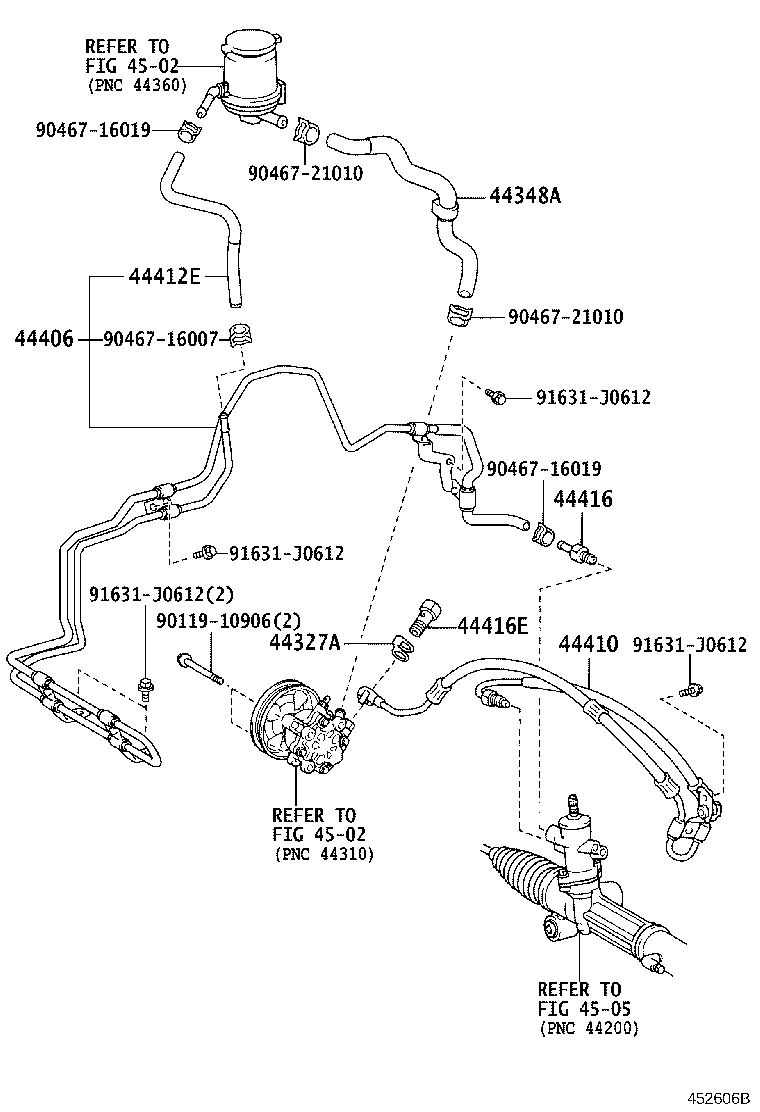

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410 44412E 44416 44416E 4502 4502 4505 9011910906 9046716007 9046716019 9046716019 9046721010 9046721010 91631J0612 91631J0612 91631J0612 91631J0612
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

ACM2#

 1
44327-30030

ACM2#..06S

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-44070

ACM2#..06S

 1
44348-44070

ACM2#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-44140

ACM26

 1
44406-44211

ACM26..06S

 1
44406-44210

ACM26

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-44140

ACM26

 1
44410-44140

ACM26..06S

 1
44412E - HOSE, RETURN, NO.2
44412-44120

ACM26

 1
44412-44170

ACM26..06S

 1
44412-44170

ACM26

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-44010

ACM2#..06S

 1
44416-44010

ACM2#

 1
44416-26080

ACM2#

 1
44416E - BOLT, UNION(FOR RETURN TUBE)
96341-41603

ACM2#

 1
96341-41603

ACM2#..06S

 1
Common parts
90119-10906
90467-16007
90467-16019
90467-21010
91631-J0612
Linked diagrams
4502
4505
