ACM26W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0105- )

Click highlighted areas on diagram

ﾚﾌﾄ

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-28052

ACM2#

 1
04438-28051

ACM2#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-28040

ACM2#

 1
04438-28041

ACM2#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28030

ACM26

 1
41336-28030

ACM26..06S

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28020

ACM26

 1
43040-28021

ACM26..06S

 1
43040-28021

ACM26

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ACM2#

 1
43425-28010

ACM2#..06S

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-44060

ACM26..06S

 1
43420-44060

ACM26

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ACM2#

 1
90521-33002

ACM2#..06S

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50023

ACM26

 1
90311-50023

ACM26

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-20040

ACM2#

 1
42345-20040

ACM2#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-28020

ACM2#

 1
42345-28020

ACM2#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01559

ACM2#

 1
90949-01559

ACM2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42345-42010

ACM2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
42345-42010

ACM2#..06S

TYPE A:ｲﾗｽﾄ参照

 1
90949-01559

ACM2#..06S

TYPE B:ｲﾗｽﾄ参照

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01076

ACM2#

 1
42345-12160

ACM2#

 1
42345-12160

ACM2#..06S

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-49216

ACM26

 1
43470-49215

ACM26

 1
43474 - DAMPER, DRIVE SHAFT
43474-44010

ACM2#

 1
43474-44010

ACM2#..06S

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

ACM2#..06S

 1
42345-14010

ACM2#

 1

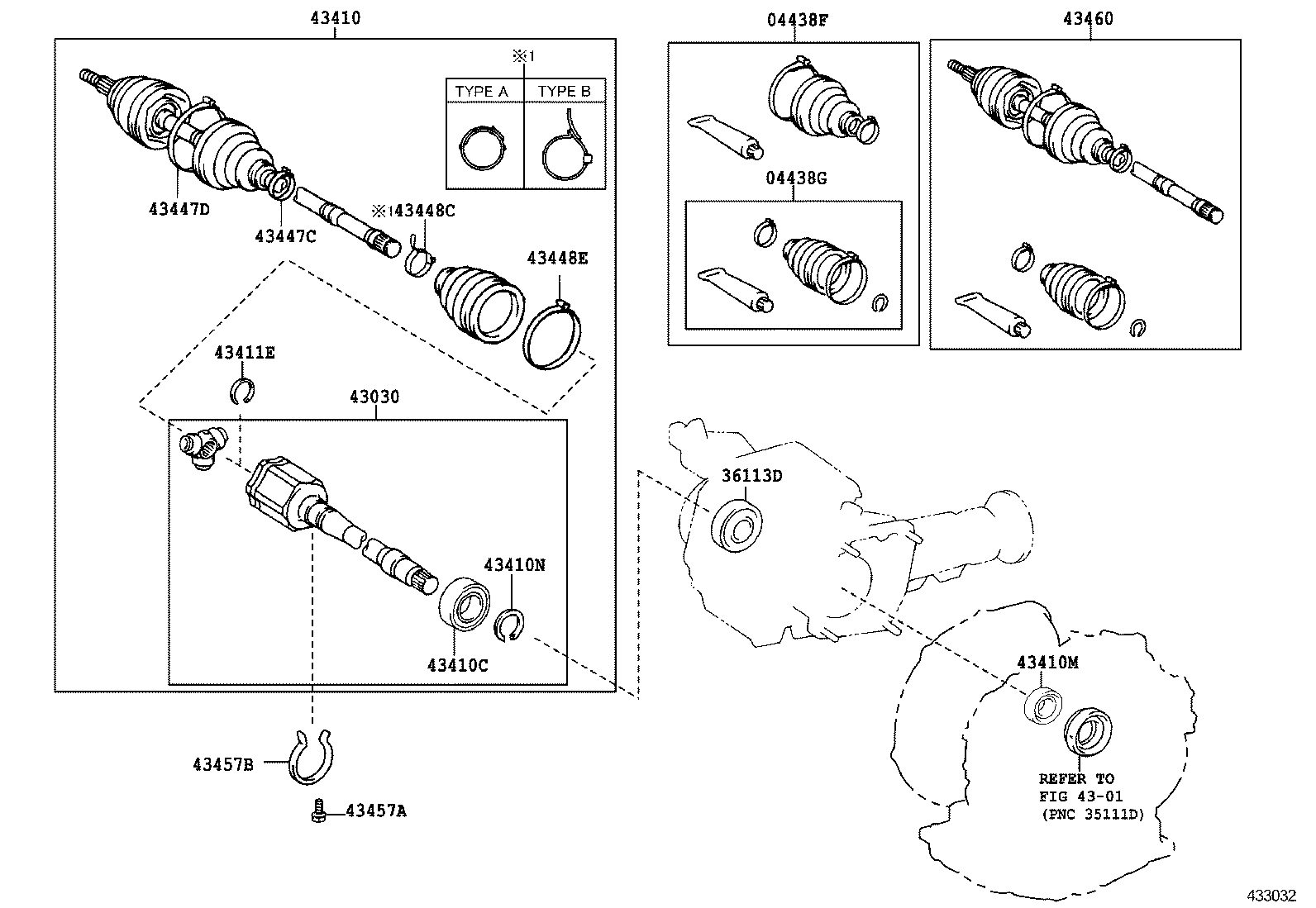

ILLUST NO. 1 OF 2(0105- )ACM26

Click highlighted areas on diagram

ﾗｲﾄ

diagram 04438F 04438G 36113D 4301 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43457A 43457B 43460
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-28052

ACM2#

 1
04438-28051

ACM2#

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-28041

ACM2#

 1
04438-28040

ACM2#

 1
04438-42180

ACM26..06S

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-36006

ACM26

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-28021

ACM26..06S

 1
43030-28021

ACM26

 1
43030-28020

ACM26

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-44050

ACM26..06S

 1
43410-44050

ACM26

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

ACM26

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-34001

ACM26

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

ACM26

 1
90520-33008

ACM26..06S

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ACM2#..06S

 1
43425-28010

ACM2#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-20040

ACM2#

 1
42345-20040

ACM2#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-28020

ACM2#

 1
42345-28020

ACM2#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-42010

ACM2#..06S

TYPE A:ｲﾗｽﾄ参照

 1
90949-01559

ACM2#

 1
42345-42010

ACM2#

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90949-01559

ACM2#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
90949-01559

ACM2#..06S

TYPE B:ｲﾗｽﾄ参照

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ACM2#

 1
90949-01076

ACM2#

 1
42345-12160

ACM2#..06S

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90901-19060

ACM26..06S

*10−1.25PX28.5−14.8

 1
90901-19060

ACM26

*10−1.25PX28.5−14.8

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

ACM26..06S

 1
90521-75002

ACM26

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-49135

ACM26

 1
43460-49136

ACM26

 1
43460-49136

ACM26

 1
