ACM26W-ANSGK (2001)
Toyota Ipsum
(0105- )ACM26

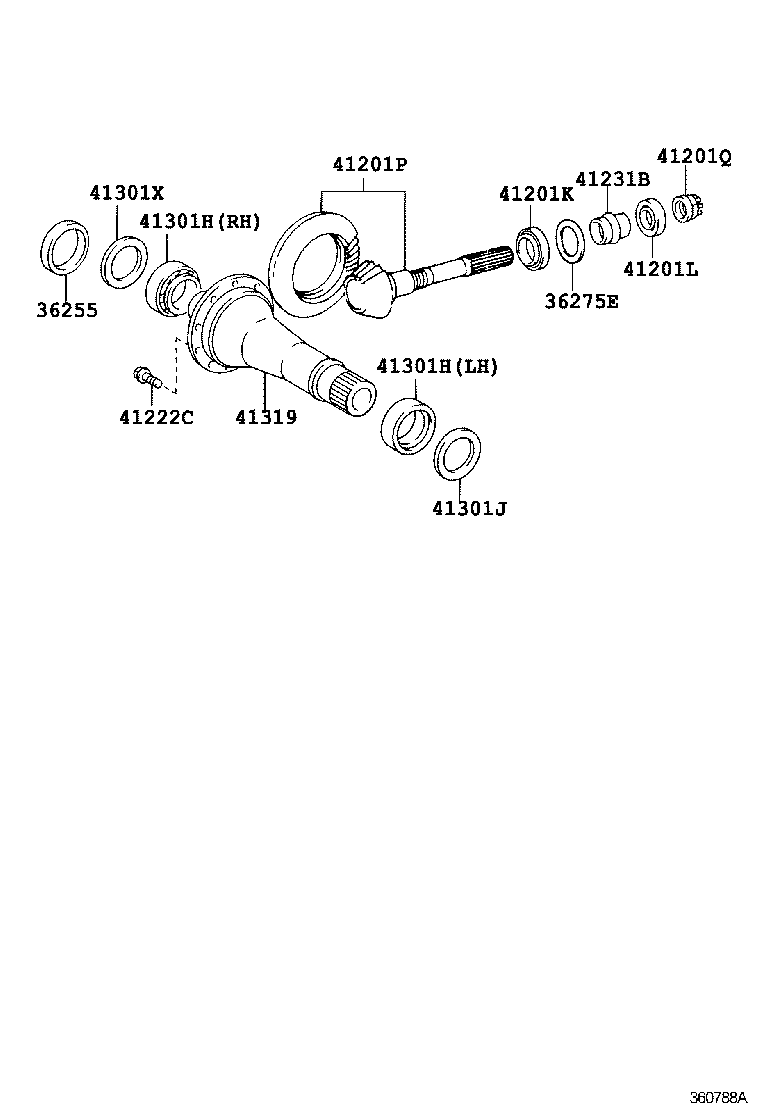

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-33010 |
ACM26 |
1 | ||
| 36255-33010 |
ACM26 |
1 | ||
| 36275E - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-33050 |
ACM26 厚さ=2.14,ﾏｰｸ BB |
1 | ||
| 36275-33010 |
ACM26 厚さ=2.10,ﾏｰｸ AA |
1 | ||
| 36275-33030 |
ACM26 厚さ=2.12,ﾏｰｸ AC |
1 | ||
| 36275-33090 |
ACM26 厚さ=2.18,ﾏｰｸ CC |
1 | ||
| 36275-33290 |
ACM26 厚さ=2.38,ﾏｰｸ KB |
1 | ||
| 36275-33070 |
ACM26 厚さ=2.16,ﾏｰｸ CA |
1 | ||
| 36275-33230 |
ACM26 厚さ=2.32,ﾏｰｸ HB |
1 | ||
| 36275-33130 |
ACM26 厚さ=2.22,ﾏｰｸ EA |
1 | ||
| 36275-33150 |
ACM26 厚さ=2.24,ﾏｰｸ EC |
1 | ||
| 36275-33190 |
ACM26 厚さ=2.28,ﾏｰｸ GA |
1 | ||
| 36275-33210 |
ACM26 厚さ=2.30,ﾏｰｸ GC |
1 | ||
| 36275-33170 |
ACM26 厚さ=2.26,ﾏｰｸ FB |
1 | ||
| 36275-33110 |
ACM26 厚さ=2.20,ﾏｰｸ DB |
1 | ||
| 36275-33410 |
ACM26 厚さ=2.50,ﾏｰｸ PB |
1 | ||
| 36275-33310 |
ACM26 厚さ=2.40,ﾏｰｸ LA |
1 | ||
| 36275-33370 |
ACM26 厚さ=2.46,ﾏｰｸ NA |
1 | ||
| 36275-33350 |
ACM26 厚さ=2.44,ﾏｰｸ MB |
1 | ||
| 36275-33270 |
ACM26 厚さ=2.36,ﾏｰｸ JC |
1 | ||
| 36275-33050 |
ACM26 厚さ=2.14,ﾏｰｸ BB |
1 | ||
| 36275-33330 |
ACM26 厚さ=2.42,ﾏｰｸ LC |
1 | ||
| 36275-33030 |
ACM26 厚さ=2.12,ﾏｰｸ AC |
1 | ||
| 36275-33430 |
ACM26 厚さ=2.52,ﾏｰｸ QA |
1 | ||
| 36275-33090 |
ACM26 厚さ=2.18,ﾏｰｸ CC |
1 | ||
| 36275-33190 |
ACM26 厚さ=2.28,ﾏｰｸ GA |
1 | ||
| 36275-33250 |
ACM26 厚さ=2.34,ﾏｰｸ JA |
1 | ||
| 36275-33390 |
ACM26 厚さ=2.48,ﾏｰｸ NC |
1 | ||
| 36275-33070 |
ACM26 厚さ=2.16,ﾏｰｸ CA |
1 | ||
| 36275-33170 |
ACM26 厚さ=2.26,ﾏｰｸ FB |
1 | ||
| 36275-33150 |
ACM26 厚さ=2.24,ﾏｰｸ EC |
1 | ||
| 36275-33450 |
ACM26 厚さ=2.54,ﾏｰｸ QC |
1 | ||
| 36275-33390 |
ACM26 厚さ=2.48,ﾏｰｸ NC |
1 | ||
| 36275-33130 |
ACM26 厚さ=2.22,ﾏｰｸ EA |
1 | ||
| 36275-33250 |
ACM26 厚さ=2.34,ﾏｰｸ JA |
1 | ||
| 36275-33310 |
ACM26 厚さ=2.40,ﾏｰｸ LA |
1 | ||
| 36275-33450 |
ACM26 厚さ=2.54,ﾏｰｸ QC |
1 | ||
| 36275-33110 |
ACM26 厚さ=2.20,ﾏｰｸ DB |
1 | ||
| 36275-33230 |
ACM26 厚さ=2.32,ﾏｰｸ HB |
1 | ||
| 36275-33270 |
ACM26 厚さ=2.36,ﾏｰｸ JC |
1 | ||
| 36275-33350 |
ACM26 厚さ=2.44,ﾏｰｸ MB |
1 | ||
| 36275-33410 |
ACM26 厚さ=2.50,ﾏｰｸ PB |
1 | ||
| 36275-33010 |
ACM26 厚さ=2.10,ﾏｰｸ AA |
1 | ||
| 36275-33430 |
ACM26 厚さ=2.52,ﾏｰｸ QA |
1 | ||
| 36275-33370 |
ACM26 厚さ=2.46,ﾏｰｸ NA |
1 | ||
| 36275-33210 |
ACM26 厚さ=2.30,ﾏｰｸ GC |
1 | ||
| 36275-33290 |
ACM26 厚さ=2.38,ﾏｰｸ KB |
1 | ||
| 36275-33330 |
ACM26 厚さ=2.42,ﾏｰｸ LC |
1 | ||
| 41201K - BEARING (FOR TRANSFER DRIVEN PINION FRONT) | ||||
| 90366-35099 |
ACM26 |
1 | ||
| 41201L - BEARING (FOR TRANSFER DRIVEN PINION REAR) | ||||
| 90366-30047 |
ACM26 |
1 | ||
| 41201P - GEAR KIT, TRANSFER | ||||
| 41201-33010 |
ACM26 |
1 | ||
| 41201Q - NUT (FOR TRANSFER GEAR) | ||||
| 90177-30001 |
ACM26 |
1 | ||
| 90177-30001 |
ACM26 |
1 | ||
| 41222C - BOLT (FOR TRANSFER RING GEAR) | ||||
| 90105-11034 |
ACM26 |
10 | ||
| 90105-11034 |
ACM26 |
10 | ||
| 41231B - SPACER, TRANSFER PINION BEARING | ||||
| 41231-33020 |
ACM26 |
1 | ||
| 41301H - BEARING(FOR RING GEAR MOUNTING CASE) | ||||
| 90366-45019 |
ACM26 右側 |
1 | ||
| 90366-45022 |
ACM26 左側 |
1 | ||
| 41301H - BEARING(FOR RING GEAR MOUNTING CASE) | ||||
| 90366-45019 |
ACM26 右側 |
1 | ||
| 90366-45022 |
ACM26 左側 |
1 | ||
| 41301J - WASHER, PLATE(FOR RING GEAR MOUNTING CASE) | ||||
| 36265-33040 |
ACM26 厚さ=2.14,ﾏｰｸ 03 |
1 | ||
| 36265-33050 |
ACM26 厚さ=2.17,ﾏｰｸ 04 |
1 | ||
| 36265-33090 |
ACM26 厚さ=2.29,ﾏｰｸ 08 |
1 | ||
| 36265-33080 |
ACM26 厚さ=2.26,ﾏｰｸ 07 |
1 | ||
| 36265-33020 |
ACM26 厚さ=2.08,ﾏｰｸ 01 |
1 | ||
| 36265-33160 |
ACM26 厚さ=2.50,ﾏｰｸ 15 |
1 | ||
| 36265-33060 |
ACM26 厚さ=2.20,ﾏｰｸ 05 |
1 | ||
| 36265-33110 |
ACM26 厚さ=2.35,ﾏｰｸ 10 |
1 | ||
| 36265-33140 |
ACM26 厚さ=2.44,ﾏｰｸ 13 |
1 | ||
| 36265-33170 |
ACM26 厚さ=2.53,ﾏｰｸ 16 |
1 | ||
| 36265-33070 |
ACM26 厚さ=2.23,ﾏｰｸ 06 |
1 | ||
| 36265-33030 |
ACM26 厚さ=2.11,ﾏｰｸ 02 |
1 | ||
| 36265-33010 |
ACM26 厚さ=2.05,ﾏｰｸ 00 |
1 | ||
| 36265-33190 |
ACM26 厚さ=2.59,ﾏｰｸ 18 |
1 | ||
| 36265-33130 |
ACM26 厚さ=2.41,ﾏｰｸ 12 |
1 | ||
| 36265-33100 |
ACM26 厚さ=2.32,ﾏｰｸ 09 |
1 | ||
| 36265-33150 |
ACM26 厚さ=2.47,ﾏｰｸ 14 |
1 | ||
| 36265-33120 |
ACM26 厚さ=2.38,ﾏｰｸ 11 |
1 | ||
| 36265-33220 |
ACM26 厚さ=2.68,ﾏｰｸ 21 |
1 | ||
| 36265-33250 |
ACM26 厚さ=2.77,ﾏｰｸ 24 |
1 | ||
| 36265-33300 |
ACM26 厚さ=2.92,ﾏｰｸ 29 |
1 | ||
| 36265-33320 |
ACM26 厚さ=2.98,ﾏｰｸ 31 |
1 | ||
| 36265-33180 |
ACM26 厚さ=2.56,ﾏｰｸ 17 |
1 | ||
| 36265-33350 |
ACM26 厚さ=3.07,ﾏｰｸ 34 |
1 | ||
| 36265-33340 |
ACM26 厚さ=3.04,ﾏｰｸ 33 |
1 | ||
| 36265-33260 |
ACM26 厚さ=2.80,ﾏｰｸ 25 |
1 | ||
| 36265-33230 |
ACM26 厚さ=2.71,ﾏｰｸ 22 |
1 | ||
| 36265-33290 |
ACM26 厚さ=2.89,ﾏｰｸ 28 |
1 | ||
| 36265-33280 |
ACM26 厚さ=2.86,ﾏｰｸ 27 |
1 | ||
| 36265-33270 |
ACM26 厚さ=2.83,ﾏｰｸ 26 |
1 | ||
| 36265-33210 |
ACM26 厚さ=2.65,ﾏｰｸ 20 |
1 | ||
| 36265-33240 |
ACM26 厚さ=2.74,ﾏｰｸ 23 |
1 | ||
| 36265-33330 |
ACM26 厚さ=3.01,ﾏｰｸ 32 |
1 | ||
| 36265-33310 |
ACM26 厚さ=2.95,ﾏｰｸ 30 |
1 | ||
| 36265-33200 |
ACM26 厚さ=2.62,ﾏｰｸ 19 |
1 | ||
| 41301X - WASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2 | ||||
| 36266-33010 |
ACM26 厚さ=2.47,ﾏｰｸ A0 |
1 | ||
| 36266-33060 |
ACM26 厚さ=2.62,ﾏｰｸ A5 |
1 | ||
| 36266-33140 |
ACM26 厚さ=2.86,ﾏｰｸ B3 |
1 | ||
| 36266-33070 |
ACM26 厚さ=2.65,ﾏｰｸ A6 |
1 | ||
| 36266-33020 |
ACM26 厚さ=2.50,ﾏｰｸ A1 |
1 | ||
| 36266-33110 |
ACM26 厚さ=2.77,ﾏｰｸ B0 |
1 | ||
| 36266-33090 |
ACM26 厚さ=2.71,ﾏｰｸ A8 |
1 | ||
| 36266-33030 |
ACM26 厚さ=2.53,ﾏｰｸ A2 |
1 | ||
| 36266-33120 |
ACM26 厚さ=2.80,ﾏｰｸ B1 |
1 | ||
| 36266-33080 |
ACM26 厚さ=2.68,ﾏｰｸ A7 |
1 | ||
| 36266-33040 |
ACM26 厚さ=2.56,ﾏｰｸ A3 |
1 | ||
| 36266-33130 |
ACM26 厚さ=2.83,ﾏｰｸ B2 |
1 | ||
| 36266-33150 |
ACM26 厚さ=2.89,ﾏｰｸ B4 |
1 | ||
| 36266-33190 |
ACM26 厚さ=3.01,ﾏｰｸ B8 |
1 | ||
| 36266-33170 |
ACM26 厚さ=2.95,ﾏｰｸ B6 |
1 | ||
| 36266-33230 |
ACM26 厚さ=3.13,ﾏｰｸ C2 |
1 | ||
| 36266-33100 |
ACM26 厚さ=2.74,ﾏｰｸ A9 |
1 | ||
| 36266-33050 |
ACM26 厚さ=2.59,ﾏｰｸ A4 |
1 | ||
| 36266-33280 |
ACM26 厚さ=3.28,ﾏｰｸ C7 |
1 | ||
| 36266-33310 |
ACM26 厚さ=3.37,ﾏｰｸ D0 |
1 | ||
| 36266-33290 |
ACM26 厚さ=3.31,ﾏｰｸ C8 |
1 | ||
| 36266-33260 |
ACM26 厚さ=3.22,ﾏｰｸ C5 |
1 | ||
| 36266-33160 |
ACM26 厚さ=2,92,ﾏｰｸ B5 |
1 | ||
| 36266-33250 |
ACM26 厚さ=3.19,ﾏｰｸ C4 |
1 | ||
| 36266-33240 |
ACM26 厚さ=3.16,ﾏｰｸ C3 |
1 | ||
| 36266-33350 |
ACM26 厚さ=3.49,ﾏｰｸ D4 |
1 | ||
| 36266-33220 |
ACM26 厚さ=3.10,ﾏｰｸ C1 |
1 | ||
| 36266-33340 |
ACM26 厚さ=3.46,ﾏｰｸ D3 |
1 | ||
| 36266-33330 |
ACM26 厚さ=3.43,ﾏｰｸ D2 |
1 | ||
| 36266-33270 |
ACM26 厚さ=3.25,ﾏｰｸ C6 |
1 | ||
| 36266-33320 |
ACM26 厚さ=3.40,ﾏｰｸ D1 |
1 | ||
| 36266-33300 |
ACM26 厚さ=3.34,ﾏｰｸ C9 |
1 | ||
| 36266-33180 |
ACM26 厚さ=2.98,ﾏｰｸ B7 |
1 | ||
| 36266-33380 |
ACM26 厚さ=3.58,ﾏｰｸ D7 |
1 | ||
| 36266-33210 |
ACM26 厚さ=3.07,ﾏｰｸ C0 |
1 | ||
| 36266-33430 |
ACM26 厚さ=3.73,ﾏｰｸ E2 |
1 | ||
| 36266-33360 |
ACM26 厚さ=3.52,ﾏｰｸ D5 |
1 | ||
| 36266-33200 |
ACM26 厚さ=3.04,ﾏｰｸ B9 |
1 | ||
| 36266-33410 |
ACM26 厚さ=3.67,ﾏｰｸ E0 |
1 | ||
| 36266-33390 |
ACM26 厚さ=3.61,ﾏｰｸ D8 |
1 | ||
| 36266-33440 |
ACM26 厚さ=3.76,ﾏｰｸ E3 |
1 | ||
| 36266-33420 |
ACM26 厚さ=3.70,ﾏｰｸ E1 |
1 | ||
| 36266-33370 |
ACM26 厚さ=3.55,ﾏｰｸ D6 |
1 | ||
| 36266-33460 |
ACM26 厚さ=3.82,ﾏｰｸ E5 |
1 | ||
| 36266-33400 |
ACM26 厚さ=3.64,ﾏｰｸ D9 |
1 | ||
| 36266-33450 |
ACM26 厚さ=3.79,ﾏｰｸ E4 |
1 | ||
| 41319 - CASE, TRANSFER RING GEAR MOUNTING | ||||
| 41319-33010 |
ACM26 |
1 | ||
