ACM26W-ANSGK (2001)
Toyota Ipsum
(0105- )ACM26

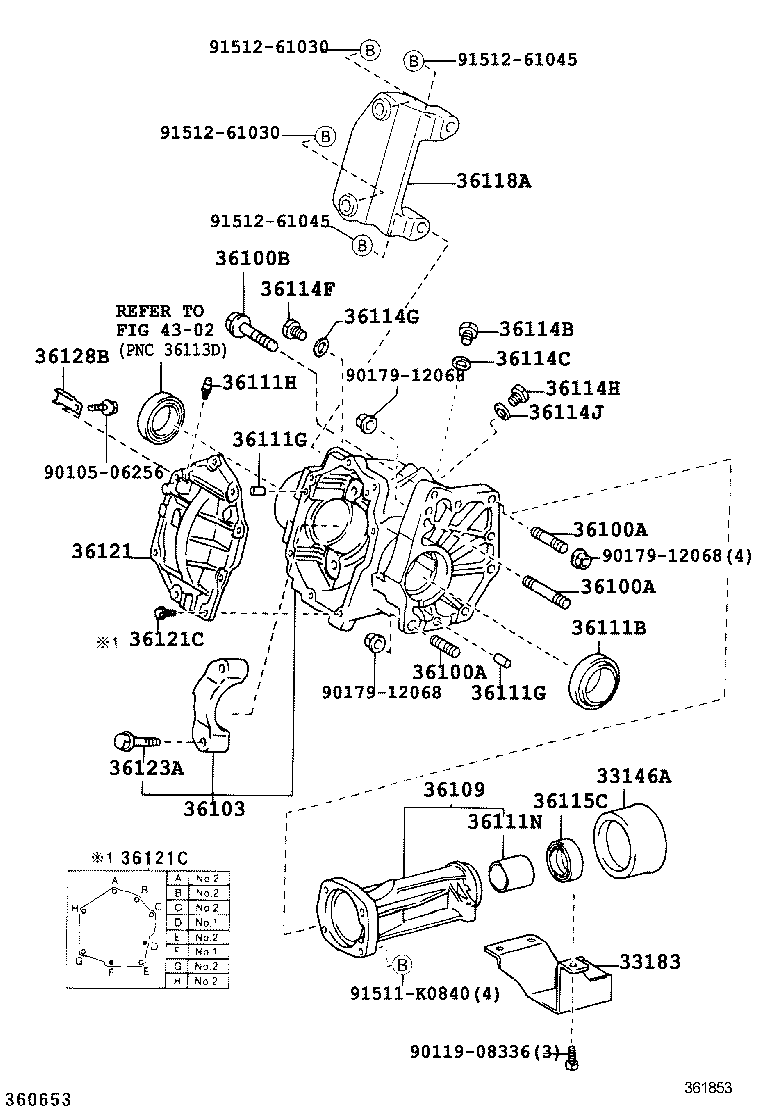

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-30020 |
ACM26 |
1 | ||
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-21030 |
ACM26..06S |
1 | ||
| 33183-21030 |
ACM26 |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12034 |
ACM26 ﾈｼﾞ部長さ=19 & 19,長さ=47 |
1 | ||
| 90116-12028 |
ACM26 ﾈｼﾞ部長さ=22 & 22,長さ=69 |
1 | ||
| 90116-12041 |
ACM26 ﾈｼﾞ部長さ=30 & 22,長さ=64 |
4 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12034 |
ACM26 ﾈｼﾞ部長さ=19 & 19,長さ=47 |
1 | ||
| 90116-12028 |
ACM26 ﾈｼﾞ部長さ=22 & 22,長さ=69 |
1 | ||
| 90116-12041 |
ACM26 ﾈｼﾞ部長さ=30 & 22,長さ=64 |
4 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12034 |
ACM26 ﾈｼﾞ部長さ=19 & 19,長さ=47 |
1 | ||
| 90116-12028 |
ACM26 ﾈｼﾞ部長さ=22 & 22,長さ=69 |
1 | ||
| 90116-12041 |
ACM26 ﾈｼﾞ部長さ=30 & 22,長さ=64 |
4 | ||
| 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90105-12298 |
ACM26 *12−1.25PX53−35 |
2 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-44010 |
ACM26 |
1 | ||
| 36103-44010 |
ACM26 |
1 | ||
| 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION | ||||
| 36109-33010 |
ACM26 |
1 | ||
| 36109-33010 |
ACM26 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-55002 |
ACM26 |
1 | ||
| 90311-55002 |
ACM26 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-08030 |
ACM26 長さ=16,外径=8 |
2 | ||
| 90250-08046 |
ACM26 長さ=16,外径=8 |
2 | ||
| 90250-08030 |
ACM26 長さ=16,外径=8 |
2 | ||
| 90250-10017 |
ACM26 長さ=20,外径=10 |
2 | ||
| 90250-10017 |
ACM26 長さ=20,外径=10 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-08030 |
ACM26 長さ=16,外径=8 |
2 | ||
| 90250-08046 |
ACM26 長さ=16,外径=8 |
2 | ||
| 90250-08030 |
ACM26 長さ=16,外径=8 |
2 | ||
| 90250-10017 |
ACM26 長さ=20,外径=10 |
2 | ||
| 90250-10017 |
ACM26 長さ=20,外径=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03133 |
ACM26 |
1 | ||
| 90930-03133 |
ACM26 |
1 | ||
| 36111N - BUSH (FOR TRANSFER CASE) | ||||
| 90999-73105 |
ACM26 |
1 | ||
| 90999-73105 |
ACM26 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18055 |
ACM26 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
ACM26 |
1 | ||
| 12157-10010 |
ACM26 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
ACM26 |
1 | ||
| 90341-18057 |
ACM26 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 12157-10010 |
ACM26 |
1 | ||
| 12157-10010 |
ACM26 |
1 | ||
| 36114H - PLUG, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
ACM26 |
1 | ||
| 90341-18006 |
ACM26 |
1 | ||
| 36114J - GASKET, NO.2 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
ACM26 |
1 | ||
| 12157-10010 |
ACM26 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38062 |
ACM26 |
1 | ||
| 90311-38090 |
ACM26 |
1 | ||
| 90311-38062 |
ACM26 |
1 | ||
| 36118A - PLATE, TRANSFER STIFFENER, RH | ||||
| 36118-44010 |
ACM26 |
1 | ||
| 36118-42011 |
ACM26 |
1 | ||
| 36118-42011 |
ACM26..06S |
1 | ||
| 36121 - COVER, TRANSFER CASE, NO.1 | ||||
| 36121-28010 |
ACM26 |
1 | ||
| 36121-28010 |
ACM26 |
1 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 90105-08351 |
ACM26 NO.1 |
2 | ||
| 91511-J0820 |
ACM26 NO.2 |
6 | ||
| 91511-60820 |
ACM26 NO.2 |
6 | ||
| 36123A - BOLT, DIFFERENTIAL BEARING CAP | ||||
| 41114-16010 |
ACM26 |
2 | ||
| 41114-16010 |
ACM26 |
2 | ||
| 36128B - DEFLECTOR, BREATHER OIL | ||||
| 36128-28010 |
ACM26 |
1 | ||
| 36128-28010 |
ACM26 |
1 | ||
| Common parts | ||||
| 90105-06256 | ||||
| 90119-08336 | ||||
| 90179-12068 | ||||
| 91511-K0840 | ||||
| 91512-61030 | ||||
| 91512-61045 | ||||
| Linked diagrams | ||||
| 4302 | ||||
