ACM21W-ARSEK (2001)

Toyota Ipsum

Production May 2001 - Dec 2009
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

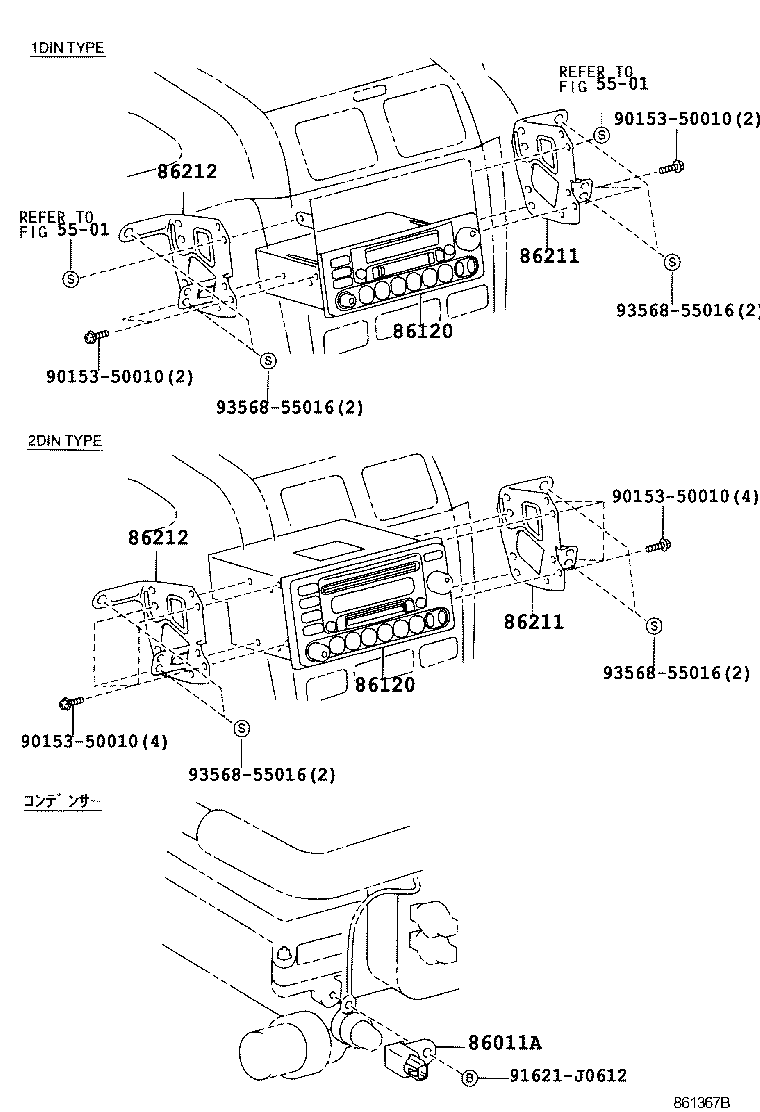

ILLUST NO. 1 OF 2(0105- )

Click highlighted areas on diagram

diagram 5501 5501 86011A 86120 86120 86211 86211 86212 86212 9015350010 9015350010 9015350010 9015350010 91621J0612 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-05314

ACM2#..07S

 1
90980-05314

ACM2#

 1

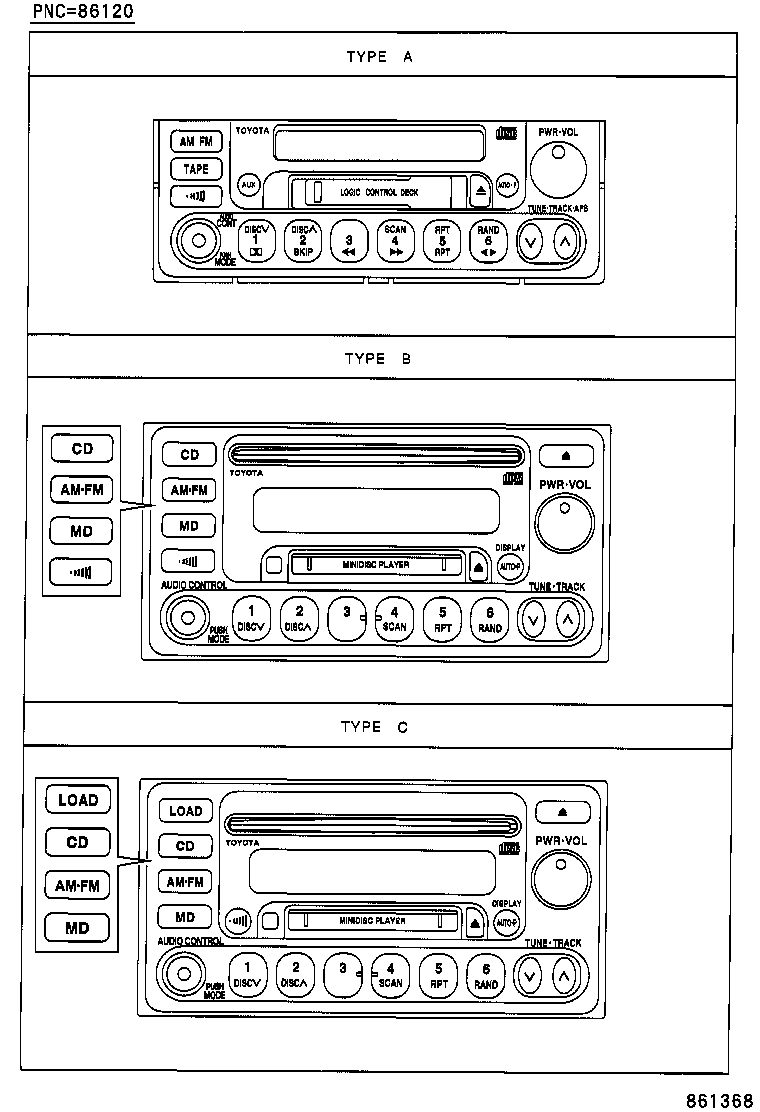

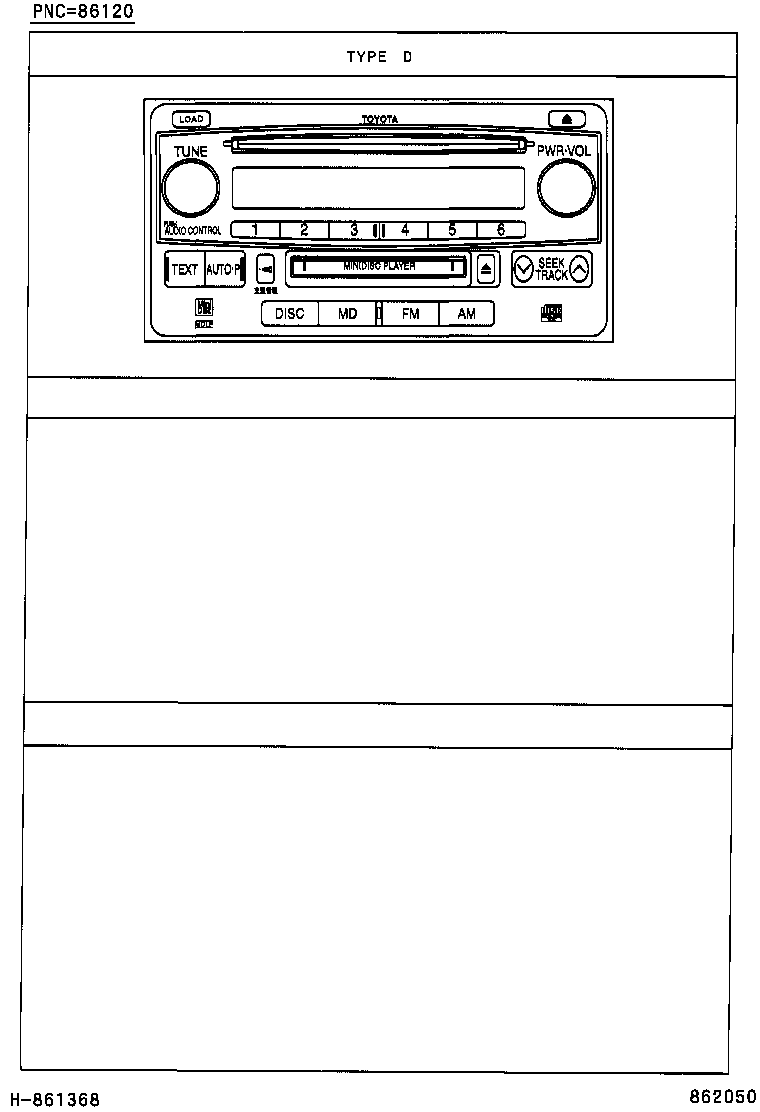

86120 - RECEIVER ASSY, RADIO
86120-44110

ACM2#..240I,240S,240U

MATSUSHITA,ID=50310,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-26110

ACM2#..240I,240U

FUJITSU TEN,ID=15422,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-44120

ACM2#..240I,240S,240U

MATSUSHITA,ID=50311,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120 - RECEIVER ASSY, RADIO
86120-44110

ACM2#..240I,240S,240U

MATSUSHITA,ID=50310,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-26110

ACM2#..240I,240U

FUJITSU TEN,ID=15422,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86120-44120

ACM2#..240I,240S,240U

MATSUSHITA,ID=50311,TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ

 1
86211 - BRACKET, RADIO, NO.1
86211-44050

ACM2#

 1
86211-44050

ACM2#

 1
86211 - BRACKET, RADIO, NO.1
86211-44050

ACM2#

 1
86211-44050

ACM2#

 1
86212 - BRACKET, RADIO, NO.2
86212-44050

ACM2#

 1
86212-44050

ACM2#

 1
86212 - BRACKET, RADIO, NO.2
86212-44050

ACM2#

 1
86212-44050

ACM2#

 1
Common parts
90153-50010
91621-J0612
93568-55016
Linked diagrams
5501

ILLUST NO. 2 OF 2(0105-0310)

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 2(0310- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price
