Toyota Ipsum ACM21 METER - JDM Part Detective

ACM21W-ANSSK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007

Engine 2AZFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

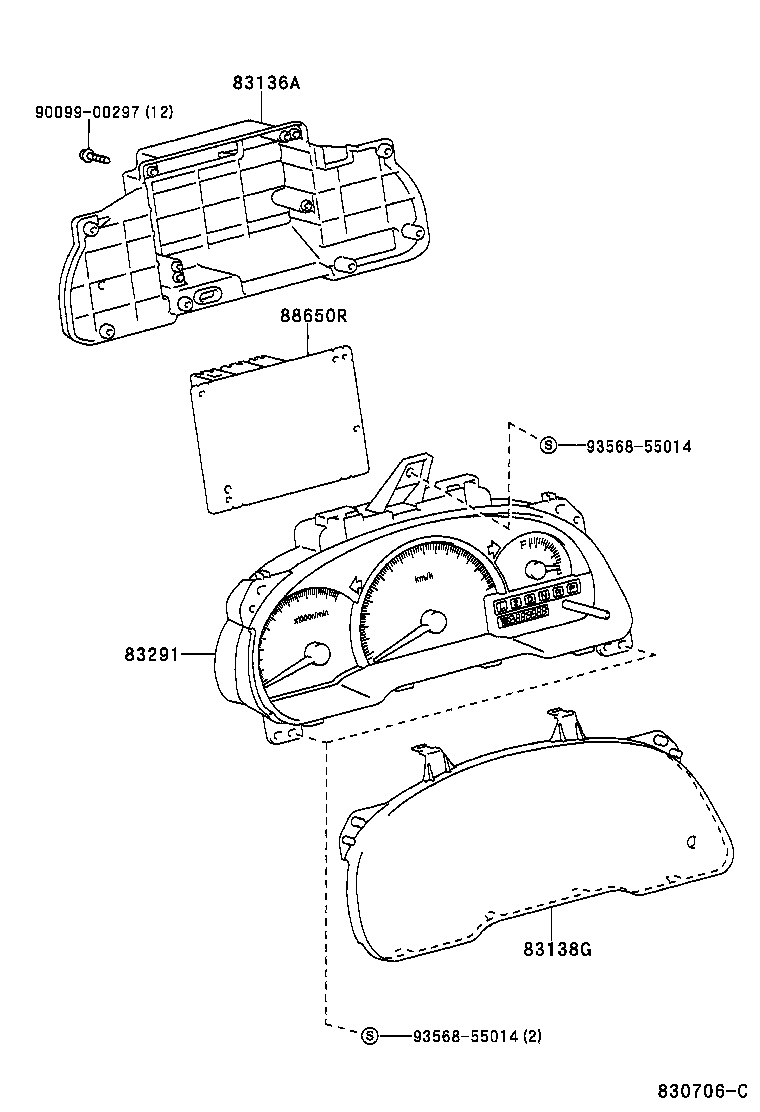

(0105-0310)

Click highlighted areas on diagram

Part #	Description	Period	Qty
83136A - COVER, COMBINATION METER
83821-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	10/2003 - 07/2005	1
83821-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	05/2001 - 10/2003	1
83821-44410	ACM2#..06S ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	08/2005 - 06/2007	1
83138G - GLASS, COMBINATION METER
83852-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	10/2003 - 12/2999	1
83852-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	05/2001 - 10/2003	1
83291 - COMPUTER, COMBINATION METER
83801-44460	ACM21..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	05/2001 - 05/2002	1
83801-44450	ACM21..240S DENSO	05/2001 - 10/2003	1
83801-44870	ACM2#..240S DENSO	10/2003 - 08/2005	1
83801-44C20	ACM2#..240S DENSO	08/2005 - 06/2007	1
83801-44C30	ACM2#..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	08/2005 - 06/2007	1
88650R - AMPLIFIER ASSY, AIR CONDITIONER
88650-44280	ACM2#	05/2001 - 05/2002	1
88650-44290	ACM2# ｶﾝﾚｲﾁｼﾖｳ	05/2001 - 05/2002	1
88650-44281	ACM2#	05/2002 - 10/2003	1
88650-44301	ACM2#	09/2004 - 09/2005	1
88650-44302	ACM2#	10/2005 - 05/2007	1
88650-44291	ACM2# ｶﾝﾚｲﾁｼﾖｳ	05/2002 - 10/2003	1
88650-44300	ACM2#	10/2003 - 08/2004	1
88650-44310	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2003 - 09/2004	1
88650-44311	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2004 - 09/2005	1
88650-44312	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2005 - 05/2007	1
Common parts
90099-00297
93568-55014

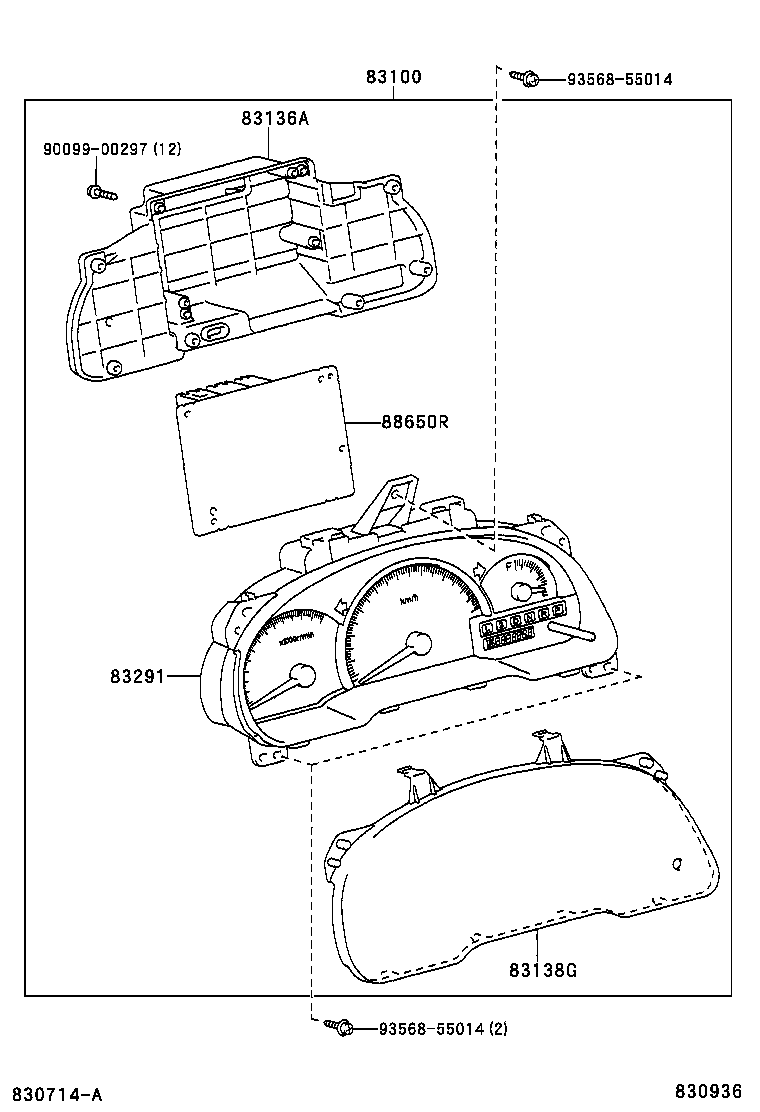

(0310- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83800-44870	ACM2#..240S DENSO	10/2003 - 08/2005	1
83800-44880	ACM2#..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	10/2003 - 08/2005	1
83800-44C30	ACM2#..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	08/2005 - 06/2007	1
83800-44C20	ACM2#..240S DENSO	08/2005 - 06/2007	1
83136A - COVER, COMBINATION METER
83821-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	10/2003 - 07/2005	1
83821-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	05/2001 - 10/2003	1
83821-44410	ACM2#..06S ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	08/2005 - 06/2007	1
83138G - GLASS, COMBINATION METER
83852-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	10/2003 - 12/2999	1
83852-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	05/2001 - 10/2003	1
83291 - COMPUTER, COMBINATION METER
83801-44460	ACM21..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	05/2001 - 05/2002	1
83801-44450	ACM21..240S DENSO	05/2001 - 10/2003	1
83801-44870	ACM2#..240S DENSO	10/2003 - 08/2005	1
83801-44C20	ACM2#..240S DENSO	08/2005 - 06/2007	1
83801-44C30	ACM2#..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	08/2005 - 06/2007	1
88650R - AMPLIFIER ASSY, AIR CONDITIONER
88650-44280	ACM2#	05/2001 - 05/2002	1
88650-44290	ACM2# ｶﾝﾚｲﾁｼﾖｳ	05/2001 - 05/2002	1
88650-44281	ACM2#	05/2002 - 10/2003	1
88650-44301	ACM2#	09/2004 - 09/2005	1
88650-44302	ACM2#	10/2005 - 05/2007	1
88650-44291	ACM2# ｶﾝﾚｲﾁｼﾖｳ	05/2002 - 10/2003	1
88650-44300	ACM2#	10/2003 - 08/2004	1
88650-44310	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2003 - 09/2004	1
88650-44311	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2004 - 09/2005	1
88650-44312	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2005 - 05/2007	1
Common parts
90099-00297
93568-55014

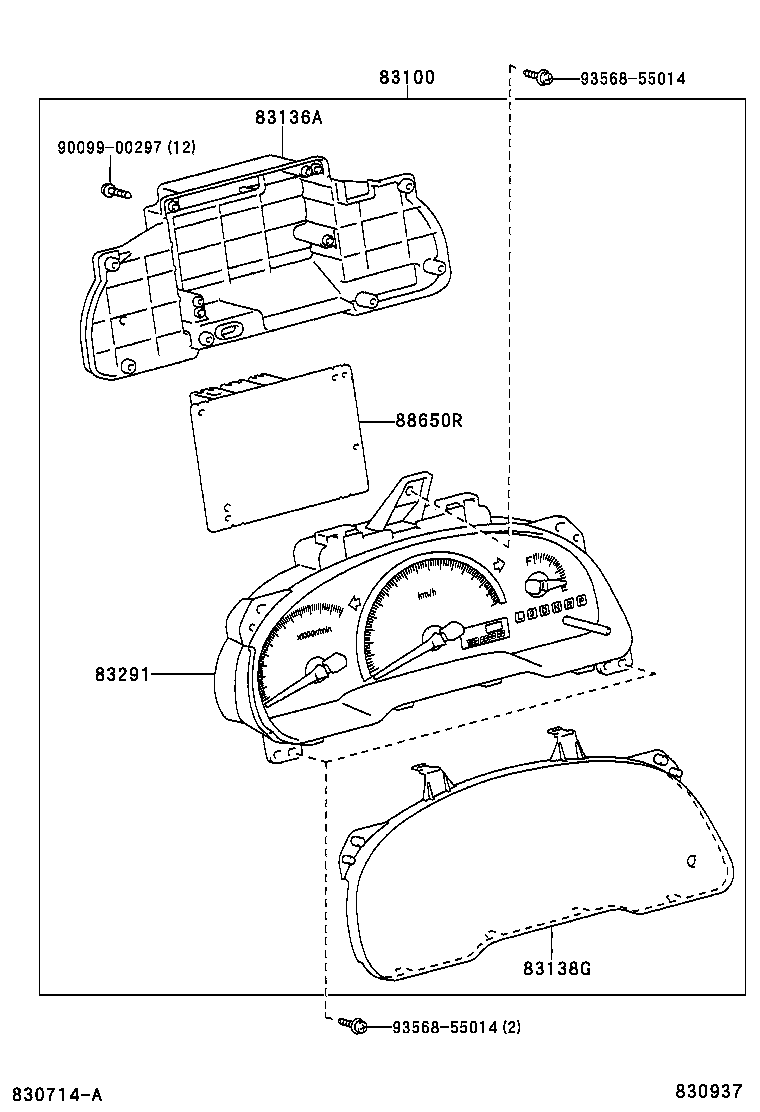

(0310- )

Click highlighted areas on diagram

ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ

Part #	Description	Period	Qty
83100 - METER ASSY, COMBINATION
83800-44870	ACM2#..240S DENSO	10/2003 - 08/2005	1
83800-44880	ACM2#..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	10/2003 - 08/2005	1
83800-44C30	ACM2#..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	08/2005 - 06/2007	1
83800-44C20	ACM2#..240S DENSO	08/2005 - 06/2007	1
83136A - COVER, COMBINATION METER
83821-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	10/2003 - 07/2005	1
83821-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	05/2001 - 10/2003	1
83821-44410	ACM2#..06S ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	08/2005 - 06/2007	1
83138G - GLASS, COMBINATION METER
83852-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	10/2003 - 12/2999	1
83852-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	05/2001 - 10/2003	1
83291 - COMPUTER, COMBINATION METER
83801-44460	ACM21..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	05/2001 - 05/2002	1
83801-44450	ACM21..240S DENSO	05/2001 - 10/2003	1
83801-44870	ACM2#..240S DENSO	10/2003 - 08/2005	1
83801-44C20	ACM2#..240S DENSO	08/2005 - 06/2007	1
83801-44C30	ACM2#..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	08/2005 - 06/2007	1
88650R - AMPLIFIER ASSY, AIR CONDITIONER
88650-44280	ACM2#	05/2001 - 05/2002	1
88650-44290	ACM2# ｶﾝﾚｲﾁｼﾖｳ	05/2001 - 05/2002	1
88650-44281	ACM2#	05/2002 - 10/2003	1
88650-44301	ACM2#	09/2004 - 09/2005	1
88650-44302	ACM2#	10/2005 - 05/2007	1
88650-44291	ACM2# ｶﾝﾚｲﾁｼﾖｳ	05/2002 - 10/2003	1
88650-44300	ACM2#	10/2003 - 08/2004	1
88650-44310	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2003 - 09/2004	1
88650-44311	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2004 - 09/2005	1
88650-44312	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2005 - 05/2007	1
Common parts
90099-00297
93568-55014

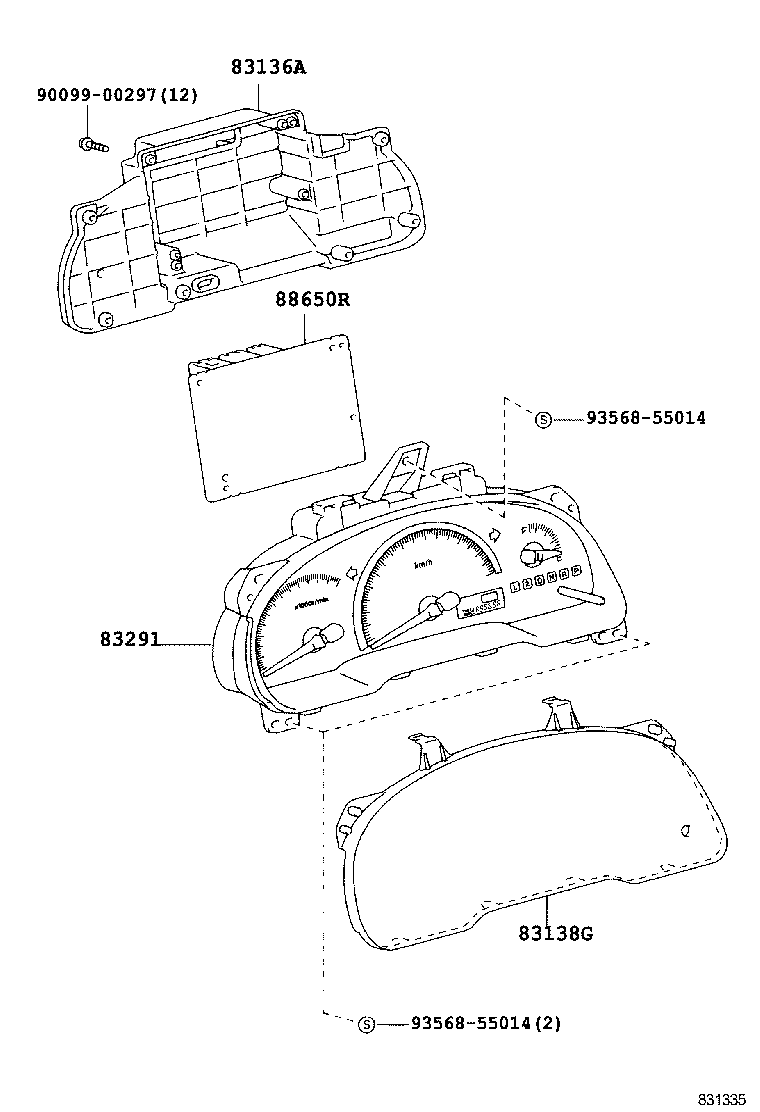

(0105-0310)

Click highlighted areas on diagram

ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ

Part #	Description	Period	Qty
83136A - COVER, COMBINATION METER
83821-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	10/2003 - 07/2005	1
83821-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	05/2001 - 10/2003	1
83821-44410	ACM2#..06S ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	08/2005 - 06/2007	1
83138G - GLASS, COMBINATION METER
83852-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	10/2003 - 12/2999	1
83852-44410	ACM2# ｵﾌﾟﾃｲﾄﾛﾝﾒ-ﾀ	05/2001 - 10/2003	1
83291 - COMPUTER, COMBINATION METER
83801-44460	ACM21..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	05/2001 - 05/2002	1
83801-44450	ACM21..240S DENSO	05/2001 - 10/2003	1
83801-44870	ACM2#..240S DENSO	10/2003 - 08/2005	1
83801-44C20	ACM2#..240S DENSO	08/2005 - 06/2007	1
83801-44C30	ACM2#..240S DENSO,ｶﾝﾚｲﾁｼﾖｳ	08/2005 - 06/2007	1
88650R - AMPLIFIER ASSY, AIR CONDITIONER
88650-44280	ACM2#	05/2001 - 05/2002	1
88650-44290	ACM2# ｶﾝﾚｲﾁｼﾖｳ	05/2001 - 05/2002	1
88650-44281	ACM2#	05/2002 - 10/2003	1
88650-44301	ACM2#	09/2004 - 09/2005	1
88650-44302	ACM2#	10/2005 - 05/2007	1
88650-44291	ACM2# ｶﾝﾚｲﾁｼﾖｳ	05/2002 - 10/2003	1
88650-44300	ACM2#	10/2003 - 08/2004	1
88650-44310	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2003 - 09/2004	1
88650-44311	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2004 - 09/2005	1
88650-44312	ACM2# ｶﾝﾚｲﾁｼﾖｳ	10/2005 - 05/2007	1
Common parts
90099-00297
93568-55014
