ACM21W-ANSSK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

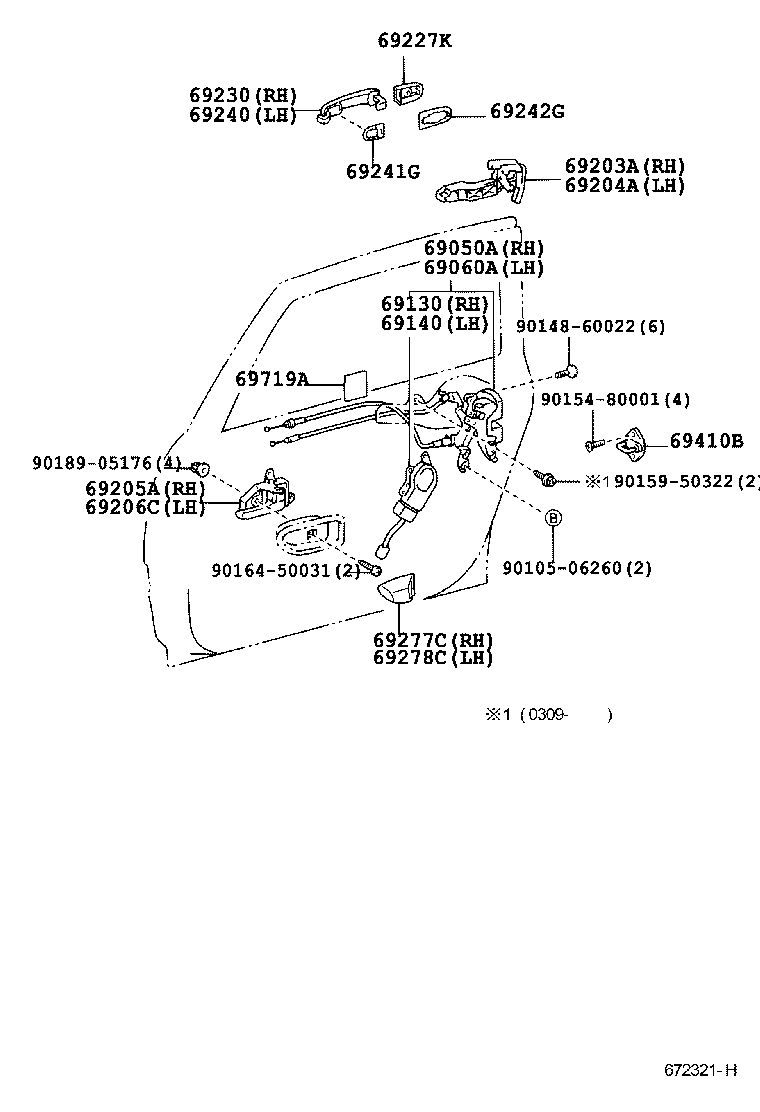

Click highlighted areas on diagram

diagram 69050A 69060A 69130 69140 69203A 69204A 69205A 69206C 69227K 69230 69240 69241G 69242G 69277C 69278C 69410B 69719A 9010506260 9014860022 9015480001 9015950322 9016450031 9018905176
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-44050

ACM2#

 1
69050-44061

ACM2#..06S

 1
69050-44051

ACM2#

 1
69050-44061

ACM2#

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-44051

ACM2#

 1
69060-44061

ACM2#..06S

 1
69060-44061

ACM2#

 1
69060-44050

ACM2#

 1
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-12040

ACM2#..06S

 1
69130-12040

ACM2#

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-12040

ACM2#

 1
69140-12040

ACM2#..06S

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-44010

ACM2#

 1
69203-44030

ACM2#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-44010

ACM2#

 1
69204-44030

ACM2#

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-20180C0

ACM2#..240S

*CR,BLACK,TRIM1#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-20180C0

ACM2#..240S

*CR,BLACK,TRIM1#

 1
69227K - COVER, REAR DOOR OUTSIDE HANDLE, RH
69227-42070B5

ACM2#

DARK GRAY M.M.,1E2

 2
69227-42070J2

ACM2#

DK.BLUE M.M.,8P4

 2
69227-42070D8

ACM2#..240S

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,SUPER RED MC.,3J7

 2
69227-42070A3

ACM2#..240S

SUPER WHITE 2,040

 2
69227-42070B3

ACM2#

SILVER ME.,1C0

 2
69227-42070A3

ACM2#

SUPER WHITE 2,040

 2
69227-42070D8

ACM2#..240S

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,SUPER RED MC.,3J7

 2
69227-42070D8

ACM2#..240S

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,SUPER RED MC.,3J7

 2
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-12220D8

ACM2#..240S

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,SUPER RED MC.,3J7

 1
69211-12220A0

ACM2#..240S

SUPER WHITE 2,040

 1
69211-12220B2

ACM2#

SILVER ME.,1C0

 1
69211-12220A0

ACM2#

SUPER WHITE 2,040

 1
69211-12220B3

ACM2#

DARK GRAY M.M.,1E2

 1
69211-12220D8

ACM2#..240S

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,SUPER RED MC.,3J7

 1
69211-12220D8

ACM2#..240S

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,SUPER RED MC.,3J7

 1
69211-12220J0

ACM2#

DK.BLUE M.M.,8P4

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-12220A0

ACM2#..240S

SUPER WHITE 2,040

 1
69211-12220D8

ACM2#..240S

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,SUPER RED MC.,3J7

 1
69211-12220J0

ACM2#

DK.BLUE M.M.,8P4

 1
69211-12220B3

ACM2#

DARK GRAY M.M.,1E2

 1
69211-12220B2

ACM2#

SILVER ME.,1C0

 1
69211-12220D8

ACM2#..240S

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,SUPER RED MC.,3J7

 1
69211-12220A0

ACM2#

SUPER WHITE 2,040

 1
69211-12220D8

ACM2#..240S

ﾓﾃﾞﾘｽﾀ-ｴｱﾛﾂｱﾗ-,SUPER RED MC.,3J7

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-42020

ACM2#

 2
69241-42020

ACM2#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-42010

ACM2#

 2
69242-42010

ACM2#

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69297-30030C0

ACM2#..240S

BLACK,TRIM1#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69298-30030C0

ACM2#..240S

BLACK,TRIM1#

 1
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-20110

ACM2#..06S

 2
69410-20110

ACM2#

 2
69719A - CUSHION, DOOR LOCK CONTROL
69719-44010

ACM2#..06S

 2
69719-44010

ACM2#

 2
Common parts
90105-06260
90148-60022
90154-80001
90159-50322
90164-50031
90189-05176
