ACM21W-ANSGK (2001)
Toyota Ipsum
Production
May 2001
-
Jun 2007
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(0105-0310)
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88710-44531 |
ACM2# |
1 | ||
| 88710-44541 |
ACM2# ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 88716-44531 |
ACM2#..06S |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88710-44560 |
ACM2# |
1 | ||
| 88716-44550 |
ACM2#..06S |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-44490 |
ACM2#..06S |
1 | ||
| 88716-44490 |
ACM2# |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-44160 |
ACM2# |
1 | ||
| 88717-44160 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 58266-14050 | ||||
| 58266-44040 | ||||
| 87268-44020 | ||||
| 88578-44050 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88891-44070 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90119-06398 | ||||
| 91635-60618 | ||||
| 91651-40640 | ||||
| 91651-B0650 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 1 OF 2(0105-0310)
Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-44430 |
ACM2# |
1 | ||
| 88460-44510 |
ACM2#..06S |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACM2#..06S |
2 | ||
| 88467-28050 |
ACM2# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACM2#..06S |
2 | ||
| 88467-28050 |
ACM2# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ACM2# |
1 | ||
| 88474-17010 |
ACM2#..06S |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-44270 |
ACM2# |
1 | ||
| 88703-44390 |
ACM2#..06S |
1 | ||
| 88703-44270 |
ACM21 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-44270 |
ACM2# |
1 | ||
| 88703-44390 |
ACM2#..06S |
1 | ||
| 88703-44270 |
ACM21 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-44261 |
ACM2# |
1 | ||
| 88704-44440 |
ACM2#..06S |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-44700 |
ACM2#..06S |
1 | ||
| 88710-44490 |
ACM2# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-44720 |
ACM2#..06S |
1 | ||
| 88716-44511 |
ACM2# |
1 | ||
| Common parts | ||||
| 88688-44180 | ||||
| 88688-44190 | ||||
| 88688-44200 | ||||
| 88688-44210 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-44220 | ||||
| 88718-44230 | ||||
| 88718-50330 | ||||
| 88897-12240 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06423 | ||||
| 91551-A0625 | ||||
| 91651-F0625 | ||||
| 93385-56025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 1 OF 2(0310- )
Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-44430 |
ACM2# |
1 | ||
| 88460-44510 |
ACM2#..06S |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACM2#..06S |
2 | ||
| 88467-28050 |
ACM2# |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
ACM2#..06S |
2 | ||
| 88467-28050 |
ACM2# |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-47010 |
ACM2# |
1 | ||
| 88474-17010 |
ACM2#..06S |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-44270 |
ACM2# |
1 | ||
| 88703-44390 |
ACM2#..06S |
1 | ||
| 88703-44270 |
ACM21 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-44261 |
ACM2# |
1 | ||
| 88704-44440 |
ACM2#..06S |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88710-44700 |
ACM2#..06S |
1 | ||
| 88710-44490 |
ACM2# |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-44720 |
ACM2#..06S |
1 | ||
| 88716-44511 |
ACM2# |
1 | ||
| Common parts | ||||
| 88688-44180 | ||||
| 88688-44190 | ||||
| 88688-44200 | ||||
| 88688-44210 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-44220 | ||||
| 88718-44230 | ||||
| 88718-50330 | ||||
| 88897-12240 | ||||
| 90091-20609 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06423 | ||||
| 91553-80622 | ||||
| 91651-F0625 | ||||
| 93385-56025 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

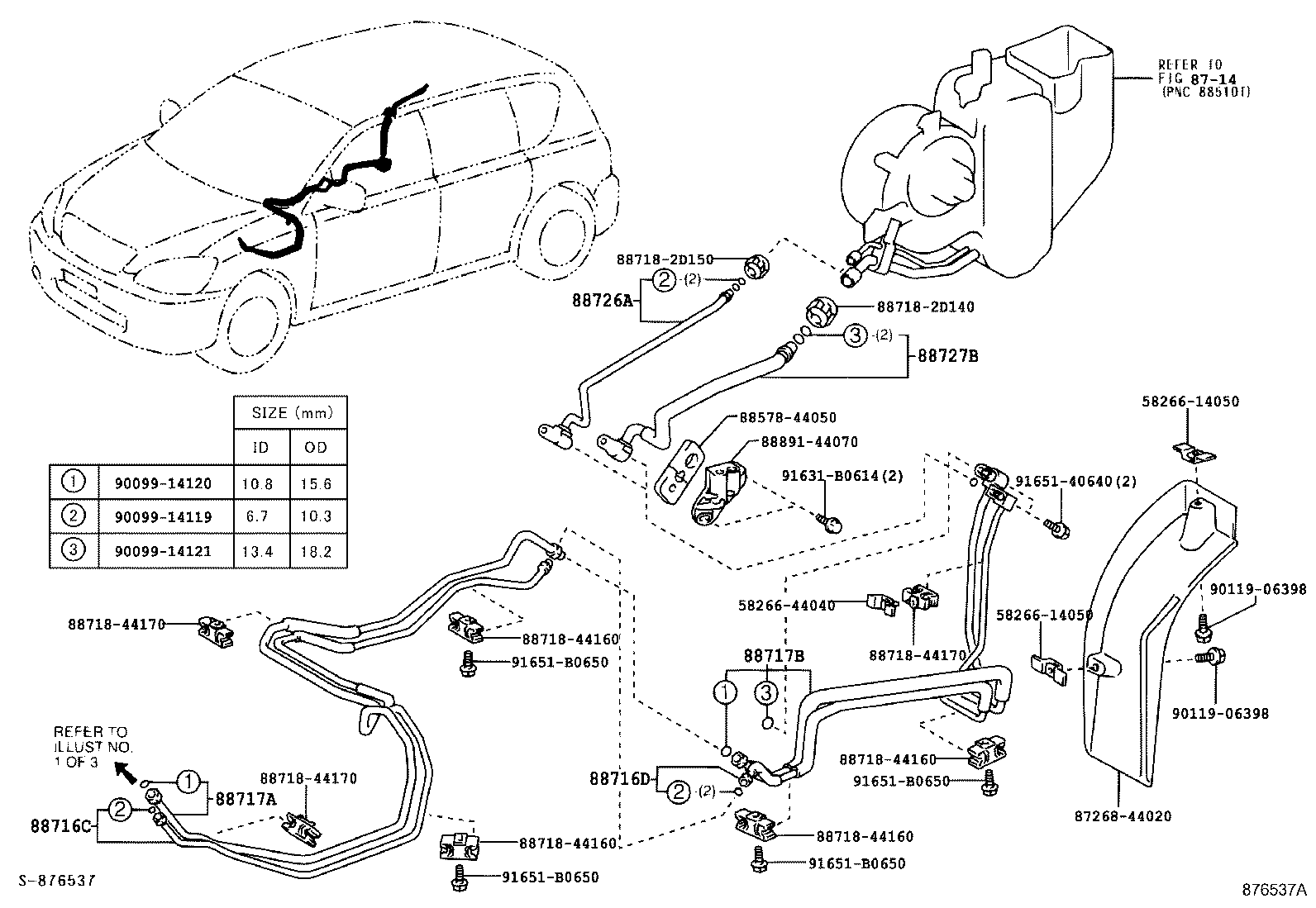

ILLUST NO. 2 OF 2(0310- )
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88710-44531 |
ACM2# |
1 | ||
| 88710-44541 |
ACM2# ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 88716-44531 |
ACM2#..06S |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88710-44560 |
ACM2# |
1 | ||
| 88716-44550 |
ACM2#..06S |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-44240 |
ACM2#..06S |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-44250 |
ACM2#..06S |
1 | ||
| 88726A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-44490 |
ACM2#..06S |
1 | ||
| 88716-44490 |
ACM2# |
1 | ||
| 88727B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-44160 |
ACM2# |
1 | ||
| 88717-44160 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 58266-14050 | ||||
| 58266-44040 | ||||
| 87268-44020 | ||||
| 88578-44050 | ||||
| 88718-2D140 | ||||
| 88718-2D150 | ||||
| 88718-44160 | ||||
| 88718-44170 | ||||
| 88891-44070 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06398 | ||||
| 91631-B0614 | ||||
| 91651-40640 | ||||
| 91651-B0650 | ||||
| Linked diagrams | ||||
| 8714 | ||||
