ACM21W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

Click highlighted areas on diagram

diagram 1104 1603 3514 3514 8714 87245A 87246A 8871852060 9046622004 9046622004 9046721010 9046721010 9048001405 9095901294
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-44780

ACM2#..06S

 1
87245-44470

ACM2#

 1
87209-44200

ACM2#..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87209-44050

ACM2#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-44090

ACM2#

 1
87209-44140

ACM2#..06S

 1
87209-44110

ACM2#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87209-44160

ACM2#..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
Common parts
88718-52060
90466-22004
90467-21010
90480-01405
90959-01294
Linked diagrams
1104
1603
3514
8714

(0105-0310)

Click highlighted areas on diagram

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

diagram 1104 1603 3514 3514 8712 8714 87240 8724144050 87245A 87245B 87245C 87246A 87246C 87248 87248A 8846730270 8871844270 8871852060 9017906032 9017906032 9017906306 9046622004 9046622004 9046720011 9046720011 9046720011 9046720011 9046720011 9046720011 9046720011 9046720011 9046721010 9046721010 9048001405 91651B0650
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-44030

ACM2#

 1
87240-44030

ACM2#..06S

 1
87245A - HOSE, HEATER WATER, INLET A
87245-44780

ACM2#..06S

 1
87245-44470

ACM2#

 1
87209-44200

ACM2#..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87209-44050

ACM2#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-44550

ACM2#..06S

 1
87245-44550

ACM2#

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-44530

ACM2#..06S

 1
87245-44530

ACM2#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-44090

ACM2#

 1
87209-44140

ACM2#..06S

 1
87209-44110

ACM2#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87209-44160

ACM2#..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-44540

ACM2#

 1
87245-44540

ACM2#..06S

 1
87248 - PIPE SUB-ASSY, WATER
87248-44020

ACM2#..06S

 1
87248-44020

ACM2#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-44190

ACM2#..06S

 1
87248-44030

ACM2#

 1
87248-44030

ACM2#

 1
Common parts
87241-44050
88467-30270
88718-44270
88718-52060
90179-06032
90179-06306
90466-22004
90467-20011
90467-21010
90480-01405
91651-B0650
Linked diagrams
1104
1603
3514
8712
8714

(0310- )

Click highlighted areas on diagram

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

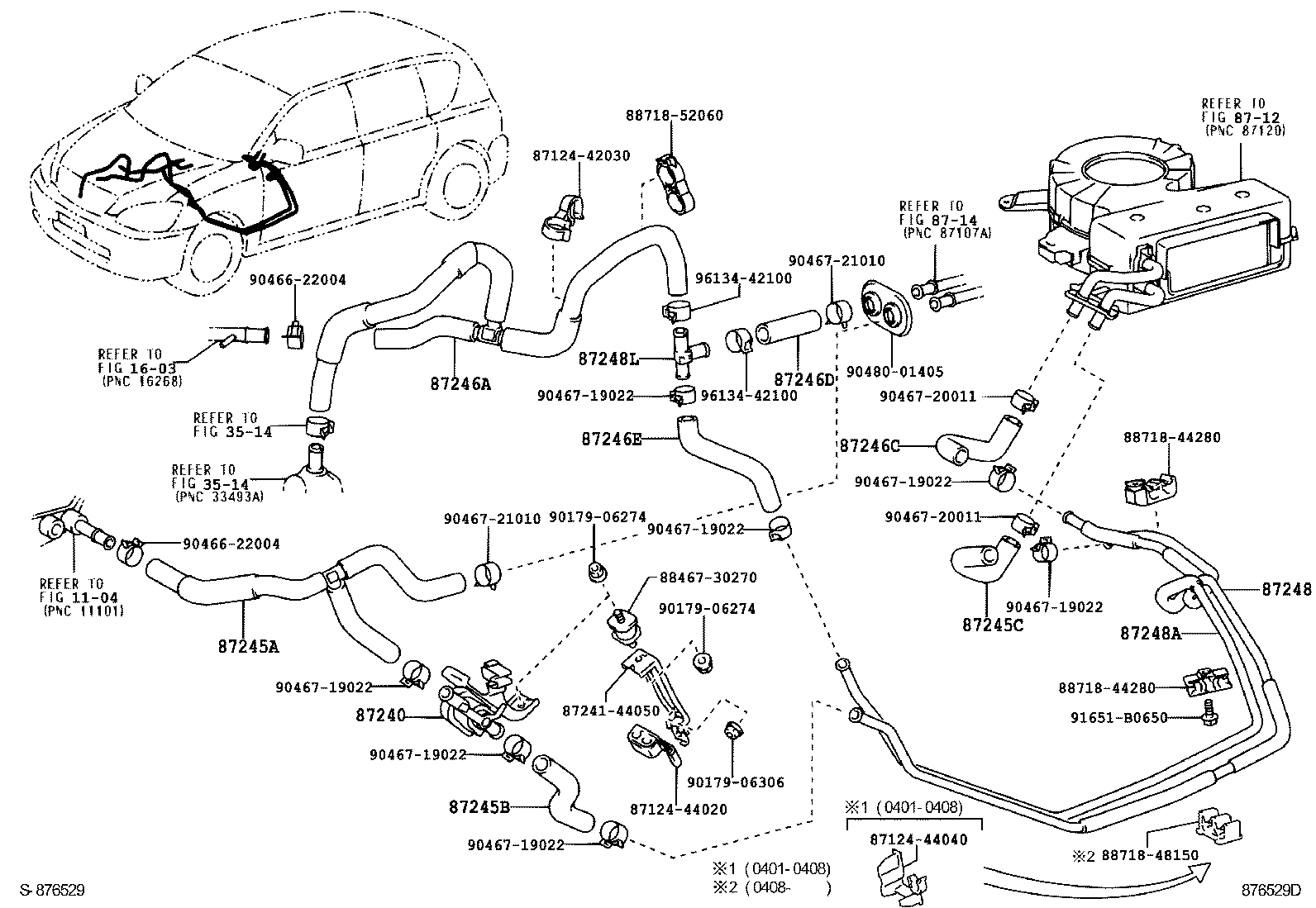

diagram 1104 1603 3514 3514 8712 8712442030 8712444020 8712444040 8714 87240 8724144050 87245A 87245B 87245C 87246A 87246C 87246D 87246E 87248 87248A 87248L 8846730270 8871844280 8871844280 8871848150 8871852060 9017906274 9017906274 9017906306 9046622004 9046622004 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046720011 9046720011 9046721010 9046721010 9048001405 91651B0650 9613442100 9613442100
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-44030

ACM2#

 1
87240-44030

ACM2#..06S

 1
87245A - HOSE, HEATER WATER, INLET A
87245-44780

ACM2#..06S

 1
87245-44470

ACM2#

 1
87209-44200

ACM2#..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87209-44050

ACM2#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-44550

ACM2#..06S

 1
87245-44550

ACM2#

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-44530

ACM2#..06S

 1
87245-44530

ACM2#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87209-44090

ACM2#

 1
87209-44140

ACM2#..06S

 1
87209-44110

ACM2#

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87209-44160

ACM2#..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-44540

ACM2#

 1
87245-44540

ACM2#..06S

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-44810

ACM2#..06S

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-44820

ACM2#..06S

 1
87248 - PIPE SUB-ASSY, WATER
87248-44020

ACM2#..06S

 1
87248-44020

ACM2#

 1
87248A - PIPE, HEATER WATER INLET, A
87248-44190

ACM2#..06S

 1
87248-44030

ACM2#

 1
87248-44030

ACM2#

 1
87248L - PIPE, HEATER WATER, L
87248-20380

ACM2#..06S

 1
Common parts
87124-42030
87124-44020
87124-44040
87241-44050
88467-30270
88718-44280
88718-48150
88718-52060
90179-06274
90179-06306
90466-22004
90467-19022
90467-20011
90467-21010
90480-01405
91651-B0650
96134-42100
Linked diagrams
1104
1603
3514
8712
8714
