ACM21W-ANSGK (2001)
Toyota Ipsum

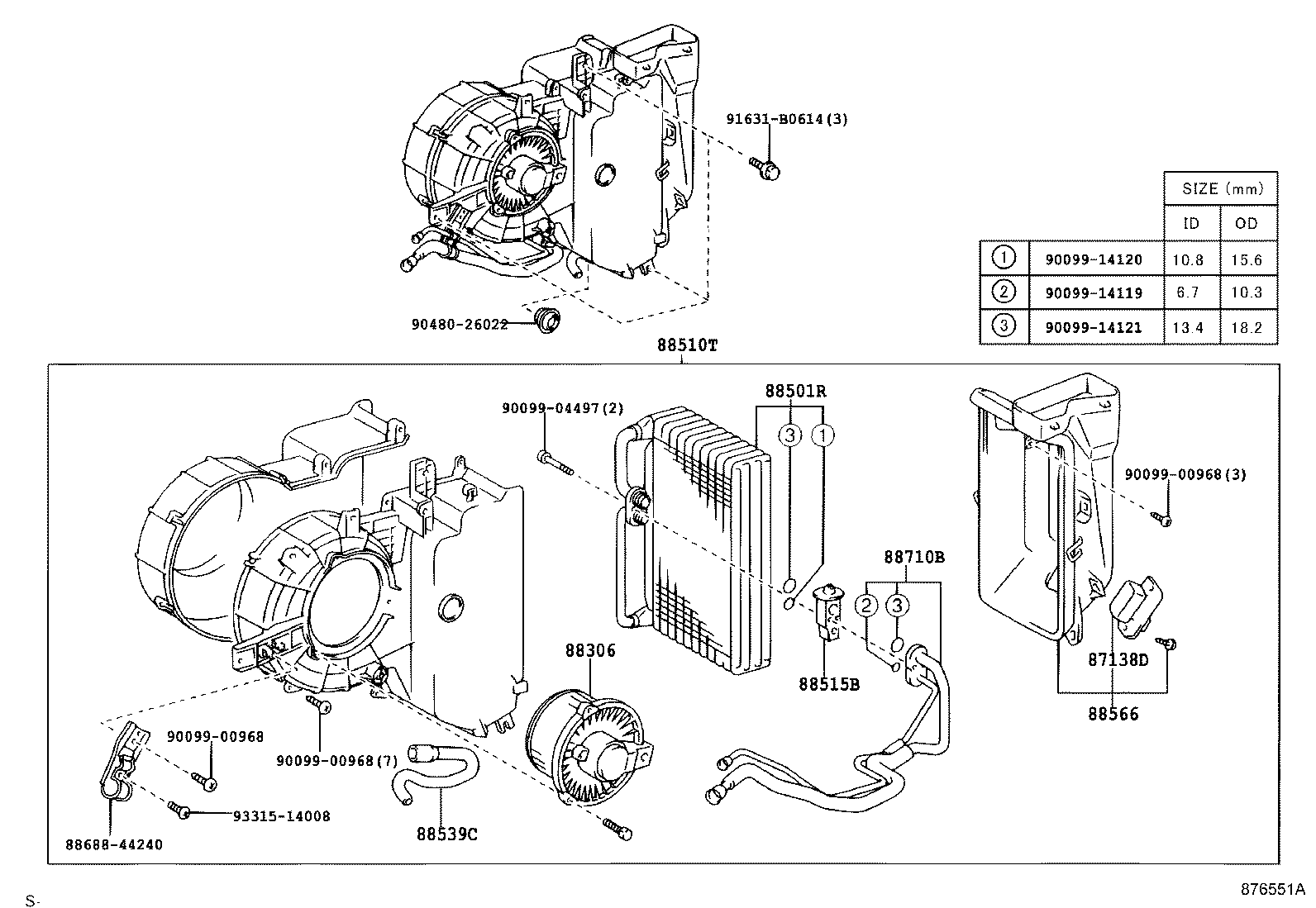

ILLUST NO. 2 OF 2(0105-0310)
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-44030 |
ACM2#..06S |
1 | ||
| 87138-44030 |
ACM2# |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87103-44070 |
ACM2# |
1 | ||
| 87103-58010 |
ACM2#..06S |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-44080 |
ACM2# |
1 | ||
| 88501-44080 |
ACM2#..06S |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-44060 |
ACM2#..06S |
1 | ||
| 88500-44040 |
ACM2# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-44030 |
ACM2# |
1 | ||
| 88515-28170 |
ACM2# |
1 | ||
| 88515-28190 |
ACM2#..06S |
1 | ||
| 88515-28170 |
ACM2# |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-44090 |
ACM2#..06S |
1 | ||
| 88539-44090 |
ACM2# |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-44210 |
ACM2# |
1 | ||
| 88566-44210 |
ACM2#..06S |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-44470 |
ACM2#..06S |
1 | ||
| 88710-44470 |
ACM2# |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88688-44240 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90480-26022 | ||||
| 91635-60618 | ||||
| 93315-14008 | ||||

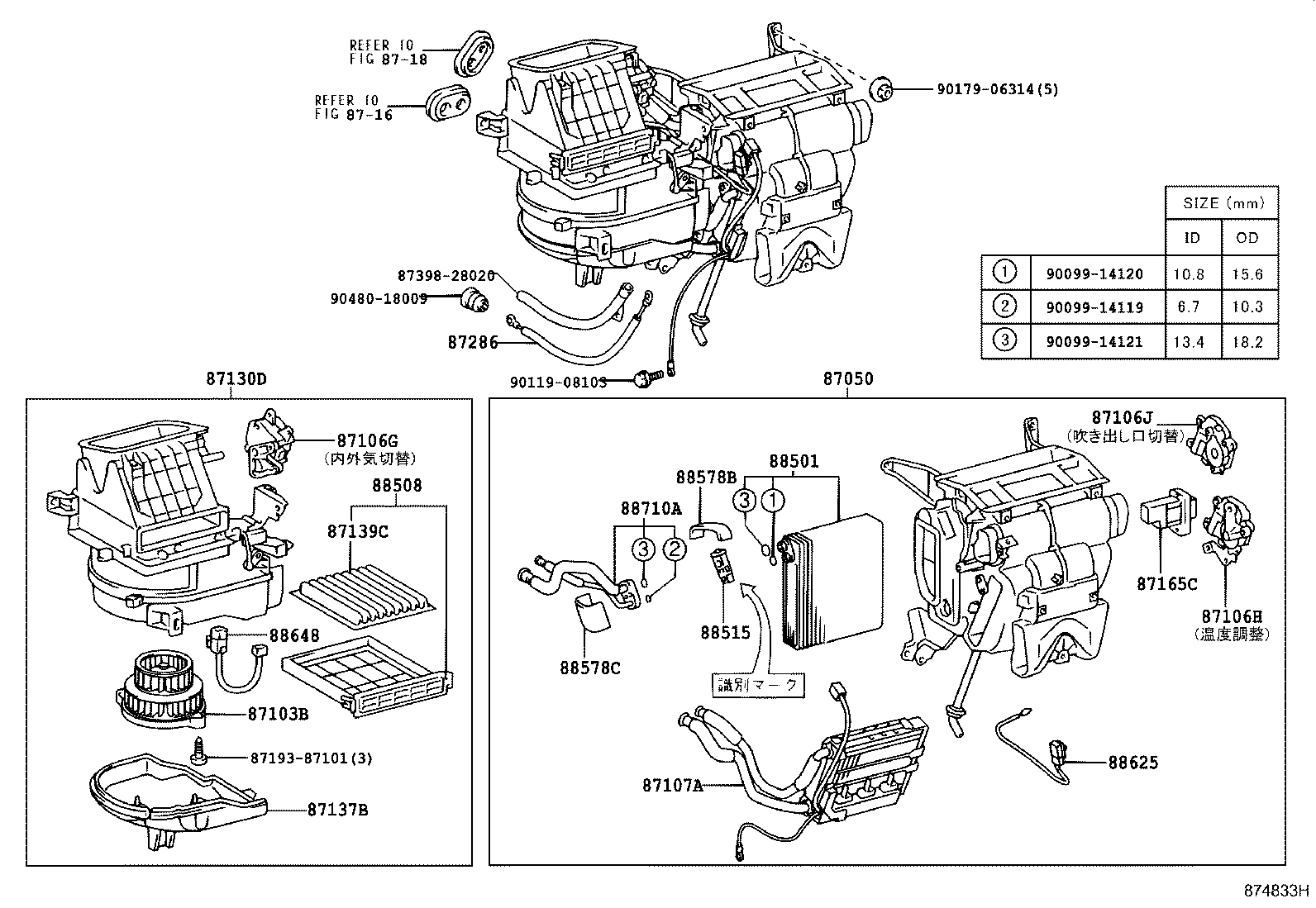

ILLUST NO. 1 OF 2(0105-0310)
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-44230 |
ACM2# |
1 | ||
| 87050-44470 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-44460 |
ACM2#..06S |
1 | ||
| 87050-44250 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-44040 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103-44030 |
ACM2# |
1 | ||
| 87103-44030 |
ACM2#..06S |
1 | ||
| 87103-44040 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-44040 |
ACM2#..06S |
1 | ||
| 87106-44050 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106-44040 |
ACM2# |
1 | ||
| 87106-44050 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-44030 |
ACM2#..06S |
1 | ||
| 87106-44030 |
ACM2# |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-44020 |
ACM2# |
1 | ||
| 87106-44020 |
ACM2#..06S |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28290 |
ACM2#..06S |
1 | ||
| 87107-44100 |
ACM2# |
1 | ||
| 87107-28290 |
ACM2# |
1 | ||
| 87107-44110 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-44110 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-44070 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130-44070 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130-44060 |
ACM2# |
1 | ||
| 87130-44060 |
ACM2#..06S |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28010 |
ACM2# |
1 | ||
| 87139-47020 |
ACM2#..240I,240S,240U 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-28010 |
ACM2#..06S 花粉ﾌｨﾙﾀ |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-47010 |
ACM2# |
1 | ||
| 87165-32010 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87165-32010 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87165-47010 |
ACM2#..06S |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28310 |
ACM2# |
1 | ||
| 88501-28310 |
ACM2#..06S |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20120 |
ACM2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-44020 |
ACM2# ﾏｰｸ A |
1 | ||
| 88515-28180 |
ACM2#..06S |
1 | ||
| 88515-28160 |
ACM2# ﾏｰｸ Z |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
ACM2#..06S |
1 | ||
| 88578-12520 |
ACM2# |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-44090 |
ACM2# |
1 | ||
| 88578-44090 |
ACM2#..06S |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-48030 |
ACM2#..06S |
1 | ||
| 88625-52020 |
ACM2# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-44450 |
ACM2#..06S |
1 | ||
| 88710-44450 |
ACM2# |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06314 | ||||
| Linked diagrams | ||||
| 8716 | ||||
| 8718 | ||||

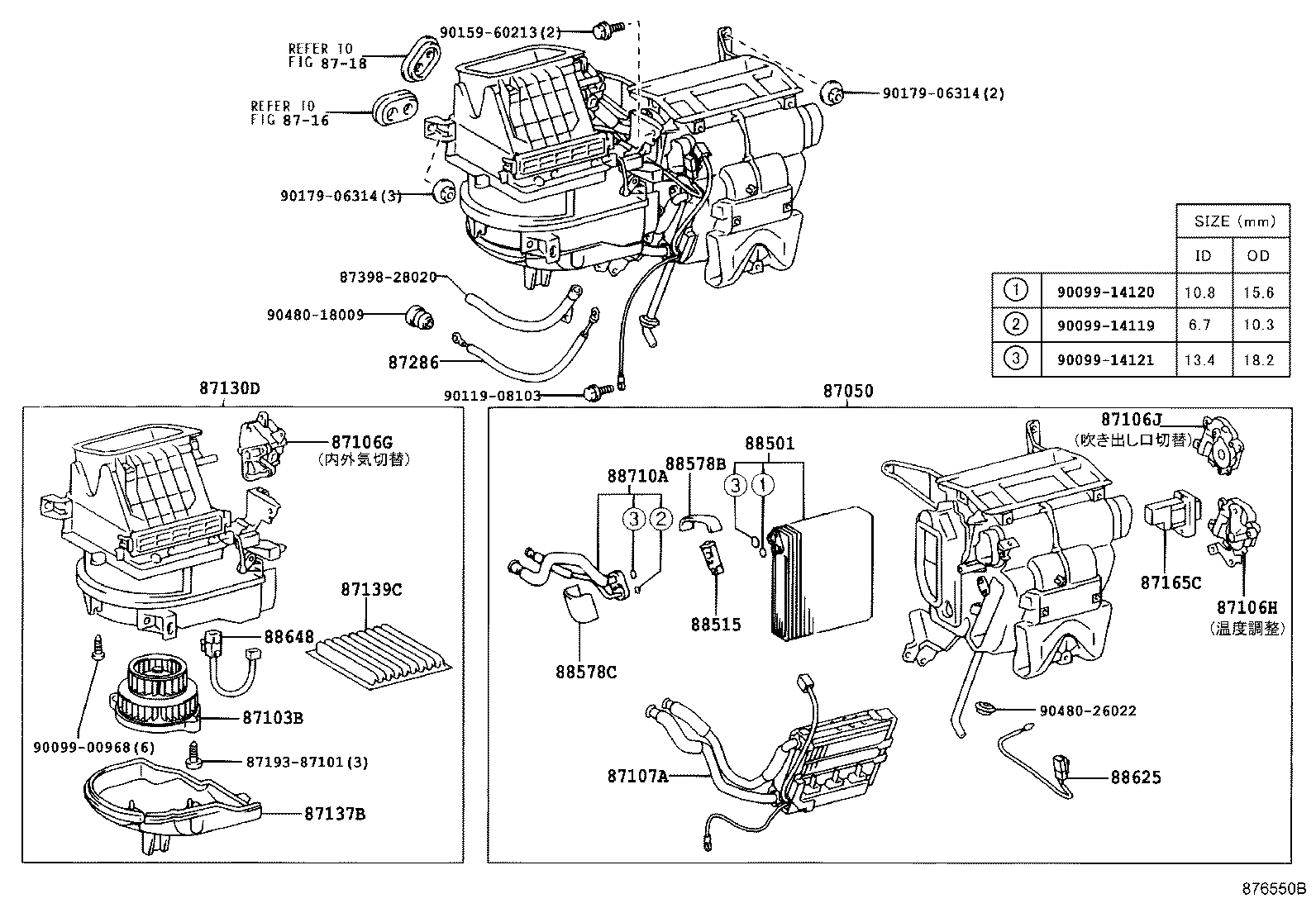

ILLUST NO. 1 OF 2(0105-0310)
ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ﾋ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-44230 |
ACM2# |
1 | ||
| 87050-44470 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-44460 |
ACM2#..06S |
1 | ||
| 87050-44250 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-44040 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103-44030 |
ACM2# |
1 | ||
| 87103-44030 |
ACM2#..06S |
1 | ||
| 87103-44040 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-44040 |
ACM2#..06S |
1 | ||
| 87106-44050 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106-44040 |
ACM2# |
1 | ||
| 87106-44050 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-44030 |
ACM2#..06S |
1 | ||
| 87106-44030 |
ACM2# |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-44020 |
ACM2# |
1 | ||
| 87106-44020 |
ACM2#..06S |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28290 |
ACM2#..06S |
1 | ||
| 87107-44100 |
ACM2# |
1 | ||
| 87107-28290 |
ACM2# |
1 | ||
| 87107-44110 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-44110 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-44070 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130-44070 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130-44060 |
ACM2# |
1 | ||
| 87130-44060 |
ACM2#..06S |
1 | ||
| 87137B - COVER, HEATER BLOWER | ||||
| 87137-44010 |
ACM2# |
1 | ||
| 87137-44010 |
ACM2#..06S |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28010 |
ACM2# |
1 | ||
| 87139-47020 |
ACM2#..240I,240S,240U 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-28010 |
ACM2#..06S 花粉ﾌｨﾙﾀ |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-47010 |
ACM2# |
1 | ||
| 87165-32010 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87165-32010 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87165-47010 |
ACM2#..06S |
1 | ||
| 87286 - CABLE, CONTROL | ||||
| 87286-44040 |
ACM2# |
1 | ||
| 87286-44040 |
ACM2#..06S |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28310 |
ACM2# |
1 | ||
| 88501-28310 |
ACM2#..06S |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-20120 |
ACM2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-44020 |
ACM2# ﾏｰｸ A |
1 | ||
| 88515-28180 |
ACM2#..06S |
1 | ||
| 88515-28160 |
ACM2# ﾏｰｸ Z |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
ACM2#..06S |
1 | ||
| 88578-12520 |
ACM2# |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-44090 |
ACM2# |
1 | ||
| 88578-44090 |
ACM2#..06S |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-48030 |
ACM2#..06S |
1 | ||
| 88625-52020 |
ACM2# |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-28280 |
ACM2# |
1 | ||
| 88648-28280 |
ACM2#..06S |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-44450 |
ACM2#..06S |
1 | ||
| 88710-44450 |
ACM2# |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 87398-28020 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-08103 | ||||
| 90179-06314 | ||||
| 90480-18009 | ||||
| Linked diagrams | ||||
| 8716 | ||||
| 8718 | ||||

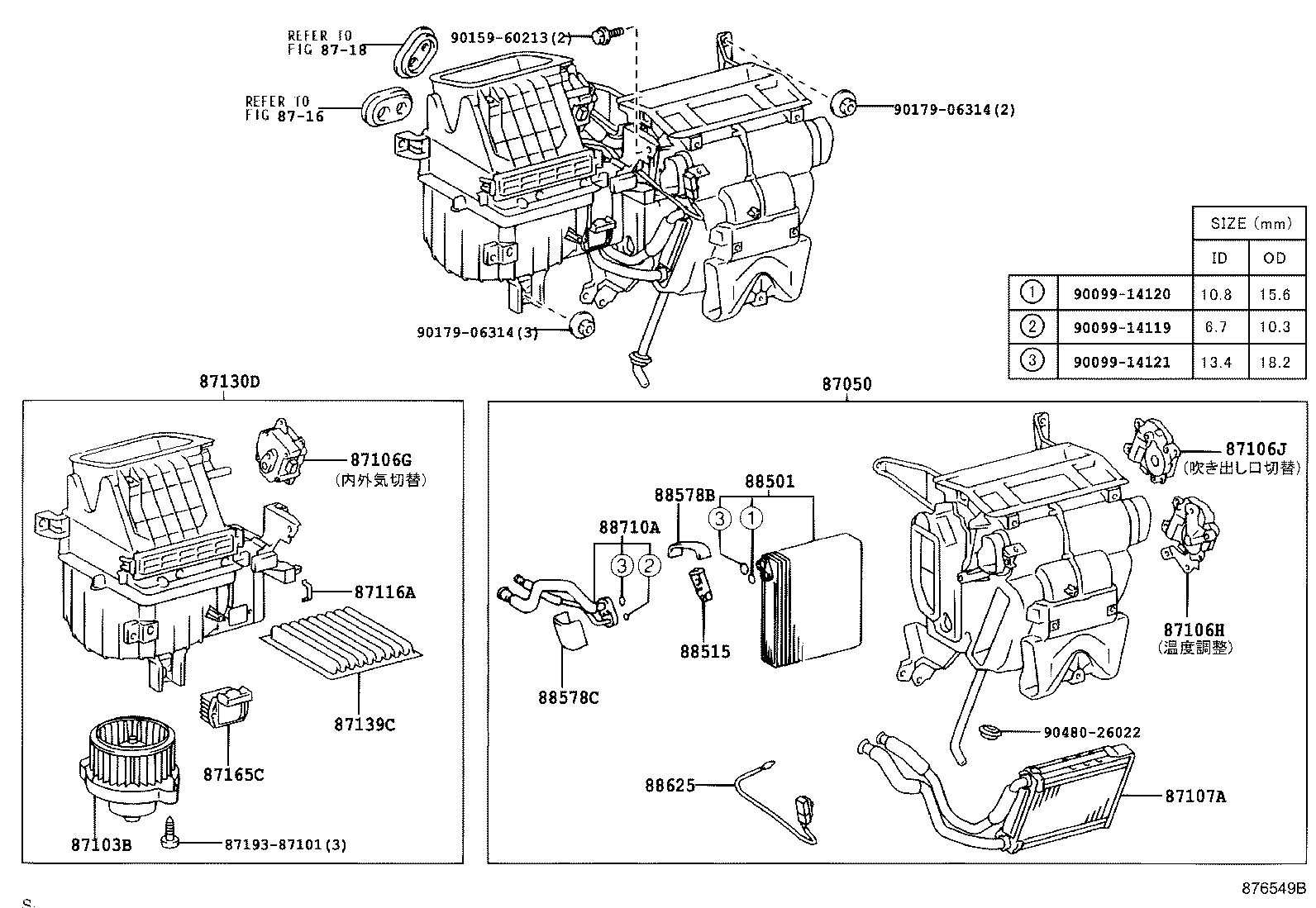

ILLUST NO. 1 OF 2(0310- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-44230 |
ACM2# |
1 | ||
| 87050-44470 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-44460 |
ACM2#..06S |
1 | ||
| 87050-44250 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-44040 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103-44030 |
ACM2# |
1 | ||
| 87103-44030 |
ACM2#..06S |
1 | ||
| 87103-44040 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-44040 |
ACM2#..06S |
1 | ||
| 87106-44050 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106-44040 |
ACM2# |
1 | ||
| 87106-44050 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-44030 |
ACM2#..06S |
1 | ||
| 87106-44030 |
ACM2# |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-44020 |
ACM2# |
1 | ||
| 87106-44020 |
ACM2#..06S |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28290 |
ACM2#..06S |
1 | ||
| 87107-44100 |
ACM2# |
1 | ||
| 87107-28290 |
ACM2# |
1 | ||
| 87107-44110 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-44110 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
ACM2#..06S |
3 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-44070 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130-44070 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130-44060 |
ACM2# |
1 | ||
| 87130-44060 |
ACM2#..06S |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28010 |
ACM2# |
1 | ||
| 87139-47020 |
ACM2#..240I,240S,240U 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-28010 |
ACM2#..06S 花粉ﾌｨﾙﾀ |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-47010 |
ACM2# |
1 | ||
| 87165-32010 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87165-32010 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87165-47010 |
ACM2#..06S |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28310 |
ACM2# |
1 | ||
| 88501-28310 |
ACM2#..06S |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-44020 |
ACM2# ﾏｰｸ A |
1 | ||
| 88515-28180 |
ACM2#..06S |
1 | ||
| 88515-28160 |
ACM2# ﾏｰｸ Z |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
ACM2#..06S |
1 | ||
| 88578-12520 |
ACM2# |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-44090 |
ACM2# |
1 | ||
| 88578-44090 |
ACM2#..06S |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-48030 |
ACM2#..06S |
1 | ||
| 88625-52020 |
ACM2# |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-44450 |
ACM2#..06S |
1 | ||
| 88710-44450 |
ACM2# |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 8716 | ||||
| 8718 | ||||

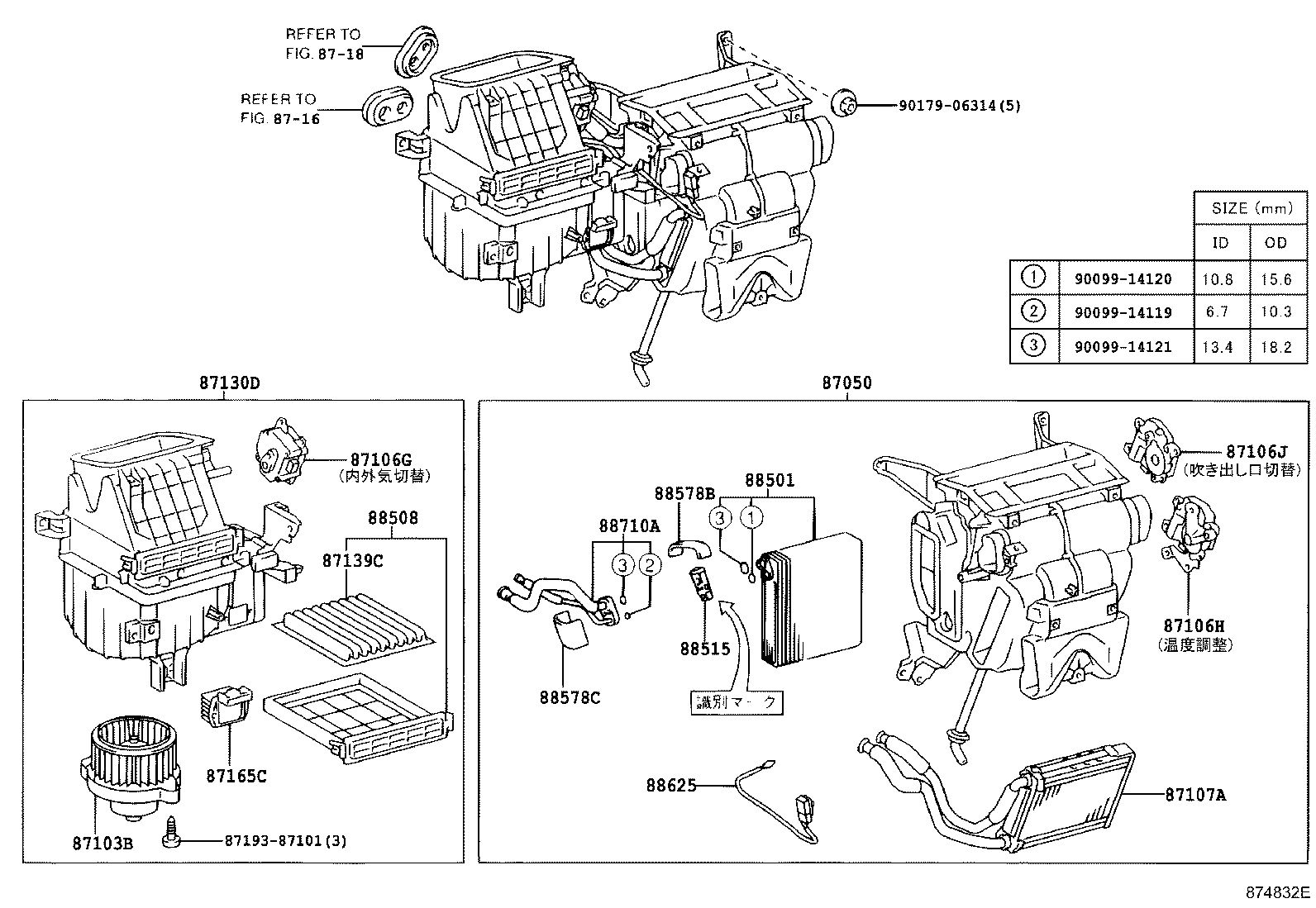

ILLUST NO. 1 OF 2(0310- )
ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ﾋ-ﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-44230 |
ACM2# |
1 | ||
| 87050-44470 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-44460 |
ACM2#..06S |
1 | ||
| 87050-44250 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-44040 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87103-44030 |
ACM2# |
1 | ||
| 87103-44030 |
ACM2#..06S |
1 | ||
| 87103-44040 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106G - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-44040 |
ACM2#..06S |
1 | ||
| 87106-44050 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106-44040 |
ACM2# |
1 | ||
| 87106-44050 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-44030 |
ACM2#..06S |
1 | ||
| 87106-44030 |
ACM2# |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-44020 |
ACM2# |
1 | ||
| 87106-44020 |
ACM2#..06S |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28290 |
ACM2#..06S |
1 | ||
| 87107-44100 |
ACM2# |
1 | ||
| 87107-28290 |
ACM2# |
1 | ||
| 87107-44110 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-44110 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-44070 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130-44070 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87130-44060 |
ACM2# |
1 | ||
| 87130-44060 |
ACM2#..06S |
1 | ||
| 87137B - COVER, HEATER BLOWER | ||||
| 87137-44010 |
ACM2# |
1 | ||
| 87137-44010 |
ACM2#..06S |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-28010 |
ACM2# |
1 | ||
| 87139-47020 |
ACM2#..240I,240S,240U 脱臭 & 花粉ﾌｨﾙﾀ |
1 | ||
| 87139-28010 |
ACM2#..06S 花粉ﾌｨﾙﾀ |
1 | ||
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-47010 |
ACM2# |
1 | ||
| 87165-32010 |
ACM2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87165-32010 |
ACM2#..06S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87165-47010 |
ACM2#..06S |
1 | ||
| 87286 - CABLE, CONTROL | ||||
| 87286-44040 |
ACM2# |
1 | ||
| 87286-44040 |
ACM2#..06S |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28310 |
ACM2# |
1 | ||
| 88501-28310 |
ACM2#..06S |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-44020 |
ACM2# ﾏｰｸ A |
1 | ||
| 88515-28180 |
ACM2#..06S |
1 | ||
| 88515-28160 |
ACM2# ﾏｰｸ Z |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-12520 |
ACM2#..06S |
1 | ||
| 88578-12520 |
ACM2# |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-44090 |
ACM2# |
1 | ||
| 88578-44090 |
ACM2#..06S |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-48030 |
ACM2#..06S |
1 | ||
| 88625-52020 |
ACM2# |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-28280 |
ACM2# |
1 | ||
| 88648-28280 |
ACM2#..06S |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-44450 |
ACM2#..06S |
1 | ||
| 88710-44450 |
ACM2# |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 87398-28020 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-08103 | ||||
| 90159-60213 | ||||
| 90179-06314 | ||||
| 90480-18009 | ||||
| 90480-26022 | ||||
| Linked diagrams | ||||
| 8716 | ||||
| 8718 | ||||
ILLUST NO. 2 OF 2(0310- )
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-44030 |
ACM2#..06S |
1 | ||
| 87138-44030 |
ACM2# |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87103-44070 |
ACM2# |
1 | ||
| 87103-58010 |
ACM2#..06S |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-44080 |
ACM2# |
1 | ||
| 88501-44080 |
ACM2#..06S |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88500-44060 |
ACM2#..06S |
1 | ||
| 88500-44040 |
ACM2# |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-44030 |
ACM2# |
1 | ||
| 88515-28170 |
ACM2# |
1 | ||
| 88515-28190 |
ACM2#..06S |
1 | ||
| 88515-28170 |
ACM2# |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-44090 |
ACM2#..06S |
1 | ||
| 88539-44090 |
ACM2# |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-44210 |
ACM2# |
1 | ||
| 88566-44210 |
ACM2#..06S |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-44470 |
ACM2#..06S |
1 | ||
| 88710-44470 |
ACM2# |
1 | ||
| Common parts | ||||
| 88688-44240 | ||||
| 90099-00968 | ||||
| 90099-04497 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90480-26022 | ||||
| 91631-B0614 | ||||
| 93315-14008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
