ACM21W-ANSGK (2001)
Toyota Ipsum
Production
May 2001
-
Jun 2007
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )

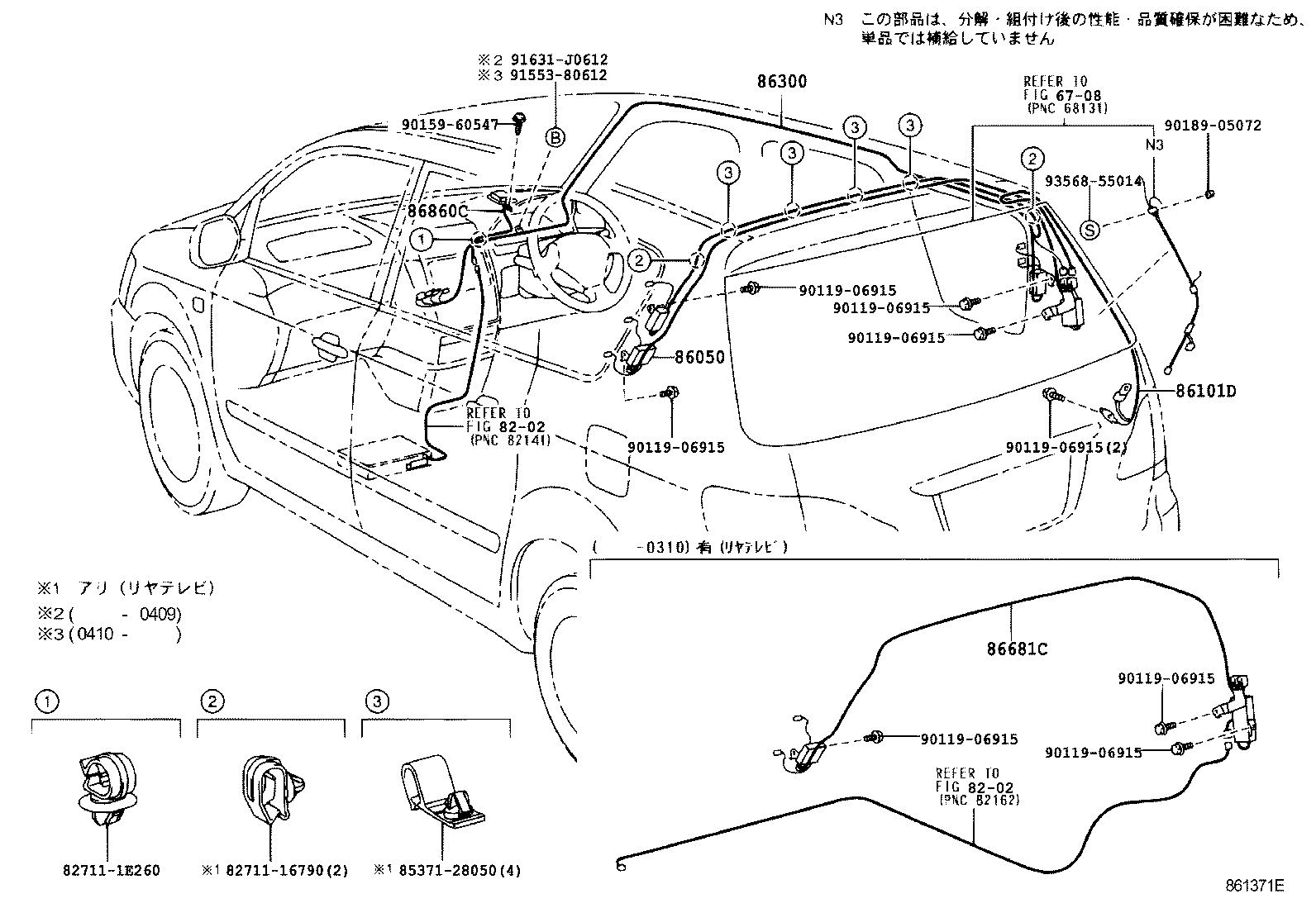

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86050 - ANTENNA ASSY, TELEVISION | ||||
| 86050-44060 |
ACM2# |
1 | ||
| 86050-44060 |
ACM2#..06S |
1 | ||
| 86101D - CORD SUB-ASSY, ANTENNA, NO.3 | ||||
| 86101-44190 |
ACM2# |
1 | ||
| 86101-44190 |
ACM2#..06S |
1 | ||
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-44090 |
ACM2# |
1 | ||
| 86300-44110 |
ACM2# ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ ｱﾝﾃﾅ & ﾃﾚﾋﾞ) |
1 | ||
| 86300-44090 |
ACM2#..06S |
1 | ||
| 86300-44100 |
ACM2#..240I,240S,240U ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ ｱﾝﾃﾅ) |
1 | ||
| 86300-44100 |
ACM2#..06S..240U ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ ｱﾝﾃﾅ) |
1 | ||
| 86300-44110 |
ACM2#..06S ｱﾘ(ﾀﾞｲﾊﾞ-ｼﾃｲ ｱﾝﾃﾅ & ﾃﾚﾋﾞ) |
1 | ||
| 86681C - DIVIDER, ANTENNA | ||||
| 86681-44010 |
ACM2# |
1 | ||
| 86860C - ANTENNA ASSY, NAVIGATION | ||||
| 86860-44030 |
ACM2# |
1 | ||
| 86860-44060 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 82711-1E260 | ||||
| 85371-28050 | ||||
| 90119-06915 | ||||
| 90159-60547 | ||||
| 90189-05072 | ||||
| 91553-80612 | ||||
| 91631-J0612 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 6708 | ||||
| 8202 | ||||
