ACM21W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

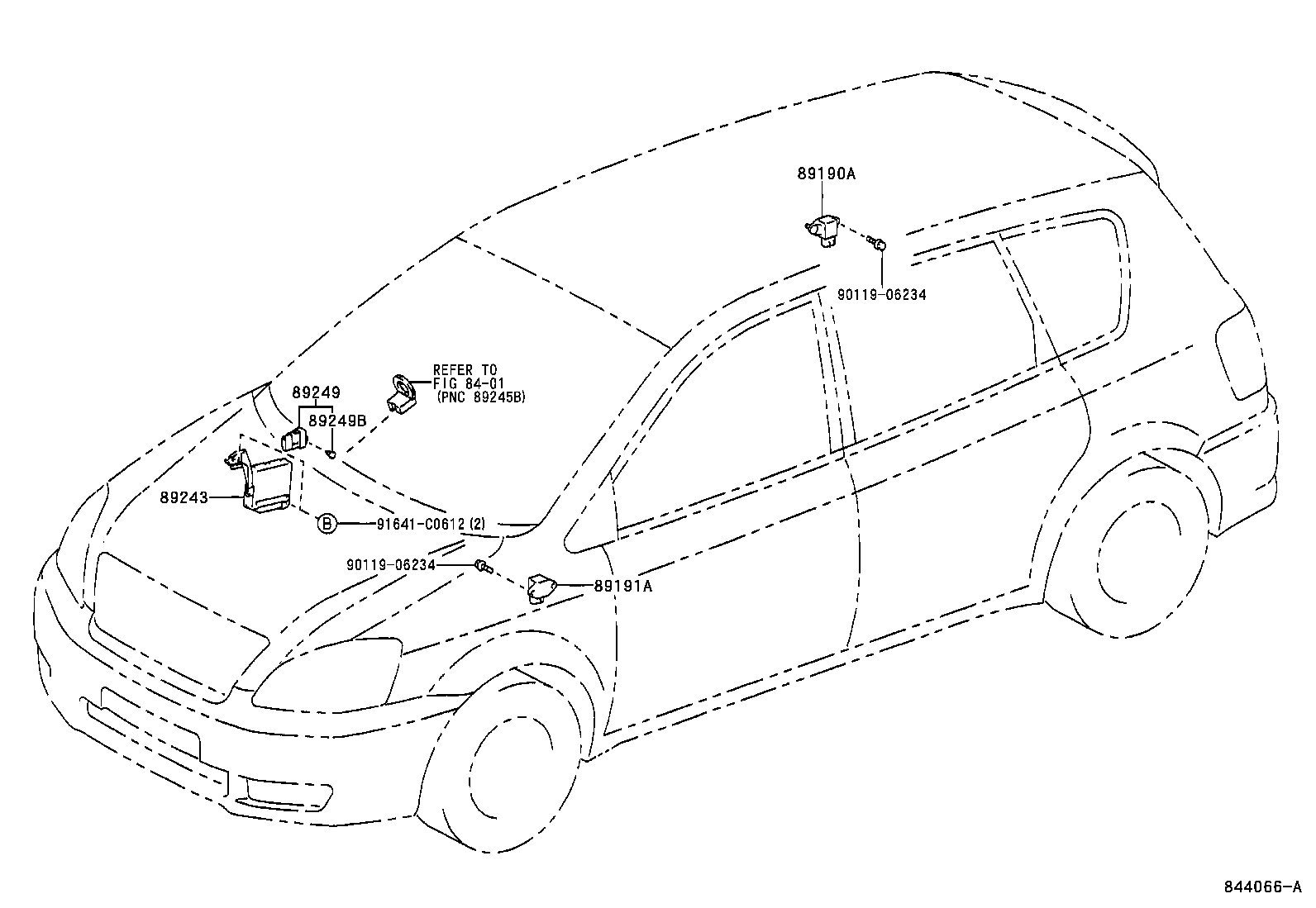

Click highlighted areas on diagram

diagram 8401 89190A 89191A 89243 89249 89249B 9011906234 9011906234 91641C0612
Part # Description Qty Price
89190A - SENSOR ASSY, ACCELERATION
89190-44010

ACM2#

 1
89190-44010

ACM2#..240S,240U

 1
89190-44010

ACM2#..06S..240U

 1
89191A - SENSOR, ACCELERATION
89191-30020

ACM2#..240S,240U

 1
89191-30020

ACM2#..06S..240U

 1
89191-30020

ACM2#

 1
89243 - COMPUTER, ABSORBER CONTROL
89243-44011

ACM2#..06S..240U

 1
89243-44010

ACM2#..240S,240U

 1
89243-44010

ACM2#

 1
89249 - SWITCH, ABSORBER CONTROL
89249-33030

ACM2#

 1
89249-28020

ACM2#..06S..240U

 1
89249-33030

ACM2#..240S,240U

 1
89249B - BULB, ABSORBER CONTROL SWITCH
84999-10310

ACM2#..06S..240U

14V 0.91W

 1
90010-01061

ACM2#

14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
90010-01061

ACM2#..240S,240U

14V0.84W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き

 1
Common parts
90119-06234
91641-C0612
Linked diagrams
8401
