ACM21W-ANSGK (2001)
Toyota Ipsum
Production
May 2001
-
Jun 2007
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105-0310)

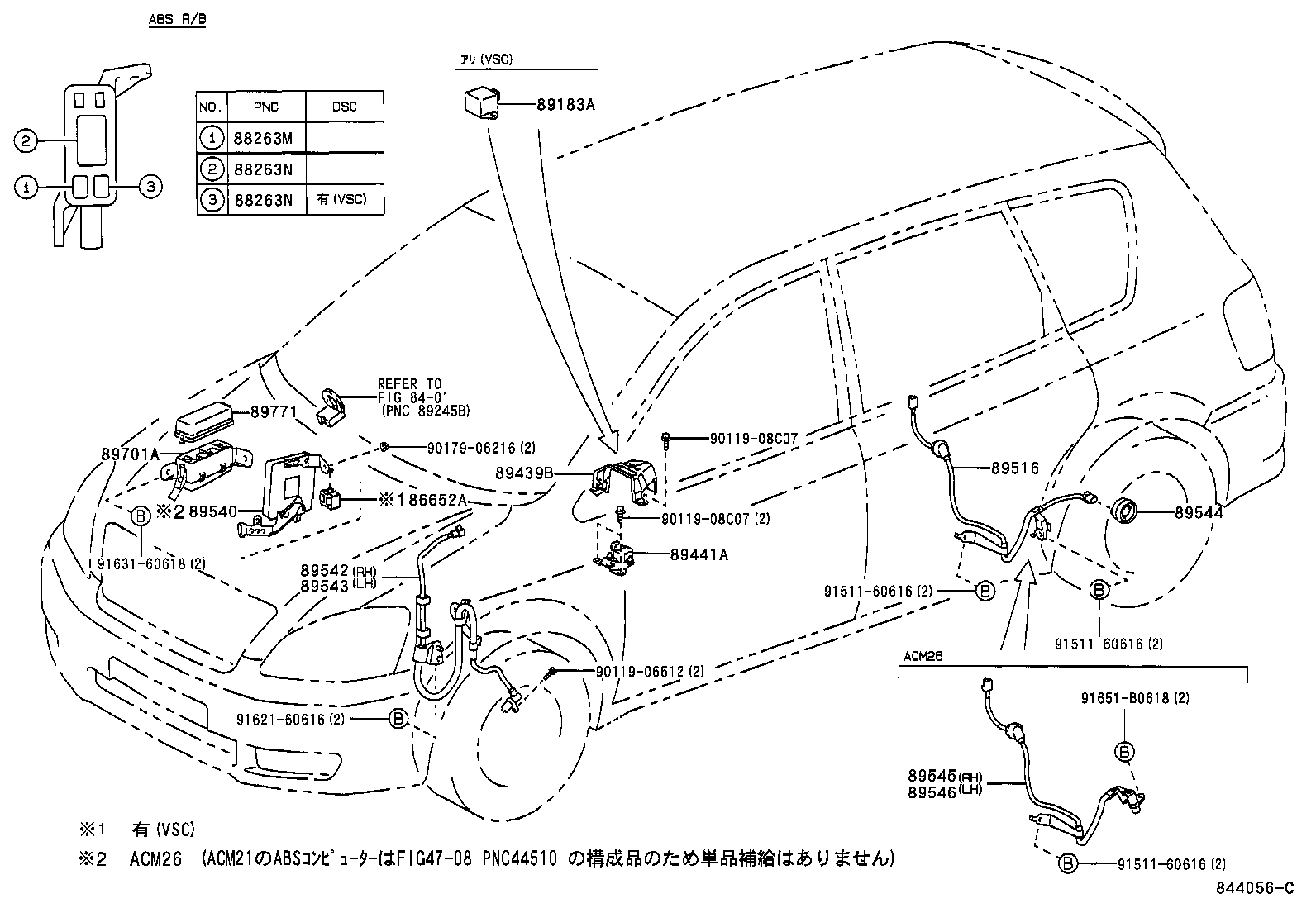

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-44060 |
ACM21..06S 右側 |
1 | ||
| 89516-44070 |
ACM21 左側 |
1 | ||
| 89516-44060 |
ACM21 右側 |
1 | ||
| 89516-44070 |
ACM21..06S 左側 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-44030 |
ACM2# |
1 | ||
| 89542-44030 |
ACM2#..06S |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-44030 |
ACM2# |
1 | ||
| 89543-44030 |
ACM2#..06S |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-47010 |
ACM21 |
2 | ||
| Common parts | ||||
| 90119-06512 | ||||
| 90119-08C07 | ||||
| 90179-06216 | ||||
| 91511-60616 | ||||
| 91621-60616 | ||||
| 91631-60618 | ||||
| 91651-B0618 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0310- )

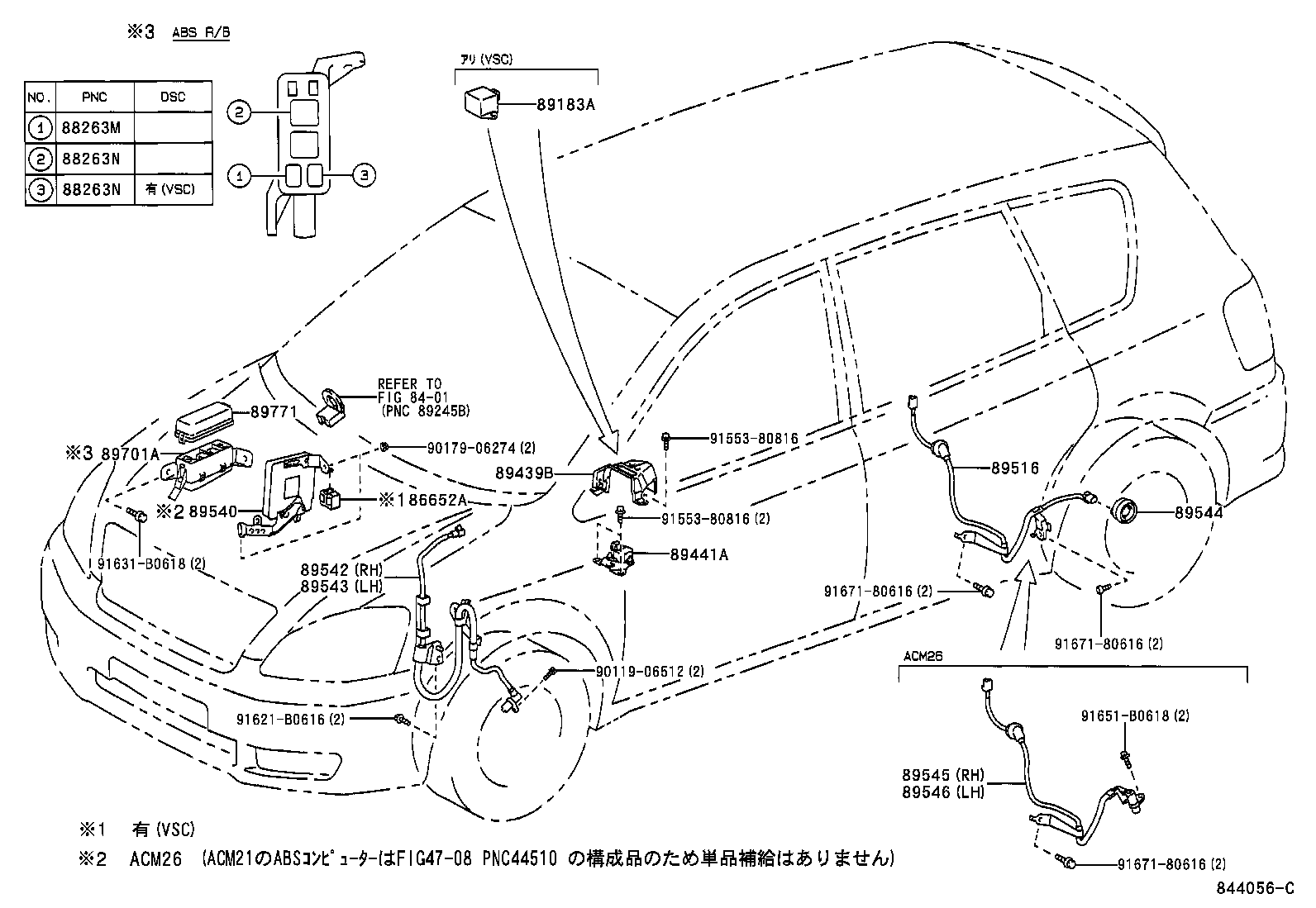

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89516 - WIRE, SKID CONTROL SENSOR | ||||
| 89516-44060 |
ACM21..06S 右側 |
1 | ||
| 89516-44070 |
ACM21 左側 |
1 | ||
| 89516-44060 |
ACM21 右側 |
1 | ||
| 89516-44070 |
ACM21..06S 左側 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-44030 |
ACM2# |
1 | ||
| 89542-44030 |
ACM2#..06S |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-44030 |
ACM2# |
1 | ||
| 89543-44030 |
ACM2#..06S |
1 | ||
| 89544 - SENSOR, SKID CONTROL | ||||
| 89544-47010 |
ACM21 |
2 | ||
| Common parts | ||||
| 90119-06512 | ||||
| 90179-06274 | ||||
| 91553-80816 | ||||
| 91621-B0616 | ||||
| 91631-B0618 | ||||
| 91651-B0618 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
