ACM21W-ANSGK (2001)
Toyota Ipsum
Production
May 2001
-
Jun 2007
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105- )

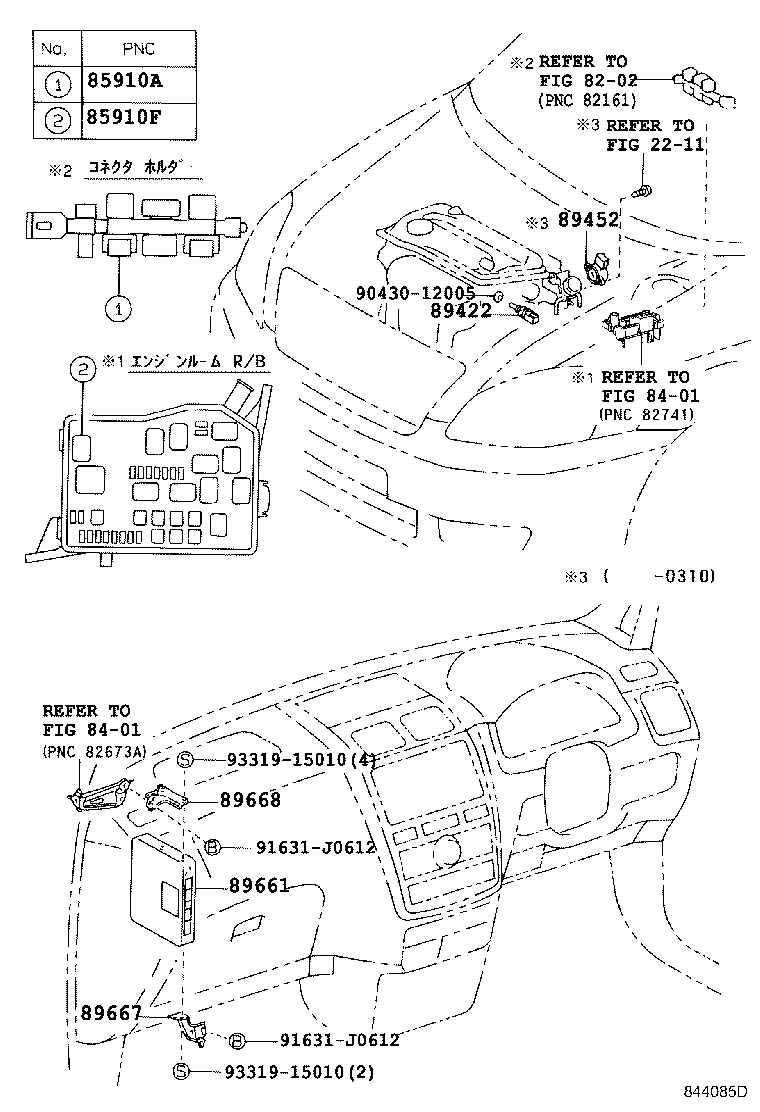

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI) | ||||
| 90987-02024 |
ACM2# |
1 | ||
| 90987-02024 |
ACM2#..06S |
1 | ||
| 85910F - RELAY, COMPUTER (FOR EFI) | ||||
| 90987-02024 |
ACM2# |
1 | ||
| 90987-02024 |
ACM2#..06S |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-35010 |
ACM2# |
1 | ||
| 89422-33030 |
ACM2#..06S |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-33030 |
ACM2# |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-44230 |
ACM21 FUJITSU TEN |
1 | ||
| 89661-44380 |
ACM21 FUJITSU TEN |
1 | ||
| 89661-44560 |
ACM21..06S FUJITSU TEN |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-44060 |
ACM2# |
1 | ||
| 89667-44060 |
ACM2#..06S |
1 | ||
| 89667-44060 |
ACM2# |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-44070 |
ACM2# |
1 | ||
| 89668-44070 |
ACM2#..06S |
1 | ||
| 89668-44070 |
ACM2# |
1 | ||
| Common parts | ||||
| 90430-12005 | ||||
| 91631-J0612 | ||||
| 93319-15010 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8202 | ||||
| 8401 | ||||
