ACM21W-ANSGK (2001)
Toyota Ipsum

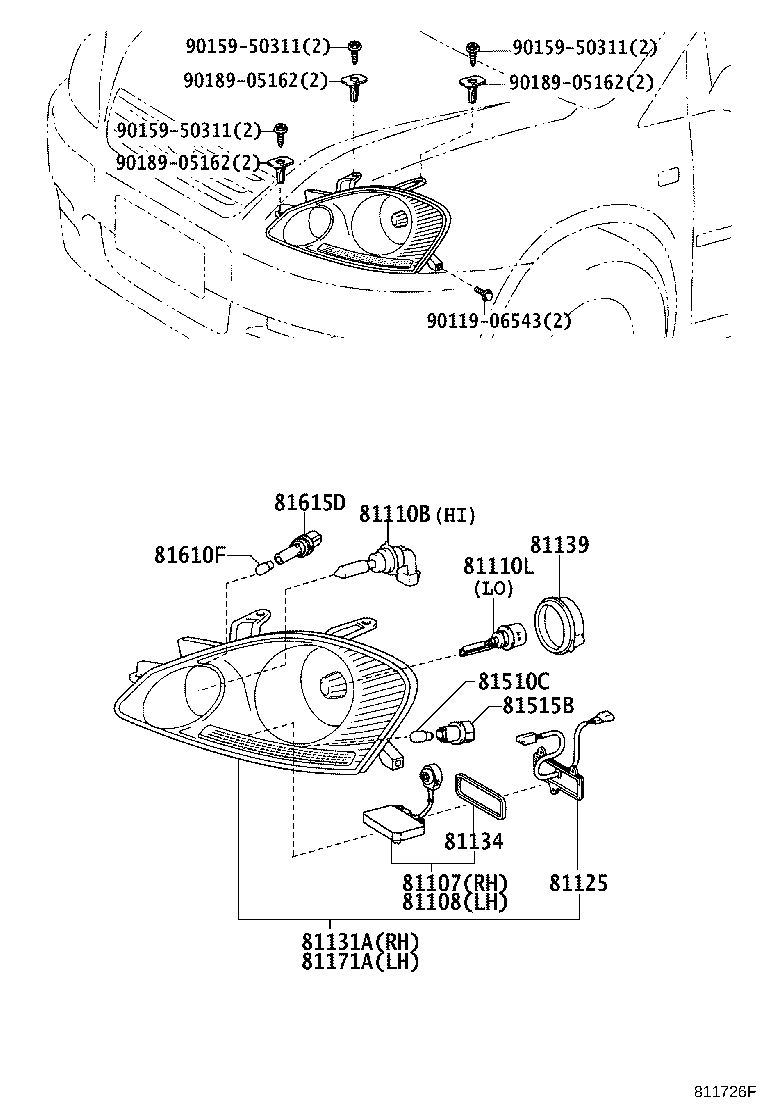

ILLUST NO. 1 OF 2(0105-0310)
ｱﾘ(ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-44120 |
ACM2# |
1 | ||
| 81107-51050 |
ACM2# |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-51050 |
ACM2# |
1 | ||
| 81107-44120 |
ACM2# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ACM2# 12V65W(SAE),60W(ECE) |
2 | ||
| 90080-81041 |
ACM2# 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20001 |
ACM2# 85V 35W |
2 | ||
| 90981-20001 |
ACM2# 85V 35W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-44120 |
ACM2# 右側 |
1 | ||
| 81165-44120 |
ACM2# 左側 |
1 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81140-44120 |
ACM2#..240E,240I,240U ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81145-44220 |
ACM2#..240I,240U |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81132-44120 |
ACM2# |
2 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-48040 |
ACM2# |
2 | ||
| 81139-48040 |
ACM2# |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81070-44120 |
ACM2#..240E,240I,240U ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81185-44220 |
ACM2#..240I,240U |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ACM2# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ACM2# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACM2# |
2 | ||
| 90075-60028 |
ACM2# |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ACM2# 12V 5W |
2 | ||
| 99132-12050 |
ACM2# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ACM2# |
2 | ||
| 90075-60046 |
ACM2# |
2 | ||
| 90075-60030 |
ACM2# |
2 | ||
| Common parts | ||||
| 90119-06543 | ||||
| 90159-50311 | ||||
| 90189-05162 | ||||

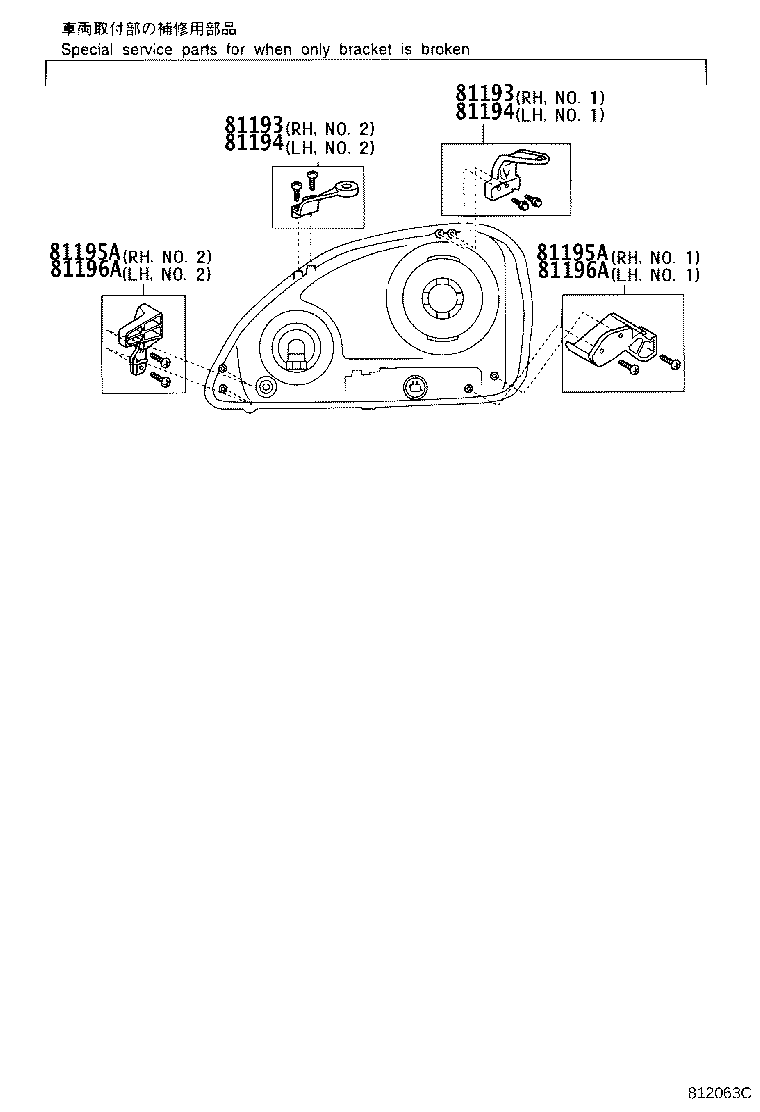

ILLUST NO. 2 OF 2(0105-0310)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-44020 |
ACM2# NO.2 |
1 | ||
| 81193-44010 |
ACM2# NO.1 |
1 | ||
| 81193-44020 |
ACM2#..06S NO.2 |
1 | ||
| 81193-44010 |
ACM2#..06S NO.1 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-44020 |
ACM2# NO.2 |
1 | ||
| 81193-44010 |
ACM2# NO.1 |
1 | ||
| 81193-44020 |
ACM2#..06S NO.2 |
1 | ||
| 81193-44010 |
ACM2#..06S NO.1 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-44010 |
ACM2# NO.1 |
1 | ||
| 81194-44020 |
ACM2#..06S NO.2 |
1 | ||
| 81194-44010 |
ACM2#..06S NO.1 |
1 | ||
| 81194-44020 |
ACM2# NO.2 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-44010 |
ACM2# NO.1 |
1 | ||
| 81194-44020 |
ACM2#..06S NO.2 |
1 | ||
| 81194-44010 |
ACM2#..06S NO.1 |
1 | ||
| 81194-44020 |
ACM2# NO.2 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-44030 |
ACM2#..06S NO.1 |
1 | ||
| 81195-44010 |
ACM2# NO.1 |
1 | ||
| 81195-44040 |
ACM2#..06S NO.2 |
1 | ||
| 81195-44020 |
ACM2# NO.2 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-44030 |
ACM2#..06S NO.1 |
1 | ||
| 81195-44010 |
ACM2# NO.1 |
1 | ||
| 81195-44040 |
ACM2#..06S NO.2 |
1 | ||
| 81195-44020 |
ACM2# NO.2 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-44040 |
ACM2#..06S NO.1 |
1 | ||
| 81196-44020 |
ACM2# NO.2 |
1 | ||
| 81196-44050 |
ACM2#..06S NO.2 |
1 | ||
| 81196-44010 |
ACM2# NO.1 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-44040 |
ACM2#..06S NO.1 |
1 | ||
| 81196-44020 |
ACM2# NO.2 |
1 | ||
| 81196-44050 |
ACM2#..06S NO.2 |
1 | ||
| 81196-44010 |
ACM2# NO.1 |
1 | ||
(0310- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-44120 |
ACM2# |
1 | ||
| 81107-51050 |
ACM2# |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-51050 |
ACM2# |
1 | ||
| 81107-44120 |
ACM2# |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ACM2# 12V65W(SAE),60W(ECE) |
2 | ||
| 90080-81041 |
ACM2# 12V 65W |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20001 |
ACM2# 85V 35W |
2 | ||
| 90981-20001 |
ACM2# 85V 35W |
2 | ||
| 81131A - UNIT, HEADLAMP, RH | ||||
| 81140-44120 |
ACM2#..240E,240I,240U ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81145-44220 |
ACM2#..240I,240U |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81132-44120 |
ACM2# |
2 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-48040 |
ACM2# |
2 | ||
| 81139-48040 |
ACM2# |
2 | ||
| 81171A - UNIT, HEADLAMP, LH | ||||
| 81070-44120 |
ACM2#..240E,240I,240U ﾃﾞｲｽﾁﾔ-ｼﾞ ﾍﾂﾄﾞﾗﾝﾌﾟ |
1 | ||
| 81185-44220 |
ACM2#..240I,240U |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-44020 |
ACM2# NO.2 |
1 | ||
| 81193-44010 |
ACM2# NO.1 |
1 | ||
| 81193-44020 |
ACM2#..06S NO.2 |
1 | ||
| 81193-44010 |
ACM2#..06S NO.1 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-44020 |
ACM2# NO.2 |
1 | ||
| 81193-44010 |
ACM2# NO.1 |
1 | ||
| 81193-44020 |
ACM2#..06S NO.2 |
1 | ||
| 81193-44010 |
ACM2#..06S NO.1 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-44010 |
ACM2# NO.1 |
1 | ||
| 81194-44020 |
ACM2#..06S NO.2 |
1 | ||
| 81194-44010 |
ACM2#..06S NO.1 |
1 | ||
| 81194-44020 |
ACM2# NO.2 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-44010 |
ACM2# NO.1 |
1 | ||
| 81194-44020 |
ACM2#..06S NO.2 |
1 | ||
| 81194-44010 |
ACM2#..06S NO.1 |
1 | ||
| 81194-44020 |
ACM2# NO.2 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-44030 |
ACM2#..06S NO.1 |
1 | ||
| 81195-44010 |
ACM2# NO.1 |
1 | ||
| 81195-44040 |
ACM2#..06S NO.2 |
1 | ||
| 81195-44020 |
ACM2# NO.2 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-44030 |
ACM2#..06S NO.1 |
1 | ||
| 81195-44010 |
ACM2# NO.1 |
1 | ||
| 81195-44040 |
ACM2#..06S NO.2 |
1 | ||
| 81195-44020 |
ACM2# NO.2 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-44040 |
ACM2#..06S NO.1 |
1 | ||
| 81196-44020 |
ACM2# NO.2 |
1 | ||
| 81196-44050 |
ACM2#..06S NO.2 |
1 | ||
| 81196-44010 |
ACM2# NO.1 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81196-44040 |
ACM2#..06S NO.1 |
1 | ||
| 81196-44020 |
ACM2# NO.2 |
1 | ||
| 81196-44050 |
ACM2#..06S NO.2 |
1 | ||
| 81196-44010 |
ACM2# NO.1 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ACM2# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 90981-15011 |
ACM2# 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACM2# |
2 | ||
| 90075-60028 |
ACM2# |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ACM2# 12V 5W |
2 | ||
| 99132-12050 |
ACM2# 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ACM2# |
2 | ||
| 90075-60046 |
ACM2# |
2 | ||
| 90075-60030 |
ACM2# |
2 | ||
| Common parts | ||||
| 90075-02025 | ||||
| 90075-02727 | ||||
| 90119-06543 | ||||
| 90159-50311 | ||||
| 90189-05162 | ||||
