ACM21W-ANSGK (2001)
Toyota Ipsum
Production
May 2001
-
Jun 2007
Engine
2AZFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0105-0310)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03373 |
ACM2# |
1 | ||
| 90959-03337 |
ACM2# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32020 |
ACM2# |
1 | ||
| 78111-32020 |
ACM2#..06S |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04019 |
ACM2#..06S |
1 | ||
| 90254-04019 |
ACM2# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-44100 |
ACM2# |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-44070 |
ACM2# |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-44050 |
ACM2# |
1 | ||
| 78183C - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-44040 |
ACM2# |
1 | ||
| Common parts | ||||
| 91551-80610 | ||||
| 91551-80620 | ||||
| 91651-40628 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 4702 | ||||

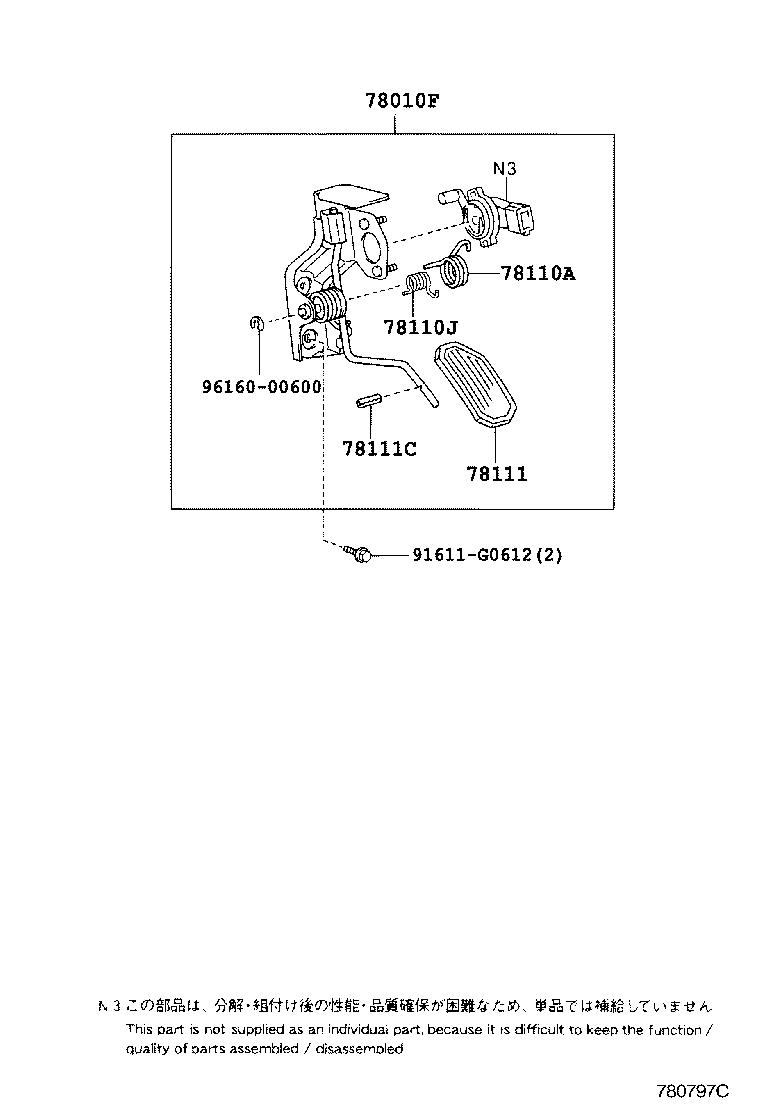

(0310- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010F - PEDAL ASSY, ACCELERATOR | ||||
| 78010-44070 |
ACM2#..06S |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03373 |
ACM2# |
1 | ||
| 90959-03337 |
ACM2# |
1 | ||
| 78110J - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03339 |
ACM2# |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-32020 |
ACM2# |
1 | ||
| 78111-32020 |
ACM2#..06S |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90254-04019 |
ACM2#..06S |
1 | ||
| 90254-04019 |
ACM2# |
1 | ||
| Common parts | ||||
| 91611-G0612 | ||||
| 96160-00600 | ||||
