ACM21W-ANSGK (2001)
Toyota Ipsum

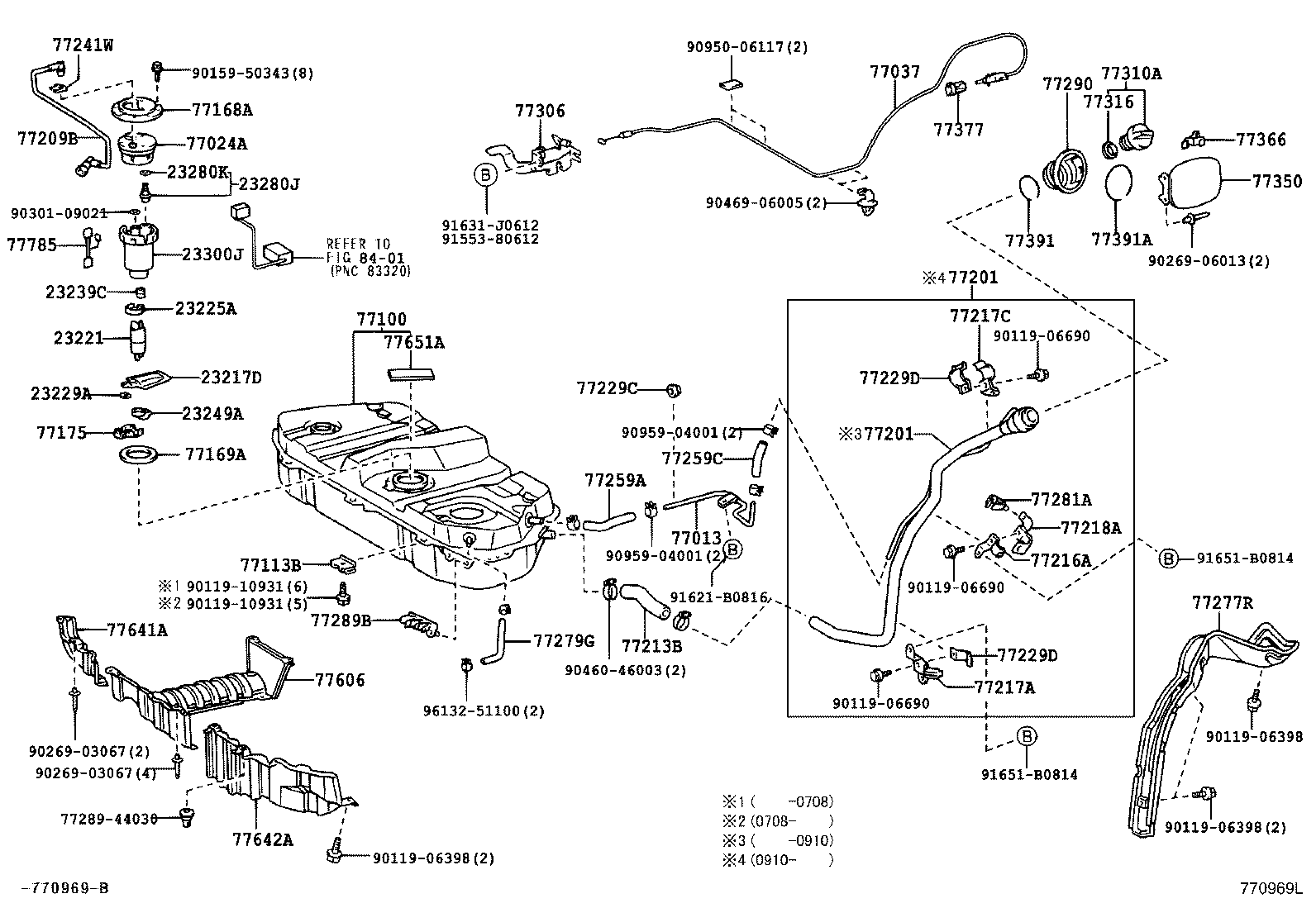

ILLUST NO. 1 OF 2(0105- )ACM21
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-74021 |
2AZFE..ACM2# |
1 | ||
| 23217-74021 |
2AZFE..ACM2# |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-28030 |
2AZFE..ACM2# |
1 | ||
| 23221-28280 |
2AZFE..ACM2# |
1 | ||
| 23221-28030 |
2AZFE..ACM2# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-28010 |
2AZFE..ACM2# |
1 | ||
| 23229A - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
2AZFE..ACM2# |
1 | ||
| 23229-16010 |
2AZFE..ACM2# |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
2AZFE..ACM2# |
1 | ||
| 23249A - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
2AZFE..ACM2# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-22010 |
2AZFE..ACM21 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07020 |
2AZFE..ACM21 |
1 | ||
| 90301-07020 |
2AZFE..ACM21 |
1 | ||
| 23300J - FILTER ASSY, FUEL | ||||
| 23300-28040 |
2AZFE..ACM2# |
1 | ||
| 23300-28030 |
2AZFE..ACM2# |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-44030 |
ACM2# |
1 | ||
| 77013-44060 |
ACM2# |
1 | ||
| 77013-44060 |
ACM2#..06S |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-32040 |
ACM2# |
1 | ||
| 77024-32040 |
ACM2#..06S |
1 | ||
| 77024-32040 |
ACM2# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-44030 |
ACM2# |
1 | ||
| 77037-44030 |
ACM2#..06S |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-44031 |
ACM21 |
1 | ||
| 77001-44031 |
ACM21 |
1 | ||
| 77001-44030 |
ACM21 |
1 | ||
| 77113B - PLATE, FUEL TANK SIDE | ||||
| 77113-44010 |
ACM2# |
6 | ||
| 77113-44010 |
ACM26;ACM21..06S |
6 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-12240 |
ACM2# |
1 | ||
| 77168-33050 |
ACM2# |
1 | ||
| 77168-33050 |
ACM2#..06S |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
ACM2#..06S |
1 | ||
| 77169-33020 |
ACM2# |
1 | ||
| 77169-33020 |
ACM2# |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-52020 |
ACM2# |
1 | ||
| 77175-52020 |
ACM2#..06S |
1 | ||
| 77175-52020 |
ACM2# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-44060 |
ACM2# |
1 | ||
| 77201-44160 |
ACM2# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-44060 |
ACM2# |
1 | ||
| 77201-44160 |
ACM2# |
1 | ||
| 77209B - TUBE SUB-ASSY, FUEL PUMP | ||||
| 77209-28061 |
ACM21..06S |
1 | ||
| 77209-44030 |
ACM21 |
1 | ||
| 77209-44030 |
ACM21 |
1 | ||
| 77209-28061 |
ACM21 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-44020 |
ACM2# |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-44020 |
ACM2# |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-44030 |
ACM2# |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-44040 |
ACM2# |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-44020 |
ACM2# |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-44020 |
ACM2#..06S |
1 | ||
| 77229-44020 |
ACM2# |
1 | ||
| 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 | ||||
| 77229-44010 |
ACM2# |
2 | ||
| 77229D - SUPPORT, FUEL TANK FILLER PIPE, NO.4 | ||||
| 77229-44010 |
ACM2# |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-32060 |
ACM2# |
1 | ||
| 77241-32060 |
ACM2#..06S |
1 | ||
| 77241-32060 |
ACM2# |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-44050 |
ACM2# |
1 | ||
| 77259-44050 |
ACM2# |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-44060 |
ACM2# |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-44030 |
ACM2#..06S |
1 | ||
| 77277-44030 |
ACM2# |
1 | ||
| 77279G - HOSE, FUEL, NO.2 | ||||
| 77279-44010 |
ACM2# |
1 | ||
| 77279-44010 |
ACM2# |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-50020 |
ACM2# |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-44020 |
ACM2# |
1 | ||
| 77289-44020 |
ACM2# |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-44011 |
ACM2# |
1 | ||
| 77291-44011 |
ACM2#..06S |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-13020 |
ACM2# |
1 | ||
| 77306-13020 |
ACM2#..06S |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
ACM2# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
ACM2#..06S |
1 | ||
| 77316-16010 |
ACM2# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-44040 |
ACM2# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30080 |
ACM2#..06S |
1 | ||
| 77360-30080 |
ACM2# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
ACM2#..06S |
1 | ||
| 77377-12050 |
ACM2# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
ACM2#..06S |
1 | ||
| 77391-12020 |
ACM2# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-44010 |
ACM2# |
1 | ||
| 77391-44010 |
ACM2#..06S |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-44010 |
ACM21 |
1 | ||
| 77606-44010 |
ACM21..06S |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-44020 |
ACM21..06S |
1 | ||
| 77641-44020 |
ACM21 |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77642-44010 |
ACM2# |
1 | ||
| 77642-44010 |
ACM2#..06S |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77672-44010 |
ACM2# |
1 | ||
| 77672-44010 |
ACM2# |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-32010 |
ACM2# |
1 | ||
| 77785-32010 |
ACM2# |
1 | ||
| 77785-32010 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 77289-44030 | ||||
| 90119-06398 | ||||
| 90119-06690 | ||||
| 90119-10931 | ||||
| 90159-50343 | ||||
| 90269-03067 | ||||
| 90269-06013 | ||||
| 90301-09021 | ||||
| 90460-46003 | ||||
| 90469-06005 | ||||
| 90950-06117 | ||||
| 90959-04001 | ||||
| 91553-80612 | ||||
| 91621-B0816 | ||||
| 91631-J0612 | ||||
| 91651-B0814 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(0105- )
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-44071 |
ACM2#..06S |
1 | ||
| 77251-44070 |
ACM2# |
1 | ||
| 77251-44070 |
ACM2# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-44040 |
ACM2# |
1 | ||
| 77261-44040 |
ACM2#..06S |
1 | ||
| 77261-44040 |
ACM2# |
1 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 95337-06030 |
ACM2# 長さ=280 |
1 | ||
| 95337-06030 |
ACM2#..06S 長さ=280 |
1 | ||
| 95337-06030 |
ACM2# 長さ=280 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-44160 |
ACM2# |
2 | ||
| 77285-44160 |
ACM2# |
2 | ||
| 77285-44160 |
ACM2#..06S |
2 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-44010 |
ACM2# |
1 | ||
| 77286-44010 |
ACM2# |
1 | ||
| 77286-44010 |
ACM2#..06S |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-44030 |
ACM2# |
1 | ||
| 77298-44030 |
ACM2#..06S |
1 | ||
| 77298-44030 |
ACM2# |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-32030 |
ACM2# |
4 | ||
| 77298-32030 |
ACM2# |
4 | ||
| 77298-32030 |
ACM2#..06S |
4 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-44030 |
ACM2#..06S |
1 | ||
| 77740-44030 |
ACM2# |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-44020 |
ACM2# |
1 | ||
| 77747-44020 |
ACM2#..06S |
1 | ||
| 77751 - BRACKET, CHARCOAL CANISTER BASE | ||||
| 77751-44070 |
ACM2# |
1 | ||
| 77751-44070 |
ACM2#..06S |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-44070 |
ACM2#..06S |
1 | ||
| 77754-44070 |
ACM2# |
1 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77754-44050 |
ACM2# |
1 | ||
| 77754-44050 |
ACM2#..06S |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77754-44060 |
ACM2# |
1 | ||
| 77754-44060 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 91621-J0614 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
