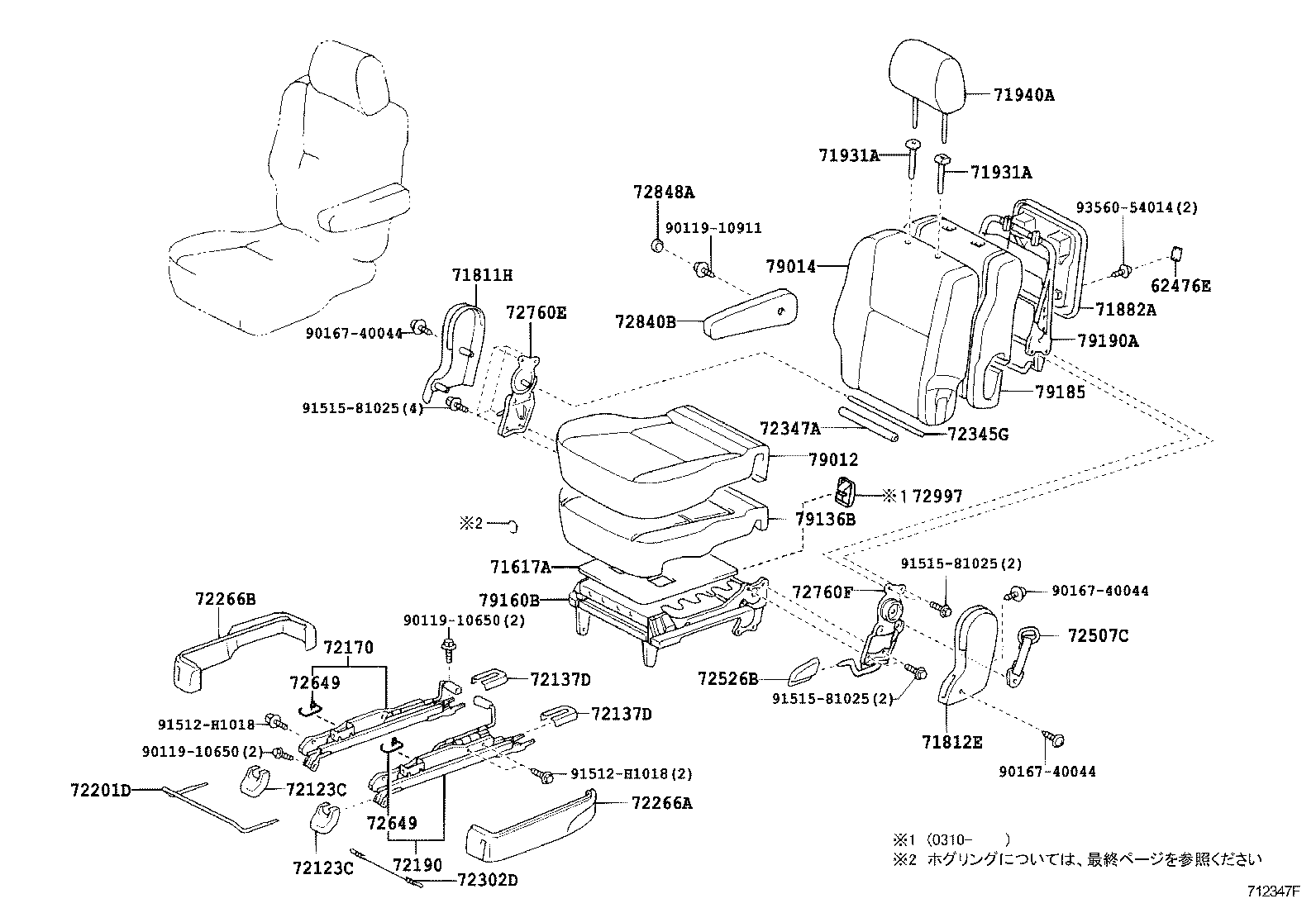

ACM21W-ANSGK (2001)
Toyota Ipsum
(0105- )
ｷｬﾌﾟﾃﾝｼｰﾄ ﾗｲﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62476E - CAP, REAR SEAT | ||||
| 62476-26010A0 |
ACM2#..240E,240I,240U ｱﾘ(ｷﾔﾌﾟﾃﾝｼ-ﾄ),IVORY,TRIM0# |
4 | ||
| 71884-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 71884-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 71884-44010C0 |
ACM2#..06S BLACK,TRIM1# |
4 | ||
| 62476-26010C0 |
ACM2# ｱﾘ(ｷﾔﾌﾟﾃﾝｼ-ﾄ),BLACK,TRIM1# |
4 | ||
| 71617A - CLOTH, REAR SEAT CUSHION UNDER | ||||
| 71617-44100 |
ACM2#..06S |
2 | ||
| 71811J - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-44190A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71811-44190C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71811-44190A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812K - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-44150A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812-44150A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812-44150C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-28040C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71881-28040A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71881-28040A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM1# |
2 | ||
| 71931-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..06S..240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM1# |
2 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM1# |
2 | ||
| 71931-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..06S..240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM1# |
2 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-44190A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44190B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-44191A1 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44191B1 |
ACM2#..240U MD.GRAY,TRIM1# |
2 | ||
| 71940-44191A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44191B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-44010C0 |
ACM2#..06S BLACK,TRIM1# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-44010C0 |
ACM2#..06S BLACK,TRIM1# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-44030C0 |
ACM2# BLACK,TRIM1# |
4 | ||
| 72137-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-44030C0 |
ACM2# BLACK,TRIM1# |
4 | ||
| 72137-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72180-44030 |
ACM2#..06S |
1 | ||
| 72180-44030 |
ACM2#..06S |
1 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72190-44030 |
ACM2#..06S |
1 | ||
| 72190-44030 |
ACM2#..06S |
1 | ||
| 72201C - HANDLE SUB-ASSY, SEAT TRACK, RH | ||||
| 72201-44060 |
ACM2#..06S |
1 | ||
| 72201-44060 |
ACM2#..06S |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44060A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72265-44060C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 72265-44060A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72265B - COVER, SEAT TRACK UPR RAIL, RH | ||||
| 72265-44050C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 72265-44050A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72265-44050A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72302C - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, RH | ||||
| 72301-44010 |
ACM2#..06S |
1 | ||
| 72301-44010 |
ACM2#..06S |
1 | ||
| 72345F - PIPE, RECLINING CONNECTING, RH | ||||
| 72345-28100 |
ACM2#..06S |
1 | ||
| 72345-28100 |
ACM2#..06S |
1 | ||
| 72347A - COVER, RECLINING CONNECTING HOOK | ||||
| 72347-28050 |
ACM2#..06S |
2 | ||
| 72347-28050 |
ACM2#..06S |
2 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-44060A0 |
ACM2#..06S..240U IVORY,TRIM0#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72507-44020A1 |
ACM2#..240E,240I,240U IVORY,TRIM0#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507-44060A0 |
ACM2#..06S..240U IVORY,TRIM0#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72507-44060C0 |
ACM2#..06S BLACK,TRIM1#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72507-44020C1 |
ACM2# BLACK,TRIM1#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507-44020A1 |
ACM2#..240I,240U IVORY,TRIM0#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-47020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 72525-47020C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-44010 |
ACM2# |
4 | ||
| 72649-44010 |
ACM2# |
4 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-44010 |
ACM2# |
4 | ||
| 72649-44010 |
ACM2# |
4 | ||
| 72750E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH | ||||
| 72730-44070 |
ACM2#..06S |
1 | ||
| 72730-44070 |
ACM2#..06S |
1 | ||
| 72750F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH | ||||
| 72740-44080 |
ACM2#..06S |
1 | ||
| 72740-44080 |
ACM2#..06S |
1 | ||
| 72830M - ARMREST ASSY, SEAT CENTER, RH | ||||
| 72840-44060A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72840-44061B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 72840-44061A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72840-44060B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 72840-44062B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 72840-44061B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 72840-44062A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72840-44180A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72840-44061A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030A0 |
ACM2#..06S..240U IVORY,TRIM0# |
2 | ||
| 72848-28030A0 |
ACM2#..06S..240U IVORY,TRIM0# |
2 | ||
| 72848-28030C0 |
ACM2#..06S BLACK,TRIM1# |
2 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-28160A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79021-44220A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79021-44221B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 79021-44221A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79021-44221B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79021-44220B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79021-44221A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79021-44370A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79023-44280B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79023-44280A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79023-44281B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79023-44281A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79023-44281B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 79023-44440A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79023-44281A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-44120 |
ACM2#..06S |
1 | ||
| 79135-44060 |
ACM2#..06S |
1 | ||
| 79160A - SPRING ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79260-44030 |
ACM2#..06S |
1 | ||
| 79260-44040 |
ACM2#..06S |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79275-44070 |
ACM2#..06S |
1 | ||
| 79275-44070 |
ACM2#..06S |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79280-44030 |
ACM2#..06S |
1 | ||
| 79280-44030 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 90119-10650 | ||||
| 90119-10911 | ||||
| 90167-40044 | ||||
| 91512-H1018 | ||||
| 91515-81025 | ||||
| 93560-54014 | ||||
(0105- )
ﾍﾞﾝﾁｼｰﾄ ﾗｲﾄ/ｾﾝﾀｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71617A - CLOTH, REAR SEAT CUSHION UNDER | ||||
| 71617-44100 |
ACM2#..06S |
2 | ||
| 71811J - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-44190A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71811-44190C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71811-44190A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812K - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-44150A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812-44150A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812-44150C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-28040C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71881-28040A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71881-28040A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM1# |
2 | ||
| 71931-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..06S..240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM1# |
2 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM1# |
2 | ||
| 71931-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..06S..240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM1# |
2 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-44190A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44190B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-44191A1 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44191B1 |
ACM2#..240U MD.GRAY,TRIM1# |
2 | ||
| 71940-44191A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44191B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-44010C0 |
ACM2#..06S BLACK,TRIM1# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-44030C0 |
ACM2# BLACK,TRIM1# |
4 | ||
| 72137-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-44030C0 |
ACM2# BLACK,TRIM1# |
4 | ||
| 72137-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72180-44030 |
ACM2#..06S |
1 | ||
| 72180-44030 |
ACM2#..06S |
1 | ||
| 72180C - TRACK ASSY, REAR SEAT, INNER RH | ||||
| 72190-44030 |
ACM2#..06S |
1 | ||
| 72190-44030 |
ACM2#..06S |
1 | ||
| 72201C - HANDLE SUB-ASSY, SEAT TRACK, RH | ||||
| 72201-44060 |
ACM2#..06S |
1 | ||
| 72201-44060 |
ACM2#..06S |
1 | ||
| 72265B - COVER, SEAT TRACK UPR RAIL, RH | ||||
| 72265-44050C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 72265-44050A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72265-44050A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72266B - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-44050A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72266-44050A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72266-44050C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 72345F - PIPE, RECLINING CONNECTING, RH | ||||
| 72345-28100 |
ACM2#..06S |
1 | ||
| 72345-28100 |
ACM2#..06S |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-47020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 72525-47020C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-44010 |
ACM2# |
4 | ||
| 72649-44010 |
ACM2# |
4 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-44010 |
ACM2# |
4 | ||
| 72649-44010 |
ACM2# |
4 | ||
| 72750E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER RH | ||||
| 72730-44070 |
ACM2#..06S |
1 | ||
| 72730-44070 |
ACM2#..06S |
1 | ||
| 72750F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER LH | ||||
| 72740-44080 |
ACM2#..06S |
1 | ||
| 72740-44080 |
ACM2#..06S |
1 | ||
| 72996 - COVER, REAR SEAT BACK, RH | ||||
| 72996-28160A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79021-44220A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79021-44221B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 79021-44221A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79021-44221B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79021-44220B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79021-44221A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79021-44370A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79023-44280B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79023-44280A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79023-44281B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79023-44281A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79023-44281B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 79023-44440A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79023-44281A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-44120 |
ACM2#..06S |
1 | ||
| 79135-44060 |
ACM2#..06S |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79275-44070 |
ACM2#..06S |
1 | ||
| 79275-44070 |
ACM2#..06S |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79280-44030 |
ACM2#..06S |
1 | ||
| 79280-44030 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 72702-44120 | ||||
| 90119-10650 | ||||
| 90149-60110 | ||||
| 90159-60532 | ||||
| 90167-40044 | ||||
| 90386-08155 | ||||
| 90467-10015A0 | ||||
| 90467-10015C0 | ||||
| 91511-60612 | ||||
| 91512-81020 | ||||
| 91611-B0614 | ||||
| 91626-40618 | ||||
| 93560-55014 | ||||
| 94185-60600 | ||||
(0105- )

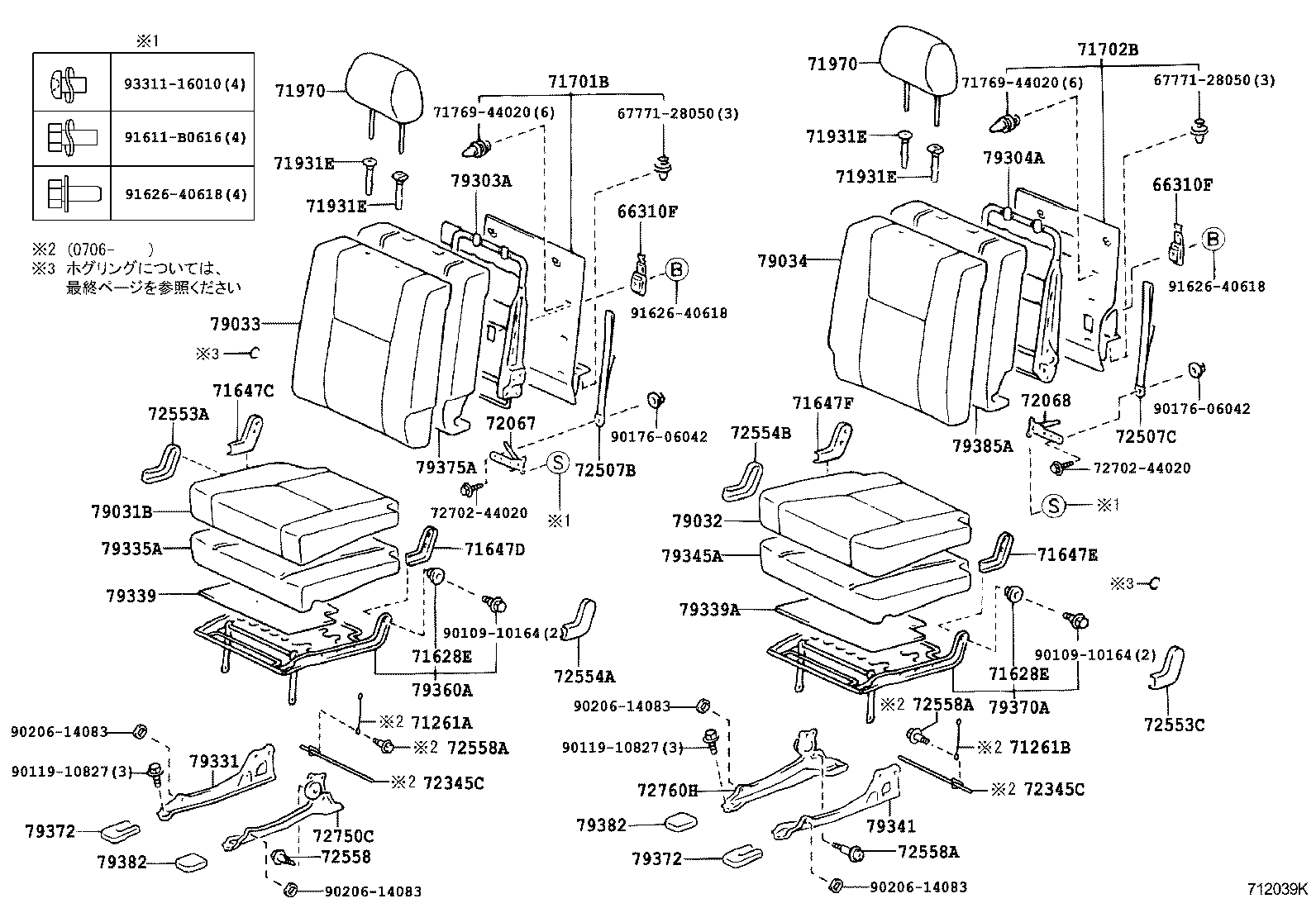

ｻｰﾄﾞｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66310F - HOOK ASSY, ROPE | ||||
| 66310-31010C0 |
ACM2# BLACK,TRIM1# |
2 | ||
| 66310-31010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 66310F - HOOK ASSY, ROPE | ||||
| 66310-31010C0 |
ACM2# BLACK,TRIM1# |
2 | ||
| 66310-31010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ACM2# |
10 | ||
| 71628-44010 |
ACM2# |
14 | ||
| 71628E - SPACER, REAR SEAT CUSHION | ||||
| 71628-44010 |
ACM2# |
10 | ||
| 71628-44010 |
ACM2# |
14 | ||
| 71647C - PROTECTOR, REAR SEAT CUSHION EDGE,OUTER RH | ||||
| 71647-44010 |
ACM2# |
1 | ||
| 71647-44010 |
ACM2# |
1 | ||
| 71647D - PROTECTOR, REAR SEAT CUSHION EDGE, INNER RH | ||||
| 71647-44020 |
ACM2# |
1 | ||
| 71647-44020 |
ACM2# |
1 | ||
| 71647E - PROTECTOR, REAR SEAT CUSHION EDGE, OUTER LH | ||||
| 71647-44020 |
ACM2# |
1 | ||
| 71647-44020 |
ACM2# |
1 | ||
| 71647F - PROTECTOR, REAR SEAT CUSHION EDGE, INNER LH | ||||
| 71647-44010 |
ACM2# |
1 | ||
| 71647-44010 |
ACM2# |
1 | ||
| 71701B - BOARD SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71701-44020B0 |
ACM2# MEDIUM GRAY,TRIM1# |
1 | ||
| 71701-44020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 71701-44020A0 |
ACM2#..240I,240U IVORY,TRIM0# |
1 | ||
| 71702B - BOARD SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71702-44020B0 |
ACM2# MEDIUM GRAY,TRIM1# |
1 | ||
| 71702-44020A0 |
ACM2#..240I,240U IVORY,TRIM0# |
1 | ||
| 71702-44020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71956-47010C0 |
ACM2# ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71970-47010A0 |
ACM2#..240E,240I,240U ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71970-47010C0 |
ACM2# ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71956-47010A0 |
ACM2#..240E,240I,240U ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71956-47010C0 |
ACM2# ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71970-47010A0 |
ACM2#..240E,240I,240U ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71970-47010C0 |
ACM2# ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71956-47010A0 |
ACM2#..240E,240I,240U ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71956-47010C0 |
ACM2# ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71970-47010A0 |
ACM2#..240E,240I,240U ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71970-47010C0 |
ACM2# ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71956-47010A0 |
ACM2#..240E,240I,240U ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931E - SUPPORT ASSY, REAR NO.3 SEAT HEADREST | ||||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71956-47010C0 |
ACM2# ﾛｯｸ無,BLACK,TRIM1# |
2 | ||
| 71970-47010A0 |
ACM2#..240E,240I,240U ﾛｯｸ付,IVORY,TRIM0# |
2 | ||
| 71970-47010C0 |
ACM2# ﾛｯｸ付,BLACK,TRIM1# |
2 | ||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71956-47010A0 |
ACM2#..240E,240I,240U ﾛｯｸ無,IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-44270B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-44270A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44271B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-44271A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44271A1 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44271B1 |
ACM2#..240U MD.GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-44270B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-44270A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44271B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-44271A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44271A1 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44271B1 |
ACM2#..240U MD.GRAY,TRIM1# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-44040 |
ACM2# |
1 | ||
| 72067-44040 |
ACM2# |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72068-44040 |
ACM2# |
1 | ||
| 72068-44040 |
ACM2# |
1 | ||
| 72507B - HANDLE SUB-ASSY, RECLINING RELEASE, RH | ||||
| 72507-44060A0 |
ACM2#..06S..240U IVORY,TRIM0#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72507-44020A1 |
ACM2#..240E,240I,240U IVORY,TRIM0#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507-44060A0 |
ACM2#..06S..240U IVORY,TRIM0#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72507-44060C0 |
ACM2#..06S BLACK,TRIM1#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72507-44020C1 |
ACM2# BLACK,TRIM1#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507-44020A1 |
ACM2#..240I,240U IVORY,TRIM0#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-44060A0 |
ACM2#..06S..240U IVORY,TRIM0#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72507-44020A1 |
ACM2#..240E,240I,240U IVORY,TRIM0#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507-44060C0 |
ACM2#..06S BLACK,TRIM1#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72507-44020C1 |
ACM2# BLACK,TRIM1#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507-44020A1 |
ACM2#..240I,240U IVORY,TRIM0#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507-44060A0 |
ACM2#..06S..240U IVORY,TRIM0#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72553A - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-44070C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 72553-44070A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 72553C - PROTECTOR, RECLINING COVER, RH | ||||
| 72553-44030C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 72553-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 72554A - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 72554-44030C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 72554B - PROTECTOR, RECLINING COVER, LH | ||||
| 72554-44070C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 72554-44070A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 72558 - STOPPER, RECLINING | ||||
| 72558-42010 |
ACM2# |
1 | ||
| 72558-44010 |
ACM2# |
1 | ||
| 72558-44010 |
ACM2# |
1 | ||
| 72558A - STOPPER, RECLINING | ||||
| 72558-42010 |
ACM2# |
1 | ||
| 72558-44010 |
ACM2# |
1 | ||
| 72558-44010 |
ACM2# |
1 | ||
| 72558A - STOPPER, RECLINING | ||||
| 72558-42010 |
ACM2# |
1 | ||
| 72558-44010 |
ACM2# |
1 | ||
| 72558-44010 |
ACM2# |
1 | ||
| 72558A - STOPPER, RECLINING | ||||
| 72558-42010 |
ACM2# |
1 | ||
| 72558-44010 |
ACM2# |
1 | ||
| 72558-44010 |
ACM2# |
1 | ||
| 72750C - ADJUSTER ASSY, NO.3 SEAT RECLINING, RH | ||||
| 72760-44011 |
ACM2# |
1 | ||
| 72760-44010 |
ACM2# |
1 | ||
| 72760-44011 |
ACM2# |
1 | ||
| 72760H - ADJUSTER ASSY, NO.3 SEAT RECLINING, LH | ||||
| 72750-44011 |
ACM2# |
1 | ||
| 72750-44011 |
ACM2# |
1 | ||
| 72750-44010 |
ACM2# |
1 | ||
| 79031B - COVER SUB-ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79031-44021A0 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79031-44020B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79031-44020A0 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79031-44021A1 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79031-44021B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79031-44021B1 |
ACM2#..240U MD.GRAY,TRIM1# |
1 | ||
| 79032 - COVER SUB-ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79032-44020A0 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79032-44021B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79032-44020B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79032-44021A1 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79032-44021A0 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79032-44021B1 |
ACM2#..240U MD.GRAY,TRIM1# |
1 | ||
| 79033 - COVER SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79033-44020A1 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79033-44020B1 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79033-44021A1 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79033-44021B2 |
ACM2#..240U MD.GRAY,TRIM1# |
1 | ||
| 79033-44021B1 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79033-44021A2 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79033-44080A0 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79034 - COVER SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79034-44021B1 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79034-44021A1 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79034-44020A1 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79034-44021B2 |
ACM2#..240U MD.GRAY,TRIM1# |
1 | ||
| 79034-44021A2 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79034-44020B1 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79034-44080A0 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 79303A - FRAME SUB-ASSY, NO.3 SEAT BACK, RH | ||||
| 79303-44020 |
ACM2# |
1 | ||
| 79303-44020 |
ACM2# |
1 | ||
| 79304A - FRAME SUB-ASSY, NO.3 SEAT BACK, LH | ||||
| 79304-44020 |
ACM2# |
1 | ||
| 79304-44020 |
ACM2# |
1 | ||
| 79331 - LEG, NO.3 SEAT, OUTER RH | ||||
| 79331-44010 |
ACM2# |
1 | ||
| 79331-44010 |
ACM2# |
1 | ||
| 79335A - PAD, NO.3 SEAT CUSHION, RH | ||||
| 79335-44010 |
ACM2# |
1 | ||
| 79335-44010 |
ACM2# |
1 | ||
| 79339 - CLOTH, NO.3 SEAT CUSHION RH | ||||
| 79339-44080 |
ACM2# |
1 | ||
| 79339-44080 |
ACM2# |
1 | ||
| 79339A - CLOTH, NO.3 SEAT CUSHION LH | ||||
| 79339-44080 |
ACM2# |
1 | ||
| 79339-44080 |
ACM2# |
1 | ||
| 79341 - LEG, NO.3 SEAT, OUTER LH | ||||
| 79341-44010 |
ACM2# |
1 | ||
| 79341-44010 |
ACM2# |
1 | ||
| 79345A - PAD, NO.3 SEAT CUSHION, LH | ||||
| 79345-44010 |
ACM2# |
1 | ||
| 79345-44010 |
ACM2# |
1 | ||
| 79360A - SPRING ASSY, NO.3 SEAT CUSHION, RH | ||||
| 79360-44011 |
ACM2# |
1 | ||
| 79360-44011 |
ACM2# |
1 | ||
| 79360-44010 |
ACM2# |
1 | ||
| 79370A - SPRING ASSY, NO.3 SEAT CUSHION, LH | ||||
| 79370-44011 |
ACM2# |
1 | ||
| 79370-44010 |
ACM2# |
1 | ||
| 79370-44011 |
ACM2# |
1 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-44010C0 |
ACM2# BLACK,TRIM1# |
2 | ||
| 79372-44010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 79372 - COVER, NO.3 SEAT FRONT BRACKET, RH | ||||
| 79372-44010C0 |
ACM2# BLACK,TRIM1# |
2 | ||
| 79372-44010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 79375A - PAD, NO.3 SEAT BACK, RH | ||||
| 79375-44010 |
ACM2# |
1 | ||
| 79375-44010 |
ACM2# |
1 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-44010C0 |
ACM2# BLACK,TRIM1# |
2 | ||
| 79382-44010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 79382 - COVER, NO.3 SEAT FRONT BRACKET, LH | ||||
| 79382-44010C0 |
ACM2# BLACK,TRIM1# |
2 | ||
| 79382-44010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 79385A - PAD, NO.3 SEAT BACK, LH | ||||
| 79385-44010 |
ACM2# |
1 | ||
| 79385-44010 |
ACM2# |
1 | ||
| Common parts | ||||
| 67771-28050 | ||||
| 71769-44020 | ||||
| 72702-44020 | ||||
| 90109-10164 | ||||
| 90119-10827 | ||||
| 90176-06042 | ||||
| 90206-14083 | ||||
| 91611-B0616 | ||||
| 91626-40618 | ||||
| 93311-16010 | ||||

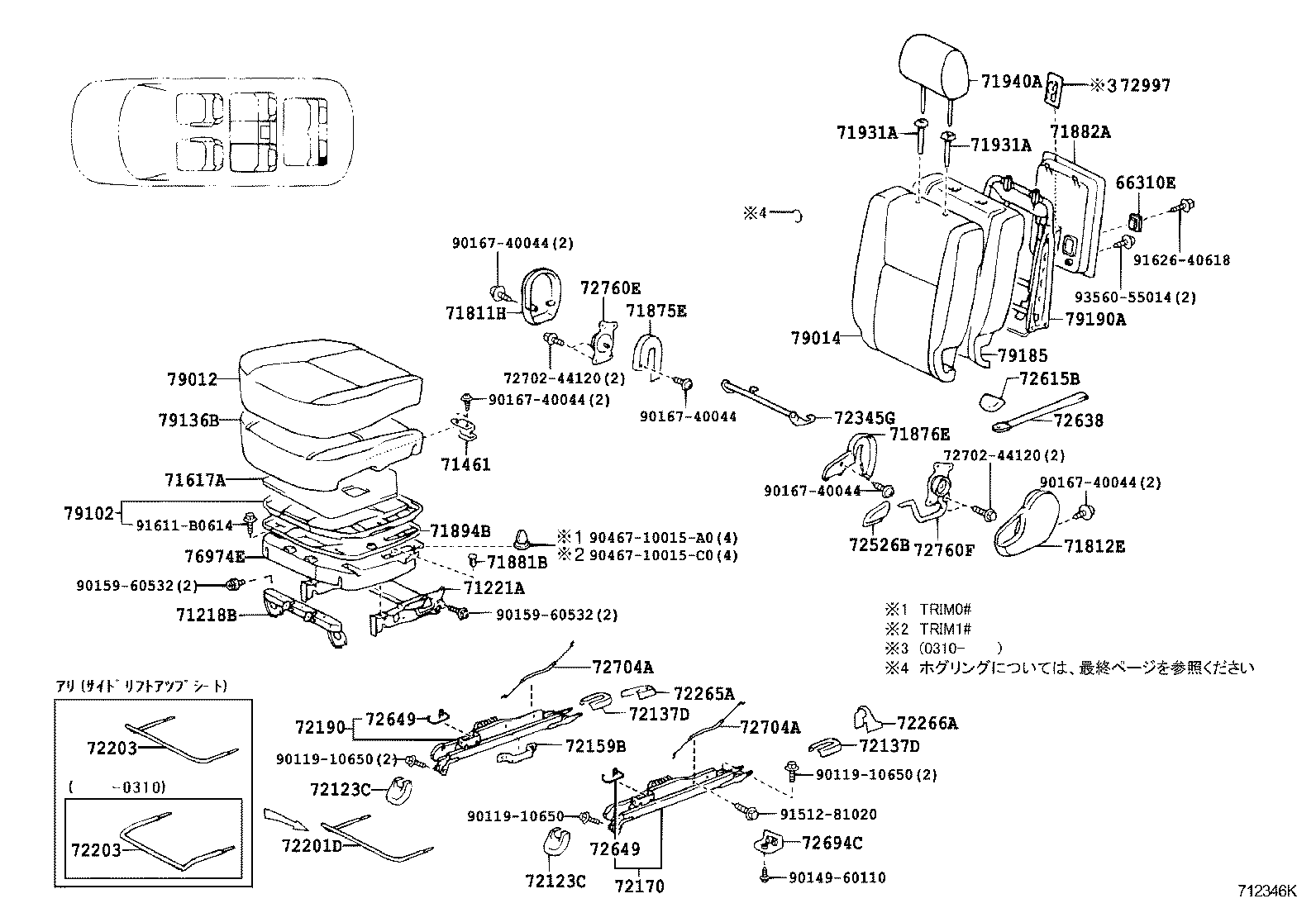

(0105- )
ﾍﾞﾝﾁｼｰﾄ ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71617A - CLOTH, REAR SEAT CUSHION UNDER | ||||
| 71617-44100 |
ACM2#..06S |
2 | ||
| 71811H - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-44180A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71811-44180C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71811-44180A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-44140A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812-44140A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812-44140C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71881-28040A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71881-28040C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71881-28040A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM1# |
2 | ||
| 71931-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..06S..240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM1# |
2 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM1# |
2 | ||
| 71931-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..06S..240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM1# |
2 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-44190A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44190B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-44191A1 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44191B1 |
ACM2#..240U MD.GRAY,TRIM1# |
2 | ||
| 71940-44191A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44191B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-44010C0 |
ACM2#..06S BLACK,TRIM1# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-44010C0 |
ACM2#..06S BLACK,TRIM1# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-44030C0 |
ACM2# BLACK,TRIM1# |
4 | ||
| 72137-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-44030C0 |
ACM2# BLACK,TRIM1# |
4 | ||
| 72137-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72160-44070 |
ACM2#..06S..240U ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 72160-44060 |
ACM2#..06S |
1 | ||
| 72160-44060 |
ACM2#..06S |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72220-44020 |
ACM2#..06S..240U ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 72220-44010 |
ACM2#..06S |
1 | ||
| 72220-44010 |
ACM2#..06S |
1 | ||
| 72201D - HANDLE SUB-ASSY, SEAT TRACK, LH | ||||
| 72201-44070 |
ACM2#..06S |
1 | ||
| 72201-44070 |
ACM2#..06S |
1 | ||
| 72265A - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-44060A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72265-44060C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 72265-44060A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-44060A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72266-44060C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 72266-44060A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72345G - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-28100 |
ACM2#..06S |
1 | ||
| 72345-28100 |
ACM2#..06S |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-47020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 72526-47020C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-44010 |
ACM2# |
4 | ||
| 72649-44010 |
ACM2# |
4 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-44010 |
ACM2# |
4 | ||
| 72649-44010 |
ACM2# |
4 | ||
| 72760E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH | ||||
| 72730-44080 |
ACM2#..06S |
1 | ||
| 72730-44050 |
ACM2#..06S |
1 | ||
| 72730-44080 |
ACM2#..06S |
1 | ||
| 72760F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH | ||||
| 72740-44070 |
ACM2#..06S |
1 | ||
| 72740-44070 |
ACM2#..06S |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72996-28160A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79011-44340B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79011-44340A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79011-44341A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79011-44341B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79011-44341B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 79011-44640A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79011-44341A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-44340A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79013-44341A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79013-44340B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79013-44341B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79013-44341B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 79013-44690A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79013-44341A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79135-44120 |
ACM2#..06S |
1 | ||
| 79135-44060 |
ACM2#..06S |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79175-44070 |
ACM2#..06S |
1 | ||
| 79175-44070 |
ACM2#..06S |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79180-44040 |
ACM2#..06S |
1 | ||
| 79180-44040 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 72702-44120 | ||||
| 90119-10650 | ||||
| 90149-60110 | ||||
| 90159-60532 | ||||
| 90167-40044 | ||||
| 90467-10015A0 | ||||
| 90467-10015C0 | ||||
| 91512-81020 | ||||
| 91611-B0614 | ||||
| 91626-40618 | ||||
| 93560-55014 | ||||
(0105- )
ｷｬﾌﾟﾃﾝｼｰﾄ ﾚﾌﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62476E - CAP, REAR SEAT | ||||
| 62476-26010A0 |
ACM2#..240E,240I,240U ｱﾘ(ｷﾔﾌﾟﾃﾝｼ-ﾄ),IVORY,TRIM0# |
4 | ||
| 71884-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 71884-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 71884-44010C0 |
ACM2#..06S BLACK,TRIM1# |
4 | ||
| 62476-26010C0 |
ACM2# ｱﾘ(ｷﾔﾌﾟﾃﾝｼ-ﾄ),BLACK,TRIM1# |
4 | ||
| 71617A - CLOTH, REAR SEAT CUSHION UNDER | ||||
| 71617-44100 |
ACM2#..06S |
2 | ||
| 71811H - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-44180A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71811-44180C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71811-44180A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-44140A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812-44140A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71812-44140C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71881-28040A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71881-28040C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 71881-28040A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM1# |
2 | ||
| 71931-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..06S..240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM1# |
2 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71931-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ無し),BLACK,TRIM1# |
2 | ||
| 71931-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),IVORY,TRIM0# |
2 | ||
| 71931-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｴﾙｷﾔﾌﾞ,IVORY,TRIM0# |
1 | ||
| 71930-42020A0 |
ACM2#..240E,240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020A0 |
ACM2#..06S..240U ﾛｯｸ付(ﾎﾞﾀﾝ有り),IVORY,TRIM0# |
2 | ||
| 71930-42020C0 |
ACM2# ﾛｯｸ付(ﾎﾞﾀﾝ有り),BLACK,TRIM1# |
2 | ||
| 71931-42020C0 |
ACM2#..240I,240U ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｴﾙｷﾔﾌﾞ,BLACK,TRIM1# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-44190A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44190B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-44191A1 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44191B1 |
ACM2#..240U MD.GRAY,TRIM1# |
2 | ||
| 71940-44191A0 |
ACM2#..240U IVORY,TRIM0# |
2 | ||
| 71940-44191B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
2 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-44010C0 |
ACM2#..06S BLACK,TRIM1# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72123C - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-44010C0 |
ACM2#..06S BLACK,TRIM1# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72123-44010A0 |
ACM2#..06S..240U IVORY,TRIM0# |
4 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-44030C0 |
ACM2# BLACK,TRIM1# |
4 | ||
| 72137-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 72137D - COVER, REAR SEAT TRACK, RH | ||||
| 72137-44030C0 |
ACM2# BLACK,TRIM1# |
4 | ||
| 72137-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72160-44070 |
ACM2#..06S..240U ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 72160-44060 |
ACM2#..06S |
1 | ||
| 72160-44060 |
ACM2#..06S |
1 | ||
| 72190 - TRACK ASSY, REAR SEAT INNER, LH | ||||
| 72220-44020 |
ACM2#..06S..240U ｱﾘ(ｻｲﾄﾞﾘﾌﾄｱﾂﾌﾟ ｼ-ﾄ) |
1 | ||
| 72220-44010 |
ACM2#..06S |
1 | ||
| 72220-44010 |
ACM2#..06S |
1 | ||
| 72201D - HANDLE SUB-ASSY, SEAT TRACK, LH | ||||
| 72201-44070 |
ACM2#..06S |
1 | ||
| 72201-44070 |
ACM2#..06S |
1 | ||
| 72266A - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-44060A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72266-44060C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 72266-44060A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72266B - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-44050A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72266-44050A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72266-44050C0 |
ACM2#..06S BLACK,TRIM1# |
1 | ||
| 72302D - WIRE SUB-ASSY, REAR SEAT TRACK EQUALIZING, LH | ||||
| 72301-44020 |
ACM2#..06S |
1 | ||
| 72301-44020 |
ACM2#..06S |
1 | ||
| 72345G - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-28100 |
ACM2#..06S |
1 | ||
| 72345-28100 |
ACM2#..06S |
1 | ||
| 72347A - COVER, RECLINING CONNECTING HOOK | ||||
| 72347-28050 |
ACM2#..06S |
2 | ||
| 72347-28050 |
ACM2#..06S |
2 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-44020A1 |
ACM2#..240E,240I,240U IVORY,TRIM0#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507-44060C0 |
ACM2#..06S BLACK,TRIM1#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72507-44020C1 |
ACM2# BLACK,TRIM1#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507-44020A1 |
ACM2#..240I,240U IVORY,TRIM0#,ｻｰﾄﾞ ｼｰﾄ |
1 | ||
| 72507-44060A0 |
ACM2#..06S..240U IVORY,TRIM0#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72507-44060A0 |
ACM2#..06S..240U IVORY,TRIM0#,ｾｶﾝﾄﾞｼｰﾄ |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-47020A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 72526-47020C0 |
ACM2# BLACK,TRIM1# |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-44010 |
ACM2# |
4 | ||
| 72649-44010 |
ACM2# |
4 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-44010 |
ACM2# |
4 | ||
| 72649-44010 |
ACM2# |
4 | ||
| 72760E - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, INNER RH | ||||
| 72730-44080 |
ACM2#..06S |
1 | ||
| 72730-44050 |
ACM2#..06S |
1 | ||
| 72730-44080 |
ACM2#..06S |
1 | ||
| 72760F - ADJUSTER ASSY, REAR NO.2 SEAT RECLINING, OUTER LH | ||||
| 72740-44070 |
ACM2#..06S |
1 | ||
| 72740-44070 |
ACM2#..06S |
1 | ||
| 72840B - ARMREST ASSY, SEAT CENTER, LH | ||||
| 72830-44111B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-44110A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72830-44111B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 72830-44112A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72830-44111A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72830-44110B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-44111A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72830-44340A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 72830-44112B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-28030A0 |
ACM2#..06S..240U IVORY,TRIM0# |
2 | ||
| 72848-28030A0 |
ACM2#..06S..240U IVORY,TRIM0# |
2 | ||
| 72848-28030C0 |
ACM2#..06S BLACK,TRIM1# |
2 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72996-28160A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79011-44340B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79011-44340A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79011-44341A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79011-44341B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79011-44341B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 79011-44640A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79011-44341A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79013-44340A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79013-44341A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79013-44340B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79013-44341B0 |
ACM2#..06S..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 79013-44341B1 |
ACM2#..06S..240U MD.GRAY,TRIM1# |
1 | ||
| 79013-44690A0 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79013-44341A1 |
ACM2#..06S..240U IVORY,TRIM0# |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79135-44120 |
ACM2#..06S |
1 | ||
| 79135-44060 |
ACM2#..06S |
1 | ||
| 79160B - SPRING ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79160-44040 |
ACM2#..06S |
1 | ||
| 79160-44020 |
ACM2#..06S |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79175-44070 |
ACM2#..06S |
1 | ||
| 79175-44070 |
ACM2#..06S |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79180-44040 |
ACM2#..06S |
1 | ||
| 79180-44040 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 90119-10650 | ||||
| 90119-10911 | ||||
| 90167-40044 | ||||
| 91512-H1018 | ||||
| 91515-81025 | ||||
| 93560-54014 | ||||
(0105- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
