ACM21W-ANSGK (2001)
Toyota Ipsum

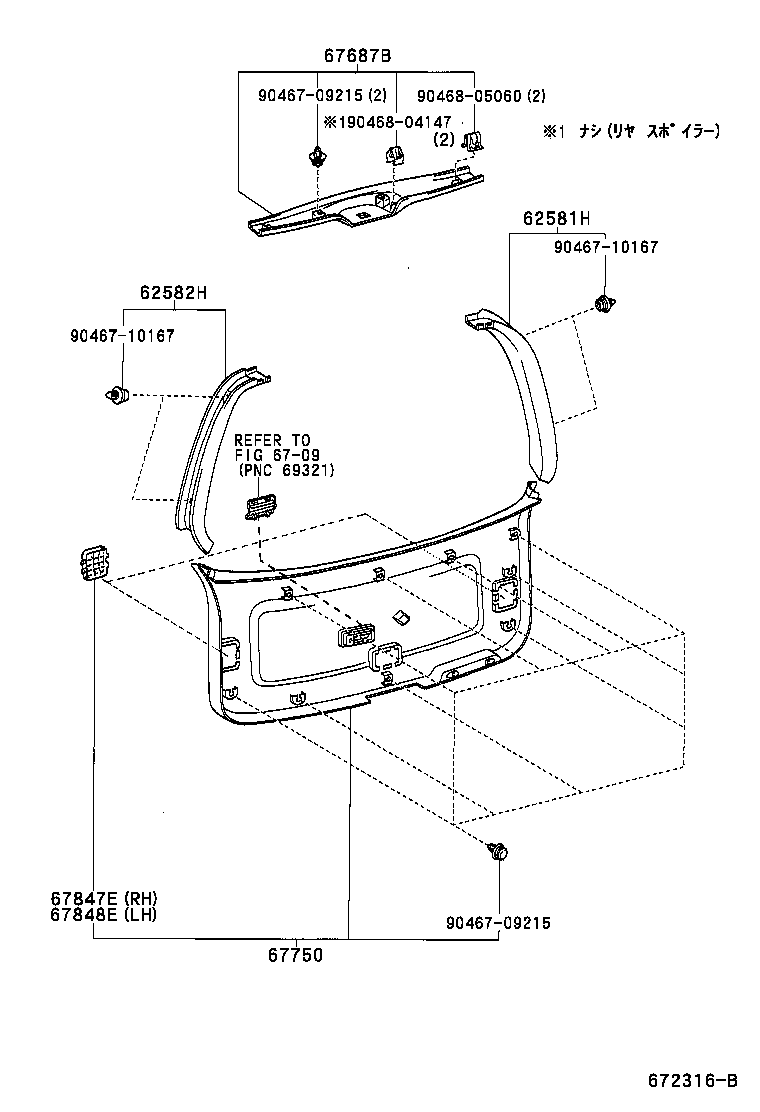

ILLUST NO. 1 OF 2(0105-0110)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62581H - GARNISH, REAR WINDOW SIDE, RH | ||||
| 62581-44040B0 |
ACM2# LT.GRAY,TRIM1# |
1 | ||
| 62581-44040A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 62582H - GARNISH, REAR WINDOW SIDE, LH | ||||
| 62582-44040A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 62582-44040B0 |
ACM2# LT.GRAY,TRIM1# |
1 | ||
| 67687B - GARNISH, BACK WINDOW | ||||
| 67687-44050B0 |
ACM2# ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),LT.GRAY,TRIM1# |
1 | ||
| 67687-44040B0 |
ACM2#..240E,240I,240U LT.GRAY,TRIM1# |
1 | ||
| 67687-44050A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),IVORY,TRIM0# |
1 | ||
| 67687-44040A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-44060A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 67750-44060B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 67847E - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 67847-44030B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 67848E - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-44030B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 67848-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90467-09215 | ||||
| 90467-10167 | ||||
| 90468-04147 | ||||
| 90468-05060 | ||||
| Linked diagrams | ||||
| 6709 | ||||
ILLUST NO. 2 OF 2(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-44060 |
ACM2#..06S |
1 | ||
| 64818-44060 |
ACM2# |
1 | ||
| 64819 - SPACER, BACK WINDOW GLASS, NO.2 | ||||
| 64819-44040 |
ACM2#..06S |
1 | ||
| 64819-44040 |
ACM2# |
1 | ||
| 64827B - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-44040 |
ACM2#..06S |
1 | ||
| 64827-44040 |
ACM2# |
1 | ||
| 64828B - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-44040 |
ACM2#..06S |
1 | ||
| 64828-44040 |
ACM2# |
1 | ||
| 64885A - CHANNEL, BACK WINDOW GLASS, RH | ||||
| 64885-44010 |
ACM2# |
1 | ||
| 64885-44010 |
ACM2#..06S |
1 | ||
| 64886 - CHANNEL, BACK WINDOW GLASS, LH | ||||
| 64886-44010 |
ACM2#..06S |
1 | ||
| 64886-44010 |
ACM2# |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-44070 |
ACM2#..240E,240I,240U ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-44900 |
ACM2#..240E,240I,240U ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ-) |
1 | ||
| 67005-44903 |
ACM2# ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ- & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-44901 |
ACM2#..240E,240I,240U |
1 | ||
| 67005-44110 |
ACM2# ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-44080 |
ACM2#..240E,240I,240U |
1 | ||
| 67005-44100 |
ACM2# ｱﾘ(ﾊﾞﾂｸ ﾓﾆﾀ- & ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67005-44904 |
ACM2# ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-44040 |
ACM2# |
1 | ||
| 67881-44041 |
ACM2#..06S |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-44350 |
ACM2# *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾃﾚﾋﾞ ｱﾝﾃﾅ) |
1 | ||
| 68105-44320 |
ACM2#..240E,240I,240U *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ) |
1 | ||
| 68105-44340 |
ACM2# *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 68105-44321 |
ACM2#..240E,240I,240U *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾃﾚﾋﾞ ｱﾝﾃﾅ) |
1 | ||
| 68105-44311 |
ACM2#..240E,240I,240U *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 68105-44341 |
ACM2# *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 68105-44341 |
ACM2#..06S *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| 68105-44351 |
ACM2# *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾃﾚﾋﾞ ｱﾝﾃﾅ) |
1 | ||
| 68105-44351 |
ACM2#..06S *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ & ﾃﾚﾋﾞ ｱﾝﾃﾅ) |
1 | ||
| 68105-44310 |
ACM2#..240E,240I,240U *EHTT,厚さ=3.1,ﾀﾞｰｸｸﾞﾚｰ |
1 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-44050 |
ACM2# |
1 | ||
| 75573-44050 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 75129-26010 | ||||
| 90467-11030 | ||||
| 90541-09111 | ||||
| Linked diagrams | ||||
| 6709 | ||||
| 8202 | ||||
ILLUST NO. 1 OF 2(0110- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62581H - GARNISH, REAR WINDOW SIDE, RH | ||||
| 62581-44040B0 |
ACM2# LT.GRAY,TRIM1# |
1 | ||
| 62581-44040A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 62582H - GARNISH, REAR WINDOW SIDE, LH | ||||
| 62582-44040A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 62582-44040B0 |
ACM2# LT.GRAY,TRIM1# |
1 | ||
| 67159 - RETAINER, BACK DOOR TRIM | ||||
| 67159-28010 |
ACM2# |
2 | ||
| 67159-28010 |
ACM2# |
2 | ||
| 67159 - RETAINER, BACK DOOR TRIM | ||||
| 67159-28010 |
ACM2# |
2 | ||
| 67159-28010 |
ACM2# |
2 | ||
| 67687B - GARNISH, BACK WINDOW | ||||
| 67687-44050B0 |
ACM2# ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),LT.GRAY,TRIM1# |
1 | ||
| 67687-44040B0 |
ACM2#..240E,240I,240U LT.GRAY,TRIM1# |
1 | ||
| 67687-44050A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ),IVORY,TRIM0# |
1 | ||
| 67687-44040A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-44060A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 67750-44060B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 67771-32120 |
ACM2# |
2 | ||
| 67771-32120 |
ACM2# |
2 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 67771-32120 |
ACM2# |
2 | ||
| 67771-32120 |
ACM2# |
2 | ||
| 67847E - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 67847-44030B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 67848E - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-44030B0 |
ACM2# MD.GRAY,TRIM1# |
1 | ||
| 67848-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| Common parts | ||||
| 90467-09215 | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90468-04147 | ||||
| 90468-05060 | ||||
| Linked diagrams | ||||
| 6709 | ||||
