ACM21W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

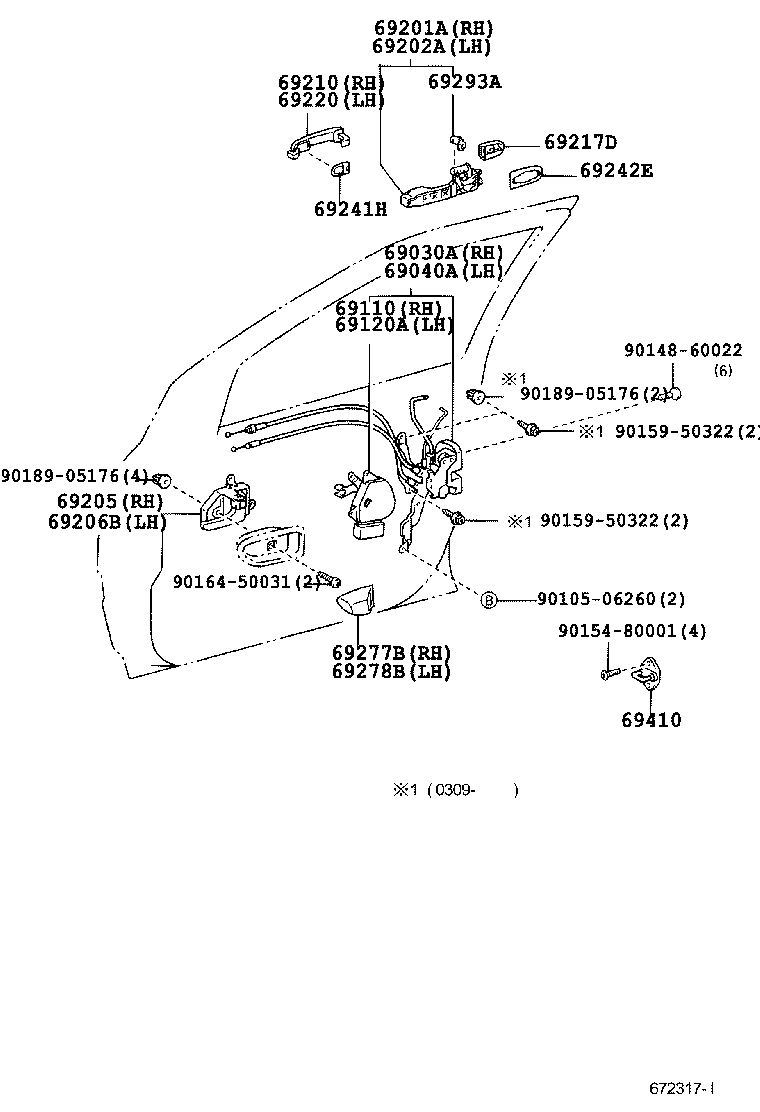

Click highlighted areas on diagram

diagram 69030A 69040A 69110 69120A 69201A 69202A 69205 69206B 69210 69217D 69220 69241H 69242E 69277B 69278B 69293A 69410 9010506260 9014860022 9015480001 9015950322 9015950322 9016450031 9018905176 9018905176
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-44080

ACM2#

 1
69030-44070

ACM2#

 1
69030-44080

ACM2#..06S

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-44070

ACM2#

 1
69040-44080

ACM2#..06S

 1
69040-44080

ACM2#

 1
69110 - ACTUATOR ASSY, FRONT DOOR LOCK, RH
69110-53010

ACM2#

 1
69110-53010

ACM2#..06S

 1
69120A - ACTUATOR ASSY, FRONT DOOR LOCK, LH
69120-53010

ACM2#

 1
69120-53010

ACM2#..06S

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-42010

ACM2#

 1
69201-52010

ACM2#

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-42010

ACM2#

 1
69202-52010

ACM2#

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-20180C0

ACM2#..240E,240I,240U

*CR,BLACK,TRIM0#,1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-20180C0

ACM2#..240E,240I,240U

*CR,BLACK,TRIM0#,1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-12220B3

ACM2#

DARK GRAY M.M.,1E2

 1
69210-12260

ACM2#..240E,240I,240U

ﾒｯｷ,ﾒﾂｷ

 1
69211-12220B2

ACM2#

SILVER ME.,1C0

 1
69211-12220D4

ACM2#..240E,240I,240U

LT.ROSE M.M.,3Q1

 1
69211-12220D3

ACM2#..240E,240I,240U

RED MC.,3M8

 1
69211-12220J0

ACM2#

DK.BLUE M.M.,8P4

 1
69211-12220F2

ACM2#..240E,240I,240U

CHAMPAGNE M.M.,587

 1
69211-12220A4

ACM2#..240E,240I,240U

WHITE PM.,042

 1
69211-12220A0

ACM2#

SUPER WHITE 2,040

 1
69211-12220H2

ACM2#..240E,240I,240U

AQUA ME.,771

 1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-12010

ACM2#..240E,240I,240U

*CR

 2
69217-42020D6

ACM2#..240E,240I,240U

RED MC.,3M8

 2
69217-42020A3

ACM2#

SUPER WHITE 2,040

 2
69217-42020B5

ACM2#

DARK GRAY M.M.,1E2

 2
69217-42020A6

ACM2#..240E,240I,240U

WHITE PM.,042

 2
69217-42020J2

ACM2#

DK.BLUE M.M.,8P4

 2
69217-42020B3

ACM2#

SILVER ME.,1C0

 2
69217-42020F2

ACM2#..240E,240I,240U

CHAMPAGNE M.M.,587

 2
69217-42020D7

ACM2#..240E,240I,240U

LT.ROSE M.M.,3Q1

 2
69217-42020H2

ACM2#..240E,240I,240U

AQUA ME.,771

 2
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-12220A4

ACM2#..240E,240I,240U

WHITE PM.,042

 1
69211-12220D4

ACM2#..240E,240I,240U

LT.ROSE M.M.,3Q1

 1
69211-12220D3

ACM2#..240E,240I,240U

RED MC.,3M8

 1
69210-12260

ACM2#..240E,240I,240U

ﾒｯｷ,ﾒﾂｷ

 1
69211-12220F2

ACM2#..240E,240I,240U

CHAMPAGNE M.M.,587

 1
69211-12220B2

ACM2#

SILVER ME.,1C0

 1
69211-12220B3

ACM2#

DARK GRAY M.M.,1E2

 1
69211-12220J0

ACM2#

DK.BLUE M.M.,8P4

 1
69211-12220H2

ACM2#..240E,240I,240U

AQUA ME.,771

 1
69211-12220A0

ACM2#

SUPER WHITE 2,040

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-42020

ACM2#

 2
69241-42020

ACM2#

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-42010

ACM2#

 2
69242-42010

ACM2#

 2
69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH
69297-30030C0

ACM2#..240I,240U

BLACK,TRIM0#,1#

 1
69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH
69298-30030C0

ACM2#..240I,240U

BLACK,TRIM0#,1#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

ACM2#

左側

 1
69293-12030

ACM2#

右側

 1
69293-12040

ACM2#

左側

 1
69293-12030

ACM2#

右側

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-20110

ACM2#..06S

 2
69410-20110

ACM2#

 2
Common parts
90105-06260
90148-60022
90154-80001
90159-50322
90164-50031
90189-05176
