ACM21W-ANSGK (2001)
Toyota Ipsum
ILLUST NO. 2 OF 2(0105- )
ﾄﾞｱ ﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-44040 |
ACM2# |
1 | ||
| 67491-44050 |
ACM2#..06S |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-44040 |
ACM2# |
1 | ||
| 67492-44050 |
ACM2#..06S |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-44400B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 67610-44400A0 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-44400A0 |
ACM2#..240U IVORY,TRIM0# |
1 | ||
| 67620-44400B0 |
ACM2#..240U MEDIUM GRAY,TRIM1# |
1 | ||
| 67625 - BRACKET, FRONT DOOR TRIM, RH | ||||
| 67625-44010 |
ACM2# |
1 | ||
| 67625-44010 |
ACM2#..06S |
1 | ||
| 67626 - BRACKET, FRONT DOOR TRIM, LH | ||||
| 67625-44010 |
ACM2#..06S |
1 | ||
| 67625-44010 |
ACM2# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-44040 |
ACM2# |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-44040 |
ACM2# |
1 | ||
| Common parts | ||||
| 67771-28090 | ||||
| 67771-44010 | ||||
| 90159-60303 | ||||
| 90189-06084 | ||||
| 90467-09203 | ||||
| 90467-09206 | ||||
| Linked diagrams | ||||
| 6703 | ||||

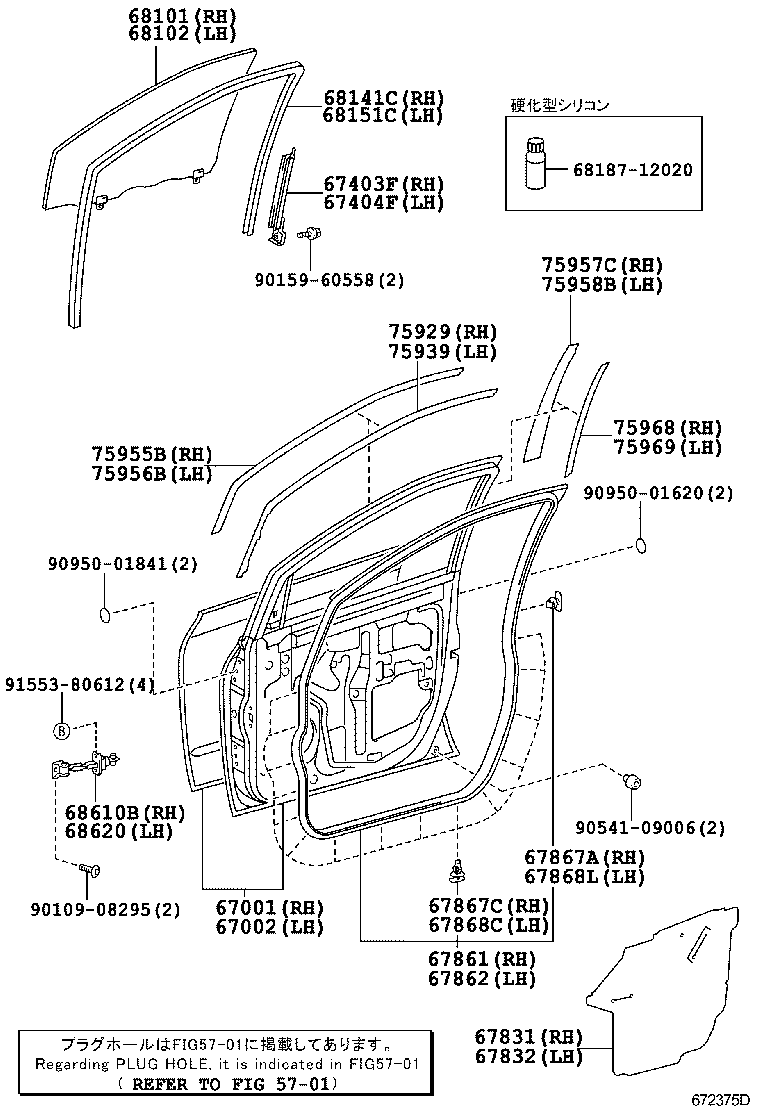

ILLUST NO. 1 OF 2(0105- )
ﾄﾞｱ ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-44060 |
ACM2# |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-44060 |
ACM2# |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-44041 |
ACM2# |
1 | ||
| 67403-44041 |
ACM2#..06S |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-44041 |
ACM2#..06S |
1 | ||
| 67404-44041 |
ACM2# |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-44040 |
ACM2# |
1 | ||
| 67831-44040 |
ACM2#..06S |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-44020 |
ACM2# |
1 | ||
| 67832-44020 |
ACM2#..06S |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-44051 |
ACM2# |
1 | ||
| 67861-44050 |
ACM2# |
1 | ||
| 67861-44051 |
ACM2#..06S |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-44050 |
ACM2# |
1 | ||
| 67862-44051 |
ACM2#..06S |
1 | ||
| 67862-44051 |
ACM2# |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 67867-48010 |
ACM2# |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACM2# |
15 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ACM2# |
15 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-48010 |
ACM2# |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-44130 |
ACM2#..06S *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68101-44130 |
ACM2# *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-44130 |
ACM2#..06S *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68102-44130 |
ACM2# *UVCTT,厚さ=4.0,ｸﾞﾘｰﾝ |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-44040 |
ACM2# |
1 | ||
| 68141-44040 |
ACM2#..06S |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-44040 |
ACM2#..06S |
1 | ||
| 68151-44040 |
ACM2# |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-44020 |
ACM2# |
1 | ||
| 68610-44020 |
ACM2#..06S |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-44010 |
ACM2# |
1 | ||
| 68620-44020 |
ACM2#..06S..240U ｳｴﾙｷﾔﾌﾞ |
1 | ||
| 68620-44010 |
ACM2#..06S |
1 | ||
| 68620-44020 |
ACM2#..240I,240U ｳｴﾙｷﾔﾌﾞ |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-44010 |
ACM2#..06S |
1 | ||
| 75929-44010 |
ACM2# |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-44010 |
ACM2# |
1 | ||
| 75939-44010 |
ACM2#..06S |
1 | ||
| 75955B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH | ||||
| 75955-44011 |
ACM2#..06S |
1 | ||
| 75955-44011 |
ACM2# |
1 | ||
| 75956B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH | ||||
| 75956-44011 |
ACM2# |
1 | ||
| 75956-44011 |
ACM2#..06S |
1 | ||
| 75957C - TAPE, BLACK OUT FRONT DOOR, OUTER REAR RH | ||||
| 75957-44011 |
ACM2# |
1 | ||
| 75957-44013 |
ACM2# |
1 | ||
| 75957-44013 |
ACM2#..06S |
1 | ||
| 75958B - TAPE, BLACK OUT FRONT DOOR, OUTER REAR LH | ||||
| 75958-44013 |
ACM2#..06S |
1 | ||
| 75958-44013 |
ACM2# |
1 | ||
| 75958-44011 |
ACM2# |
1 | ||
| 75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH | ||||
| 75968-44010 |
ACM2#..06S |
1 | ||
| 75968-44010 |
ACM2# |
1 | ||
| 75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH | ||||
| 75969-44010 |
ACM2# |
1 | ||
| 75969-44010 |
ACM2#..06S |
1 | ||
| Common parts | ||||
| 68187-12020 | ||||
| 90109-08295 | ||||
| 90159-60558 | ||||
| 90541-09006 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 5701 | ||||
