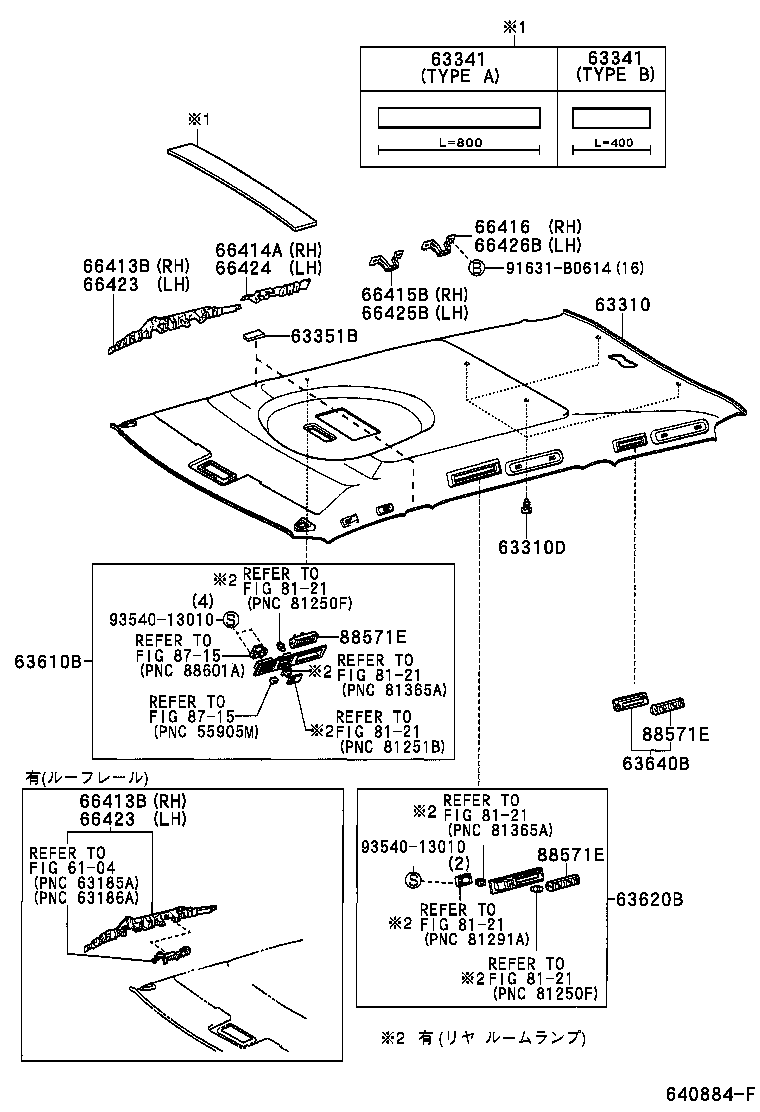

ACM21W-ANSGK (2001)
Toyota Ipsum
(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-44090B0 |
ACM2# LT. GRAY,TRIM1# |
1 | ||
| 63310-44090A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 63310-44120B0 |
ACM2# ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),LT. GRAY,TRIM1# |
1 | ||
| 63310-44120A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),IVORY,TRIM0# |
1 | ||
| 63310-44110A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63310-44130B0 |
ACM2# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),LT. GRAY,TRIM1# |
1 | ||
| 63310-44130A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),IVORY,TRIM0# |
1 | ||
| 63310-44110B0 |
ACM2# ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06177A1 |
ACM2#..240E,240I,240U ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
2 | ||
| 90467-05164A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
2 | ||
| 90467-05164A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 90467-06177A1 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 90467-06177B1 |
ACM2# LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B8 |
ACM2# LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B8 |
ACM2# ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1# |
2 | ||
| 90467-06177B1 |
ACM2# ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-42010 |
ACM2# ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 63341-42010 |
ACM2#..240S,240U ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 63341-42010 |
ACM2# TYPE B:ｲﾗｽﾄ参照 |
12 | ||
| 63343-32070 |
ACM2#..240S,240U ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),TYPE A:ｲﾗｽﾄ参照 |
5 | ||
| 63343-32070 |
ACM2# TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 63343-32070 |
ACM2# ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),TYPE A:ｲﾗｽﾄ参照 |
5 | ||
| 63341-42010 |
ACM2# TYPE B:ｲﾗｽﾄ参照 |
12 | ||
| 63343-32070 |
ACM2# TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-42010 |
ACM2# ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 63341-42010 |
ACM2#..240S,240U ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),TYPE B:ｲﾗｽﾄ参照 |
10 | ||
| 63341-42010 |
ACM2# TYPE B:ｲﾗｽﾄ参照 |
12 | ||
| 63343-32070 |
ACM2#..240S,240U ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),TYPE A:ｲﾗｽﾄ参照 |
5 | ||
| 63343-32070 |
ACM2# TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 63343-32070 |
ACM2# ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),TYPE A:ｲﾗｽﾄ参照 |
5 | ||
| 63341-42010 |
ACM2# TYPE B:ｲﾗｽﾄ参照 |
12 | ||
| 63343-32070 |
ACM2# TYPE A:ｲﾗｽﾄ参照 |
6 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-44060 |
ACM2# |
2 | ||
| 63351-44060 |
ACM2# |
2 | ||
| 63610B - REGISTER ASSY, AIR OUTLET, RH | ||||
| 63610-44040A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾘﾔﾙ-ﾑﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 63610-44040B0 |
ACM2# ｱﾘ(ﾘﾔﾙ-ﾑﾗﾝﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 63620B - REGISTER ASSY, AIR OUTLET, LH | ||||
| 63620-44030A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾘﾔﾙ-ﾑﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 63620-44030B0 |
ACM2# ｱﾘ(ﾘﾔﾙ-ﾑﾗﾝﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 63640B - REGISTER ASSY, AIR OUTLET | ||||
| 63640-44010B0 |
ACM2# LT.GRAY,TRIM1# |
2 | ||
| 63640-44010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66405-44010 |
ACM2# |
1 | ||
| 66405-44010 |
ACM2#..06S |
1 | ||
| 66405-44020 |
ACM2#..06S ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66405-44020 |
ACM2# ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66405-44010 |
ACM2# |
1 | ||
| 66405-44010 |
ACM2#..06S |
1 | ||
| 66405-44020 |
ACM2#..06S ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66405-44020 |
ACM2# ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-44030 |
ACM2#..06S |
1 | ||
| 66414-44030 |
ACM2# |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 61235-44060 |
ACM2# |
1 | ||
| 61235-44060 |
ACM2#..06S |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 61235-44060 |
ACM2# |
1 | ||
| 61235-44060 |
ACM2#..06S |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66406-44020 |
ACM2# ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66406-44010 |
ACM2#..06S |
1 | ||
| 66406-44020 |
ACM2#..06S ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66406-44010 |
ACM2# |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66406-44020 |
ACM2# ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66406-44010 |
ACM2#..06S |
1 | ||
| 66406-44020 |
ACM2#..06S ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66406-44010 |
ACM2# |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-44030 |
ACM2#..06S |
1 | ||
| 66424-44030 |
ACM2# |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 61235-44060 |
ACM2# |
1 | ||
| 61235-44060 |
ACM2#..06S |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 61235-44060 |
ACM2# |
1 | ||
| 61235-44060 |
ACM2#..06S |
1 | ||
| 88571E - GRILLE, COOLER AIR OUTLET | ||||
| 88571-28110B2 |
ACM2# LT.GRAY,TRIM1# |
4 | ||
| 88571-28110A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 88571E - GRILLE, COOLER AIR OUTLET | ||||
| 88571-28110B2 |
ACM2# LT.GRAY,TRIM1# |
4 | ||
| 88571-28110A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 88571E - GRILLE, COOLER AIR OUTLET | ||||
| 88571-28110B2 |
ACM2# LT.GRAY,TRIM1# |
4 | ||
| 88571-28110A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| Common parts | ||||
| 91631-B0614 | ||||
| 93540-13010 | ||||
| Linked diagrams | ||||
| 6104 | ||||
| 8121 | ||||
| 8715 | ||||
(0105- )
ｱﾘ(ﾑ-ﾝﾙ-ﾌ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63303 - TRIM SUB-ASSY, SUNSHADE, NO.2 | ||||
| 63303-44030A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 63303-44030B0 |
ACM2# LT. GRAY,TRIM1# |
1 | ||
| 63306 - TRIM SUB-ASSY, SUNSHADE | ||||
| 63306-44030A1 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 63306-44030B4 |
ACM2# LT. GRAY,TRIM1# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-44090B0 |
ACM2# LT. GRAY,TRIM1# |
1 | ||
| 63310-44090A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 63310-44120B0 |
ACM2# ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),LT. GRAY,TRIM1# |
1 | ||
| 63310-44120A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),IVORY,TRIM0# |
1 | ||
| 63310-44110A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
1 | ||
| 63310-44130B0 |
ACM2# ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),LT. GRAY,TRIM1# |
1 | ||
| 63310-44130A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ & ﾘﾔ ﾃﾚﾋﾞ),IVORY,TRIM0# |
1 | ||
| 63310-44110B0 |
ACM2# ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT. GRAY,TRIM1# |
1 | ||
| 63310D - CLIP, ROOF HEADLINING | ||||
| 90467-06177A1 |
ACM2#..240E,240I,240U ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
2 | ||
| 90467-05164A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),IVORY,TRIM0# |
2 | ||
| 90467-05164A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 90467-06177A1 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 90467-06177B1 |
ACM2# LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B8 |
ACM2# LT.GRAY,TRIM1# |
4 | ||
| 90467-05164B8 |
ACM2# ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1# |
2 | ||
| 90467-06177B1 |
ACM2# ｱﾘ(ﾂｲﾝ ﾑ-ﾝﾙ-ﾌ),LT.GRAY,TRIM1# |
2 | ||
| 63318C - MOULDING, SUN ROOF OPENING TRIM | ||||
| 63318-44010A1 |
ACM2#..240E,240I,240U 長さ=1992,IVORY,TRIM0# |
1 | ||
| 63318-44010B2 |
ACM2# 長さ=1992,LT.GRAY,TRIM1# |
1 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-44010A3 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 63319-44010B9 |
ACM2# LT. GRAY,TRIM1# |
2 | ||
| 63319C - JOINT, SUN ROOF OPENING TRIM | ||||
| 63319-44010A3 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 63319-44010B9 |
ACM2# LT. GRAY,TRIM1# |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B0 |
ACM2# LT.GRAY,TRIM1# |
2 | ||
| 63328-12030A1 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 63328C - KNOB, SUNSHADE TRIM | ||||
| 63328-12030B0 |
ACM2# LT.GRAY,TRIM1# |
2 | ||
| 63328-12030A1 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 63329 - MOULDING, SUN ROOF OPENING TRIM, NO.2 | ||||
| 63329-44050B0 |
ACM2# LT.GRAY,TRIM1# |
1 | ||
| 63329-44050A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
1 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-44060 |
ACM2# |
2 | ||
| 63351-44060 |
ACM2# |
2 | ||
| 63610B - REGISTER ASSY, AIR OUTLET, RH | ||||
| 63610-44040A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾘﾔﾙ-ﾑﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 63610-44040B0 |
ACM2# ｱﾘ(ﾘﾔﾙ-ﾑﾗﾝﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 63620B - REGISTER ASSY, AIR OUTLET, LH | ||||
| 63620-44030A0 |
ACM2#..240E,240I,240U ｱﾘ(ﾘﾔﾙ-ﾑﾗﾝﾌﾟ),IVORY,TRIM0# |
1 | ||
| 63620-44030B0 |
ACM2# ｱﾘ(ﾘﾔﾙ-ﾑﾗﾝﾌﾟ),LT.GRAY,TRIM1# |
1 | ||
| 63640B - REGISTER ASSY, AIR OUTLET | ||||
| 63640-44010B0 |
ACM2# LT.GRAY,TRIM1# |
2 | ||
| 63640-44010A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
2 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66405-44010 |
ACM2# |
1 | ||
| 66405-44010 |
ACM2#..06S |
1 | ||
| 66405-44020 |
ACM2#..06S ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66405-44020 |
ACM2# ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66405-44010 |
ACM2# |
1 | ||
| 66405-44010 |
ACM2#..06S |
1 | ||
| 66405-44020 |
ACM2#..06S ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66405-44020 |
ACM2# ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-44030 |
ACM2#..06S |
1 | ||
| 66414-44030 |
ACM2# |
1 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 61235-44060 |
ACM2# |
1 | ||
| 61235-44060 |
ACM2#..06S |
1 | ||
| 66416 - SPACER, SIDE RAIL, REAR NO.3 RH | ||||
| 61235-44060 |
ACM2# |
1 | ||
| 61235-44060 |
ACM2#..06S |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66406-44020 |
ACM2# ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66406-44010 |
ACM2#..06S |
1 | ||
| 66406-44020 |
ACM2#..06S ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66406-44010 |
ACM2# |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66406-44020 |
ACM2# ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66406-44010 |
ACM2#..06S |
1 | ||
| 66406-44020 |
ACM2#..06S ｱﾘ(ﾙ-ﾌﾚ-ﾙ) |
1 | ||
| 66406-44010 |
ACM2# |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-44030 |
ACM2#..06S |
1 | ||
| 66424-44030 |
ACM2# |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 61235-44060 |
ACM2# |
1 | ||
| 61235-44060 |
ACM2#..06S |
1 | ||
| 66426B - SPACER, SIDE RAIL, REAR NO.3 LH | ||||
| 61235-44060 |
ACM2# |
1 | ||
| 61235-44060 |
ACM2#..06S |
1 | ||
| 88571E - GRILLE, COOLER AIR OUTLET | ||||
| 88571-28110B2 |
ACM2# LT.GRAY,TRIM1# |
4 | ||
| 88571-28110A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 88571E - GRILLE, COOLER AIR OUTLET | ||||
| 88571-28110B2 |
ACM2# LT.GRAY,TRIM1# |
4 | ||
| 88571-28110A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| 88571E - GRILLE, COOLER AIR OUTLET | ||||
| 88571-28110B2 |
ACM2# LT.GRAY,TRIM1# |
4 | ||
| 88571-28110A0 |
ACM2#..240E,240I,240U IVORY,TRIM0# |
4 | ||
| Common parts | ||||
| 91631-B0614 | ||||
| 93540-13010 | ||||
| Linked diagrams | ||||
| 6104 | ||||
| 8121 | ||||
| 8714 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
