ACM21W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

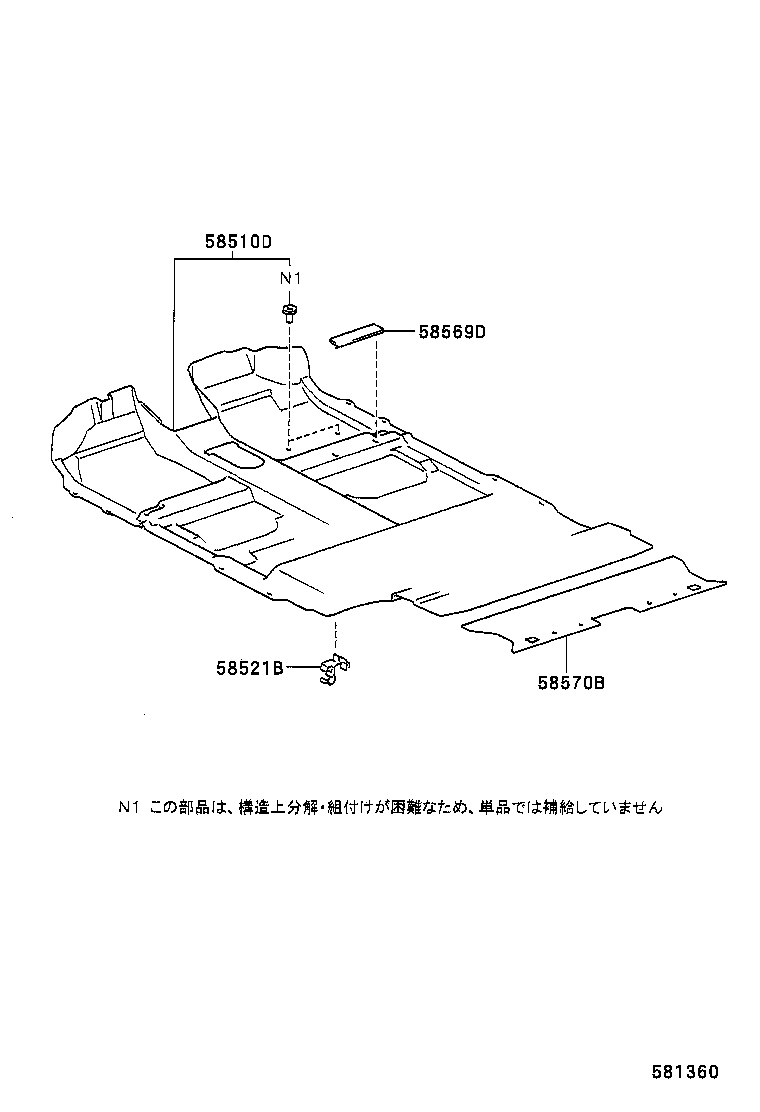

Click highlighted areas on diagram

diagram 58510D 58521B 58569D 58570B
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-44770A0

ACM2#..06S..240U

IVORY,TRIM0#

 1
58510-44780A0

ACM2#..06S..240U

ｱﾘ(ﾘﾔ ﾋ-ﾀ),IVORY,TRIM0#

 1
58510-44A60A0

ACM2#..06S..240U

IVORY,TRIM0#

 1
58510-44A70A0

ACM2#..06S..240U

ｱﾘ(ﾘﾔ ﾋ-ﾀ),IVORY,TRIM0#

 1
58510-44780B0

ACM2#..06S

ｱﾘ(ﾘﾔ ﾋ-ﾀ),MEDIUM GRAY,TRIM1#

 1
58510-44A80A0

ACM2#..06S..240U

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),IVORY,TRIM0#

 1
58510-44770B0

ACM2#..06S

MEDIUM GRAY,TRIM1#

 1
58510-44B10A0

ACM2#..06S..240U

ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾘﾔ ﾋ-ﾀ),IVORY,TRIM0#

 1
58510-44B00A0

ACM2#..06S..240U

ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ & ﾘﾔ ﾋ-ﾀ),IVORY,TRIM0#

 1
58510-44A90A0

ACM2#..06S..240U

ｱﾘ(ｳ-ﾊ- ｽﾋﾟ-ｶ & ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ),IVORY,TRIM0#

 1
58521B - HOOK, FLOOR CARPET
58521-44020

ACM2#

 10
58521-44020

ACM2#

 10
58569D - COVER, FRONT FLOOR CAUTION PLATE
58569-44010A1

ACM2#..240E,240I,240U

IVORY,TRIM0#

 1
58569-44010C0

ACM2#

BLACK,TRIM1#

 1
58570B - MAT ASSY, REAR FLOOR
58517-44040

ACM2#..06S

 1
58517-44040

ACM2#

 1
