ACM21W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

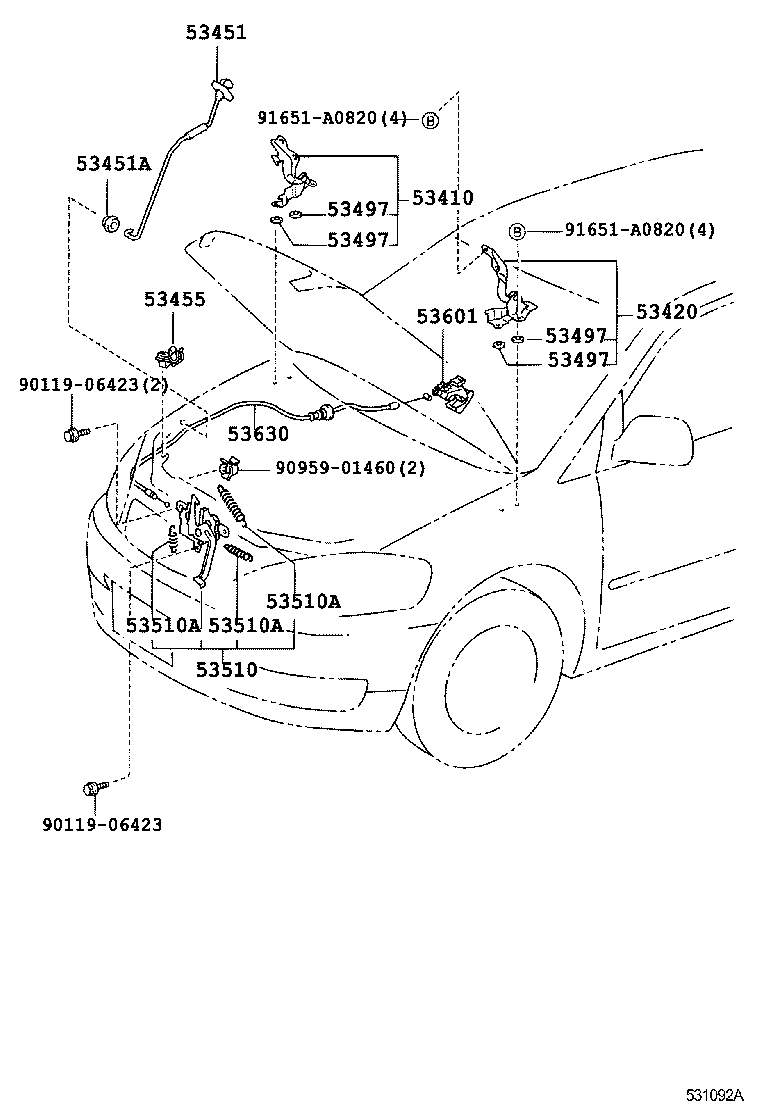

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53497 53497 53497 53497 53510 53510A 53510A 53510A 53601 53630 9011906423 9011906423 9095901460 91651A0820 91651A0820
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-44050

ACM2#

ﾊﾟｯﾄﾞ厚さ=1.0

 1
53410-44060

ACM2#..06S

ﾊﾟｯﾄﾞ厚さ=2.0

 1
53410-44060

ACM2#

ﾊﾟｯﾄﾞ厚さ=2.0

 1
53410-44050

ACM2#..06S

ﾊﾟｯﾄﾞ厚さ=1.0

 1
53420 - HINGE ASSY, HOOD, LH
53420-44050

ACM2#

ﾊﾟｯﾄﾞ厚さ=1.0

 1
53420-44060

ACM2#..06S

ﾊﾟｯﾄﾞ厚さ=2.0

 1
53420-44050

ACM2#..06S

ﾊﾟｯﾄﾞ厚さ=1.0

 1
53420-44060

ACM2#

ﾊﾟｯﾄﾞ厚さ=2.0

 1
53451 - ROD, HOOD SUPPORT
53440-44010

ACM2#

 1
53440-44020

ACM2#..06S

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15034

ACM2#

 1
90480-15034

ACM2#..06S

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-28020

ACM2#

 1
53455-28020

ACM2#..06S

 1
53497 - PAD, HOOD HINGE, NO.1
53497-20070

ACM2#

厚さ=2.0

 4
53497-20070

ACM2#

厚さ=2.0

 4
53497-12050

ACM2#

厚さ=1.0

 4
53497-42010

ACM2#

厚さ=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-20070

ACM2#

厚さ=2.0

 4
53497-20070

ACM2#

厚さ=2.0

 4
53497-12050

ACM2#

厚さ=1.0

 4
53497-42010

ACM2#

厚さ=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-20070

ACM2#

厚さ=2.0

 4
53497-20070

ACM2#

厚さ=2.0

 4
53497-12050

ACM2#

厚さ=1.0

 4
53497-42010

ACM2#

厚さ=0.5

 4
53497 - PAD, HOOD HINGE, NO.1
53497-20070

ACM2#

厚さ=2.0

 4
53497-20070

ACM2#

厚さ=2.0

 4
53497-12050

ACM2#

厚さ=1.0

 4
53497-42010

ACM2#

厚さ=0.5

 4
53510 - LOCK ASSY, HOOD
53510-44050

ACM2#

 1
53510-44110

ACM2#..06S

 1
53510-44051

ACM2#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

ACM2#

線径=1.6,ｺｲﾙ巻数=12

 1
90506-12063

ACM2#

線径=1.2,ｺｲﾙ巻数=8.5

 1
90506-09052

ACM2#

線径=0.9,ｺｲﾙ巻数=20.75

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

ACM2#

線径=1.6,ｺｲﾙ巻数=12

 1
90506-12063

ACM2#

線径=1.2,ｺｲﾙ巻数=8.5

 1
90506-09052

ACM2#

線径=0.9,ｺｲﾙ巻数=20.75

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-16077

ACM2#

線径=1.6,ｺｲﾙ巻数=12

 1
90506-12063

ACM2#

線径=1.2,ｺｲﾙ巻数=8.5

 1
90506-09052

ACM2#

線径=0.9,ｺｲﾙ巻数=20.75

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-52010C0

ACM2#..240E,240I,240U

BLACK,TRIM0#,1#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-44090

ACM2#

 1
53630-44060

ACM2#

 1
Common parts
90119-06423
90959-01460
91651-A0820
