ACM21W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105-0310)240E,240I,240U

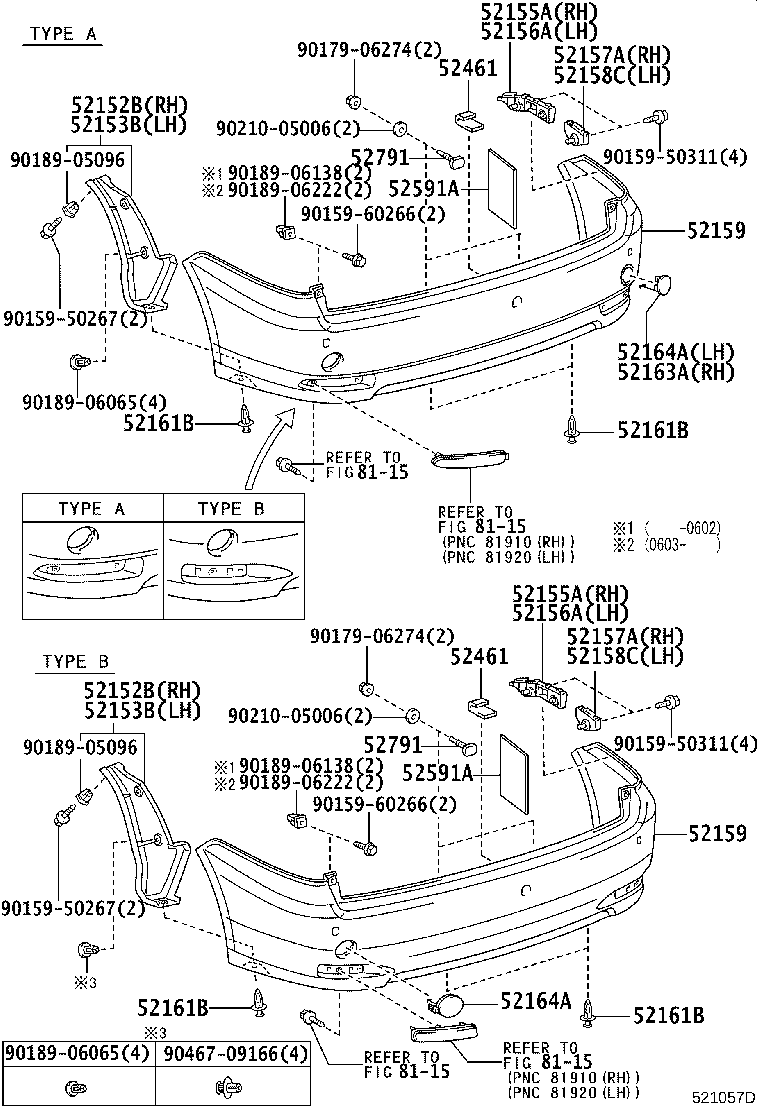

Click highlighted areas on diagram

diagram 52152B 52153B 52155A 52156A 52157A 52158C 52159 52161B 52161B 52163A 52164A 52461 52591A 52791 8115 8115 9015950267 9015950311 9015960266 9017906026 9018905096 9018906065 9018906138 9021005006
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52152-44080

ACM2#..240I,240U

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
52152-44050

ACM2#..240E,240I,240U

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-44050

ACM2#..240E,240I,240U

 1
52153-44080

ACM2#..240I,240U

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-44051

ACM2#

 1
52155-44050

ACM2#

 1
52155-44050

ACM2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-44020

ACM2#

 1
52156-44020

ACM2#

 1
52156-44021

ACM2#

 1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-44010

ACM2#

 1
52157-44010

ACM2#

 1
52157-28020

ACM2#

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-28010

ACM2#

 1
52158-44010

ACM2#

 1
52158-44010

ACM2#

 1
52159 - COVER, REAR BUMPER
52159-44180B0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0

 1
52159-44180A0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),WHITE PM.,042

 1
52159-44180D1

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),LT.ROSE M.M.,3Q1

 1
52159-44180J0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),DK.BLUE M.M.,8P4

 1
52159-44180D0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),RED MC.,3M8

 1
52159-44180A1

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),SUPER WHITE 2,040

 1
52159-44180F0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),CHAMPAGNE M.M.,587

 1
52159-44180H0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),AQUA ME.,771

 1
52159-44180B1

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),DARK GRAY M.M.,1E2

 1
52159-44250A0

ACM2#..240I,240U

ALCANTARA VERSIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(Q) & ｱﾘ(ｸﾘﾅﾗﾝｽ & ﾊﾞﾂｸｿﾅ-);ALCANTARA VERSION *(R) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE PM,042

 1
52159-44260A0

ACM2#..240I,240U

ALCANTARA VERSION *(R) & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-);ALCANTARA VERSIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(Q) & ｱﾘ(ｸﾘﾅﾗﾝｽ ｿﾅ-),WHITE PM,042

 1
52161B - PIECE, REAR BUMPER
52161-16010

ACM2#

 4
52161-16010

ACM2#

 4
52161B - PIECE, REAR BUMPER
52161-16010

ACM2#

 4
52161-16010

ACM2#

 4
52163A - PLATE, REAR BUMPER, RH
52163-44010B0

ACM2#

SILVER ME.,1C0

 1
52163-44010A1

ACM2#..240E,240I,240U

WHITE PM.,042

 1
52163-44010D0

ACM2#..240E,240I,240U

RED MC.,3M8

 1
52163-44010D1

ACM2#..240E,240I,240U

LT.ROSE M.M.,3Q1

 1
52163-44010F0

ACM2#..240E,240I,240U

CHAMPAGNE M.M.,587

 1
52163-44010B1

ACM2#

DARK GRAY M.M.,1E2

 1
52163-44010H0

ACM2#..240E,240I,240U

AQUA ME.,771

 1
52163-44010A0

ACM2#

SUPER WHITE 2,040

 1
52163-44010J0

ACM2#

DK.BLUE M.M.,8P4

 1
52164A - PLATE, REAR BUMPER, LH
52164-44010B0

ACM2#

SILVER ME.,1C0

 1
52164-44010B1

ACM2#

DARK GRAY M.M.,1E2

 1
52164-44010J0

ACM2#

DK.BLUE M.M.,8P4

 1
52164-44010H0

ACM2#..240E,240I,240U

AQUA ME.,771

 1
52164-44010A1

ACM2#..240E,240I,240U

WHITE PM.,042

 1
52164-44010A0

ACM2#

SUPER WHITE 2,040

 1
52164-44010F0

ACM2#..240E,240I,240U

CHAMPAGNE M.M.,587

 1
52164-44010D0

ACM2#..240E,240I,240U

RED MC.,3M8

 1
52164-44010D1

ACM2#..240E,240I,240U

LT.ROSE M.M.,3Q1

 1
52461 - PAD, REAR BUMPER, CENTER
52461-44010

ACM2#

 1
52461-44010

ACM2#

 1
52591A - SEAL, REAR BUMPER
52591-44010

ACM2#

 2
52591-44010

ACM2#

 2
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-28010

ACM2#

 2
52791-44030

ACM2#

 4
52791-44030

ACM2#

 2
Common parts
90159-50267
90159-50311
90159-60266
90179-06026
90189-05096
90189-06065
90189-06138
90210-05006
Linked diagrams
8115

(0310- )

Click highlighted areas on diagram

diagram 52152B 52152B 52153B 52153B 52155A 52155A 52156A 52156A 52157A 52157A 52158C 52158C 52159 52159 52161B 52161B 52161B 52161B 52163A 52164A 52164A 52461 52461 52591A 52591A 52791 52791 8115 8115 8115 8115 9015950267 9015950267 9015950311 9015950311 9015960266 9015960266 9017906274 9017906274 9018905096 9018905096 9018906065 9018906065 9018906138 9018906138 9018906222 9018906222 9021005006 9021005006 9046709166
Part # Description Qty Price
52152B - EXTENSION, REAR BUMPER, RH
52152-44080

ACM2#..240I,240U

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
52152-44050

ACM2#..240E,240I,240U

 1
52152B - EXTENSION, REAR BUMPER, RH
52152-44080

ACM2#..240I,240U

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
52152-44050

ACM2#..240E,240I,240U

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-44050

ACM2#..240E,240I,240U

 1
52153-44080

ACM2#..240I,240U

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-44050

ACM2#..240E,240I,240U

 1
52153-44080

ACM2#..240I,240U

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-44051

ACM2#

 1
52155-44050

ACM2#

 1
52155-44050

ACM2#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-44051

ACM2#

 1
52155-44050

ACM2#

 1
52155-44050

ACM2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-44020

ACM2#

 1
52156-44020

ACM2#

 1
52156-44021

ACM2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-44020

ACM2#

 1
52156-44020

ACM2#

 1
52156-44021

ACM2#

 1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-44010

ACM2#

 1
52157-44010

ACM2#

 1
52157-28020

ACM2#

 1
52157A - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-44010

ACM2#

 1
52157-44010

ACM2#

 1
52157-28020

ACM2#

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-28010

ACM2#

 1
52158-44010

ACM2#

 1
52158-44010

ACM2#

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-28010

ACM2#

 1
52158-44010

ACM2#

 1
52158-44010

ACM2#

 1
52159 - COVER, REAR BUMPER
52159-44180B0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0

 1
52159-44180A0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),WHITE PM.,042

 1
52159-44180D1

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),LT.ROSE M.M.,3Q1

 1
52159-44180J0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),DK.BLUE M.M.,8P4

 1
52159-44180D0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),RED MC.,3M8

 1
52159-44180A1

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),SUPER WHITE 2,040

 1
52159-44180F0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),CHAMPAGNE M.M.,587

 1
52159-44180H0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),AQUA ME.,771

 1
52159-44180B1

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),DARK GRAY M.M.,1E2

 1
52159-44250A0

ACM2#..240I,240U

ALCANTARA VERSIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(Q) & ｱﾘ(ｸﾘﾅﾗﾝｽ & ﾊﾞﾂｸｿﾅ-);ALCANTARA VERSION *(R) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE PM,042

 1
52159-44260A0

ACM2#..240I,240U

ALCANTARA VERSION *(R) & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-);ALCANTARA VERSIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(Q) & ｱﾘ(ｸﾘﾅﾗﾝｽ ｿﾅ-),WHITE PM,042

 1
52159 - COVER, REAR BUMPER
52159-44180B0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0

 1
52159-44180A0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),WHITE PM.,042

 1
52159-44180D1

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),LT.ROSE M.M.,3Q1

 1
52159-44180J0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),DK.BLUE M.M.,8P4

 1
52159-44180D0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),RED MC.,3M8

 1
52159-44180A1

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),SUPER WHITE 2,040

 1
52159-44180F0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),CHAMPAGNE M.M.,587

 1
52159-44180H0

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),AQUA ME.,771

 1
52159-44180B1

ACM2#..240I,240U

ｱﾘ(ﾊﾞﾂｸｿﾅ-),DARK GRAY M.M.,1E2

 1
52159-44250A0

ACM2#..240I,240U

ALCANTARA VERSIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(Q) & ｱﾘ(ｸﾘﾅﾗﾝｽ & ﾊﾞﾂｸｿﾅ-);ALCANTARA VERSION *(R) & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE PM,042

 1
52159-44260A0

ACM2#..240I,240U

ALCANTARA VERSION *(R) & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ-);ALCANTARA VERSIONﾅﾋﾞｽﾍﾟｼﾔﾙ *(Q) & ｱﾘ(ｸﾘﾅﾗﾝｽ ｿﾅ-),WHITE PM,042

 1
52161B - PIECE, REAR BUMPER
52161-16010

ACM2#

 4
52161-16010

ACM2#

 4
52161B - PIECE, REAR BUMPER
52161-16010

ACM2#

 4
52161-16010

ACM2#

 4
52161B - PIECE, REAR BUMPER
52161-16010

ACM2#

 4
52161-16010

ACM2#

 4
52161B - PIECE, REAR BUMPER
52161-16010

ACM2#

 4
52161-16010

ACM2#

 4
52163A - PLATE, REAR BUMPER, RH
52163-44010B0

ACM2#

SILVER ME.,1C0

 1
52163-44010A1

ACM2#..240E,240I,240U

WHITE PM.,042

 1
52163-44010D0

ACM2#..240E,240I,240U

RED MC.,3M8

 1
52163-44010D1

ACM2#..240E,240I,240U

LT.ROSE M.M.,3Q1

 1
52163-44010F0

ACM2#..240E,240I,240U

CHAMPAGNE M.M.,587

 1
52163-44010B1

ACM2#

DARK GRAY M.M.,1E2

 1
52163-44010H0

ACM2#..240E,240I,240U

AQUA ME.,771

 1
52163-44010A0

ACM2#

SUPER WHITE 2,040

 1
52163-44010J0

ACM2#

DK.BLUE M.M.,8P4

 1
52164A - PLATE, REAR BUMPER, LH
52164-44010B0

ACM2#

SILVER ME.,1C0

 1
52164-44010B1

ACM2#

DARK GRAY M.M.,1E2

 1
52164-44010J0

ACM2#

DK.BLUE M.M.,8P4

 1
52164-44010H0

ACM2#..240E,240I,240U

AQUA ME.,771

 1
52164-44010A1

ACM2#..240E,240I,240U

WHITE PM.,042

 1
52164-44010A0

ACM2#

SUPER WHITE 2,040

 1
52164-44010F0

ACM2#..240E,240I,240U

CHAMPAGNE M.M.,587

 1
52164-44010D0

ACM2#..240E,240I,240U

RED MC.,3M8

 1
52164-44010D1

ACM2#..240E,240I,240U

LT.ROSE M.M.,3Q1

 1
52164A - PLATE, REAR BUMPER, LH
52164-44010B0

ACM2#

SILVER ME.,1C0

 1
52164-44010B1

ACM2#

DARK GRAY M.M.,1E2

 1
52164-44010J0

ACM2#

DK.BLUE M.M.,8P4

 1
52164-44010H0

ACM2#..240E,240I,240U

AQUA ME.,771

 1
52164-44010A1

ACM2#..240E,240I,240U

WHITE PM.,042

 1
52164-44010A0

ACM2#

SUPER WHITE 2,040

 1
52164-44010F0

ACM2#..240E,240I,240U

CHAMPAGNE M.M.,587

 1
52164-44010D0

ACM2#..240E,240I,240U

RED MC.,3M8

 1
52164-44010D1

ACM2#..240E,240I,240U

LT.ROSE M.M.,3Q1

 1
52461 - PAD, REAR BUMPER, CENTER
52461-44010

ACM2#

 1
52461-44010

ACM2#

 1
52461 - PAD, REAR BUMPER, CENTER
52461-44010

ACM2#

 1
52461-44010

ACM2#

 1
52591A - SEAL, REAR BUMPER
52591-44010

ACM2#

 2
52591-44010

ACM2#

 2
52591A - SEAL, REAR BUMPER
52591-44010

ACM2#

 2
52591-44010

ACM2#

 2
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-28010

ACM2#

 2
52791-44030

ACM2#

 4
52791-44030

ACM2#

 2
52791 - BOLT, BUMPER MOULDING SET, NO.1
52791-28010

ACM2#

 2
52791-44030

ACM2#

 4
52791-44030

ACM2#

 2
Common parts
90159-50267
90159-50311
90159-60266
90179-06274
90189-05096
90189-06065
90189-06138
90189-06222
90210-05006
90467-09166
Linked diagrams
8115
