ACM21W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

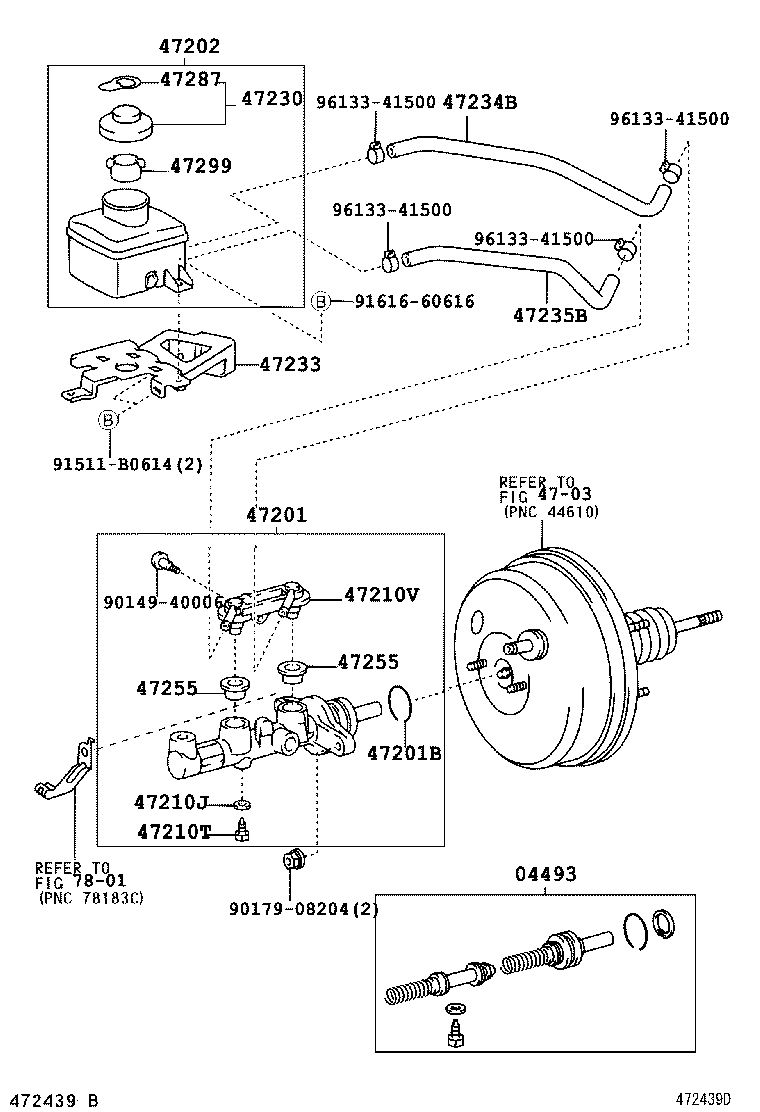

Click highlighted areas on diagram

diagram 04493 4703 47201 47201B 47202 47210J 47210T 47210V 47230 47233 47234B 47235B 47255 47255 47287 47299 7801 9014940006 9017908204 91511B0614 9161660616 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-44020

ACM2#

 1
04493-44020

ACM2#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-44130

ACM2#

 1
47201-44130

ACM2#..06S

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90029-20059

ACM2#..06S

 1
90029-20059

ACM2#

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-44050

ACM2#

 1
47220-44100

ACM2#..06S

 1
47210J - GASKET(FOR MASTER CYLINDER)
90029-43001

ACM2#..06S

 1
90430-06104

ACM2#

 1
90029-43001

ACM2#

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

ACM2#

 1
90109-06077

ACM2#..06S

 1
47210V - UNION(FOR BRAKE MASTER CYLINDER)
90029-40402

ACM2#..06S

 1
90029-40402

ACM2#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-20140

ACM2#

 1
47230-20140

ACM2#..06S

 1
47233 - BRACKET, RESERVOIR
47233-44060

ACM2#

 1
47233-44060

ACM2#..06S

 1
47234B - TUBE, RESERVOIR, NO.1
47234-44060

ACM2#

 1
47234-44060

ACM2#..06S

 1
47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2
47235-44060

ACM2#

 1
47235-44060

ACM2#..06S

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

ACM2#..06S

 2
47255-16010

ACM2#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

ACM2#..06S

 2
47255-16010

ACM2#

 2
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

ACM2#

 1
47287-20010

ACM2#..06S

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

ACM2#..06S

 1
47299-20060

ACM2#

 1
Common parts
90149-40006
90179-08204
91511-B0614
91616-60616
96133-41500
Linked diagrams
4703
7801
