ACM21W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

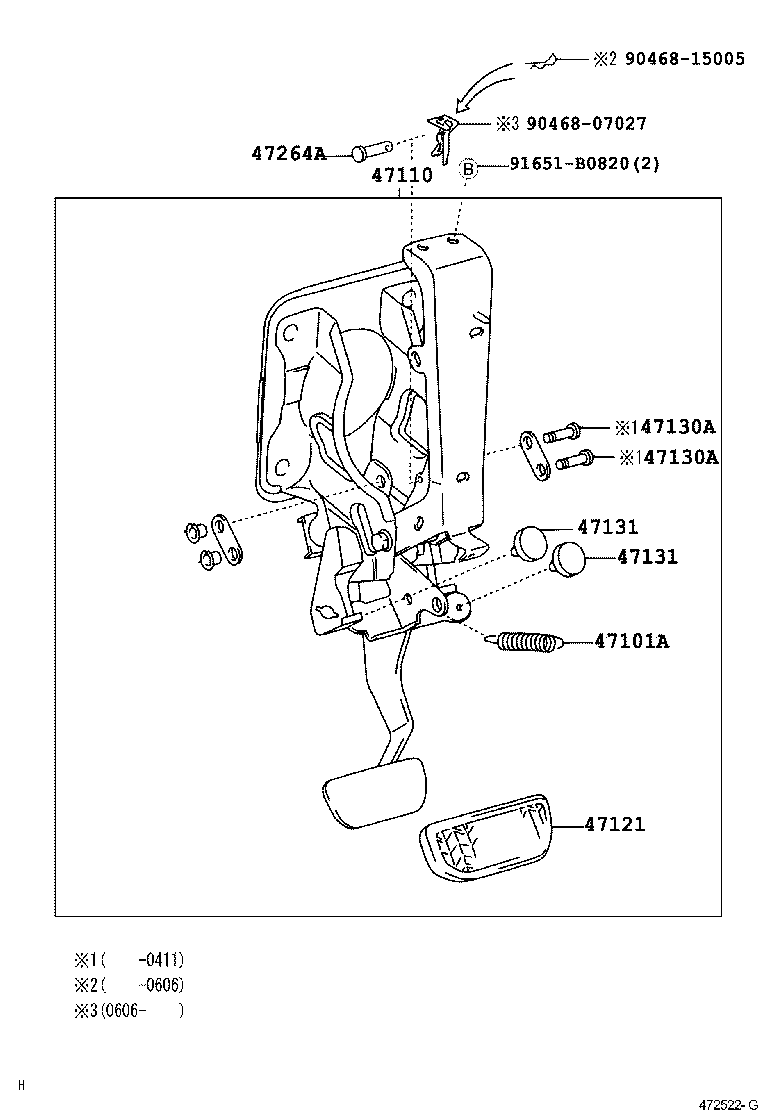

Click highlighted areas on diagram

diagram 47101A 47110 47121 47130A 47130A 47131 47131 47264A 9046807027 9046815005 91651B0820
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-20075

ACM2#

 1
90506-20075

ACM2#..06S

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-44130

ACM2#

 1
47110-44131

ACM2#..06S

 1
47110-44131

ACM2#

 1
47121 - PAD, BRAKE PEDAL
47121-52010

ACM2#..06S

 1
47121-52010

ACM2#

 1
47130A - PIN, BRAKE PEDAL LINK
90249-06167

ACM2#

 2
90249-06167

ACM2#

 2
47130A - PIN, BRAKE PEDAL LINK
90249-06167

ACM2#

 2
90249-06167

ACM2#

 2
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06049

ACM2#

 2
90541-06049

ACM2#..06S

 2
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06049

ACM2#

 2
90541-06049

ACM2#..06S

 2
47264A - PIN(FOR PUSH ROD)
90240-06023

ACM2#

 1
90240-06027

ACM2#..06S

 1
90240-06023

ACM2#

 1
Common parts
90468-07027
90468-15005
91651-B0820
