ACM21W-ANSGK (2001)
Toyota Ipsum

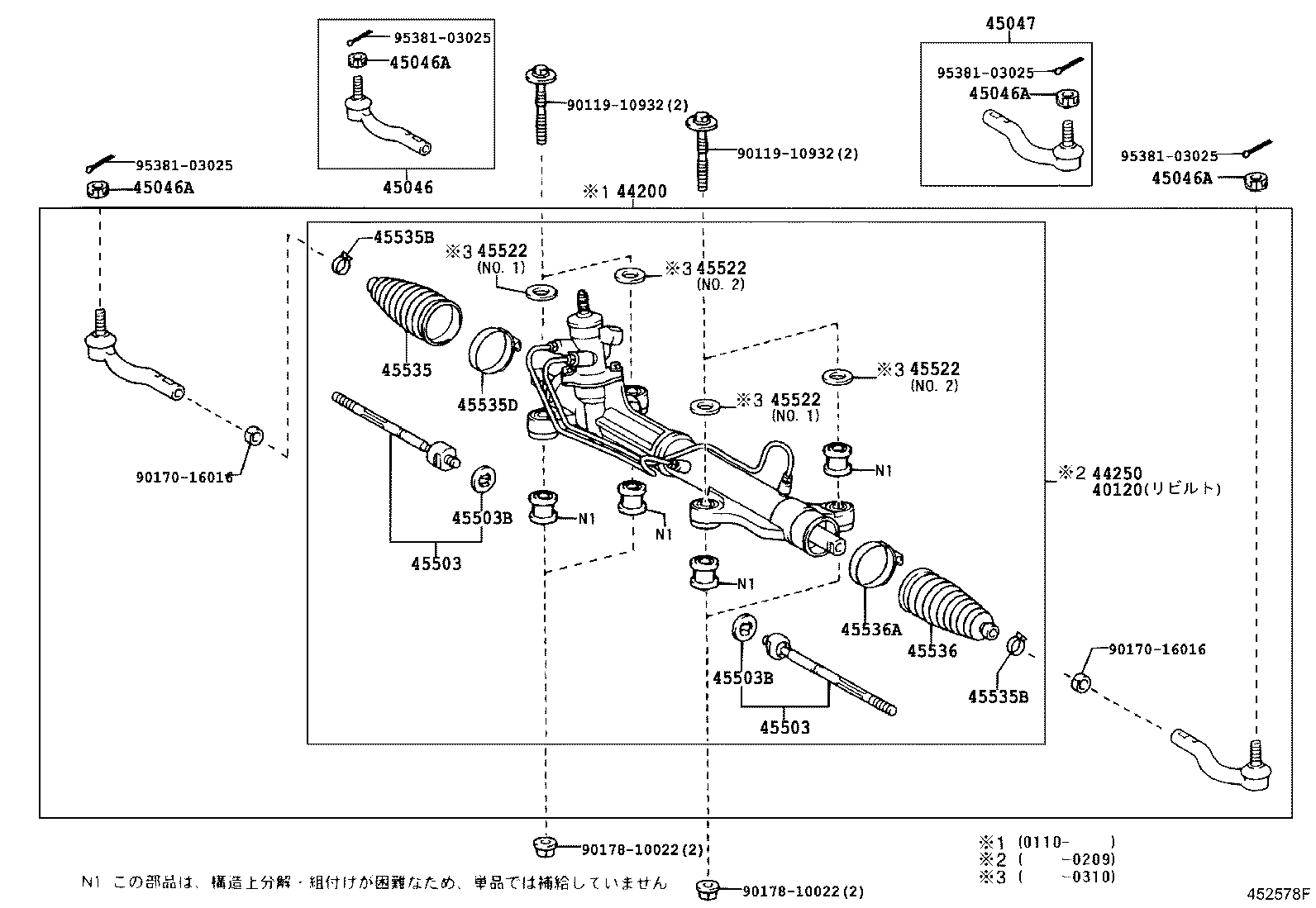

ILLUST NO. 1 OF 2(0105- )ACM21
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-44170 |
ACM21..240I,240U ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ),TOYODA KOKI |
1 | ||
| 40120-44141 |
ACM21 TOYODA KOKI |
1 | ||
| 40120-44171 |
ACM21..240I,240U ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ),TOYODA KOKI |
1 | ||
| 40120-44190 |
ACM21 TOYODA KOKI |
1 | ||
| 40120-44140 |
ACM21 TOYODA KOKI |
1 | ||
| 40120-44220 |
ACM21..240I,240U ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ),TOYODA KOKI |
1 | ||
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-44270 |
ACM21..240I,240U ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ) |
1 | ||
| 44200-44240 |
ACM21..06S |
1 | ||
| 44200-44140 |
ACM21 |
1 | ||
| 44200-44170 |
ACM21..240I,240U ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ) |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-44140 |
ACM21 |
1 | ||
| 44250-44171 |
ACM21..240I,240U ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ) |
1 | ||
| 44250-44141 |
ACM21 |
1 | ||
| 44250-44170 |
ACM21..240I,240U ｳｴﾙｷﾔﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁﾂｸ) |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45047-49055 |
ACM21 |
1 | ||
| 45047-49055 |
ACM21 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACM2#..06S |
2 | ||
| 90171-12028 |
ACM2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACM2#..06S |
2 | ||
| 90171-12028 |
ACM2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACM2#..06S |
2 | ||
| 90171-12028 |
ACM2# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
ACM2#..06S |
2 | ||
| 90171-12028 |
ACM2# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-49125 |
ACM21 |
1 | ||
| 45046-49125 |
ACM21 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-49105 |
ACM21 |
2 | ||
| 45503-49105 |
ACM21 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-49105 |
ACM21 |
2 | ||
| 45503-49105 |
ACM21 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
ACM2# 外径=38 |
2 | ||
| 90214-14007 |
ACM2#..06S 外径=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
ACM2# 外径=38 |
2 | ||
| 90214-14007 |
ACM2#..06S 外径=38 |
2 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-44010 |
ACM21 NO.1 |
2 | ||
| 45522-44020 |
ACM21 NO.2 |
2 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-44010 |
ACM21 NO.1 |
2 | ||
| 45522-44020 |
ACM21 NO.2 |
2 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-44010 |
ACM21 NO.1 |
2 | ||
| 45522-44020 |
ACM21 NO.2 |
2 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-44010 |
ACM21 NO.1 |
2 | ||
| 45522-44020 |
ACM21 NO.2 |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-44010 |
ACM2#..06S |
1 | ||
| 45535-44010 |
ACM2# |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ACM2#..06S |
2 | ||
| 90467-19021 |
ACM2# |
2 | ||
| 90467-19018 |
ACM2# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19021 |
ACM2#..06S |
2 | ||
| 90467-19021 |
ACM2# |
2 | ||
| 90467-19018 |
ACM2# |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-55016 |
ACM2#..06S |
1 | ||
| 90460-55016 |
ACM2# |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-44010 |
ACM2# |
1 | ||
| 45535-44010 |
ACM2#..06S |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-55016 |
ACM2#..06S |
1 | ||
| 90460-55016 |
ACM2# |
1 | ||
| Common parts | ||||
| 90119-10932 | ||||
| 90170-16016 | ||||
| 90178-10022 | ||||
| 95381-03025 | ||||

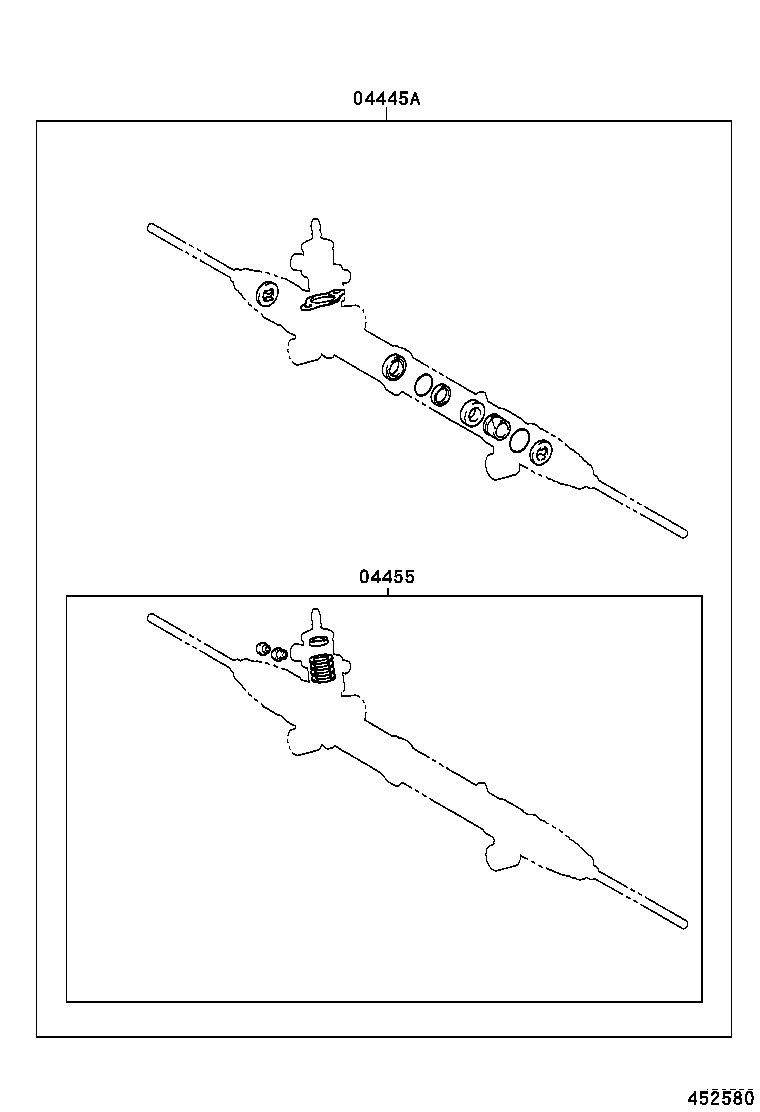

ILLUST NO. 2 OF 2(0105- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-44010 |
ACM2# |
1 | ||
| 04445-44010 |
ACM2# |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-44010 |
ACM2# |
1 | ||
| 04455-44010 |
ACM2# |
1 | ||
