ACM21W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

Click highlighted areas on diagram

U140F,U241E

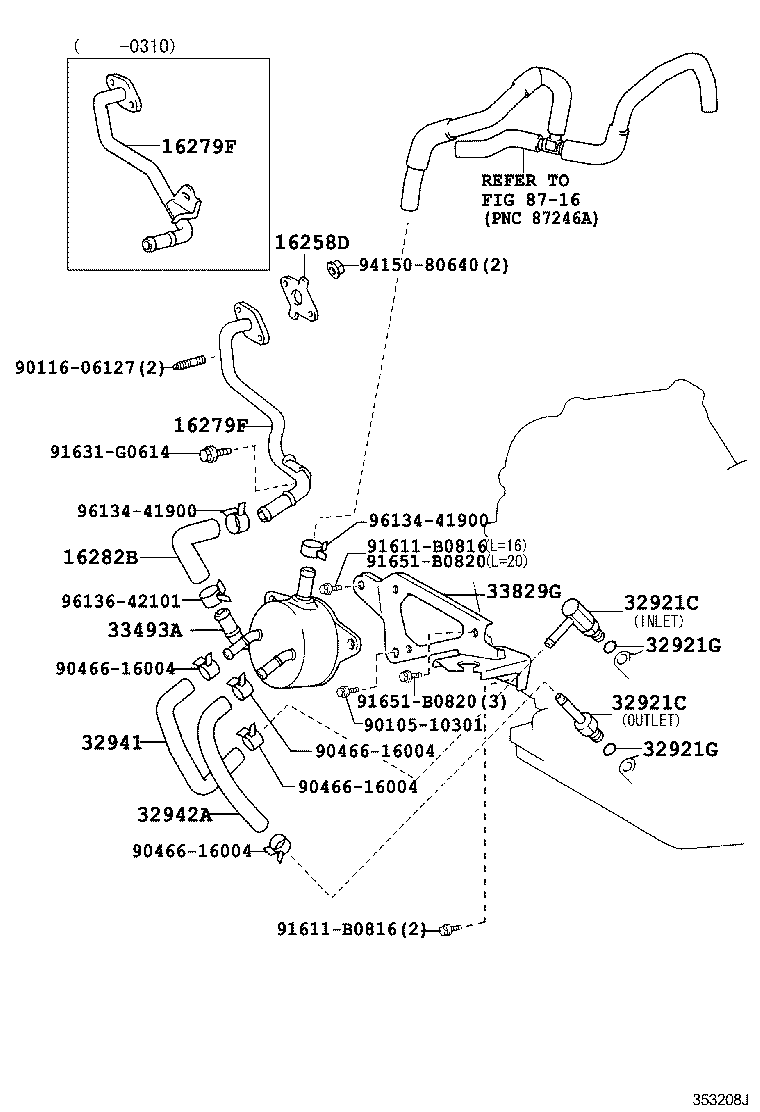

diagram 16258D 16279F 16279F 16282B 32921C 32921C 32921G 32921G 32941 32942A 33493A 33829G 8716 9010510301 9011606127 9046616004 9046616004 9046616004 9046616004 91611B0816 91611B0816 91631G0614 91651B0820 91651B0820 9415080640 9613441900 9613441900 9613642101
Part # Description Qty Price
16258D - GASKET(FOR WATER BY-PASS PIPE)
16258-28020

2AZFE..ACM2#

 1
16258-28040

2AZFE..ACM2#

 1
16258-28021

2AZFE..ACM2#

 1
16258-28040

2AZFE..ACM2#..06S

 1
16279F - PIPE, WATER BY-PASS, NO.3
16279-28030

2AZFE..ACM2#

 1
16279-28060

2AZFE..ACM2#..06S

 1
16279F - PIPE, WATER BY-PASS, NO.3
16279-28030

2AZFE..ACM2#

 1
16279-28060

2AZFE..ACM2#..06S

 1
16282B - HOSE, WATER BY-PASS, NO.5
16282-28010

2AZFE..ACM2#

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13004

ACM2#

ｱｳﾄﾚｯﾄ

 1
90407-13009

ACM2#

ｲﾝﾚｯﾄ

 1
90404-13004

ACM2#

ｱｳﾄﾚｯﾄ

 1
90407-13009

ACM2#

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-13004

ACM2#

ｱｳﾄﾚｯﾄ

 1
90407-13009

ACM2#

ｲﾝﾚｯﾄ

 1
90404-13004

ACM2#

ｱｳﾄﾚｯﾄ

 1
90407-13009

ACM2#

ｲﾝﾚｯﾄ

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ACM2#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

ACM2#

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-44010

ACM2#..06S

 1
32941-44010

ACM2#

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
90445-17069

ACM2#

 1
33493A - COOLER, TRANSMISSION OIL
33493-44010

ACM2#..06S

 1
33493-44010

ACM2#

 1
33829G - SUPPORT, TRANSMISSION CONTROL CABLE
33829-44040

ACM2#

 1
33829-44040

ACM2#..06S

 1
Common parts
90105-10301
90116-06127
90466-16004
91611-B0816
91631-G0614
91651-B0820
94150-80640
96134-41900
96136-42101
Linked diagrams
8716
