ACM21W-ANSGK (2001)

Toyota Ipsum

Production May 2001 - Jun 2007
Engine 2AZFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0105- )

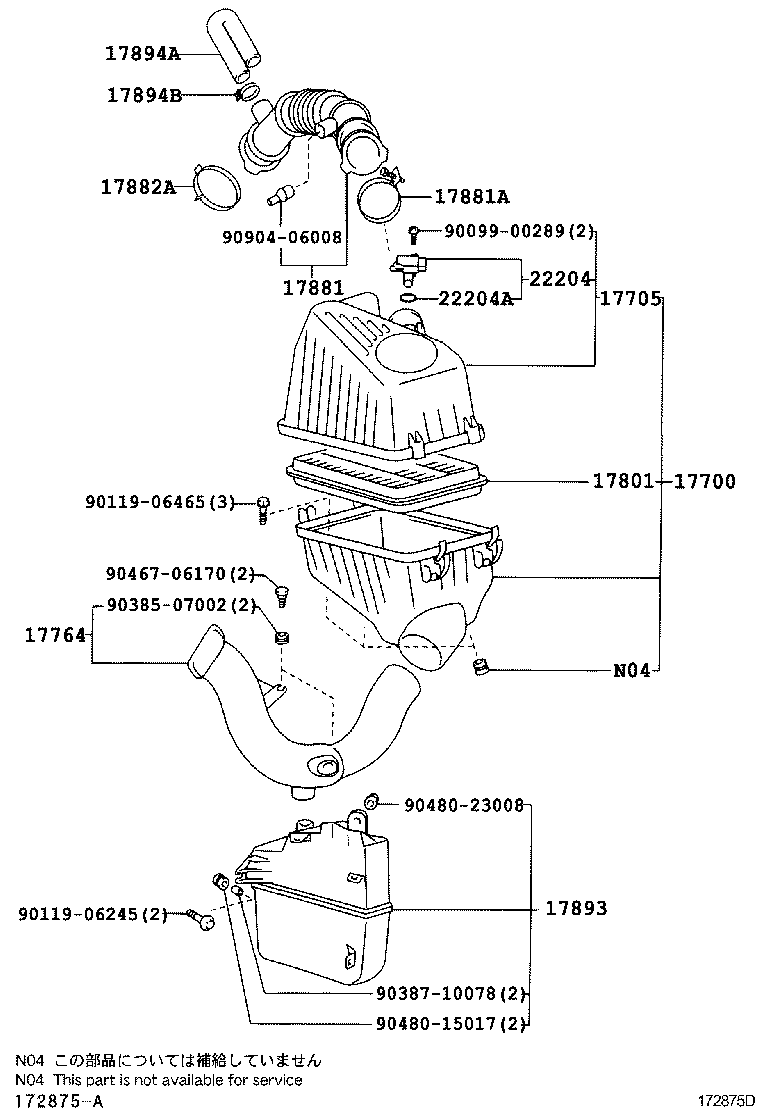

Click highlighted areas on diagram

diagram 17700 17705 17764 17801 17881 17881A 17882A 17893 17894A 17894B 22204 22204A 9009900289 9011906245 9011906465 9038507002 9038710078 9046706170 9048015017 9048023008 9090406008
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-28180

2AZFE..ACM2#

 1
17700-28180

2AZFE..ACM2#..06S

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-28140

2AZFE..ACM2#..06S

 1
17705-28140

2AZFE..ACM2#

 1
17764 - DUCT, AIR CLEANER
52811-44090

2AZFE..ACM2#..06S

 1
52811-44090

2AZFE..ACM2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-22020

2AZFE..ACM2#

 1
17801-22020

2AZFE..ACM2#..06S

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-28100

2AZFE..ACM2#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10830

2AZFE..ACM2#

 1
96111-10830

2AZFE..ACM2#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
90466-62002

2AZFE..ACM2#

 1
90466-62001

2AZFE..ACM2#

 1
17893 - RESONATOR, INTAKE AIR
17893-28030

2AZFE..ACM2#

 1
17893-28030

2AZFE..ACM2#..06S

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-28030

2AZFE..ACM2#

 1
17894-28030

2AZFE..ACM2#

 1
17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
96111-10480

2AZFE..ACM2#

 1
96111-10480

2AZFE..ACM2#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-22010

2AZFE..ACM2#

 1
22204-22010

2AZFE..ACM2#..06S

 1
22204A - RING, O(FOR INTAKE AIR FLOW METER)
90099-14141

2AZFE..ACM2#..06S

 1
90099-14141

2AZFE..ACM2#

 1
Common parts
90099-00289
90119-06245
90119-06465
90385-07002
90387-10078
90467-06170
90480-15017
90480-23008
90904-06008
