VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )VZN21#

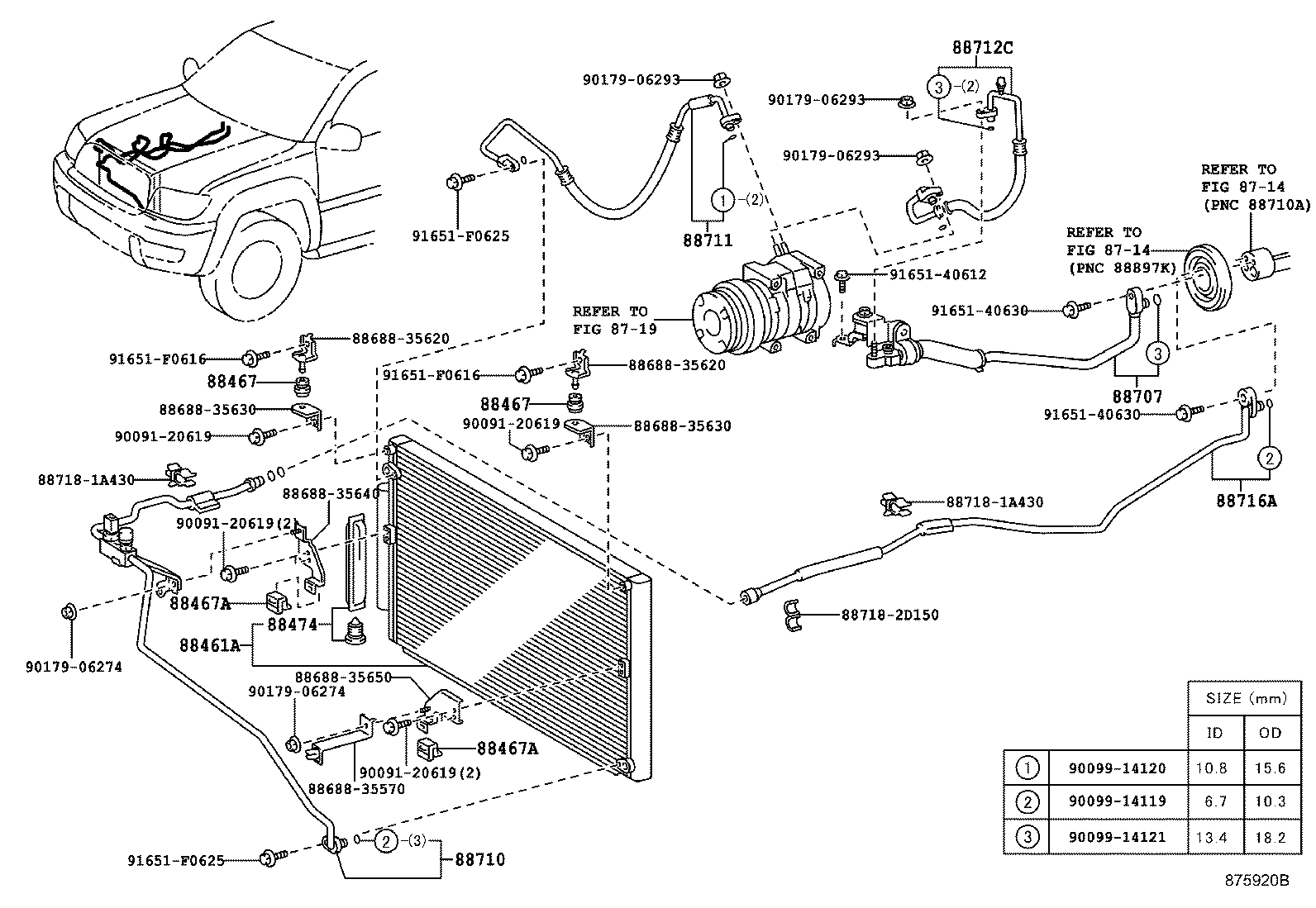

Click highlighted areas on diagram

diagram 8714 8714 8719 88461A 88467 88467 88467A 88467A 88474 8868835570 8868835620 8868835620 8868835630 8868835630 8868835640 8868835650 88707 88710 88711 88712C 88716A 887181A430 887181A430 887182D150 9009120619 9009120619 9009120619 9009120619 9009914119 9009914120 9009914121 9017906274 9017906274 9017906293 9017906293 9017906293 9165140612 9165140630 9165140630 91651F0616 91651F0616 91651F0625 91651F0625
Part # Description Qty Price
88461A - CORE, COOLER CONDENSER
88461-60100

KDN215,RZN21#,VZN21#

 1
88461-35160

KDN215,RZN21#,VZN21#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

KDN215,RZN21#,TRN21#,VZN21#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-28050

KDN215,RZN21#,TRN21#,VZN21#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

KDN215,RZN21#,TRN21#,VZN21#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-35080

KDN215,RZN21#,TRN21#,VZN21#

 2
88474 - DRYER, COOLER
88474-17010

KDN215,RZN21#,TRN21#,VZN21#

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-35020

KDN215,VZN21#

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-35540

KDN215,TRN21#,VZN21#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35680

VZN21#

 1
88712C - HOSE, SUCTION
88712-35620

VZN21#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-35630

KDN215,VZN21#

 1
Common parts
88688-35570
88688-35620
88688-35630
88688-35640
88688-35650
88718-1A430
88718-2D150
90091-20619
90099-14119
90099-14120
90099-14121
90179-06274
90179-06293
91651-40612
91651-40630
91651-F0616
91651-F0625
Linked diagrams
8714
8719
