VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0508)VZN21#

Click highlighted areas on diagram

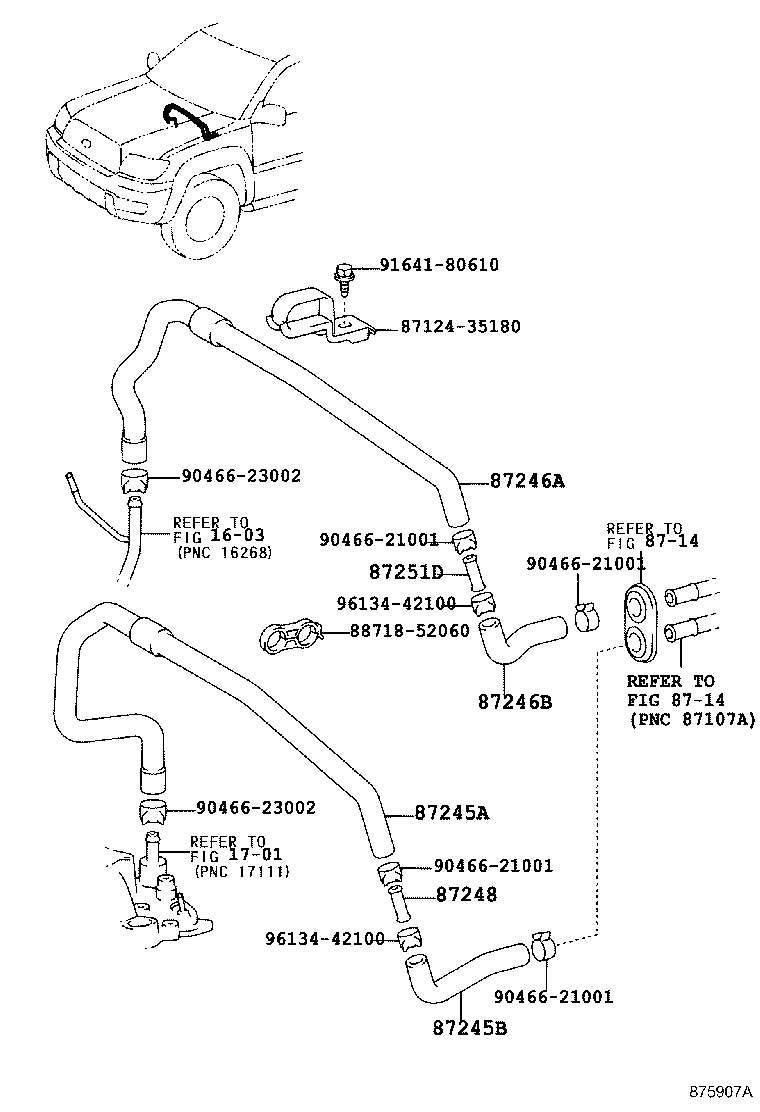

diagram 1603 1701 8712435180 8714 8714 87245A 87245B 87246A 87246B 87248 87251D 8871852060 9046621001 9046621001 9046621001 9046621001 9046623002 9046623002 9164180610 9613442100 9613442100
Part # Description Qty Price
87245A - HOSE, HEATER WATER, INLET A
87245-3D550

VZN21#

 1
87245B - HOSE, HEATER WATER, INLET B
87245-3D570

VZN21#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3D560

VZN21#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3D580

VZN21#

 1
87248 - PIPE SUB-ASSY, WATER
87251-35020

VZN21#

 2
87251D - JOINT, WATER, NO.1
87251-35020

VZN21#

 2
Common parts
87124-35180
88718-52060
90466-21001
90466-23002
91641-80610
96134-42100
Linked diagrams
1603
1701
8714
