VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

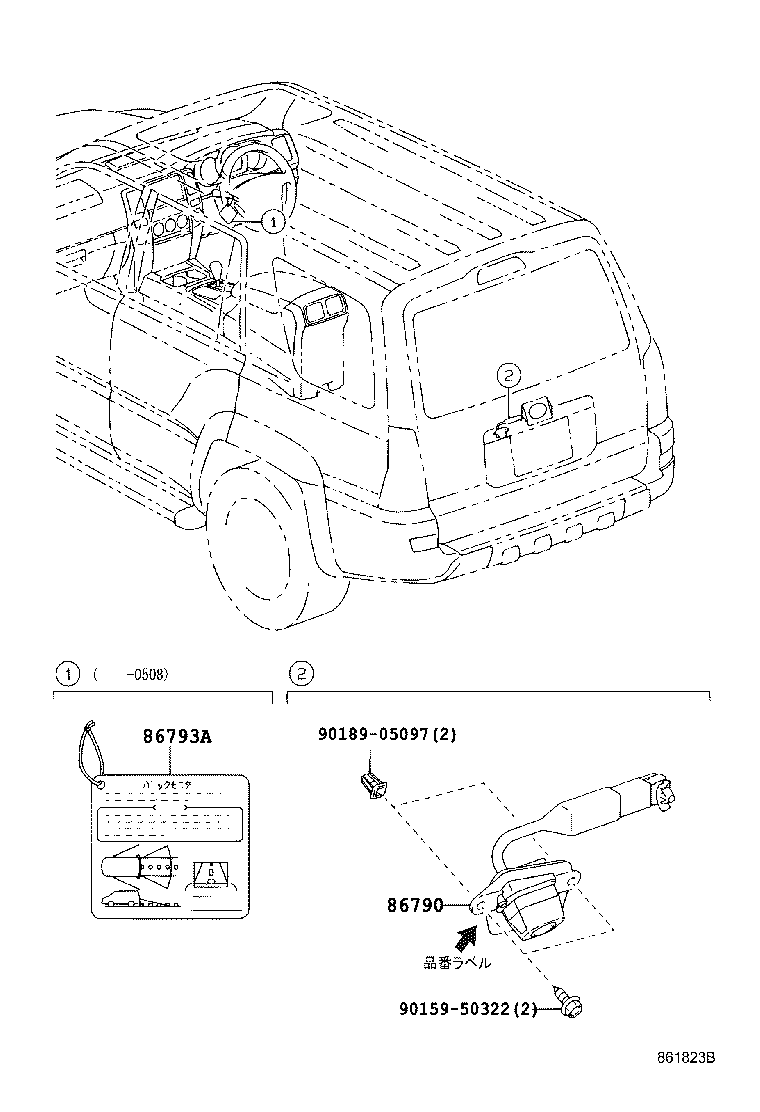

Click highlighted areas on diagram

diagram 86790 86793A 9015950322 9018905097
Part # Description Qty Price
86790 - CAMERA ASSY, TELEVISION
86790-35010

KDN215,TRN21#,VZN21#

ﾊﾞｯｸﾓﾆﾀ−有り

 1
86793A - LABEL, TELEVISION CAMERA INFORMATION
86793-13010

KDN215,TRN21#,VZN21#

ﾊﾞｯｸﾓﾆﾀ−有り

 1
Common parts
90159-50322
90189-05097
