VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

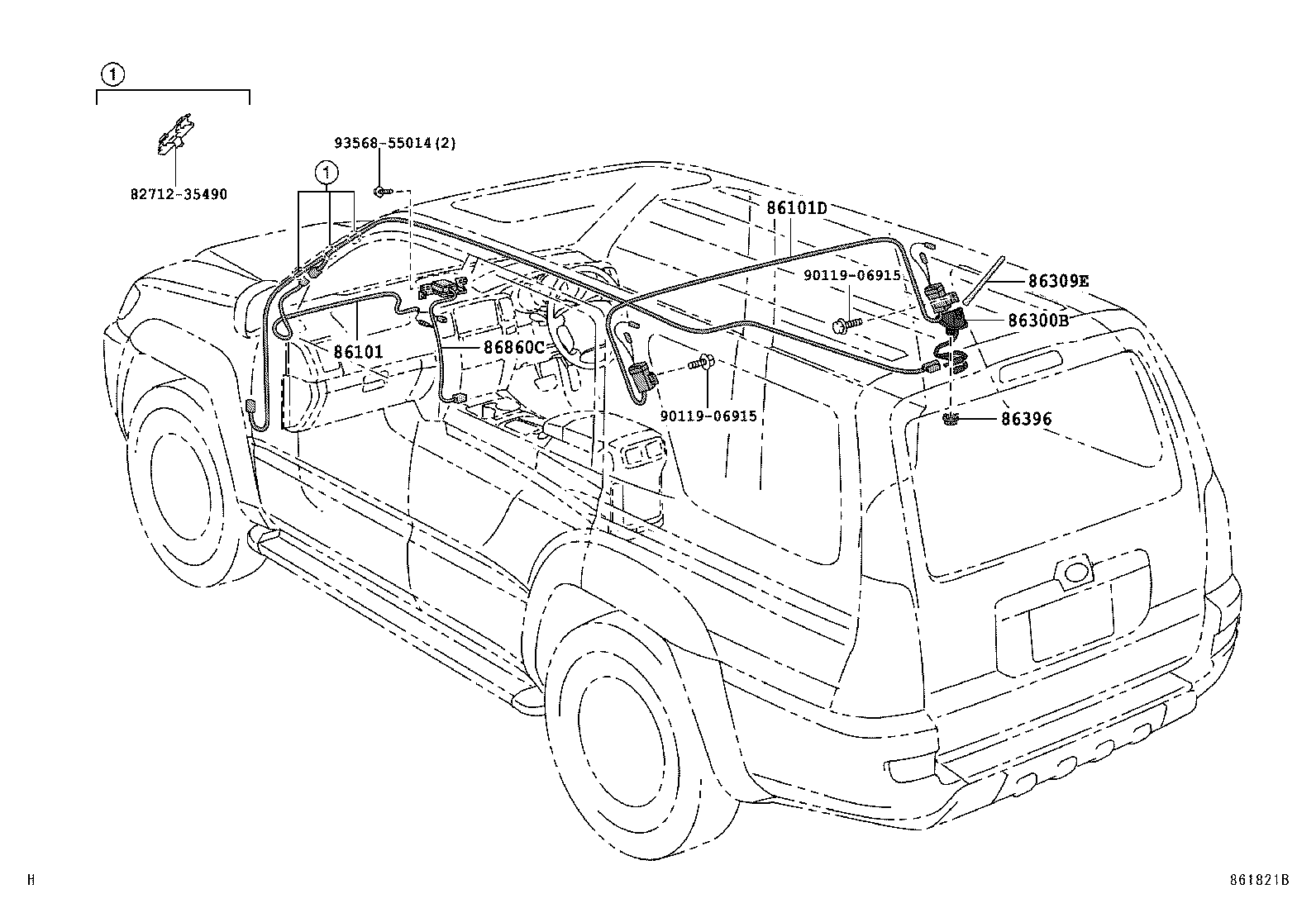

Click highlighted areas on diagram

ｱﾘ(ﾃﾚﾋﾞ)

diagram 8271235490 86101 86101D 86300B 86309E 86396 86860C 9011906915 9011906915 9356855014
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-35090

KDN215,TRN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ

 1
86101-35070

KDN215,TRN21#,VZN21#

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86050-35020

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ

 1
86101-35060

KDN215,TRN21#,VZN21#

 1
86050-35030

KDN215,TRN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ

 1
86050-35020

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV)

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-35140

KDN215,TRN21#,VZN21#

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-20310

KDN215,TRN21#,VZN21#

 1
86396 - NUT, ANTENNA
86396-20040

KDN215,TRN21#,VZN21#

 1
86860C - ANTENNA ASSY, NAVIGATION
86860-35040

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ

 1
86860-35060

KDN215,TRN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ

 1
86860-35040

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV)

 1
Common parts
82712-35490
90119-06915
93568-55014

(0211- )

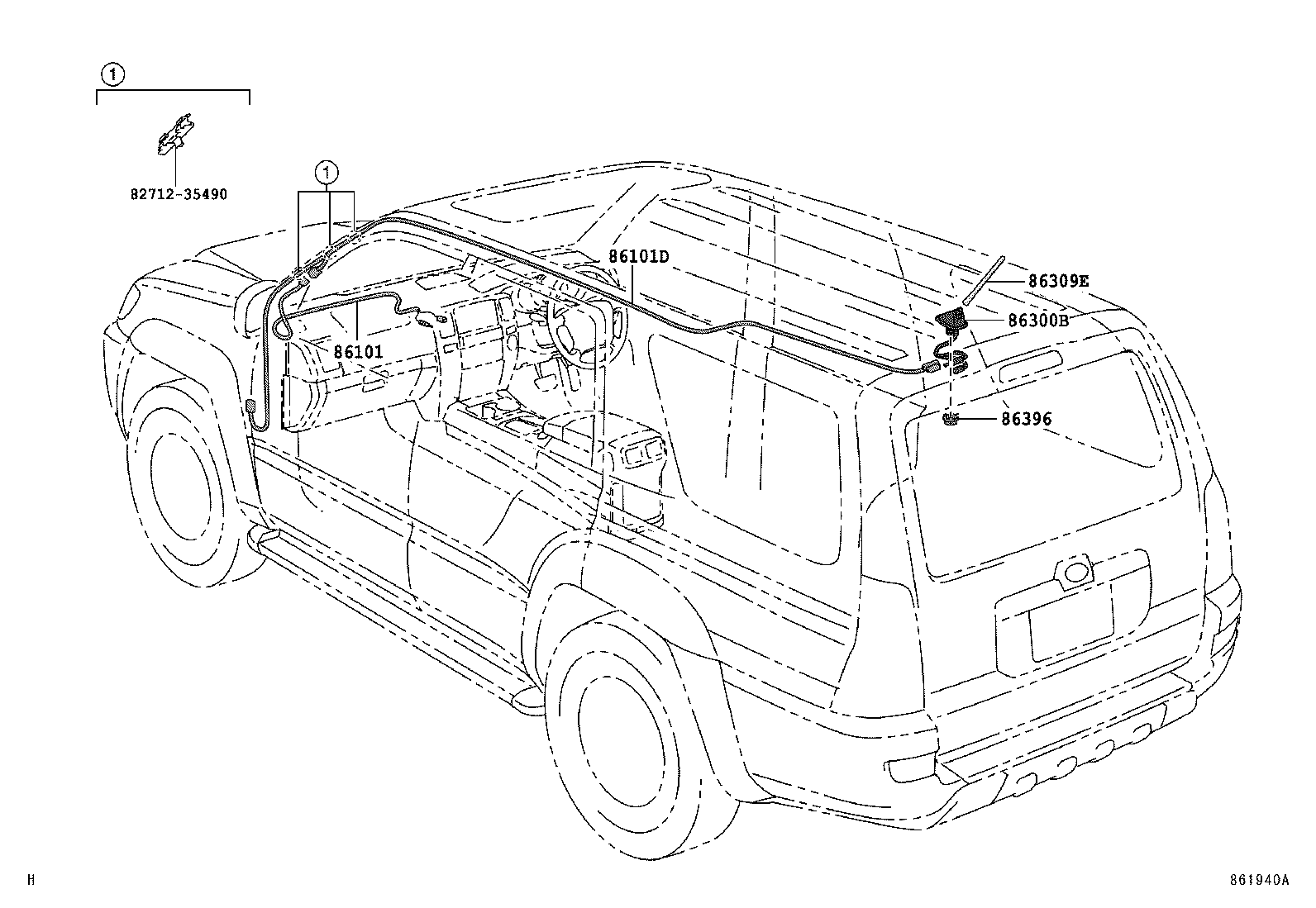

Click highlighted areas on diagram

diagram 8271235490 86101 86101D 86300B 86309E 86396
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-35090

KDN215,TRN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ

 1
86101-35070

KDN215,TRN21#,VZN21#

 1
86101D - CORD SUB-ASSY, ANTENNA, NO.3
86050-35020

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ

 1
86101-35060

KDN215,TRN21#,VZN21#

 1
86050-35030

KDN215,TRN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−AVX(AM/FM/MD/CD/TV)6ｽﾋﾟｰｶ

 1
86050-35020

KDN215,RZN21#,VZN21#

ｵｰﾃﾞｨｵ(日本仕向け用)−ﾌﾟﾚﾐｱﾑAVX(AM/FM/MD/CD/TV)

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-35140

KDN215,TRN21#,VZN21#

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-20310

KDN215,TRN21#,VZN21#

 1
86396 - NUT, ANTENNA
86396-20040

KDN215,TRN21#,VZN21#

 1
Common parts
82712-35490
