VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

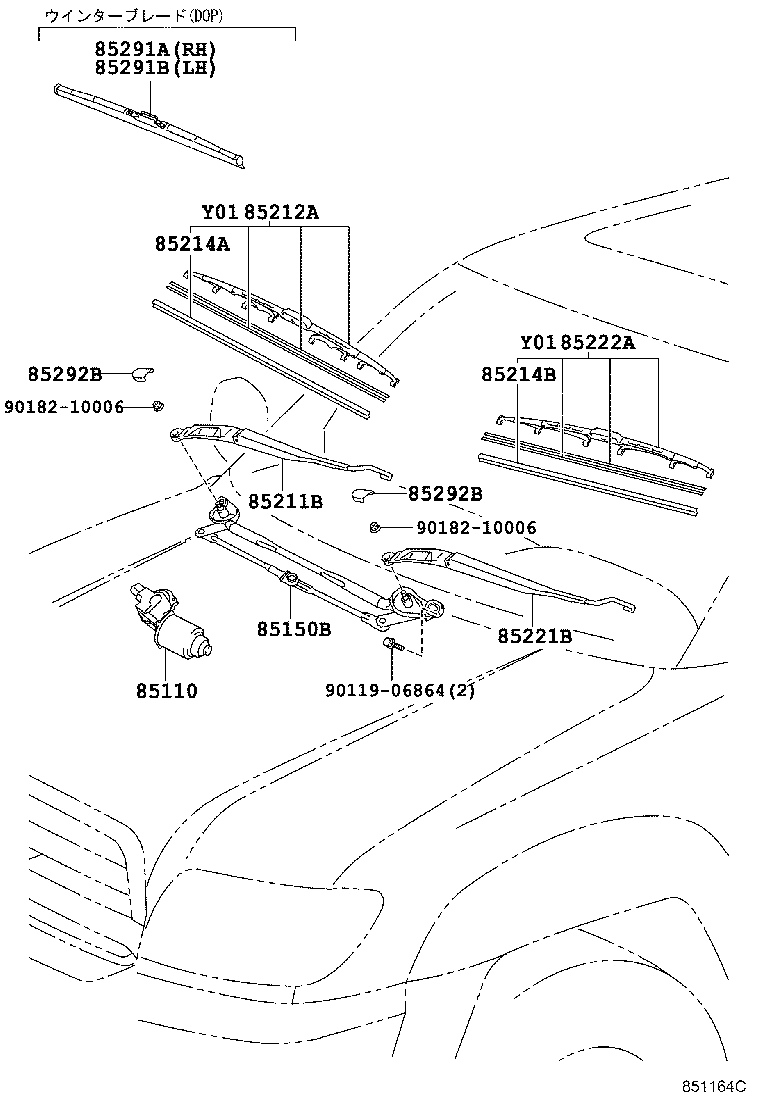

Click highlighted areas on diagram

diagram 85110 85150B 85211B 85212A 85214A 85214B 85221B 85222A 85291A 85291B 85292B 85292B 9011906864 9018210006 9018210006
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-13110

KDN215,TRN21#,VZN21#

 1
85150B - LINK ASSY, WIPER
85150-35180

KDN215,TRN21#,VZN21#

 1
85211B - ARM, FRONT WIPER, RH
85211-35100

KDN215,TRN21#,VZN21#

 1
85212A - BLADE, FR WIPER, RH
85212-60140

KDN215,TRN21#,VZN21#

 1
85212-35080

KDN215,RZN21#,VZN21#

 1
85214A - RUBBER, WIPER, RH
85214-48010

KDN215,RZN21#,TRN21#,VZN21#

 1
85214B - RUBBER, WIPER, LH
85214-53050

KDN215,RZN21#,VZN21#

 1
85214-24050

KDN215,TRN21#,VZN21#

 1
85221B - ARM, FRONT WIPER, LH
85221-35130

KDN215,TRN21#,VZN21#

 1
85222A - BLADE, FR WIPER, LH
85222-35100

KDN215,RZN21#,VZN21#

 1
85222-35130

KDN215,TRN21#,VZN21#

 1
85291A - BLADE, FRONT WIPER, WINTER, RH
85291-35060

KDN215,TRN21#,VZN21#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85291B - BLADE, FRONT WIPER, WINTER, LH
85291-33060

KDN215,TRN21#,VZN21#

ｳｨﾝﾀﾌﾞﾚｰﾄﾞ(DOP)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

KDN215,TRN21#,VZN21#

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

KDN215,TRN21#,VZN21#

 2
Common parts
90119-06864
90182-10006
