VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

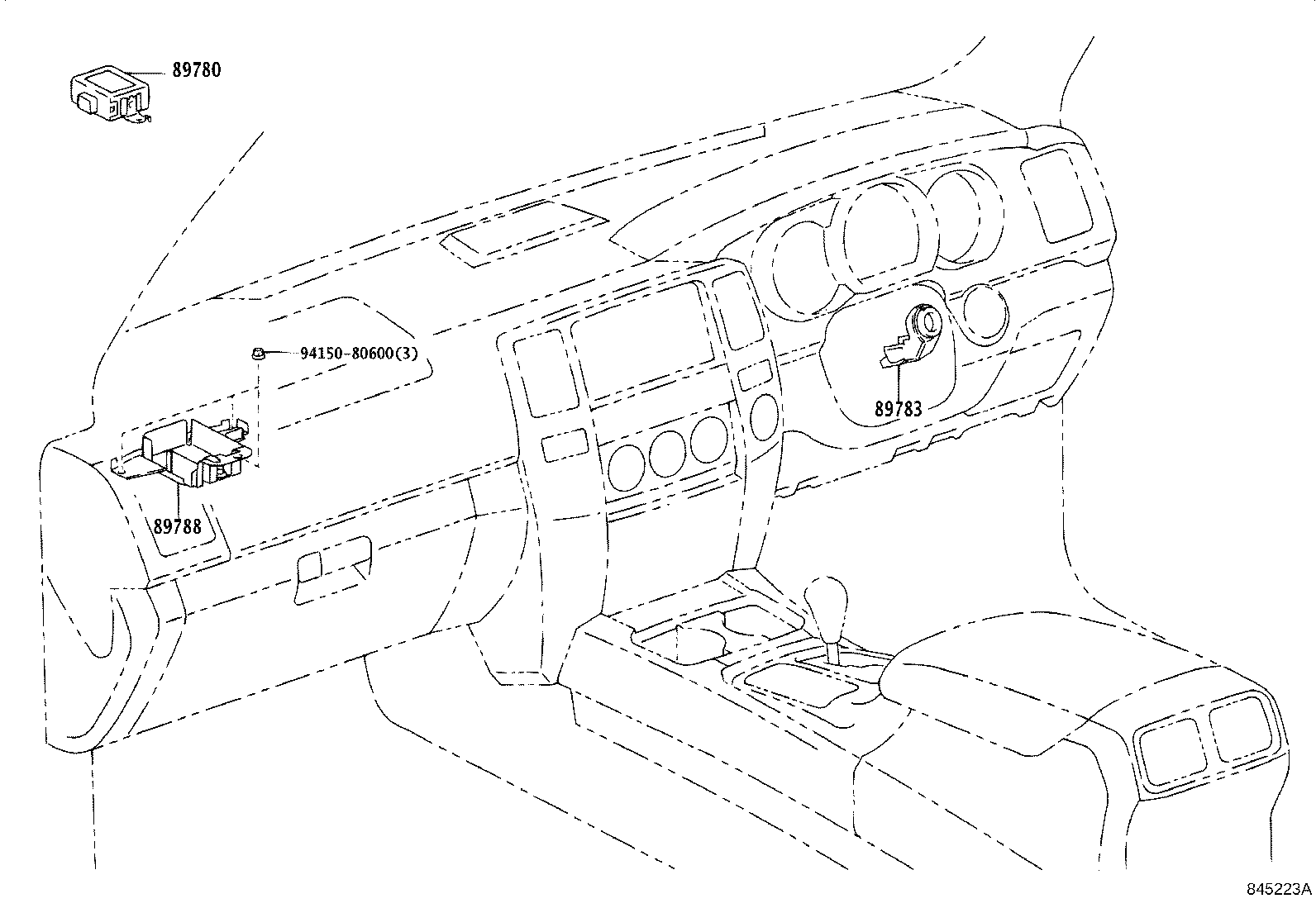

Click highlighted areas on diagram

diagram 89780 89783 89788 9415080600
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-60360

RZN21#,VZN21#

盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ

 1
89780-60360

VZN21#

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-35030

KDN215,TRN21#,VZN21#

 1
89783-35030

KDN215,RZN21#,VZN21#

盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ

 1
89788 - BRACKET, TRANSPONDER KEY
89788-35020

KDN215,RZN21#,VZN21#

盗難防止ｼｽﾃﾑ−ｲﾓﾋﾞ

 1
89788-35020

KDN215,TRN21#,VZN21#

 1
Common parts
94150-80600
