VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

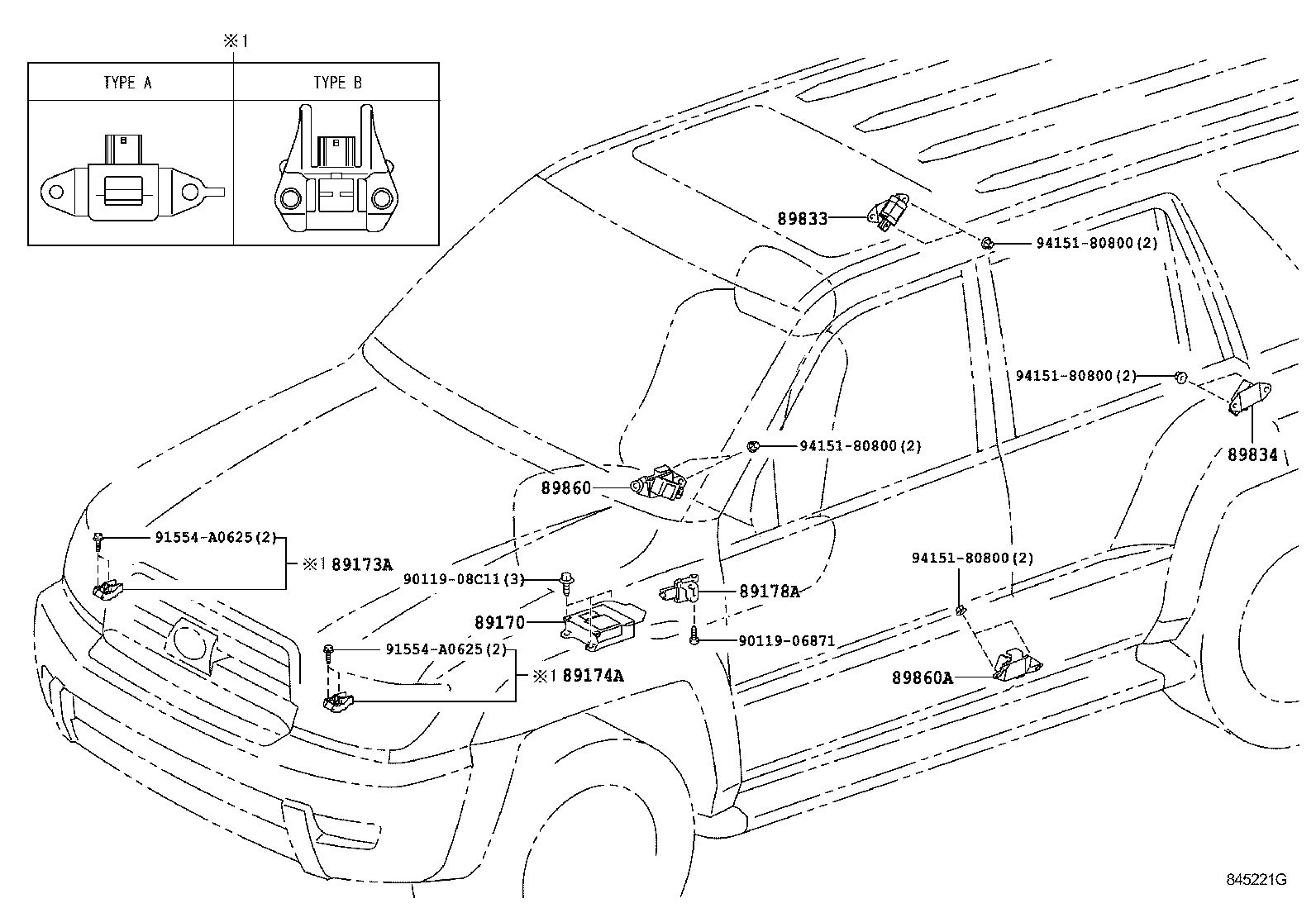

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89178A 89833 89834 89860 89860A 9011906871 9011908C11 91554A0625 91554A0625 9415180800 9415180800 9415180800 9415180800
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-35150

KDN215,RZN21#,TRN21#,VZN21#

 1
89170-35170

KDN215,RZN21#,TRN21#,VZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-39335

KDN215,RZN21#,TRN21#,VZN21#

TYPE A:ｲﾗｽﾄ参照

 1
89173-49405

KDN215,TRN21#,VZN21#

TYPE B:ｲﾗｽﾄ参照

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-39335

KDN215,RZN21#,TRN21#,VZN21#

TYPE A:ｲﾗｽﾄ参照

 1
89173-49405

KDN215,TRN21#,VZN21#

TYPE B:ｲﾗｽﾄ参照

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-06020

KDN215,RZN21#,TRN21#,VZN21#

 1
89833 - SENSOR, AIR BAG, REAR RH
89833-35010

KDN215,TRN21#,VZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
89834 - SENSOR, AIR BAG, REAR LH
89834-35010

KDN215,TRN21#,VZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-35010

KDN215,TRN21#,VZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-35010

KDN215,TRN21#,VZN21#

SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ

 1
Common parts
90119-06871
90119-08C11
91554-A0625
94151-80800
