VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211-0508)VZN21#

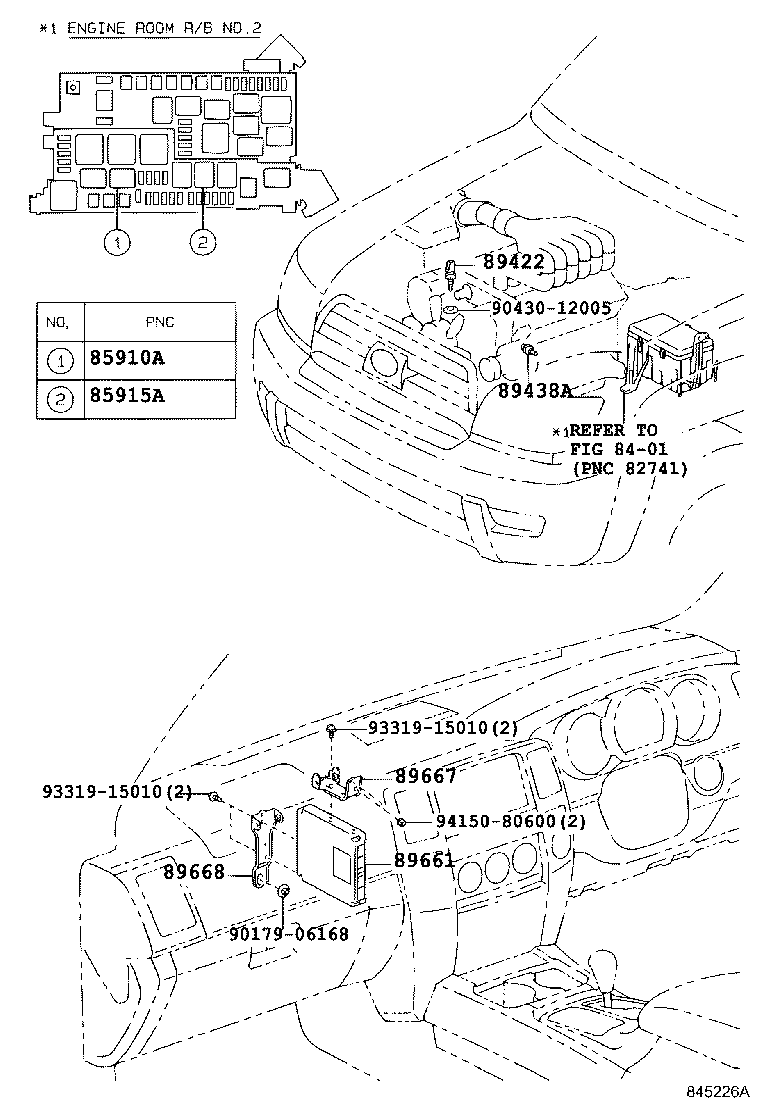

Click highlighted areas on diagram

diagram 8401 85910A 85915A 89422 89438A 89661 89667 89668 9017906168 9043012005 9331915010 9331915010 9415080600
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02022

RZN21#,VZN21#

 1
90987-02027

TRN21#,VZN21#

 1
85915A - RELAY, MAIN
90987-02027

TRN21#,VZN21#

 1
90987-02022

RZN21#,VZN21#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

RZN21#,VZN21#

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

TRN21#,VZN21#

 1
89661 - COMPUTER, ENGINE CONTROL
89666-35670

VZN215

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-60240

RZN21#,TRN21#,VZN21#

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-60240

RZN21#,VZN21#

 1
Common parts
90179-06168
90430-12005
93319-15010
94150-80600
Linked diagrams
8401
