VZN215W-GKPXK (2002)
Toyota Hilux Surf

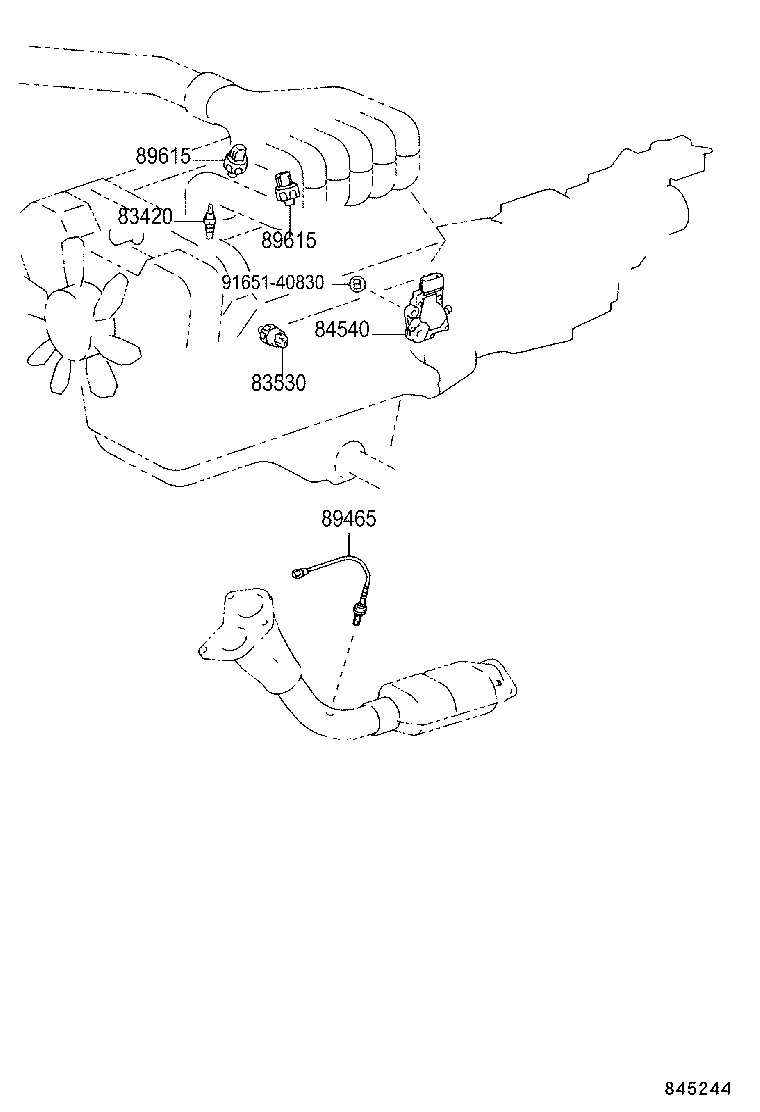

ILLUST NO. 1 OF 8(0211-0508)VZN21#
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
VZN21# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
RZN21#,TRN21#,VZN21# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-51010 |
RZN21#,VZN21# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-60210 |
VZN21# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12040 |
VZN21# MATSUSHITA |
2 | ||
| 89615-12050 |
VZN21# DENSO |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12040 |
VZN21# MATSUSHITA |
2 | ||
| 89615-12050 |
VZN21# DENSO |
2 | ||
| Common parts | ||||
| 91651-40830 | ||||

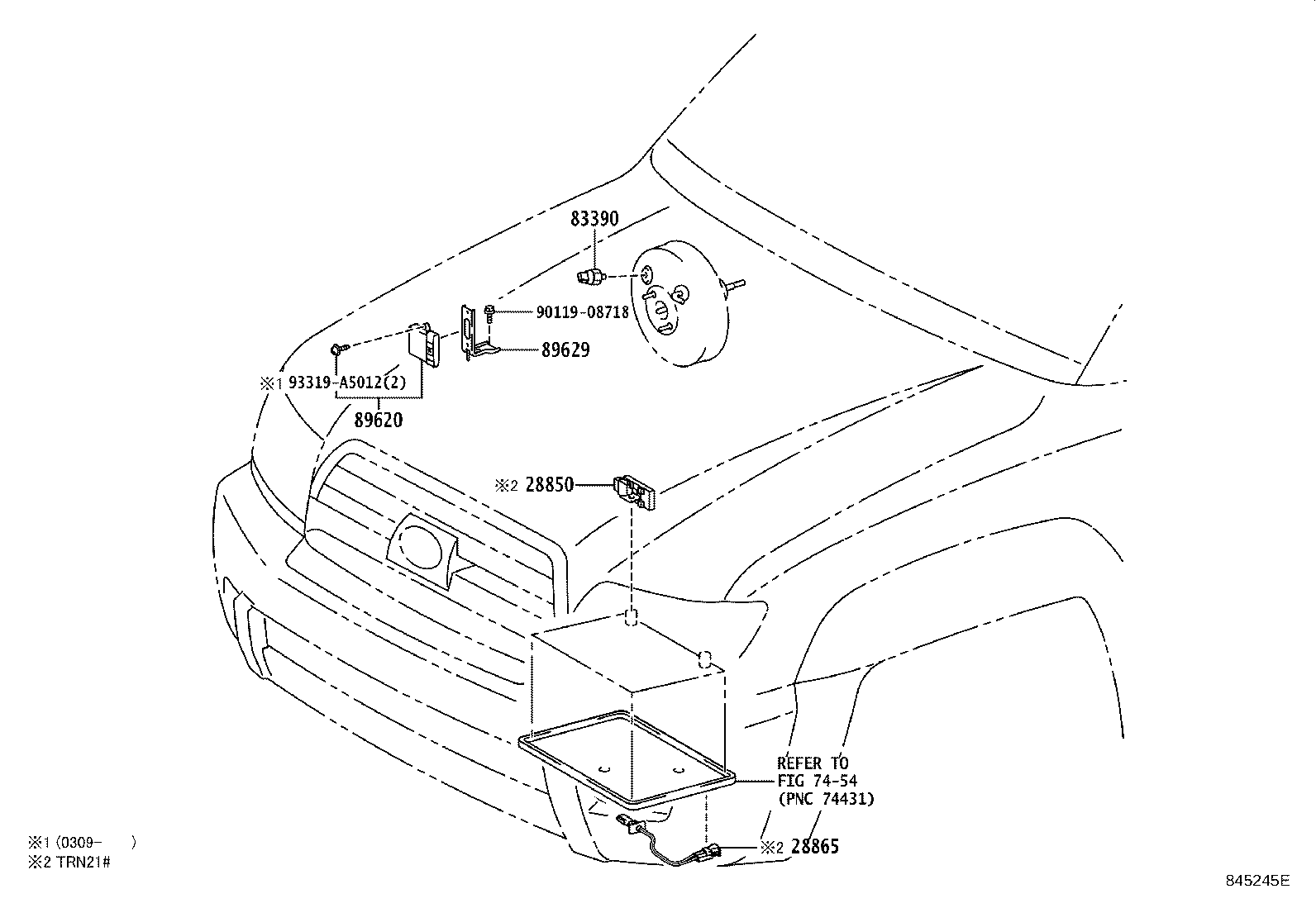

ILLUST NO. 2 OF 8(0211-0508)
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89620 - IGNITER ASSY | ||||
| 89621-35020 |
VZN21# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-60020 |
VZN21# |
1 | ||
| Common parts | ||||
| 90119-08718 | ||||
| 93319-A5012 | ||||
| Linked diagrams | ||||
| 7454 | ||||

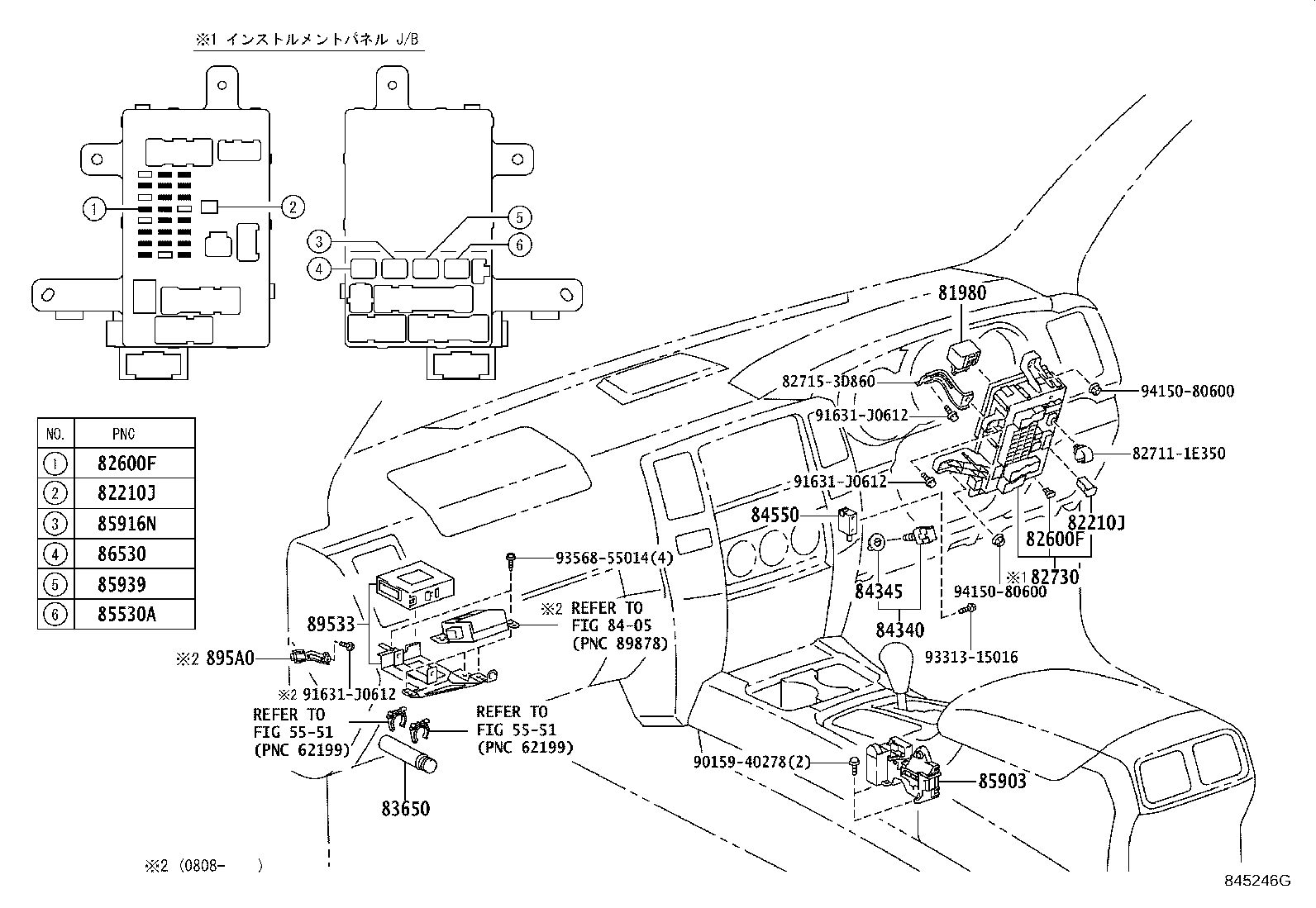

ILLUST NO. 4 OF 8(0211- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B |
1 | ||
| 90982-08246 |
KDN215,RZN21#,TRN21#,VZN21# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑJ/B |
1 | ||
| 90982-08282 |
KDN215,RZN21#,TRN21#,VZN21# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08281 |
KDN215,RZN21#,TRN21#,VZN21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08281 |
KDN215,RZN21#,TRN21#,VZN21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
KDN215,RZN21#,TRN21#,VZN21# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑJ/B |
1 | ||
| 90982-08282 |
KDN215,RZN21#,TRN21#,VZN21# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B |
1 | ||
| 90982-08246 |
KDN215,RZN21#,TRN21#,VZN21# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑJ/B |
1 | ||
| 90982-08282 |
KDN215,RZN21#,TRN21#,VZN21# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08281 |
KDN215,RZN21#,TRN21#,VZN21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08281 |
KDN215,RZN21#,TRN21#,VZN21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
KDN215,RZN21#,TRN21#,VZN21# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑJ/B |
1 | ||
| 90982-08282 |
KDN215,RZN21#,TRN21#,VZN21# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
KDN215,RZN21#,TRN21#,VZN21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
KDN215,RZN21#,TRN21#,VZN21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09010 |
KDN215,RZN21#,TRN21#,VZN21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
KDN215,RZN21#,TRN21#,VZN21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
KDN215,RZN21#,TRN21#,VZN21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
KDN215,RZN21#,TRN21#,VZN21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
KDN215,RZN21#,TRN21#,VZN21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
KDN215,RZN21#,TRN21#,VZN21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
KDN215,RZN21#,TRN21#,VZN21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
KDN215,RZN21#,TRN21#,VZN21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09010 |
KDN215,RZN21#,TRN21#,VZN21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
KDN215,RZN21#,TRN21#,VZN21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
KDN215,RZN21#,TRN21#,VZN21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
KDN215,RZN21#,TRN21#,VZN21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
KDN215,RZN21#,TRN21#,VZN21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
KDN215,RZN21#,TRN21#,VZN21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-35360 |
KDN215,TRN21#,VZN21# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
KDN215,TRN21#,VZN21# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
KDN215,RZN21#,VZN21# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02022 |
KDN215,TRN21#,VZN21#..SSRX ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
2 | ||
| 90987-02022 |
KDN215,RZN21#,VZN21#..SSRX 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
2 | ||
| 90987-02022 |
KDN215,TRN21#,VZN21#..SSRX |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-60010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02022 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02022 |
KDN215,TRN21#,VZN21# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02022 |
KDN215,TRN21#,VZN21# |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89530-35280 |
KDN215,RZN215,VZN215 |
1 | ||
| 89530-35281 |
KDN215,TRN215,VZN215 |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 82715-3D860 | ||||
| 90159-40278 | ||||
| 91631-J0612 | ||||
| 93313-15016 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8405 | ||||

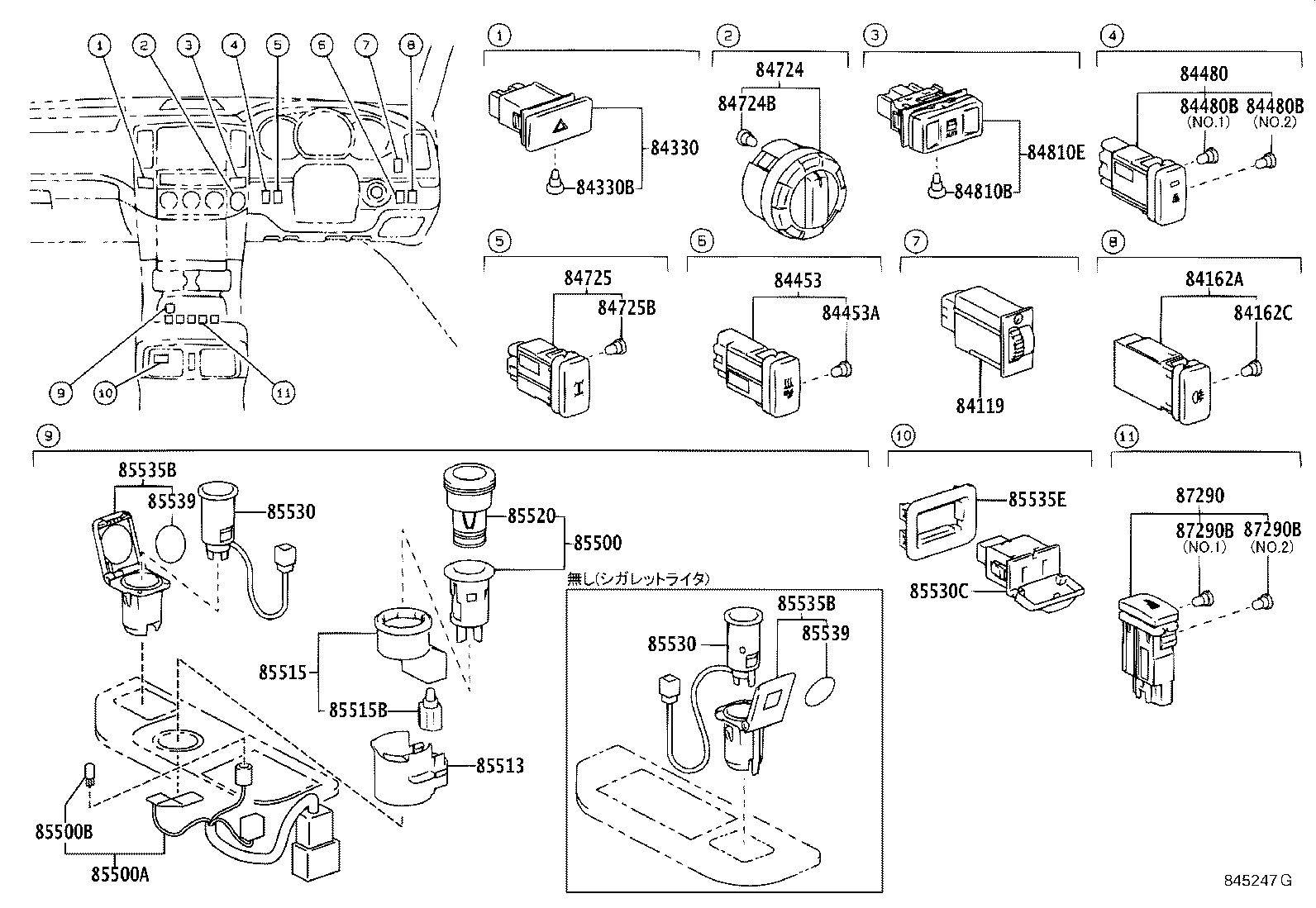

ILLUST NO. 5 OF 8(0211-0508)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-35040 |
KDN215,TRN21#,VZN21#..SSRX ｽﾋﾟｰﾄﾞﾒｰﾀｰ(ｵﾌﾟﾃｨﾄﾛﾝ) |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-35010 |
KDN215,TRN21#,VZN21# ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 90010-01083 |
KDN215,TRN21#,VZN21# 14V 0.91W,ｷｬｯﾌﾟ付き,ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-35070 |
KDN215,TRN21#,VZN21# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
KDN215,TRN21#,VZN21# 14V 0.91W |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-35050 |
KDN215,TRN21#,VZN21#..SSRX ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
1 | ||
| 84480-35050 |
KDN215,RZN21#,VZN21#..SSRX 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
KDN215,RZN21#,VZN21#..SSRX 14V 0.91W,照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈNﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ,NO.1 |
1 | ||
| 90010-01083 |
KDN215,RZN21#,VZN21#..SSRX 14V 0.91W,ｷｬｯﾌﾟ付き,照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱNｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ,NO.2 |
1 | ||
| 90010-01083 |
KDN215,TRN21#,VZN21#..SSRX 14V 0.91W,ｷｬｯﾌﾟ付き,ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘп@AC100V=ﾌﾛﾝﾄ,NO.2 |
1 | ||
| 84999-10310 |
KDN215,TRN21#,VZN21#..SSRX 14V 0.91W,ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100u=ﾌﾛﾝﾄ,NO.1 |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
KDN215,RZN21#,VZN21#..SSRX 14V 0.91W,照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈNﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ,NO.1 |
1 | ||
| 90010-01083 |
KDN215,RZN21#,VZN21#..SSRX 14V 0.91W,ｷｬｯﾌﾟ付き,照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱNｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ,NO.2 |
1 | ||
| 90010-01083 |
KDN215,TRN21#,VZN21#..SSRX 14V 0.91W,ｷｬｯﾌﾟ付き,ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘп@AC100V=ﾌﾛﾝﾄ,NO.2 |
1 | ||
| 84999-10310 |
KDN215,TRN21#,VZN21#..SSRX 14V 0.91W,ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100u=ﾌﾛﾝﾄ,NO.1 |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-35020 |
KDN215,TRN215,VZN215 |
1 | ||
| 84724B - BULB, 4 WHEEL DRIVE CONTROL SWITCH | ||||
| 90010-01084 |
KDN215,TRN215,VZN215 |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-35050 |
KDN215,RZN215,VZN215 製造工場NO.A51−A54 |
1 | ||
| 84725-35040 |
KDN215,RZN215,VZN215 製造工場NO.P11 |
1 | ||
| 84725-35050 |
KDN215,TRN215,VZN215 |
1 | ||
| 84725B - BLUB, DIFFERENTIAL LOCK SWITCH | ||||
| 90010-01083 |
KDN215,RZN215,VZN215 14V 0.91W,ｷｬｯﾌﾟ付き |
2 | ||
| 84810B - BULB (FOR POWER WINDOW REGULATOR SWITCH) | ||||
| 90010-01088 |
KDN215,TRN21#,VZN21# 14V 0.63W,ｷｬｯﾌﾟ付き |
1 | ||
| 84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR | ||||
| 84810-35050 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85500-50020 |
KDN215,RZN21#,VZN21# 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ) |
1 | ||
| 85500A - WIRE, CIGARETTE LIGHTER | ||||
| 82390-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82390-35010 |
KDN215,RZN21#,VZN21# 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ) |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11041 |
KDN215,TRN21#,VZN21# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
KDN215,RZN21#,VZN21# 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ) |
1 | ||
| 85513-12020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85515-22040 |
KDN215,RZN21#,VZN21# 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ) |
1 | ||
| 85515B - BULB, CIGARETTE LIGHTER BEZEL STAY | ||||
| 90010-01030 |
KDN215,RZN21#,VZN21# 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ) |
1 | ||
| 90010-01030 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30200 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-35040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-35010 |
KDN215,RZN21#,VZN21#..SSRX 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
1 | ||
| 85530-35010 |
KDN215,TRN21#,VZN21#..SSRX ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-42020C0 |
KDN215,RZN21#,VZN21# 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ),BLACK,TRIM1#,4# |
1 | ||
| 85535-42020C0 |
KDN215,RZN21#,VZN21#..SSRX 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ,BLACK,TRIM1#,4# |
1 | ||
| 85535-35060B0 |
KDN215,TRN21#,VZN21# DK.GRAY,TRIM1#,4# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-42020C0 |
KDN215,RZN21#,VZN21# 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ),BLACK,TRIM1#,4# |
1 | ||
| 85535-42020C0 |
KDN215,RZN21#,VZN21#..SSRX 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ,BLACK,TRIM1#,4# |
1 | ||
| 85535-35060B0 |
KDN215,TRN21#,VZN21# DK.GRAY,TRIM1#,4# |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-41010B1 |
TRN215,VZN215..SSRX ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ,DK.GRAY,TRIM12,13,4# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60010 |
KDN215,RZN21#,VZN21#..SSRX 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
2 | ||
| 85539-60010 |
KDN215,RZN21#,VZN21# 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ) |
2 | ||
| 85539-60010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60010 |
KDN215,RZN21#,VZN21#..SSRX 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
2 | ||
| 85539-60010 |
KDN215,RZN21#,VZN21# 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ) |
2 | ||
| 85539-60010 |
KDN215,TRN21#,VZN21# |
1 | ||

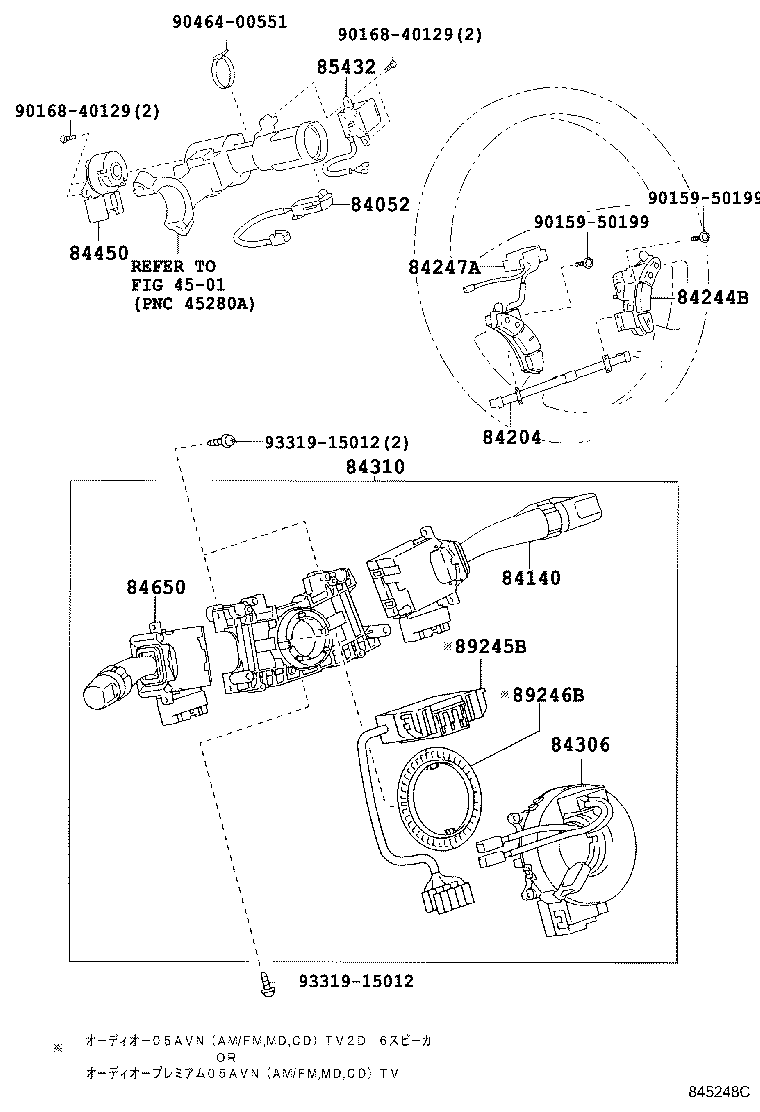

ILLUST NO. 6 OF 8(0211- )
ｲｸﾞﾆﾂｼﾖﾝ & ｺﾝﾋﾞﾈ-ｼﾖﾝ ｽｲﾂﾁ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22050 |
KDN215,TRN21#,VZN21# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26160 |
KDN215,RZN21#,VZN21#..SSRX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾗｲﾄ−有り |
1 | ||
| 84140-26160 |
KDN215,TRN21#,VZN21#..SSRX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-26170 |
KDN215,RZN21#,VZN21#..SSRX |
1 | ||
| 84140-26150 |
KDN215,RZN21#,VZN21#..SSRX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-35130 |
KDN215,RZN21#,VZN21#..SSRX ｺﾝﾗｲﾄ−有り |
1 | ||
| 84140-35130 |
KDN215,TRN21#,VZN21#..SSRX |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-60080 |
KDN215,RZN21#,VZN21#..SSRX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾗｲﾄ−有り |
1 | ||
| 84306-33090 |
KDN215,RZN21#,VZN21#..SSRX |
1 | ||
| 84306-60080 |
KDN215,RZN21#,VZN21#..SSRX ｺﾝﾗｲﾄ−有り |
1 | ||
| 84306-60080 |
KDN215,VZN21#..SSRX |
1 | ||
| 84306-60080 |
KDN215,RZN21#,VZN21#..SSRX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-6C170 |
KDN215,RZN21#,VZN21#..SSRX ｺﾝﾗｲﾄ−有り |
1 | ||
| 84310-6C170 |
KDN215,TRN21#,VZN21#..SSRX |
1 | ||
| 84310-6B120 |
KDN215,TRN21#,VZN21#..SSRX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84310-6B190 |
KDN215,RZN21#,VZN21#..SSRX |
1 | ||
| 84310-6B150 |
KDN215,RZN21#,VZN21#..SSRX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84310-6B120 |
KDN215,RZN21#,VZN21#..SSRX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾗｲﾄ−有り |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
KDN215,TRN21#,VZN21# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-35491 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-14040 |
KDN215,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||

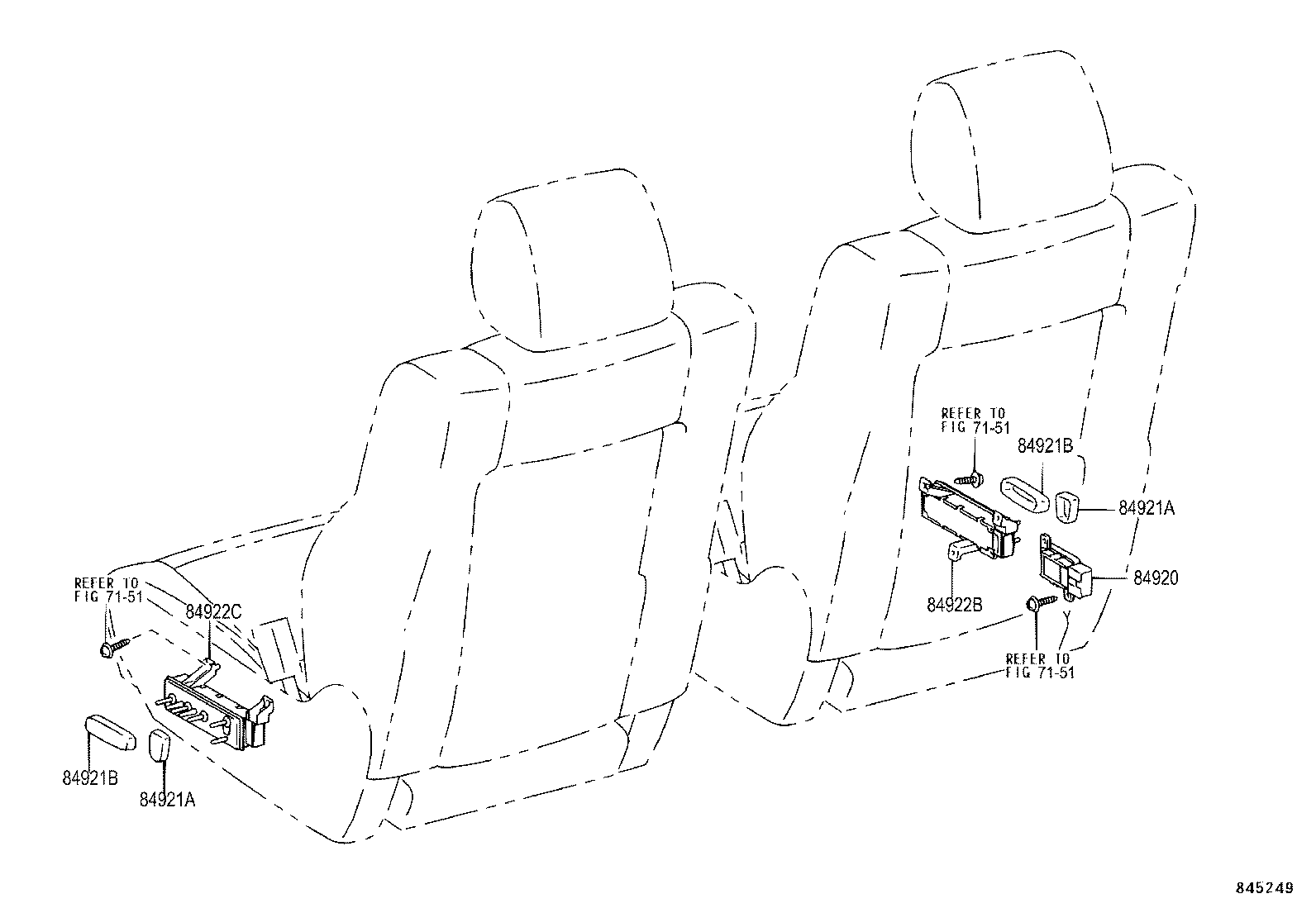

ILLUST NO. 7 OF 8(0211- )
ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60040B2 |
RZN21#;VZN215..SSRX STONE,TRIM1# |
1 | ||
| 84920-60040E1 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 84920-60040B2 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 84920-60040B4 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| Linked diagrams | ||||
| 7151 | ||||

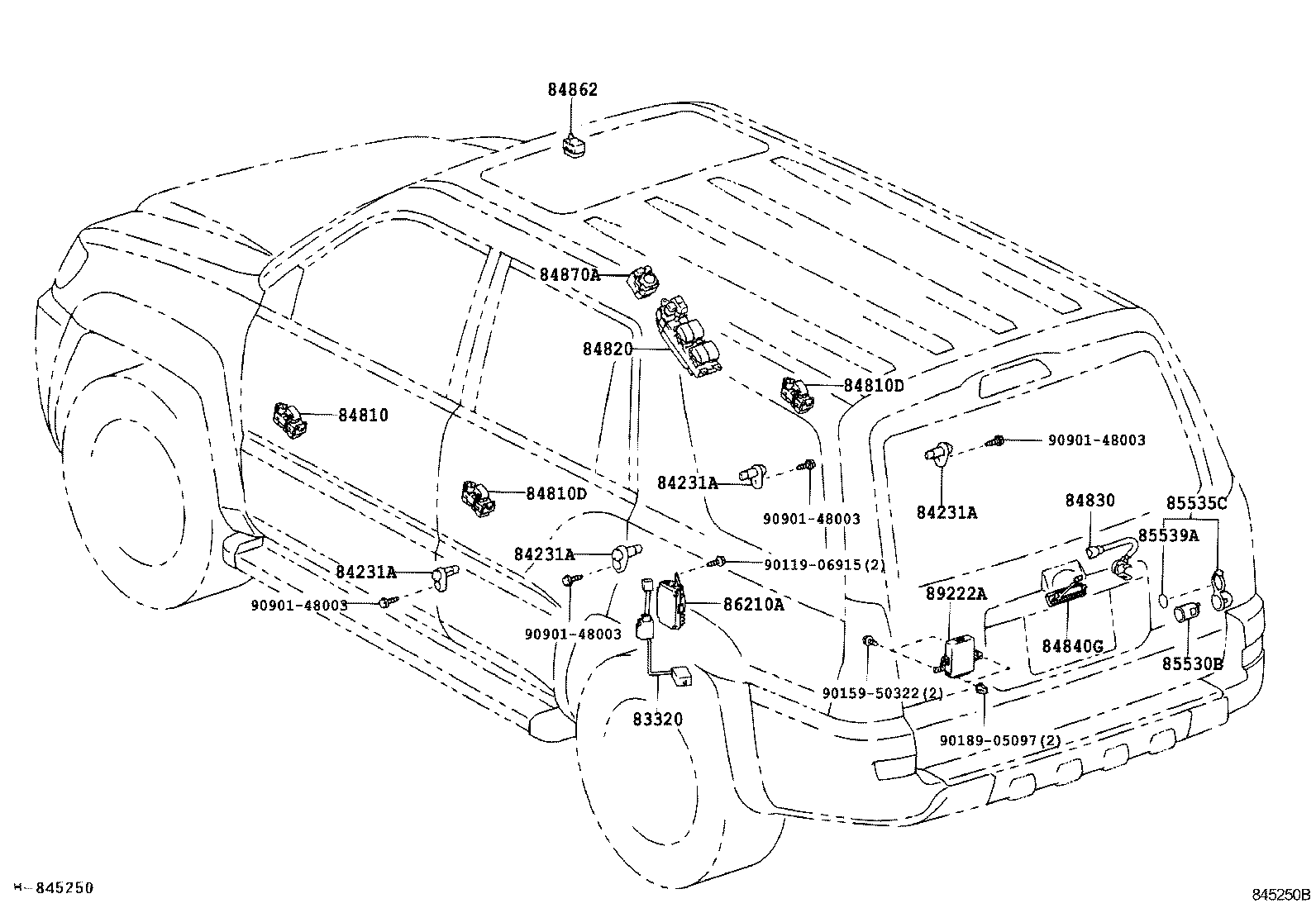

ILLUST NO. 8 OF 8(0211- )
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ & ﾊﾞﾂｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60440 |
KDN215,TRN21#,VZN21# |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-60070 |
KDN215,TRN21#,VZN21# |
4 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-60070 |
KDN215,TRN21#,VZN21# |
4 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-60070 |
KDN215,TRN21#,VZN21# |
4 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-60070 |
KDN215,TRN21#,VZN21# |
4 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-35010 |
KDN215,TRN21#,VZN21# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-35010 |
KDN215,TRN21#,VZN21# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-35030 |
KDN215,TRN21#,VZN21# |
1 | ||
| 84830 - SWITCH ASSY, TAIL GATE CONTROL | ||||
| 84830-35050 |
KDN215,TRN21#,VZN21# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-AA030B1 |
TRN215,VZN215..SSRX ﾑｰﾝﾙｰﾌ有り,STONE,TRIM12,13 |
1 | ||
| 84862-AA030E0 |
KDN215,TRN21#,VZN21# ﾑｰﾝﾙｰﾌ有り,FAWN,TRIM4# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52040 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-33020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-35070C0 |
KDN215,TRN21#,VZN21# BLACK,TRIM1#,4# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60010 |
KDN215,RZN21#,VZN21# 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ) |
2 | ||
| 85539-60010 |
KDN215,RZN21#,VZN21#..SSRX 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
2 | ||
| 85539-60010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-35030 |
KDN215,TRN21#,VZN21#..SSRX ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-50322 | ||||
| 90189-05097 | ||||
| 90901-48003 | ||||

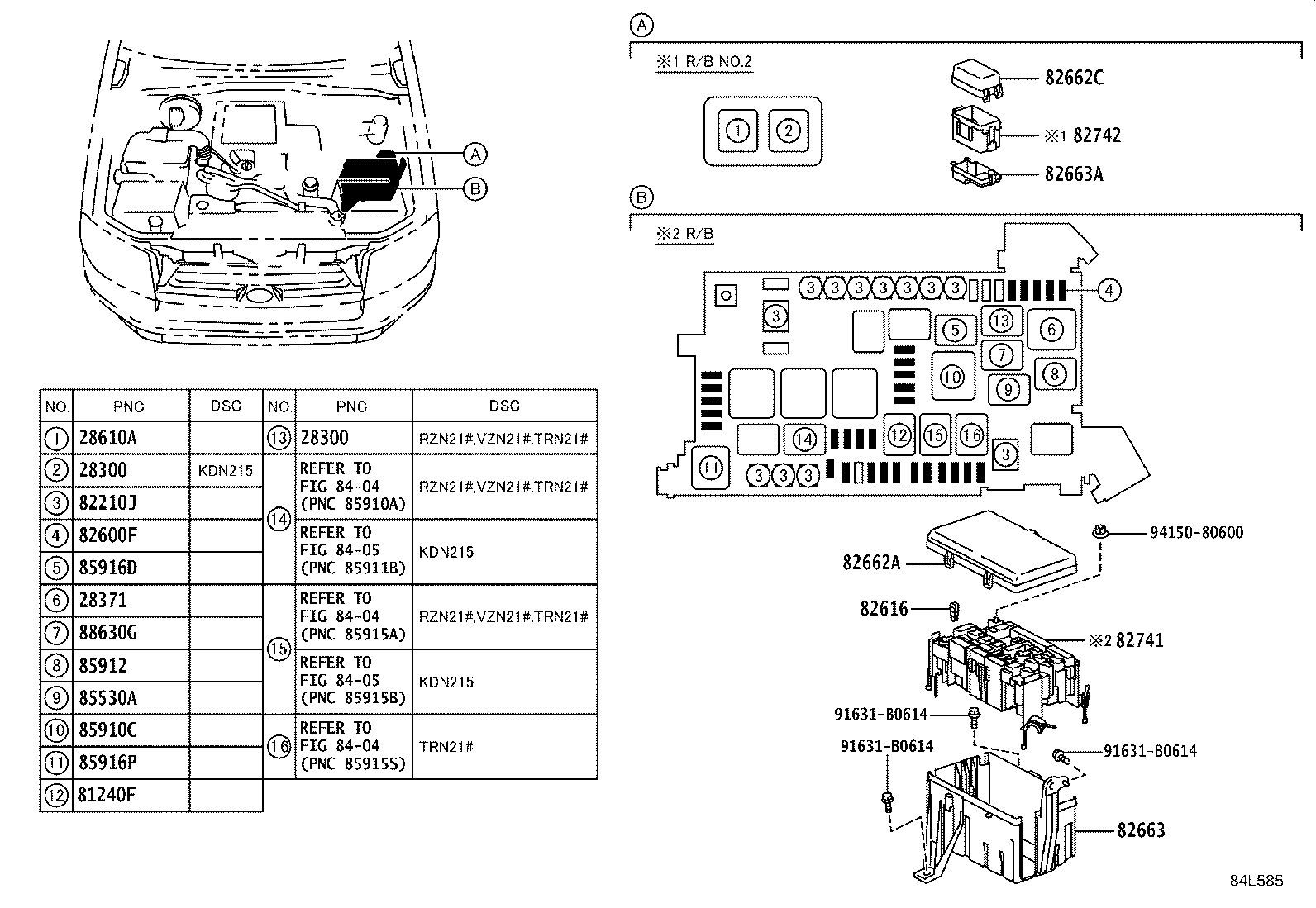

ILLUST NO. 3 OF 8(0211-0508)
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2TRFE,5VZFE..TRN21#,VZN21# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
2TRFE,5VZFE..TRN21#,VZN21# |
1 | ||
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02022 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08280 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B |
1 | ||
| 90982-08246 |
KDN215,RZN21#,TRN21#,VZN21# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑJ/B |
1 | ||
| 90982-08282 |
KDN215,RZN21#,TRN21#,VZN21# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08281 |
KDN215,RZN21#,TRN21#,VZN21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08281 |
KDN215,RZN21#,TRN21#,VZN21# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08246 |
KDN215,RZN21#,TRN21#,VZN21# 100A,ｵｽ端子,青 |
1 | ||
| 90982-08283 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｴﾝｼﾞﾝﾙｰﾑJ/B |
1 | ||
| 90982-08282 |
KDN215,RZN21#,TRN21#,VZN21# 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾒｽ端子,桃,ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙJ/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09009 |
KDN215,RZN21#,TRN21#,VZN21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09011 |
KDN215,RZN21#,TRN21#,VZN21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09010 |
KDN215,RZN21#,TRN21#,VZN21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
KDN215,RZN21#,TRN21#,VZN21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09013 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
KDN215,RZN21#,TRN21#,VZN21# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09011 |
KDN215,RZN21#,TRN21#,VZN21# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
KDN215,RZN21#,TRN21#,VZN21# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
KDN215,RZN21#,TRN21#,VZN21# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09013 |
KDN215,RZN21#,TRN21#,VZN21# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-3D190 |
KDN215,RZN21#,VZN21# |
1 | ||
| 82662-35A20 |
KDN215,TRN21#,VZN21# |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-35090 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-35110 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02022 |
KDN215,TRN21#,VZN21#..SSRX ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
2 | ||
| 90987-02022 |
KDN215,RZN21#,VZN21#..SSRX 照明(ｲｸﾞﾆｼｮﾝｷｰ & ｸﾞﾛｰﾎﾞｯｸｽ)&ｱｸｾｻﾘｰｺﾈｸﾀｰ−DC12V=ﾌﾛﾝﾄ,ﾘﾔ AC100V=ﾌﾛﾝﾄ |
2 | ||
| 90987-02022 |
KDN215,TRN21#,VZN21#..SSRX |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
KDN215,TRN21#,VZN21# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02022 |
KDN215,TRN21#,VZN21#..SSRX ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02028 |
KDN215,TRN21#,VZN21# |
1 | ||
| Common parts | ||||
| 91631-B0614 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
