VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

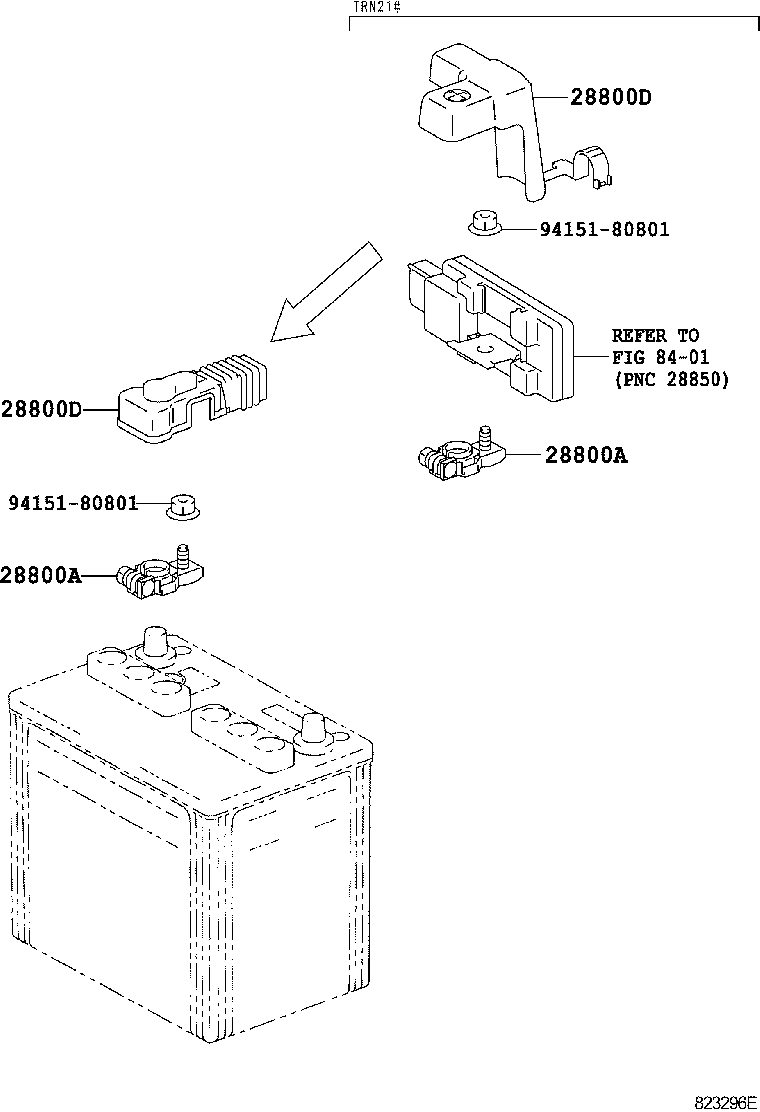

ILLUST NO. 1 OF 2(0211- )KDN215..SSRX ; (0211- )GRN215,RZN21#,TRN21#,VZN21#

Click highlighted areas on diagram

1 ﾊﾞﾂﾃﾘ-

diagram 28800A 28800A 28800D 28800D 8401 9415180801 9415180801
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

2TRFE,5VZFE..TRN215,VZN215;1KDFTV,2TRFE,5VZFE..KDN215,TRN210,VZN210..SSRX

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05054

2TRFE,5VZFE..TRN215,VZN215;1KDFTV,2TRFE,5VZFE..KDN215,TRN210,VZN210..SSRX

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-35020

5VZFE..VZN215;1KDFTV,5VZFE..KDN215,VZN210..SSRX

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-35020

5VZFE..VZN215;1KDFTV,5VZFE..KDN215,VZN210..SSRX

 1
Common parts
94151-80801
Linked diagrams
8401

ILLUST NO. 2 OF 2(0211- )KDN215..SSRX ; (0211- )GRN215,RZN21#,TRN21#,VZN21#

Click highlighted areas on diagram

ﾊﾞｯﾃﾘｰ

diagram
Part # Description Qty Price
