VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

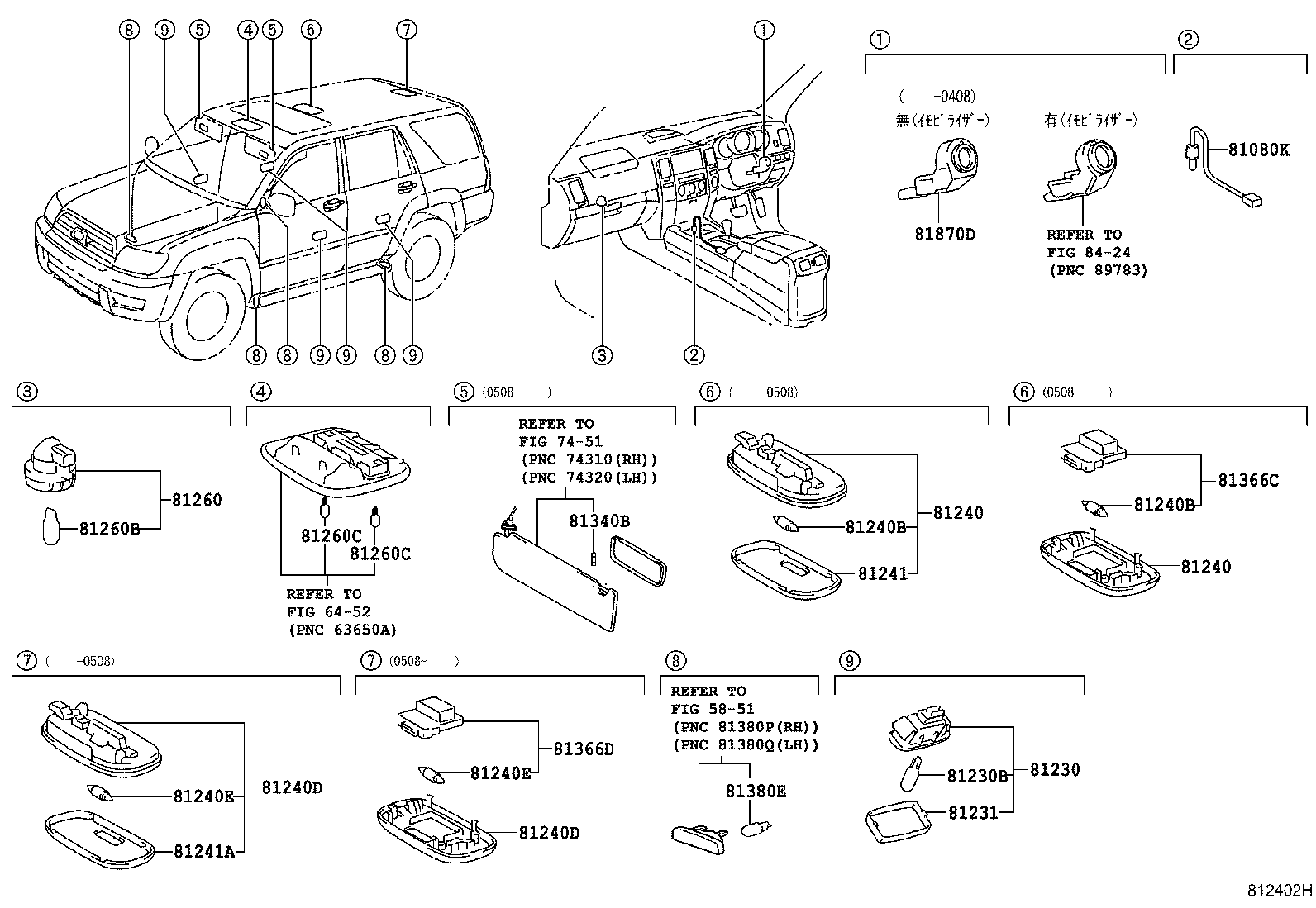

Click highlighted areas on diagram

diagram 5851 6452 7451 81080K 81230 81230B 81231 81240 81240 81240B 81240B 81240D 81240D 81240E 81240E 81241 81241A 81260 81260B 81260C 81260C 81340B 81366C 81366D 81380E 81870D 8424
Part # Description Qty Price
81080K - LAMP ASSY, CONSOLE BOX ILLUMINATION
81205-35010

KDN215,RZN21#,TRN21#,VZN21#

 1
81230 - LAMP ASSY, COURTESY
81230-30140

KDN215,TRN21#,VZN21#

 4
81230B - BULB(FOR COURTESY LAMP)
90981-11020

KDN215,TRN21#,VZN21#

12V 3.8W

 4
81231 - LENS, COURTESY LAMP
81231-50010

KDN215,TRN21#,VZN21#

 4
81240 - LAMP ASSY, ROOM, NO.1
81240-33030E0

KDN215,TRN21#,VZN21#

FAWN,TRIM4#

 1
81240-33030B2

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-33030E0

KDN215,TRN21#,VZN21#

FAWN,TRIM4#

 1
81240-33030B2

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

KDN215,RZN21#,TRN21#,VZN21#

12V 8W

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

KDN215,RZN21#,TRN21#,VZN21#

12V 8W

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-33030E0

KDN215,TRN21#,VZN21#

FAWN,TRIM4#

 1
81240-33030B2

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
81240D - LAMP ASSY, ROOM, NO.2
81240-33030E0

KDN215,TRN21#,VZN21#

FAWN,TRIM4#

 1
81240-33030B2

TRN215,VZN215..SSRX

STONE,TRIM12,13

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14011

KDN215,RZN21#,TRN21#,VZN21#

12V 8W

 1
81240E - BULB, ROOM LAMP, NO.2
90981-14011

KDN215,RZN21#,TRN21#,VZN21#

12V 8W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-33030

KDN215,TRN21#,VZN21#

 1
81241A - LENS, ROOM LAMP, NO.2
81241-33030

KDN215,TRN21#,VZN21#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33010

KDN215,TRN21#,VZN21#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

KDN215,TRN21#,VZN21#

12V 1.2W ｿｹｯﾄ無し

 1
81260C - BULB(FOR MAP LAMP)
90084-81002

KDN215,RZN21#,TRN21#,VZN21#

12V 5W

 2
81260C - BULB(FOR MAP LAMP)
90084-81002

KDN215,RZN21#,TRN21#,VZN21#

12V 5W

 2
81380E - BULB (FOR STEP LAMP)
90981-11020

KDN215,RZN21#,TRN21#,VZN21#

 4
81870D - LAMP ASSY, KEY CYLINDER
81870-60030

KDN215,RZN21#,VZN21#

 1
Linked diagrams
5851
6452
7451
8424
