VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )KDN215,RZN21#,TRN21#,VZN21#

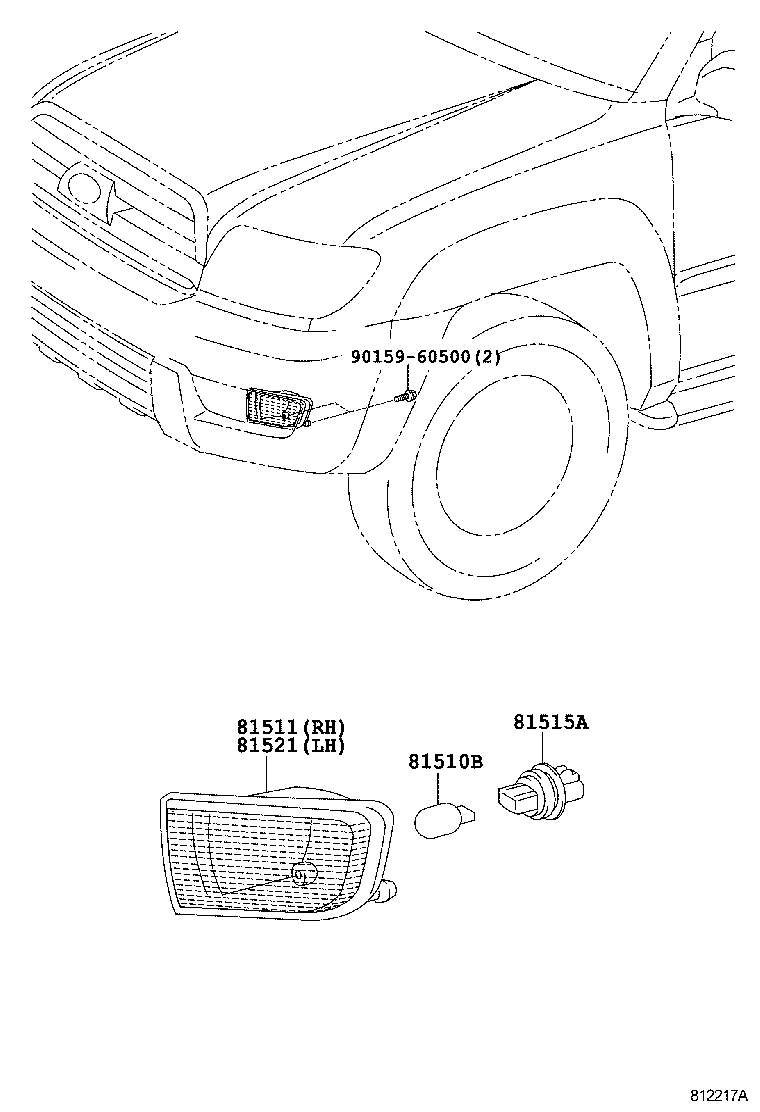

Click highlighted areas on diagram

diagram 81510B 81511 81515A 81521 9015960500
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

KDN215,RZN21#,TRN21#,VZN21#

12V 21W,ｱﾝﾊﾞｰ

 2
81511 - LENS, FRONT TURN SIGNAL LAMP, RH
81511-35410

KDN215,RZN21#,VZN21#

 1
81511-35411

KDN215,RZN21#,TRN21#,VZN21#

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-60028

KDN215,RZN21#,TRN21#,VZN21#

 2
81521 - LENS, FRONT TURN SIGNAL LAMP, LH
81521-35401

KDN215,RZN21#,TRN21#,VZN21#

 1
81521-35400

KDN215,RZN21#,VZN21#

 1
Common parts
90159-60500
