VZN215W-GKPXK (2002)
Toyota Hilux Surf
Production
Nov 2002
-
Aug 2005
Engine
5VZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0211-0508)KDN215,TRN21# ; (0508- )

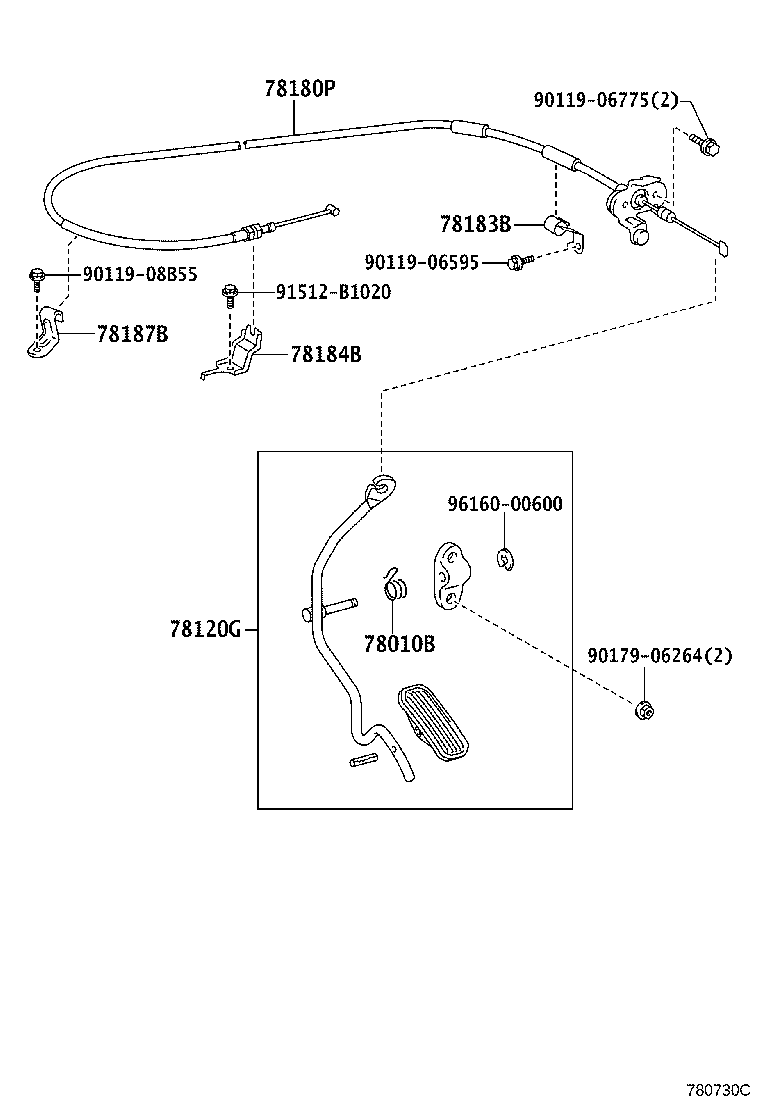

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-35491 |
VZN21# |
1 | ||
| 78120-35490 |
VZN21# |
1 | ||
| Common parts | ||||
| 90179-06264 | ||||
(0211-0508)VZN21#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90959-03365 |
VZN21# |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-35491 |
VZN21# |
1 | ||
| 78120-35490 |
VZN21# |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-35560 |
VZN21# |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-35060 |
VZN21# |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-35140 |
VZN21# |
1 | ||
| 78187B - BRACKET, ACCELERATOR PULL BACK SPRING | ||||
| 78187-35010 |
VZN21# |
1 | ||
| Common parts | ||||
| 90119-06595 | ||||
| 90119-06775 | ||||
| 90119-08B55 | ||||
| 90179-06264 | ||||
| 91512-B1020 | ||||
| 96160-00600 | ||||
