VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

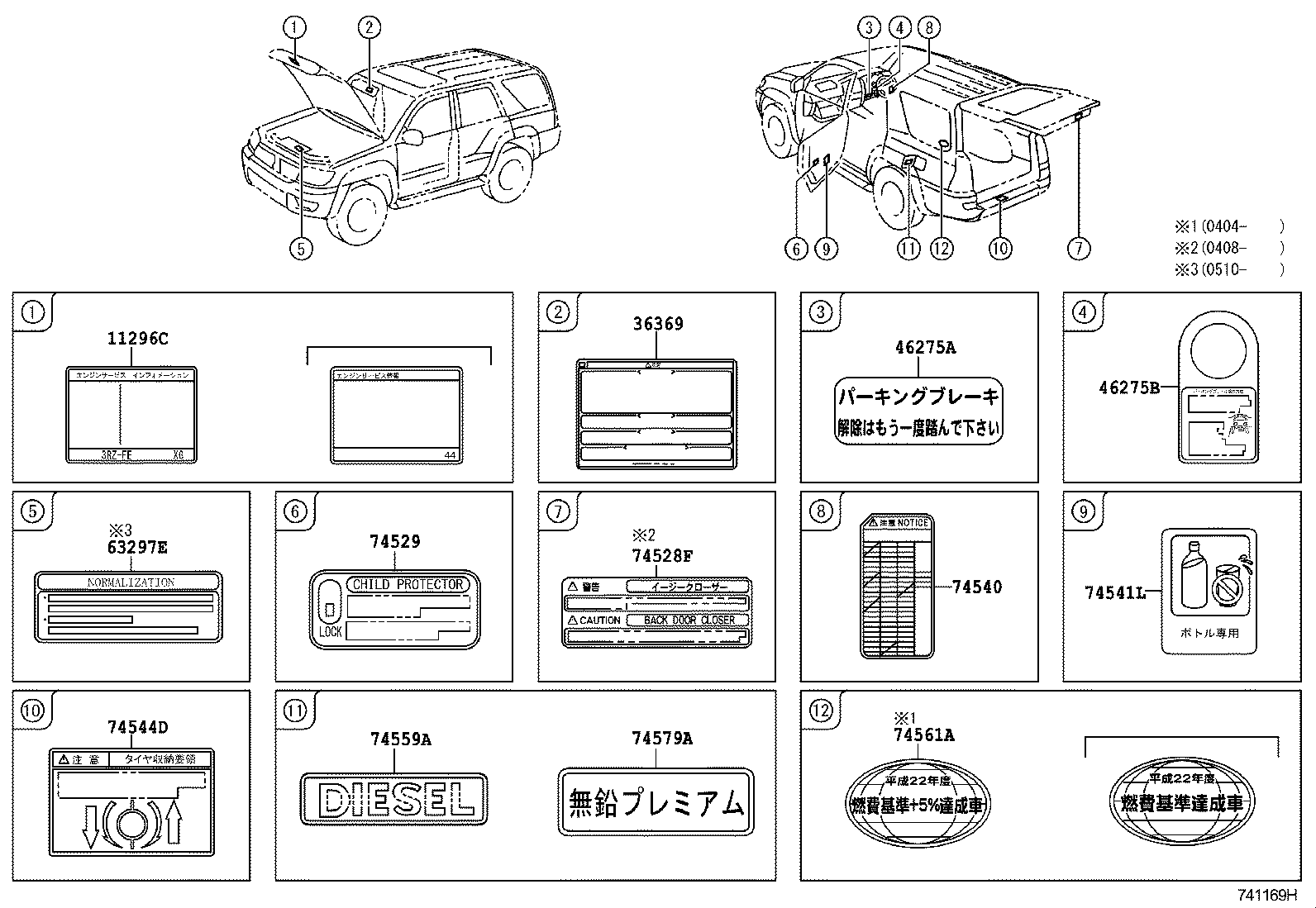

ILLUST NO. 1 OF 2(0211- )

Click highlighted areas on diagram

diagram 11296C 36369 46275A 46275B 63297E 74528F 74529 74540 74541L 74544D 74559A 74561A 74579A
Part # Description Qty Price
36369 - LABEL, TRANSFER INFORMATION
36369-35560

KDN215,TRN215,VZN215

 1
46275A - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
46275-22010A0

KDN215,VZN21#

WHITE,TRIM1#,4#

 1
46275B - LABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
46275-47010

KDN215,TRN21#,VZN21#

 1
74528F - LABEL, DOOR CLOSER CAUTION, RH
74528-35010

KDN215,TRN21#,VZN21#

 1
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

KDN215,TRN21#,VZN21#

 2
74540 - PLATE, FUSE BLOCK CAUTION
82683-35170

KDN215,TRN21#,VZN21#

 1
74541L - LABEL, BOTTLE HOLDER INFORMATION
74541-48010

KDN215,TRN21#,VZN21#

 4
74544D - PLATE, TIRE CARRIER CAUTION
74544-36050

KDN215,TRN21#,VZN21#

 1

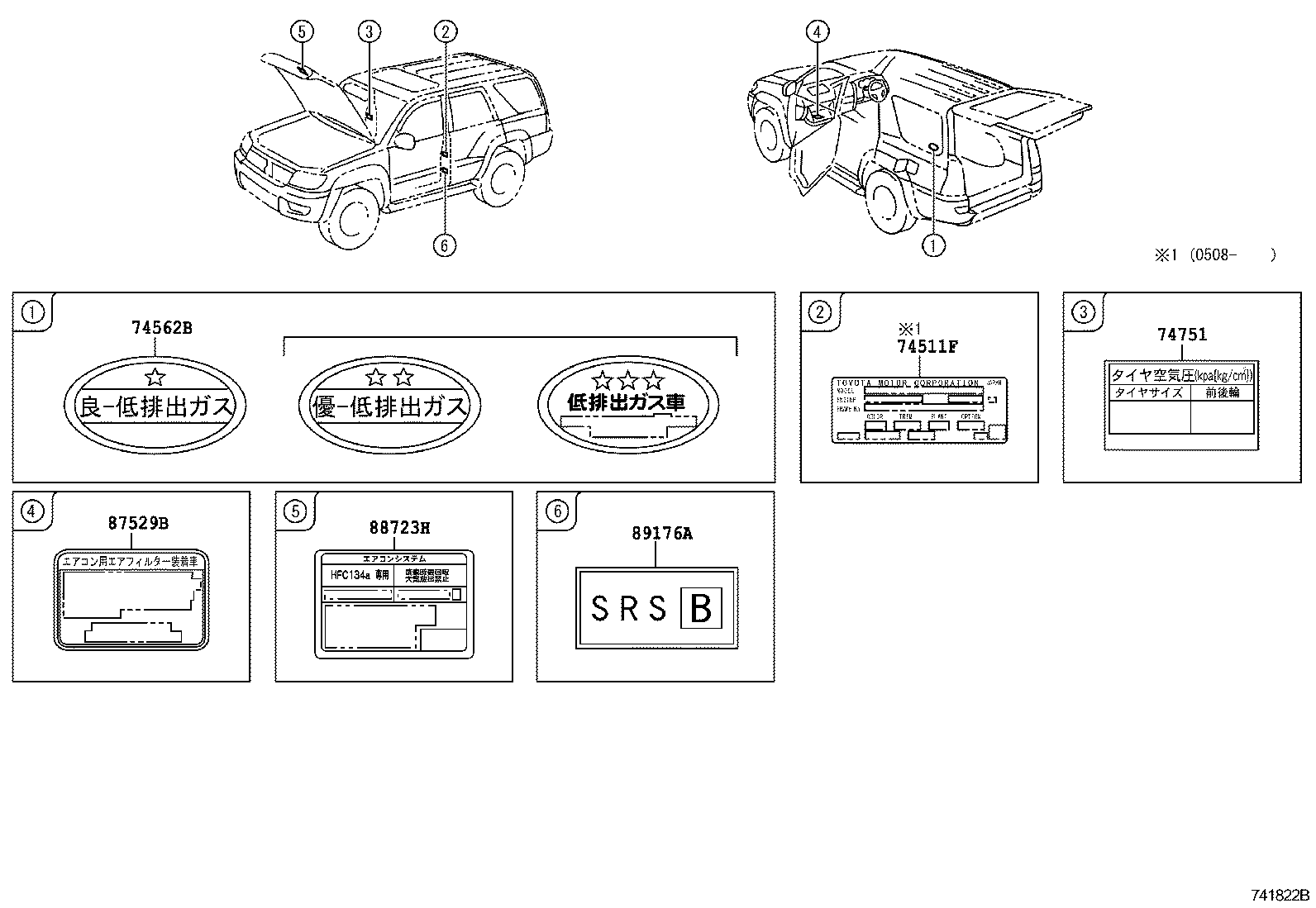

ILLUST NO. 2 OF 2(0211- )

Click highlighted areas on diagram

diagram 74511F 74562B 74751 87529B 88723H 89176A
Part # Description Qty Price
74562B - LABEL, EMISSION INFORMATION
74562-40040

VZN21#

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-35630

KDN215,RZN21#,TRN21#,VZN21#..SSRX

 1
87529B - LABEL, A/C FILTER INFORMATION
87529-50020

KDN215,RZN21#,TRN21#,VZN21#

 1
88723H - LABEL, COOLER SERVICE CAUTION
88733-51010

KDN215,TRN21#,VZN21#

 1
89176A - LABEL, AIR BAG DEPLOYMENT INFORMATION
89176-51010

KDN215,TRN21#,VZN21#

 1
