VZN215W-GKPXK (2002)

Toyota Hilux Surf

Production Nov 2002 - Aug 2005
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0211- )

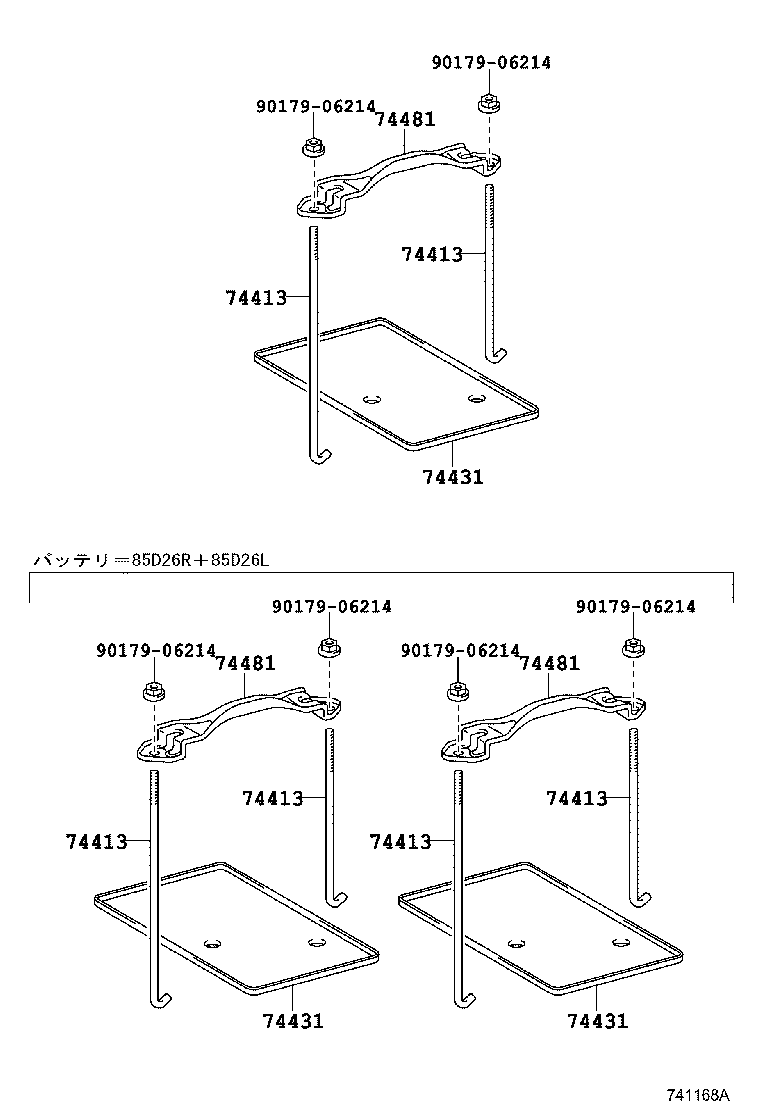

Click highlighted areas on diagram

diagram 74413 74413 74413 74413 74413 74413 74431 74431 74431 74481 74481 74481 9017906214 9017906214 9017906214 9017906214 9017906214 9017906214
Part # Description Qty Price
74413 - BOLT, BATTERY CLAMP
74451-35080

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=236

 1
74451-30090

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=180

 1
74413 - BOLT, BATTERY CLAMP
74451-35080

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=236

 1
74451-30090

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=180

 1
74413 - BOLT, BATTERY CLAMP
74451-35080

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=236

 1
74451-30090

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=180

 1
74413 - BOLT, BATTERY CLAMP
74451-35080

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=236

 1
74451-30090

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=180

 1
74413 - BOLT, BATTERY CLAMP
74451-35080

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=236

 1
74451-30090

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=180

 1
74413 - BOLT, BATTERY CLAMP
74451-35080

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=236

 1
74451-30090

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

長さ=180

 1
74431 - TRAY, BATTERY
74431-35030

VZN21#

 1
74431 - TRAY, BATTERY
74431-35030

VZN21#

 1
74431 - TRAY, BATTERY
74431-35030

VZN21#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74481-26020

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

 1
74481 - CLAMP, BATTERY HOLD DOWN
74481-26020

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

 1
74481 - CLAMP, BATTERY HOLD DOWN
74481-26020

TRN215,VZN215;KDN215,TRN210,VZN210..SSRX

 1
Common parts
90179-06214
