VZN215W-GKPXK (2002)
Toyota Hilux Surf
ILLUST NO. 3 OF 3(0211- )
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-35080 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-35050 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-35170 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-35110 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 71769-60010E1 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
12 | ||
| 71769-60010B2 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
12 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 71769-60010E1 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
12 | ||
| 71769-60010B2 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
12 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-35880E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71075-35880B0 |
KDN215,RZN21#,TRN21#,VZN21# STONE,TRIM1# |
1 | ||
| 71075-3D010B0 |
TRN215,VZN215..SSRX 20周年ｱﾆﾊﾞｰｻﾘｰ ﾊﾟｯｹｰｼﾞ,DARK GRAY,TRIM1# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 71227-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
4 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 71227-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
4 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 71227-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
4 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 71227-35010 |
KDN215,RZN21#,TRN21#,VZN21# |
4 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-35490B0 |
KDN215,RZN21#,TRN21#,VZN21# STONE,TRIM1# |
1 | ||
| 71076-35490E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71076-35510B0 |
TRN215,VZN215..SSRX 20周年ｱﾆﾊﾞｰｻﾘｰ ﾊﾟｯｹｰｼﾞ,DARK GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-3D460B0 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 71077-3D460E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71077-3D461B0 |
KDN215,TRN21#,VZN21# STONE,TRIM1# |
1 | ||
| 71077-3D481B0 |
TRN215,VZN215..SSRX 20周年ｱﾆﾊﾞｰｻﾘｰ ﾊﾟｯｹｰｼﾞ,DARK GRAY,TRIM1# |
1 | ||
| 71077-3D461E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 71293-35030 |
KDN215,RZN21#,VZN21# |
4 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 71293-35030 |
KDN215,RZN21#,VZN21# |
4 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-35691E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71078-35691B0 |
KDN215,TRN21#,VZN21# STONE,TRIM1# |
1 | ||
| 71078-35711B0 |
TRN215,VZN215..SSRX 20周年ｱﾆﾊﾞｰｻﾘｰ ﾊﾟｯｹｰｼﾞ,DARK GRAY,TRIM1# |
1 | ||
| 71078-35690B0 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 71078-35690E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71301B - HINGE SUB-ASSY, REAR NO.1 SEAT, RH | ||||
| 71301-35040 |
KDN215,RZN21#,TRN21#,VZN21# 内側 |
1 | ||
| 71301-35050 |
KDN215,RZN21#,TRN21#,VZN21# 外側 |
1 | ||
| 71302B - HINGE SUB-ASSY, REAR NO.1 SEAT, LH | ||||
| 71301-35040 |
KDN215,RZN21#,TRN21#,VZN21# 内側 |
1 | ||
| 71301-35050 |
KDN215,RZN21#,TRN21#,VZN21# 外側 |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-35020 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-35060 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-35060 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 71393A - BAND, REAR SEAT CUSHION, RH | ||||
| 71393-35020B0 |
TRN215,VZN215..SSRX GRAY,TRIM12 |
1 | ||
| 71393-35020C0 |
TRN215,VZN215..SSRX BLACK,TRIM13 |
1 | ||
| 71393-35020E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71393B - BAND, REAR SEAT CUSHION, LH | ||||
| 71393-35020C0 |
TRN215,VZN215..SSRX BLACK,TRIM13 |
1 | ||
| 71393-35020E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71393-35020B0 |
TRN215,VZN215..SSRX GRAY,TRIM12 |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-35070 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-35030 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-35030E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
4 | ||
| 71629-35030B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
4 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-35030E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
4 | ||
| 71629-35030B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
4 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-35060 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-35040 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71880-35010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 71880-35010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71890-35010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71890-35010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
3 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM12 |
3 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
3 | ||
| 71931-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
3 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM12 |
3 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
3 | ||
| 71931-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
3 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM12 |
3 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
3 | ||
| 71931-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
3 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM12 |
3 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
3 | ||
| 71931-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
3 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM12 |
3 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
3 | ||
| 71931-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
3 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM12 |
3 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
3 | ||
| 71931-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35440B0 |
TRN215,VZN215..SSRX 20周年ｱﾆﾊﾞｰｻﾘｰ ﾊﾟｯｹｰｼﾞ,DARK GRAY,TRIM1# |
2 | ||
| 71940-35420B0 |
KDN215,RZN21#,TRN21#,VZN21# STONE,TRIM1# |
2 | ||
| 71940-35420E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-35440B0 |
TRN215,VZN215..SSRX 20周年ｱﾆﾊﾞｰｻﾘｰ ﾊﾟｯｹｰｼﾞ,DARK GRAY,TRIM1# |
2 | ||
| 71940-35420B0 |
KDN215,RZN21#,TRN21#,VZN21# STONE,TRIM1# |
2 | ||
| 71940-35420E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-35010B0 |
KDN215,RZN21#,TRN21#,VZN21# STONE,TRIM1# |
1 | ||
| 71960-35030B0 |
TRN215,VZN215..SSRX 20周年ｱﾆﾊﾞｰｻﾘｰ ﾊﾟｯｹｰｼﾞ,DARK GRAY,TRIM1# |
1 | ||
| 71960-35010E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-35020 |
KDN215,TRN21#,VZN21# |
2 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-35020 |
KDN215,TRN21#,VZN21# |
2 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-35040 |
KDN215,RZN21#,VZN21# |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-35040 |
KDN215,RZN21#,VZN21# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33020B5 |
VZN215..SSRX STONE,TRIM12 |
2 | ||
| 72646-33020B6 |
VZN215..SSRX DK.GRAY,TRIM13 |
2 | ||
| 72646-33020E1 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-33020B5 |
VZN215..SSRX STONE,TRIM12 |
2 | ||
| 72646-33020B6 |
VZN215..SSRX DK.GRAY,TRIM13 |
2 | ||
| 72646-33020E1 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
2 | ||
| 72661-35010B1 |
VZN215..SSRX DK.GRAY,TRIM13 |
2 | ||
| 72661-35010B0 |
VZN215..SSRX STONE,TRIM12 |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-35010B0 |
VZN215..SSRX STONE,TRIM12 |
2 | ||
| 72661-35010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
2 | ||
| 72661-35010B1 |
VZN215..SSRX DK.GRAY,TRIM13 |
2 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-35020E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72665-35020B0 |
VZN215..SSRX STONE,TRIM12 |
1 | ||
| 72665-35020B1 |
VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72665-35020E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72665-35020B0 |
VZN215..SSRX STONE,TRIM12 |
1 | ||
| 72665-35020B1 |
VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP | ||||
| 72806-35010B0 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 72806-35010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72806-35010B1 |
VZN215..SSRX DK.GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-35040B0 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 72830-35060B0 |
TRN215,VZN215..SSRX 20周年ｱﾆﾊﾞｰｻﾘｰ ﾊﾟｯｹｰｼﾞ,DARK GRAY,TRIM1# |
1 | ||
| 72830-35040E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-35010B1 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 72868-35010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72881 - SUPPORT, REAR SEAT CENTER ARMREST, RH | ||||
| 72881-35010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-35030B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72927-35030E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-35030B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72928-35030E0 |
KDN215,RZN21#,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-35040B0 |
VZN215..SSRX STONE,TRIM12,13 |
3 | ||
| 72996-35040E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
3 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-35040B0 |
VZN215..SSRX STONE,TRIM12,13 |
3 | ||
| 72996-35040E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
3 | ||
| Common parts | ||||
| 72702-35010 | ||||
| 72702-60080 | ||||
| 90105-08202 | ||||
| 90105-08298 | ||||
| 90159-60354 | ||||
| 90168-40125 | ||||
| 90386-06009 | ||||
| 90467-10161 | ||||
| 91553-10822 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 7152 | ||||

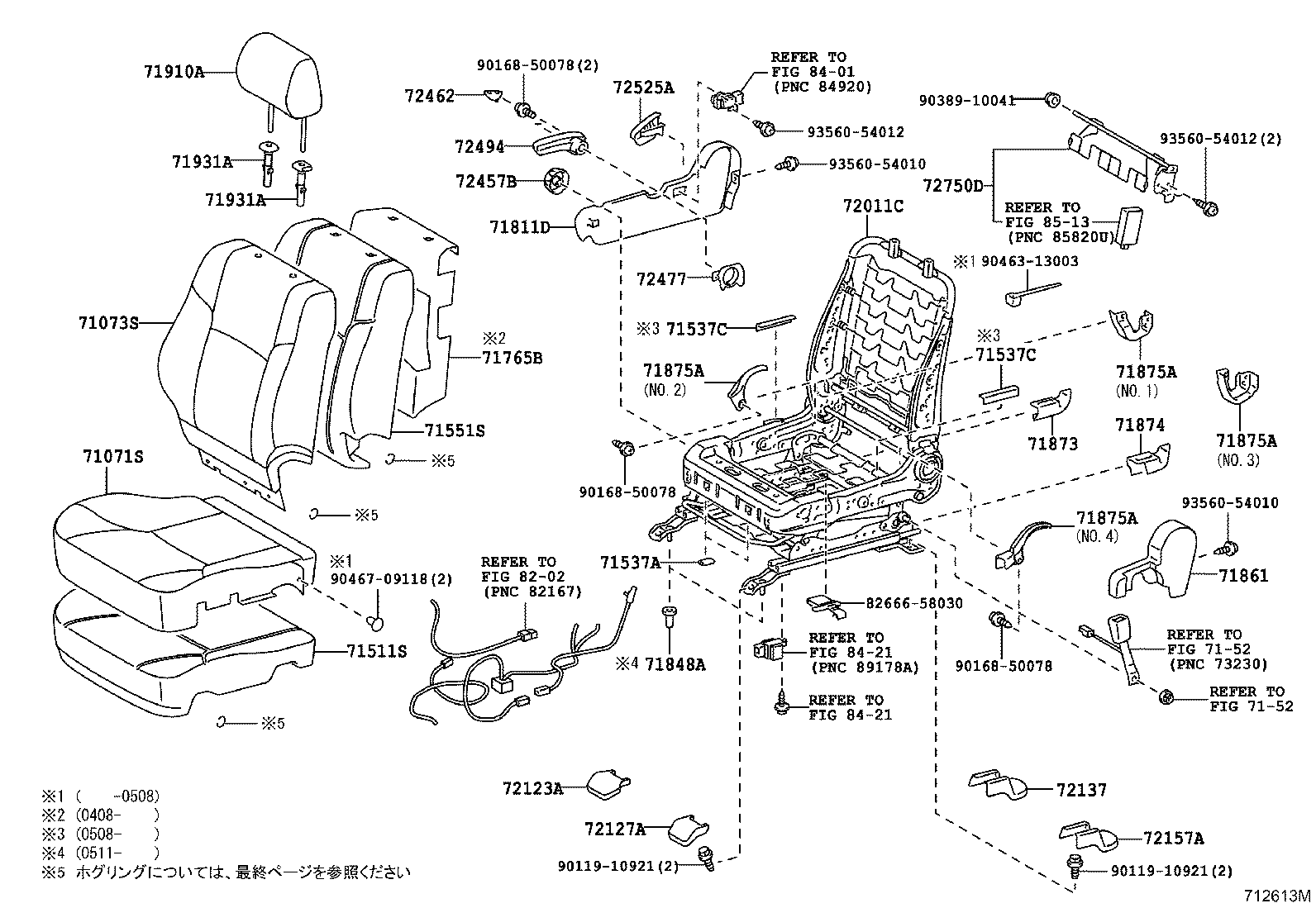

ILLUST NO. 1 OF 3(0211- )
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3G280B1 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71071-3G280B4 |
TRN215,VZN215..SSRX DARK GRAY,TRIM13 |
1 | ||
| 71071-3G280B1 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71071-3G280E1 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3G440B0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71073-3G440E0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71073-3G220B2 |
VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71073-3G220E1 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71073-3G220B3 |
VZN215..SSRX DARK GRAY,TRIM13 |
1 | ||
| 71073-3G440B0 |
KDN215,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71073-3G440B2 |
TRN215..SSRX;KDN215,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,ST0NE,TRIM12 |
1 | ||
| 71073-3G440E0 |
KDN215,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM42 |
1 | ||
| 71073-3G440B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-35100 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
KDN215,RZN21#,VZN21# |
4 | ||
| 71537-26010 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35101 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71551-35110 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-35111 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-35100 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71765B - PROTECTOR, FRONT SEAT BACK, RH | ||||
| 71765-60060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71811-35160B0 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71811-35160B0 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71811-35160B1 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100B2 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71861-60100E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71861-60100B2 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71861-60100B3 |
TRN215,VZN215..SSRX DK. GRAY,TRIM13 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58020 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700E0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71910-35700B0 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71910-35700E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
2 | ||
| 71910-35700B0 |
VZN215..SSRX STONE,TRIM1# |
2 | ||
| 71910-35700B0 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
2 | ||
| 71910-35700B0 |
TRN215,VZN215..SSRX STONE,TRIM12 |
2 | ||
| 71910-35700B1 |
TRN215,VZN215..SSRX DARK GRAY,TRIM13 |
2 | ||
| 71910-35700E0 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71910-35700B1 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
3 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM12 |
3 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
3 | ||
| 71931-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
3 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM12 |
3 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
3 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
3 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
3 | ||
| 71931-42020B4 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
3 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-35070 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71110-35010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71110-35071 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71110-35200 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-35010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72123-35010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-35010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72127-35010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-35070E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72137-35070B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72137-35070B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72137-35070E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-58010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72457-58010B1 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 72457-58010B1 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 72457-58010B0 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-60010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72462-60010B1 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 72462-60010B1 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 72462-60010B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 72462-58010B1 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 72462-58010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-60010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72494-60020B1 |
TRN215,VZN215..SSRX STONE,TRIM12 |
2 | ||
| 72494-60020B1 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 72494-60020E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72494-60010B1 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 72494-60020B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100B2 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 72525-60100B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 72525-60100E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72525-60100B2 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-48020 |
KDN215,RZN21#,VZN21# |
1 | ||
| 72750-60050 |
KDN215,RZN21#,VZN21# |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90168-50078 | ||||
| 90389-10041 | ||||
| 90463-13003 | ||||
| 90467-09118 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||

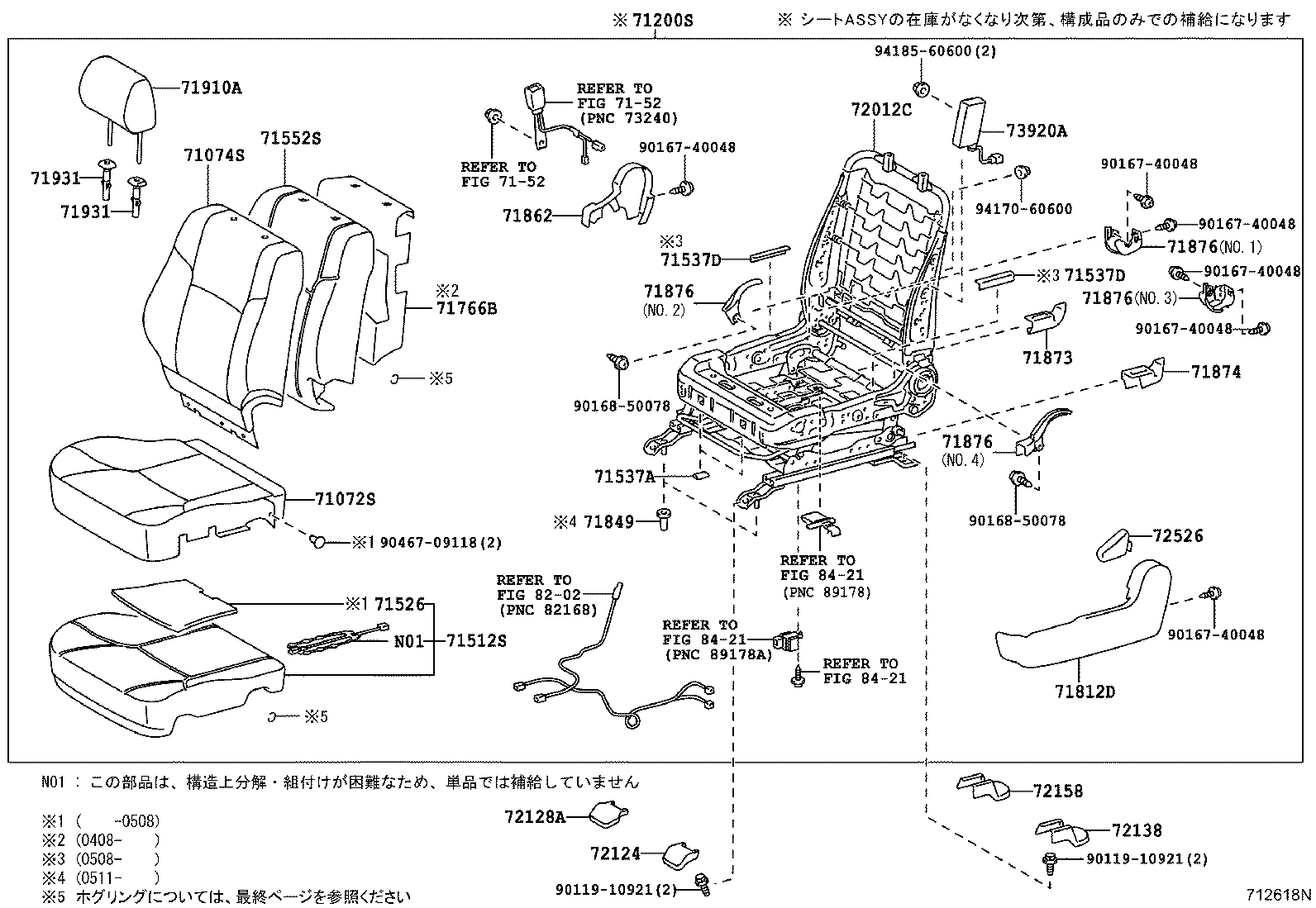

ILLUST NO. 1 OF 3(0211- )
ｳﾝﾃﾝｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-3G280B1 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71071-3G280B4 |
TRN215,VZN215..SSRX DARK GRAY,TRIM13 |
1 | ||
| 71071-3G280B1 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71071-3G280E1 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-3G440B0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71073-3G440E0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71073-3G220B2 |
VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71073-3G220E1 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71073-3G220B3 |
VZN215..SSRX DARK GRAY,TRIM13 |
1 | ||
| 71073-3G440B0 |
KDN215,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71073-3G440B2 |
TRN215..SSRX;KDN215,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,ST0NE,TRIM12 |
1 | ||
| 71073-3G440E0 |
KDN215,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM42 |
1 | ||
| 71073-3G440B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-3G130E3 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71100-3G131B0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71100-3G130B3 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71100-3G132E1 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71100-3G132B1 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71100-3G132B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
1 | ||
| 71100-3G131E0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-35100 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
KDN215,RZN21#,VZN21# |
4 | ||
| 71537-26010 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35101 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71551-35110 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-35111 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-35100 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71765B - PROTECTOR, FRONT SEAT BACK, RH | ||||
| 71765-60060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-35160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71811-35160B0 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71811-35160B0 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71811-35160B1 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60100B2 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71861-60100E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71861-60100B2 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71861-60100B3 |
TRN215,VZN215..SSRX DK. GRAY,TRIM13 |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58020 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700E0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71910-35700B0 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71910-35700E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
2 | ||
| 71910-35700B0 |
VZN215..SSRX STONE,TRIM1# |
2 | ||
| 71910-35700B0 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
2 | ||
| 71910-35700B0 |
TRN215,VZN215..SSRX STONE,TRIM12 |
2 | ||
| 71910-35700B1 |
TRN215,VZN215..SSRX DARK GRAY,TRIM13 |
2 | ||
| 71910-35700E0 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71910-35700B1 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM1# |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM1# |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
2 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
2 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM1# |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM1# |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
2 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
2 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 72011C - ADJUSTER SUB-ASSY, FRONT SEAT, RH | ||||
| 71110-35070 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71110-35010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71110-35071 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71110-35200 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-35010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72123-35010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-35010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72127-35010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-35070E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72137-35070B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72137-35070B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72137-35070E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72457B - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-58010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72457-58010B1 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 72457-58010B1 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 72457-58010B0 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 72462 - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-60010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72462-60010B1 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 72462-60010B1 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 72462-60010B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 72462-58010B1 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 72462-58010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-58010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-60010E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72494-60020B1 |
TRN215,VZN215..SSRX STONE,TRIM12 |
2 | ||
| 72494-60020B1 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 72494-60020E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72494-60010B1 |
KDN215,RZN21#,VZN21# STONE,TRIM1# |
1 | ||
| 72494-60020B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-60100B2 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 72525-60100B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 72525-60100E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72525-60100B2 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-48020 |
KDN215,RZN21#,VZN21# |
1 | ||
| 72750-60050 |
KDN215,RZN21#,VZN21# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-58010 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90119-10921 | ||||
| 90168-50078 | ||||
| 90389-10041 | ||||
| 90463-13003 | ||||
| 90467-09118 | ||||
| 93560-54010 | ||||
| 93560-54012 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
| 8513 | ||||

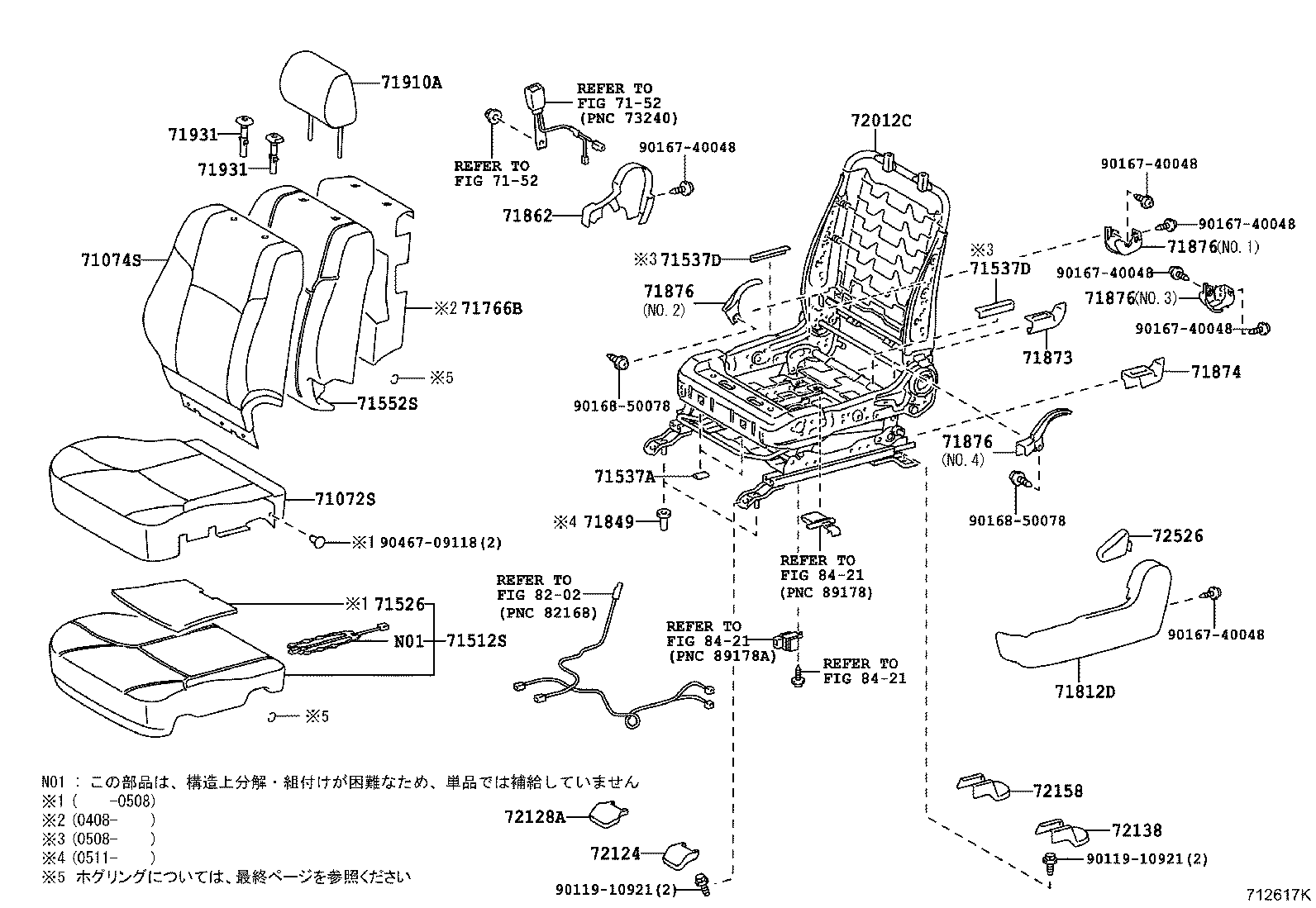

ILLUST NO. 2 OF 3(0211- )
ｼﾞﾖｼﾕｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35180E1 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71072-35180B1 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71072-35180B1 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71072-35180B1 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71072-35180E1 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71072-35180B1 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71072-35180B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
1 | ||
| 71072-35180B2 |
TRN215,VZN215..SSRX DARK GRAY,TRIM13 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3G220B2 |
VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71074-35620B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71073-3G220B3 |
VZN215..SSRX DARK GRAY,TRIM13 |
1 | ||
| 71073-3G220E1 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71074-35620B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
1 | ||
| 71074-35620B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71074-35620E1 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-35090 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71501-35090 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71526 - PAD,FRONT SEAT CUSHION COVER,CENTER LH | ||||
| 71525-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
KDN215,RZN21#,VZN21# |
4 | ||
| 71537-26010 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-35030 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-35101 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71551-35100 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71766B - PROTECTOR, FRONT SEAT BACK, LH | ||||
| 71765-60060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35160B0 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71812-35160B1 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 71812-35160B0 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71812-35160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71812-35160B0 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71812-35160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71812-35160B1 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13 |
1 | ||
| 71812-35160B0 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110B2 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71862-60110B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71862-60110E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71862-60110B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71862-60110B2 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71862-60110B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13 |
1 | ||
| 71862-60110B3 |
TRN215,VZN215..SSRX DK. GRAY,TRIM13 |
1 | ||
| 71862-60110E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58020 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.4 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.S |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.Q |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.3 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.4 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.S |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.Q |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.3 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.4 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.S |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.Q |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.3 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.4 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.S |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.Q |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.3 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.4 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700E0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71910-35700B0 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71910-35700E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
2 | ||
| 71910-35700B0 |
VZN215..SSRX STONE,TRIM1# |
2 | ||
| 71910-35700B0 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
2 | ||
| 71910-35700B0 |
TRN215,VZN215..SSRX STONE,TRIM12 |
2 | ||
| 71910-35700B1 |
TRN215,VZN215..SSRX DARK GRAY,TRIM13 |
2 | ||
| 71910-35700E0 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71910-35700B1 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM1# |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM1# |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
2 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
2 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM1# |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM1# |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
2 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
2 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-35050 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71120-35160 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-35010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72124-35010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-35010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72128-35010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-35050B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72138-35050B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070B2 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 72526-60070E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72526-60070B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 72526-60070B2 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 72526-60070E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 72526-60070B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13 |
1 | ||
| 72526-60070B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 72526-60070B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 90467-09118 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
ILLUST NO. 2 OF 3(0211- )
ｼﾞﾖｼﾕｾｷ-ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞﾂｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35180B1 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71072-35180B1 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71072-35180E1 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71072-35180B1 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71072-35180E1 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71072-35180B1 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71072-35180B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
1 | ||
| 71072-35180B2 |
TRN215,VZN215..SSRX DARK GRAY,TRIM13 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-3G220B2 |
VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71074-35620B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71073-3G220B3 |
VZN215..SSRX DARK GRAY,TRIM13 |
1 | ||
| 71073-3G220E1 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71074-35620B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
1 | ||
| 71074-35620B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71074-35620E1 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-3D740B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
1 | ||
| 71200-3D740B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71200-3D740E2 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71200-3D740B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-35090 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71501-35090 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71526 - PAD,FRONT SEAT CUSHION COVER,CENTER LH | ||||
| 71525-35010 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
KDN215,RZN21#,VZN21# |
4 | ||
| 71537-26010 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-35030 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-35101 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71551-35100 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71766B - PROTECTOR, FRONT SEAT BACK, LH | ||||
| 71765-60060 |
KDN215,TRN21#,VZN21# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-35160B0 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71812-35160B1 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 71812-35160B0 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71812-35160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71812-35160B0 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71812-35160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71812-35160B1 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13 |
1 | ||
| 71812-35160B0 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60110B2 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 71862-60110B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71862-60110E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 71862-60110B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 71862-60110B2 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 71862-60110B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13 |
1 | ||
| 71862-60110B3 |
TRN215,VZN215..SSRX DK. GRAY,TRIM13 |
1 | ||
| 71862-60110E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-58020 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-58010 |
KDN215,RZN21#,VZN21# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.4 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.S |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.Q |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.3 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.4 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.S |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.Q |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.3 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.3 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.4 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.S |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.Q |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.3 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.4 |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.2 |
1 | ||
| 71875-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.2 |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.1 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX STONE,TRIM1#,NO.4 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# BLACK,NO.3 |
1 | ||
| 71876-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.3 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1#,NO.4 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.S |
1 | ||
| 71875-58060C0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,BLACK,NO.1 |
1 | ||
| 71875-60160E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4#,NO.Q |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4#,NO.4 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# NO.1 |
1 | ||
| 71875-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.1 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.2 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# NO.3 |
1 | ||
| 71876-58060 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.3 |
1 | ||
| 71875-60160B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13,NO.2 |
1 | ||
| 71876-60160B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13,NO.4 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX STONE,TRIM12,NO.4 |
1 | ||
| 71875-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.2 |
1 | ||
| 71876-60160B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12,NO.4 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35700E0 |
KDN215,RZN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71910-35700B0 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 71910-35700E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
2 | ||
| 71910-35700B0 |
VZN215..SSRX STONE,TRIM1# |
2 | ||
| 71910-35700B0 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
2 | ||
| 71910-35700B0 |
TRN215,VZN215..SSRX STONE,TRIM12 |
2 | ||
| 71910-35700B1 |
TRN215,VZN215..SSRX DARK GRAY,TRIM13 |
2 | ||
| 71910-35700E0 |
KDN215,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71910-35700B1 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DARK GRAY,TRIM13 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM1# |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM1# |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
2 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
2 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),STONE,TRIM1# |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM1# |
1 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
1 | ||
| 71930-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 71930-42020B3 |
VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM1# |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),STONE,TRIM12 |
2 | ||
| 71931-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),FAWN,TRIM4# |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020E0 |
KDN215,RZN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ有り),FAWN,TRIM4# |
2 | ||
| 71930-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,DK.GRAY,TRIM13 |
2 | ||
| 71930-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B3 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,STONE,TRIM12 |
2 | ||
| 71931-42020B4 |
TRN215,VZN215..SSRX ﾛｯｸ付(ﾎﾞﾀﾝ無し),DK.GRAY,TRIM13 |
2 | ||
| 71931-42020E0 |
KDN215,TRN21#,VZN21# ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,FAWN,TRIM4# |
2 | ||
| 72012C - ADJUSTER SUB-ASSY, FRONT SEAT, LH | ||||
| 71120-35050 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71120-35160 |
KDN215,RZN21#,TRN21#,VZN21# |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-35010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72124-35010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-35010B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72128-35010E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-35050B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72138-35050B0 |
TRN215,VZN215..SSRX STONE,TRIM12,13 |
1 | ||
| 72138-35050E0 |
KDN215,TRN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-60070B2 |
TRN215,VZN215..SSRX STONE,TRIM12 |
1 | ||
| 72526-60070E0 |
KDN215,RZN21#,VZN21# FAWN,TRIM4# |
1 | ||
| 72526-60070B2 |
VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM1# |
1 | ||
| 72526-60070B2 |
VZN215..SSRX STONE,TRIM1# |
1 | ||
| 72526-60070E0 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,FAWN,TRIM4# |
1 | ||
| 72526-60070B3 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,DK.GRAY,TRIM13 |
1 | ||
| 72526-60070B3 |
TRN215,VZN215..SSRX DK.GRAY,TRIM13 |
1 | ||
| 72526-60070B2 |
TRN215,VZN215..SSRX SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,STONE,TRIM12 |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-58010 |
KDN215,RZN21#,TRN21#,VZN21# SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 90467-09118 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8421 | ||||
(0211- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
